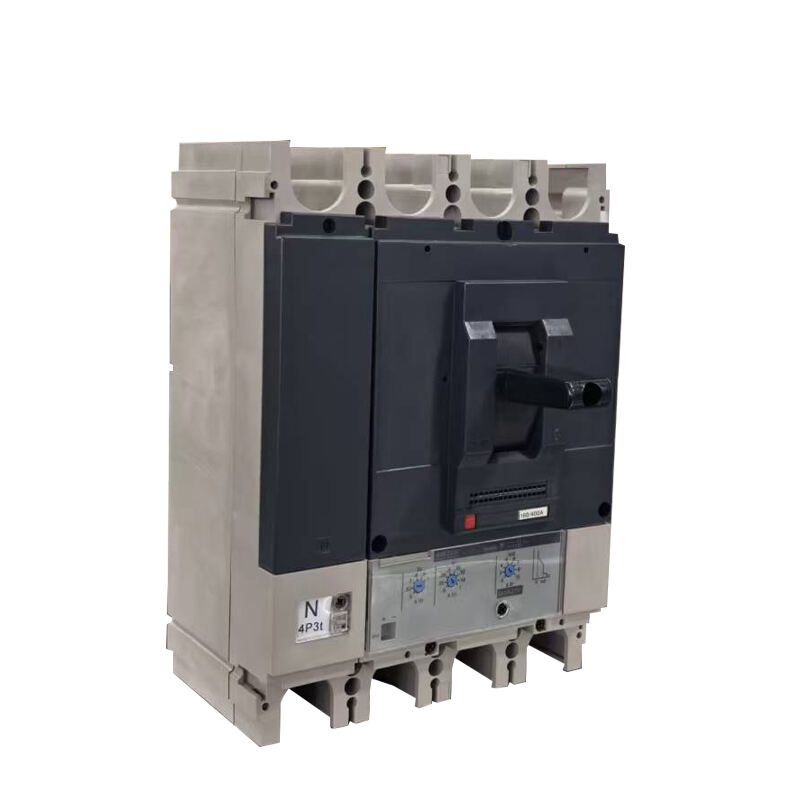

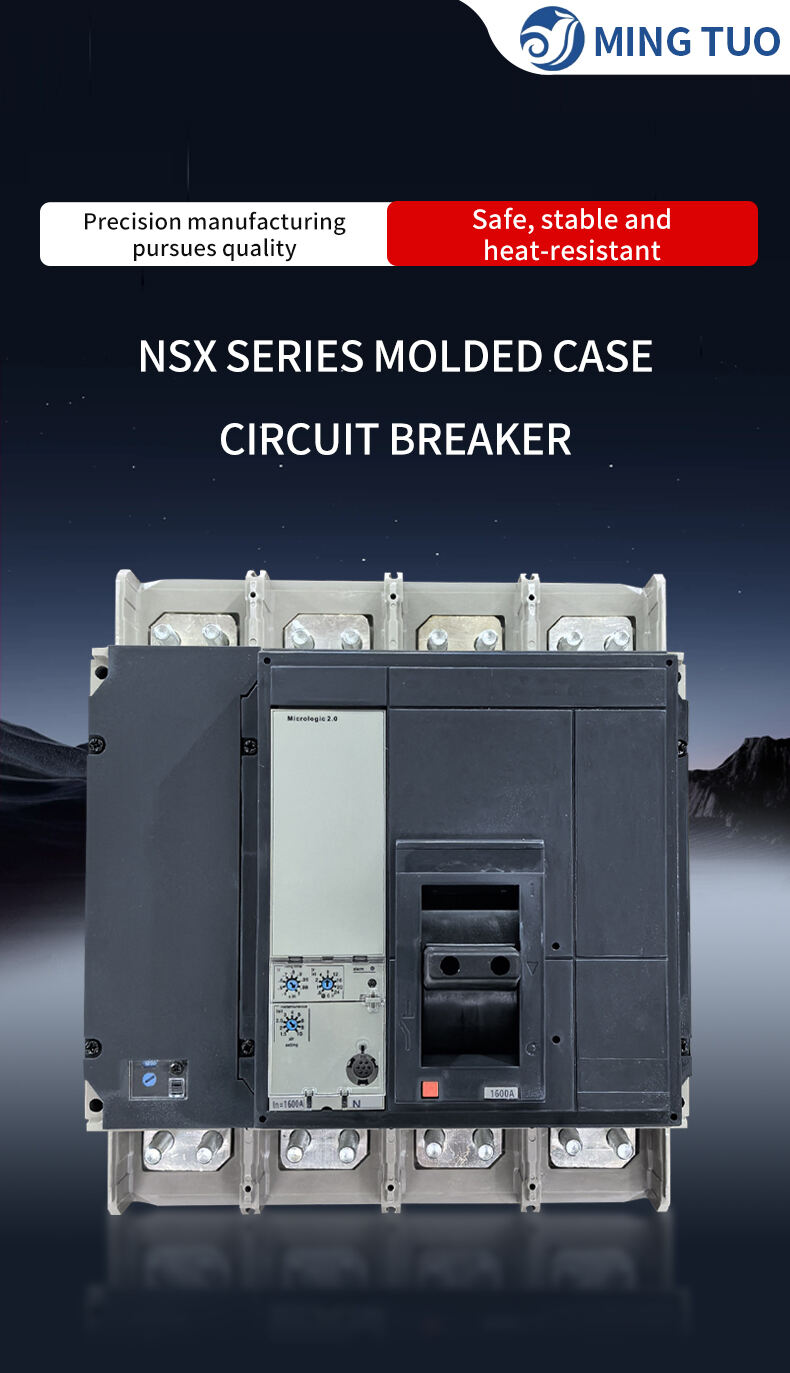

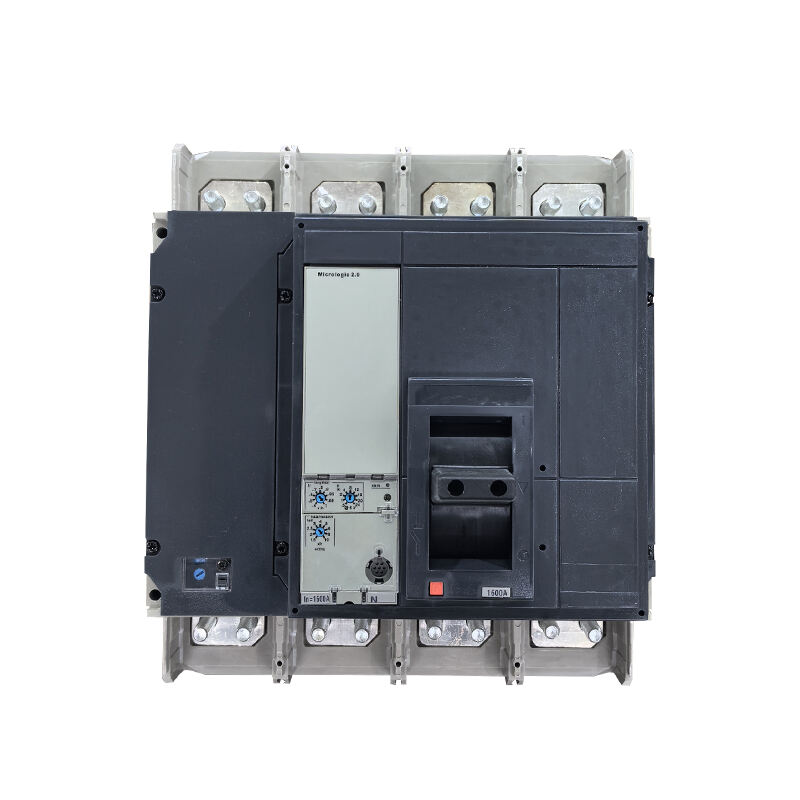

MT-NSX/MOLDED CASE CIRCUIT BREAKER
800, 1000, 1250, 1600
 |
 |
 |
General product information:
Place of Origin: |
Wenzhou, Zhejiang, China |
Price: |
320$ |
Brand Name: |
MINGTUO |
Packaging Details: |
Carton box packaging |
Model Number: |
MCCB MSX-160 |
Delivery Time: |
Within fifteen days |
Certification: |
IOS CE ROHS |
Payment Terms: |
100% prepaid, 70%/30%, 80%/20% |
Minimum Order Quantity: |
1 |
Supply Ability: |
Available at any time |
Description：
The Molded Case Circuit Breaker (MCCB) serves as a fundamental protection device in electrical distribution systems. Its primary purpose is to safeguard circuits and connected equipment against overload conditions and short-circuit faults. With adjustable trip settings and robust interrupting capacity, the MCCB provides reliable circuit protection while allowing for selective coordination in complex electrical networks.
Their core features include:
1. High breaking capacity: High breaking capacity ensures reliable protection of electrical systems under short-circuit or overload conditions.
2. Modular design: Supports various functional modules (e.g., residual current protection, communication modules) to meet diverse needs.
3. Precise protection: Equipped with thermal-magnetic or electronic trip units, providing precise overload, short-circuit, and ground fault protection.
4. Compact design: Saves installation space and is suitable for high-density distribution cabinets.
5. Intelligent functions: Supports communication interfaces (e.g., Micrologic) for remote monitoring and energy management.
6. High durability: Utilizes high-quality materials and advanced technology to ensure long service life and stable performance.

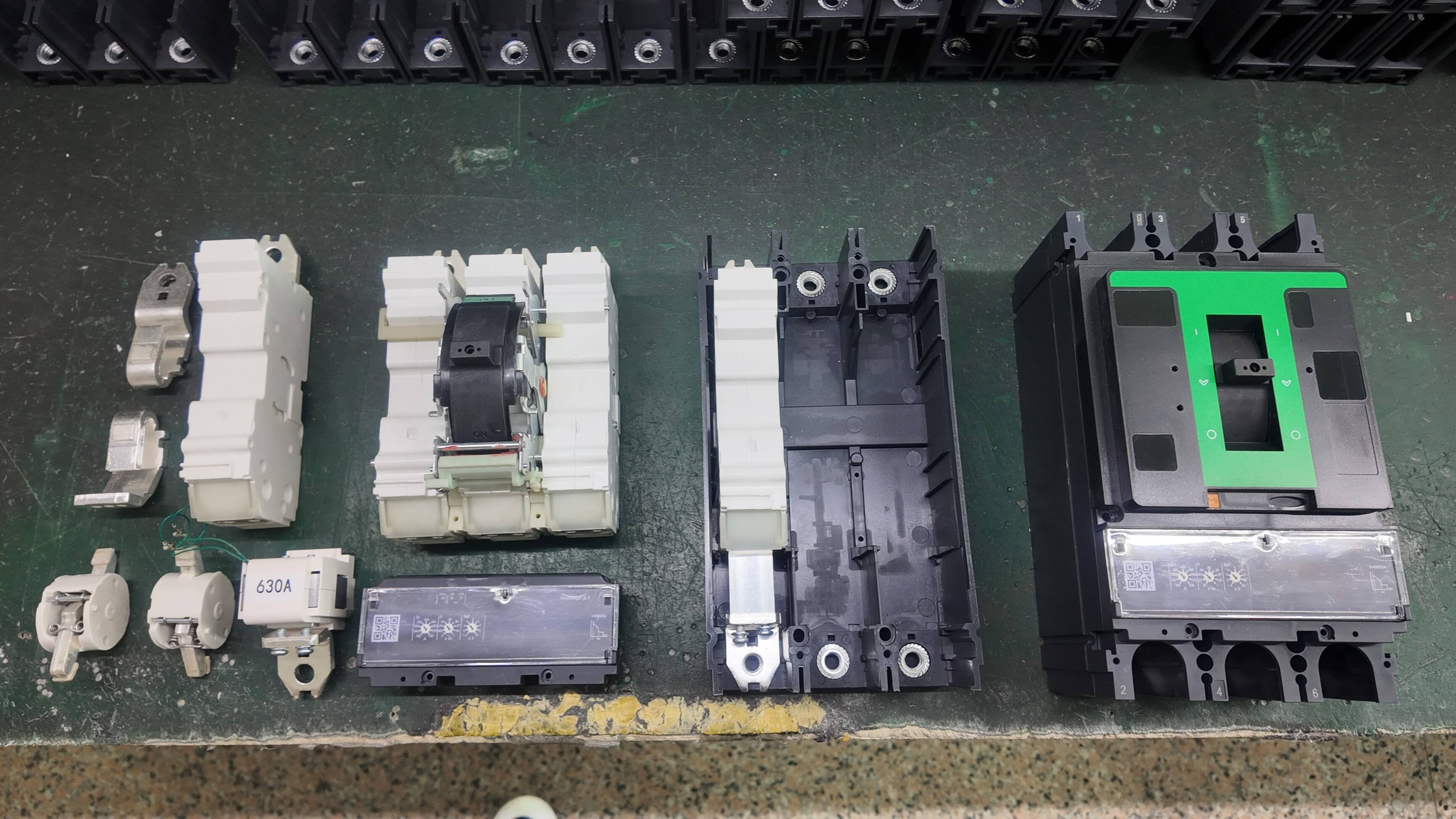

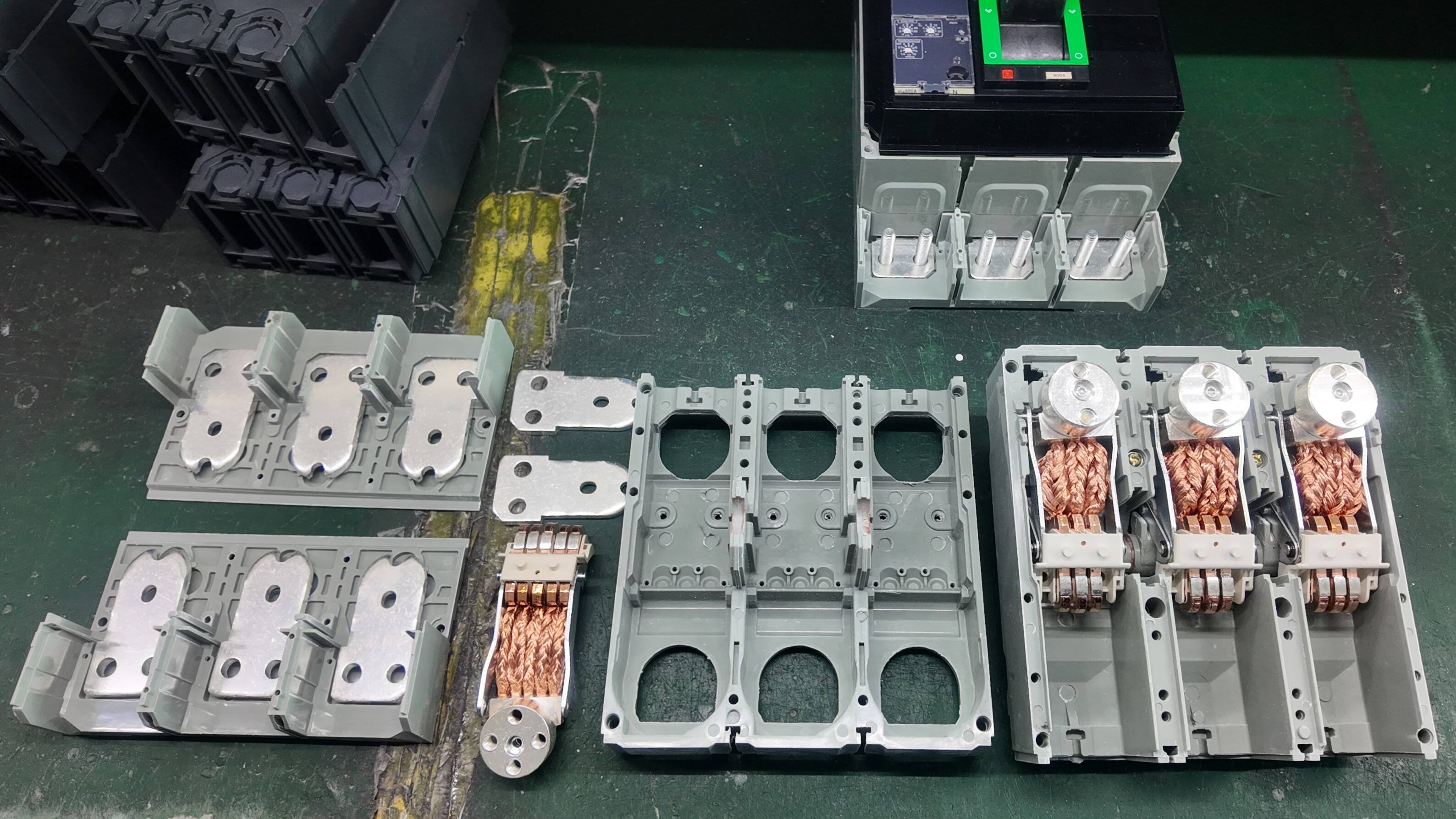

Internal materials
This series of circuit breakers adopts modular precision design, and the core components are made of high-performance materials to ensure their excellent performance, safety, and durability in critical power applications.

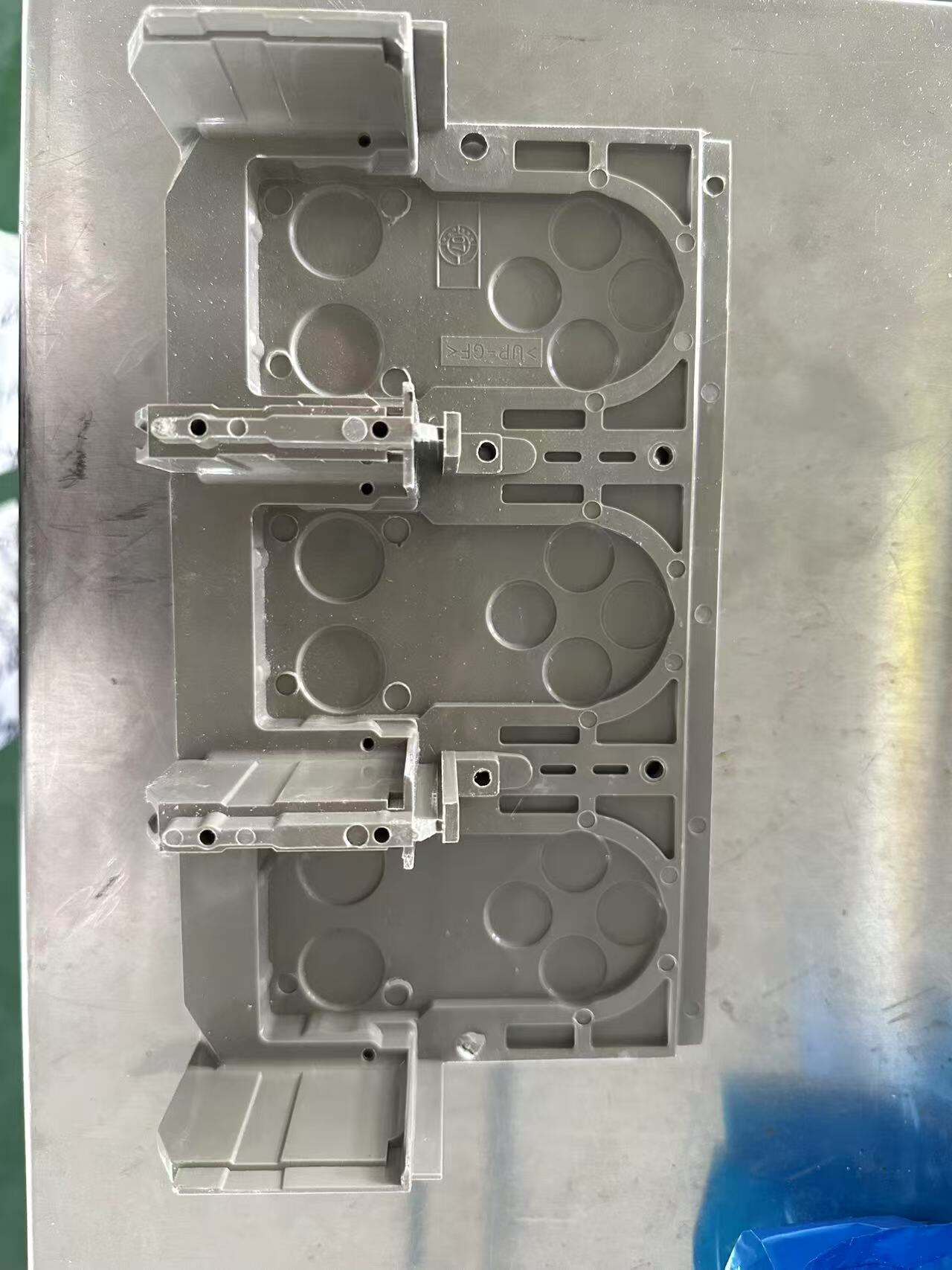

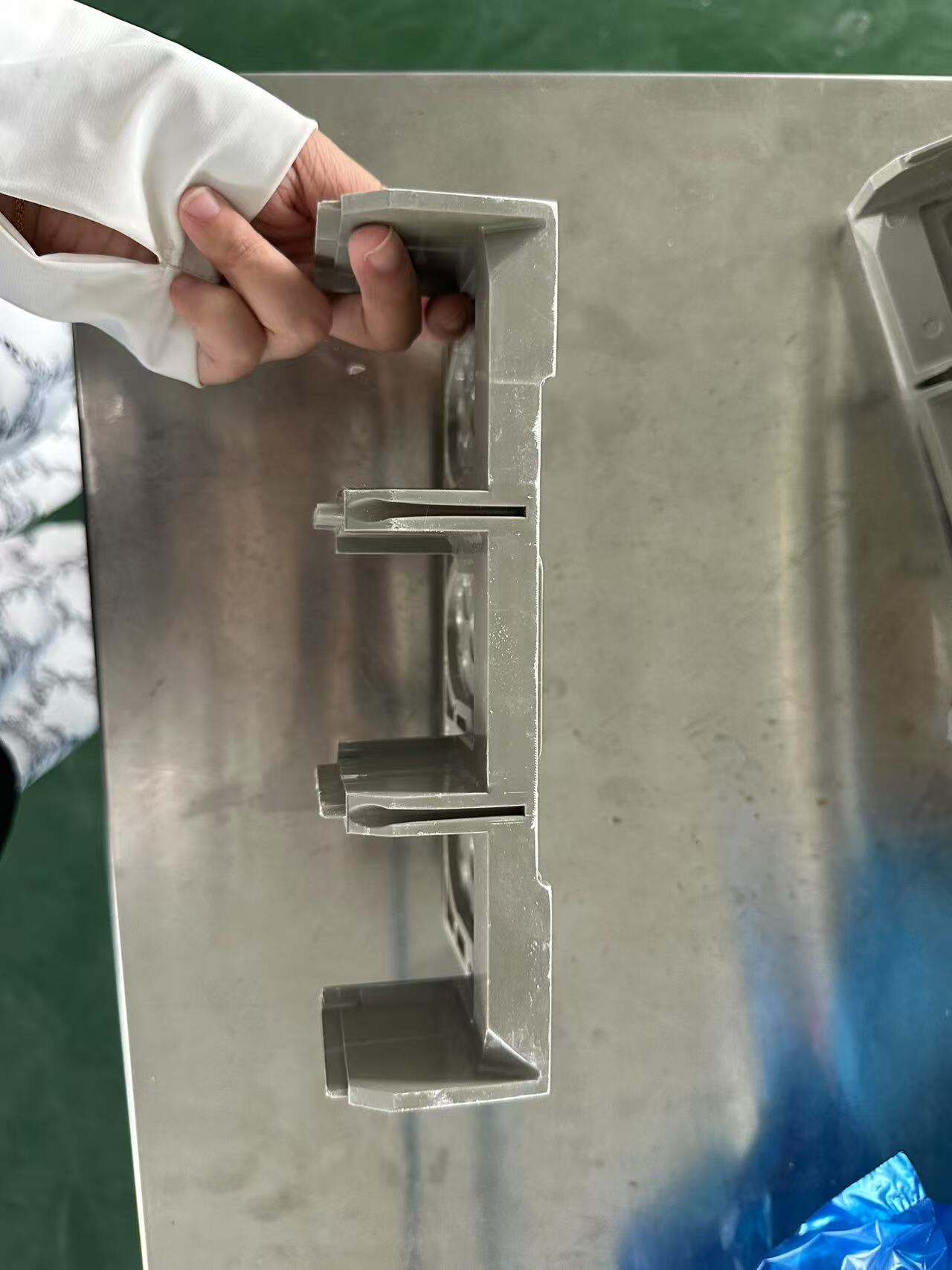

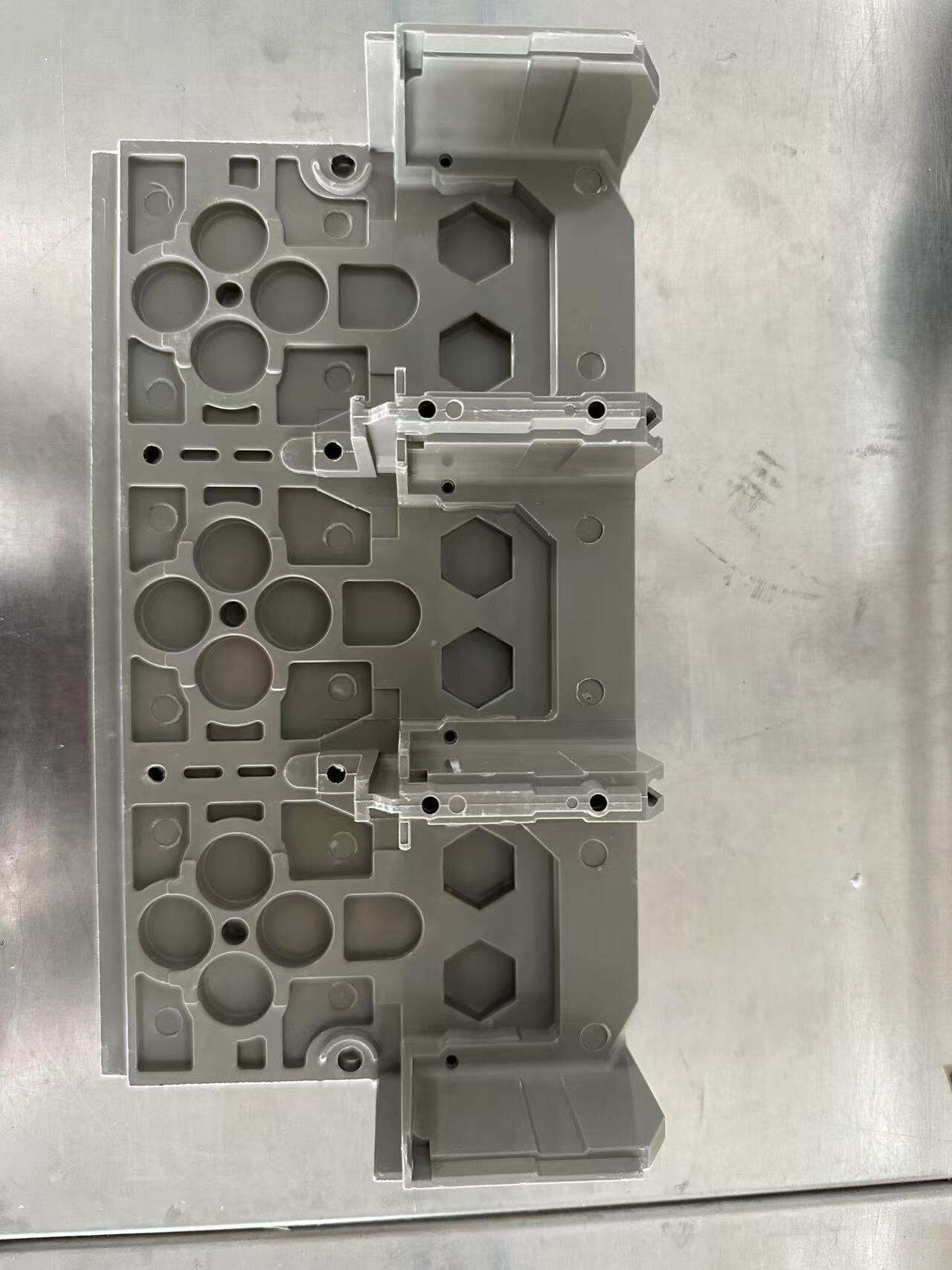

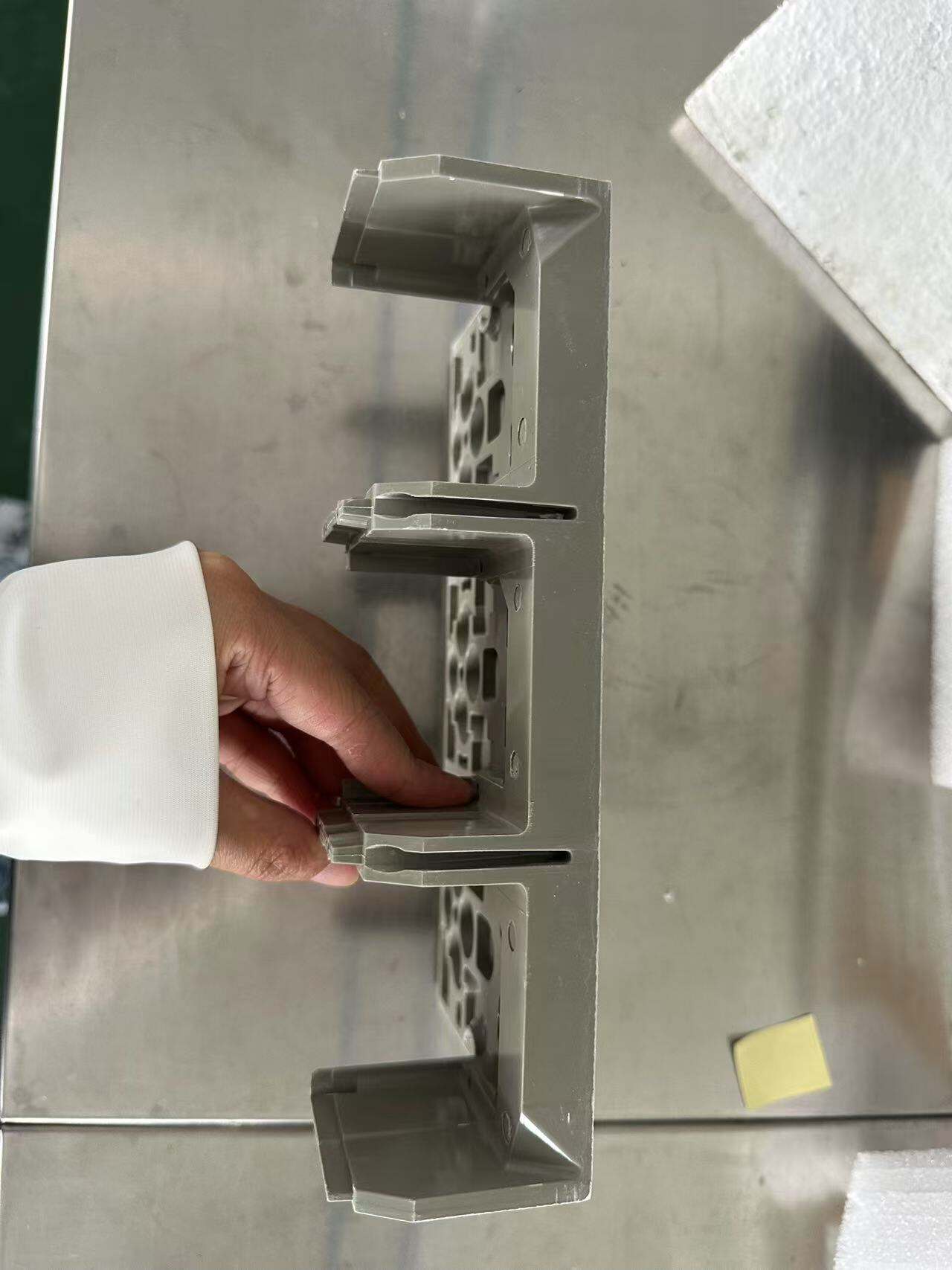

Upper & Lower Covers

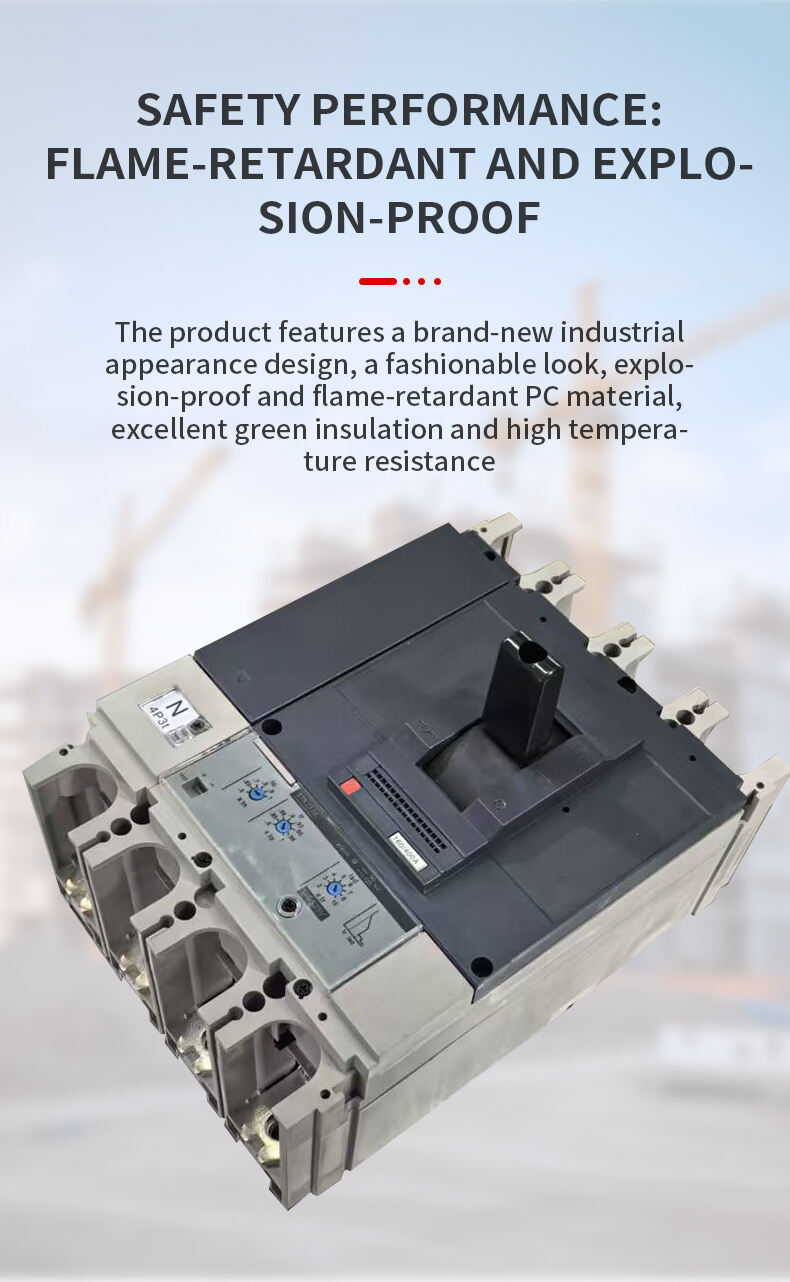

The covers are made of high-strength flame-retardant material, providing excellent fire resistance to protect the internal structure and enhance the overall safety of the electrical distribution system.
 |
 |
 |
 |

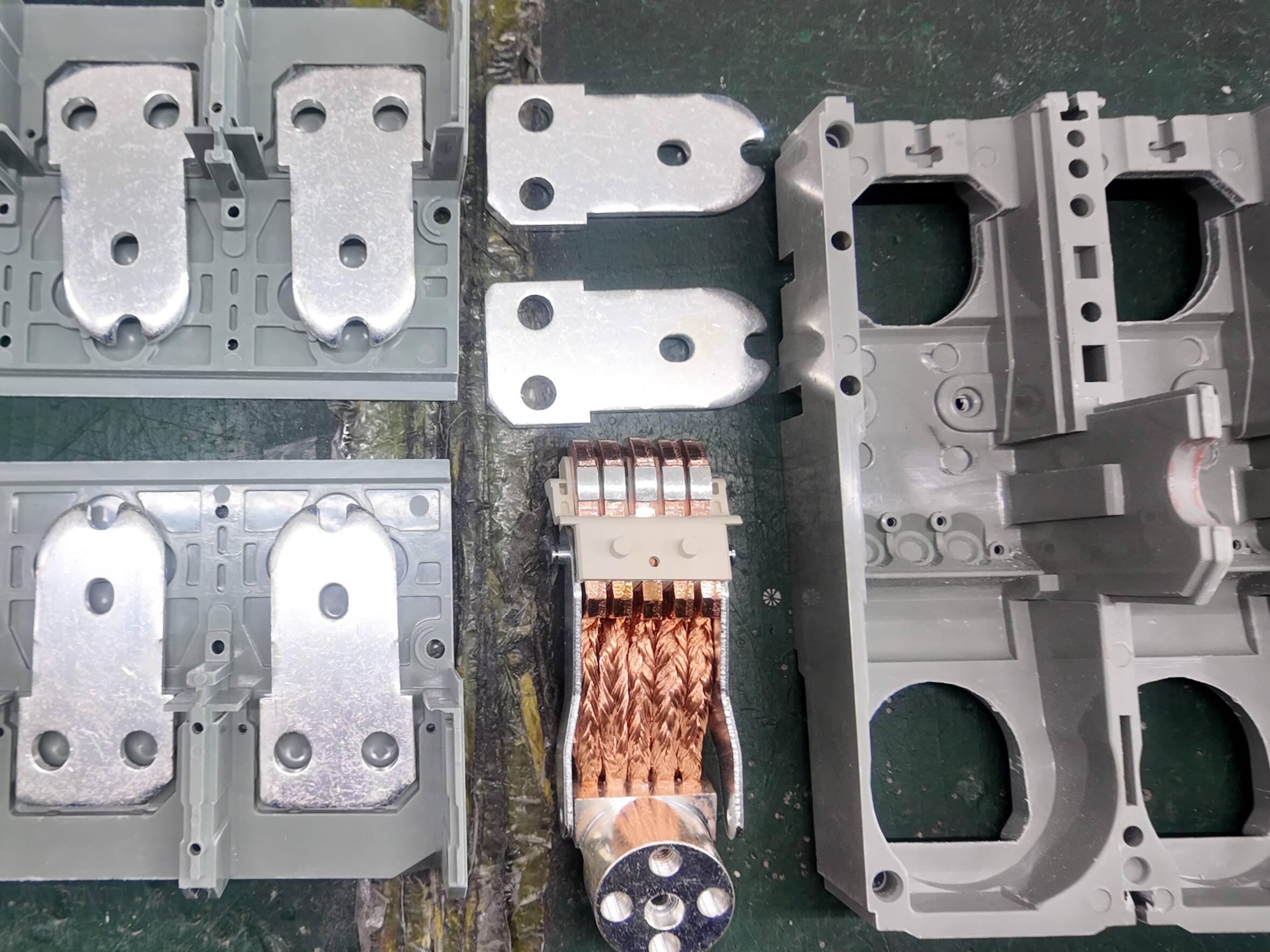

Copper Busbar
The copper busbar is precisely matched to the current rating (800A to 1600A), ensuring higher current capacity, reduced heat generation, and long-term stable power transmission.
 |
 |
 |

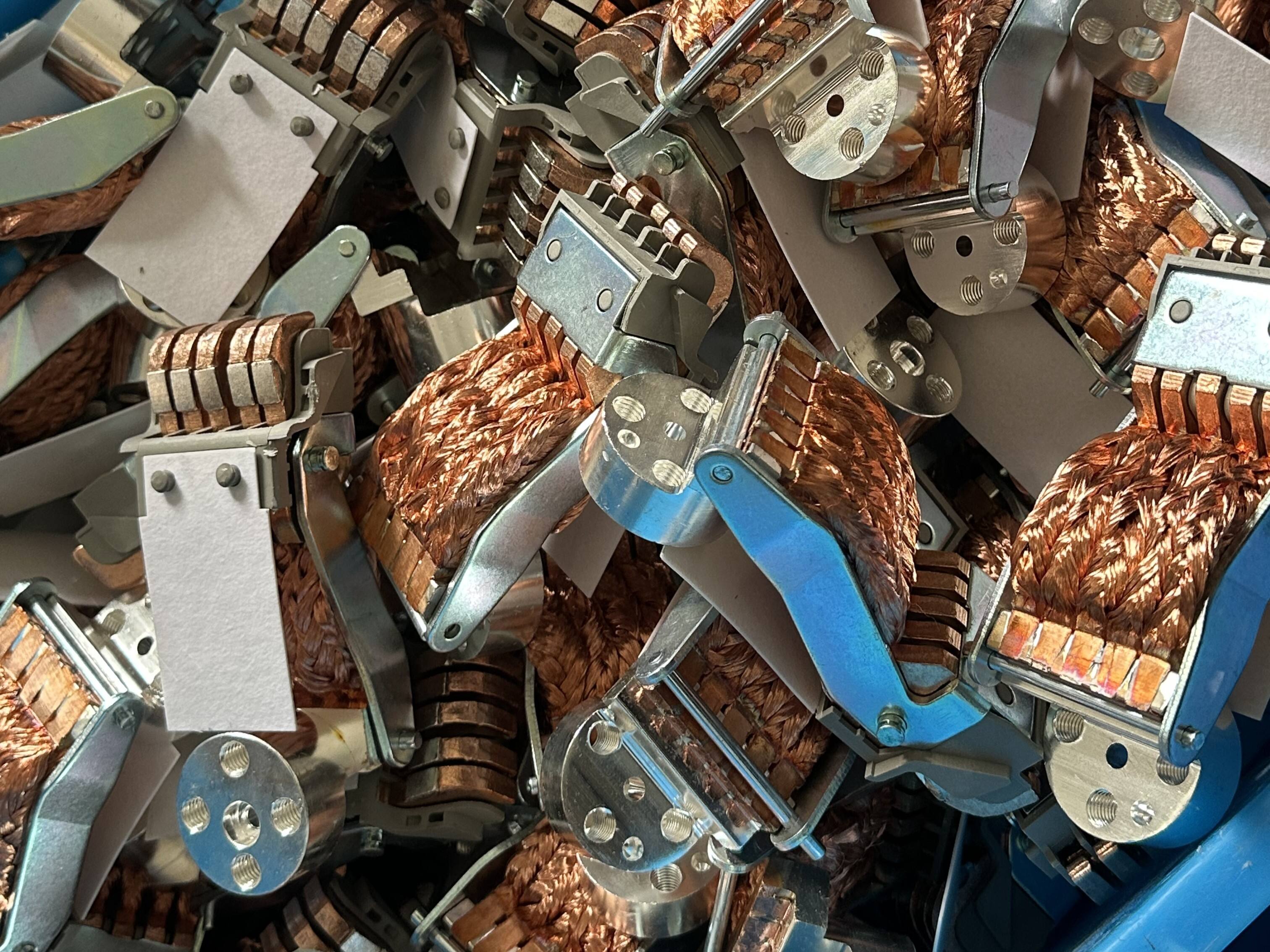

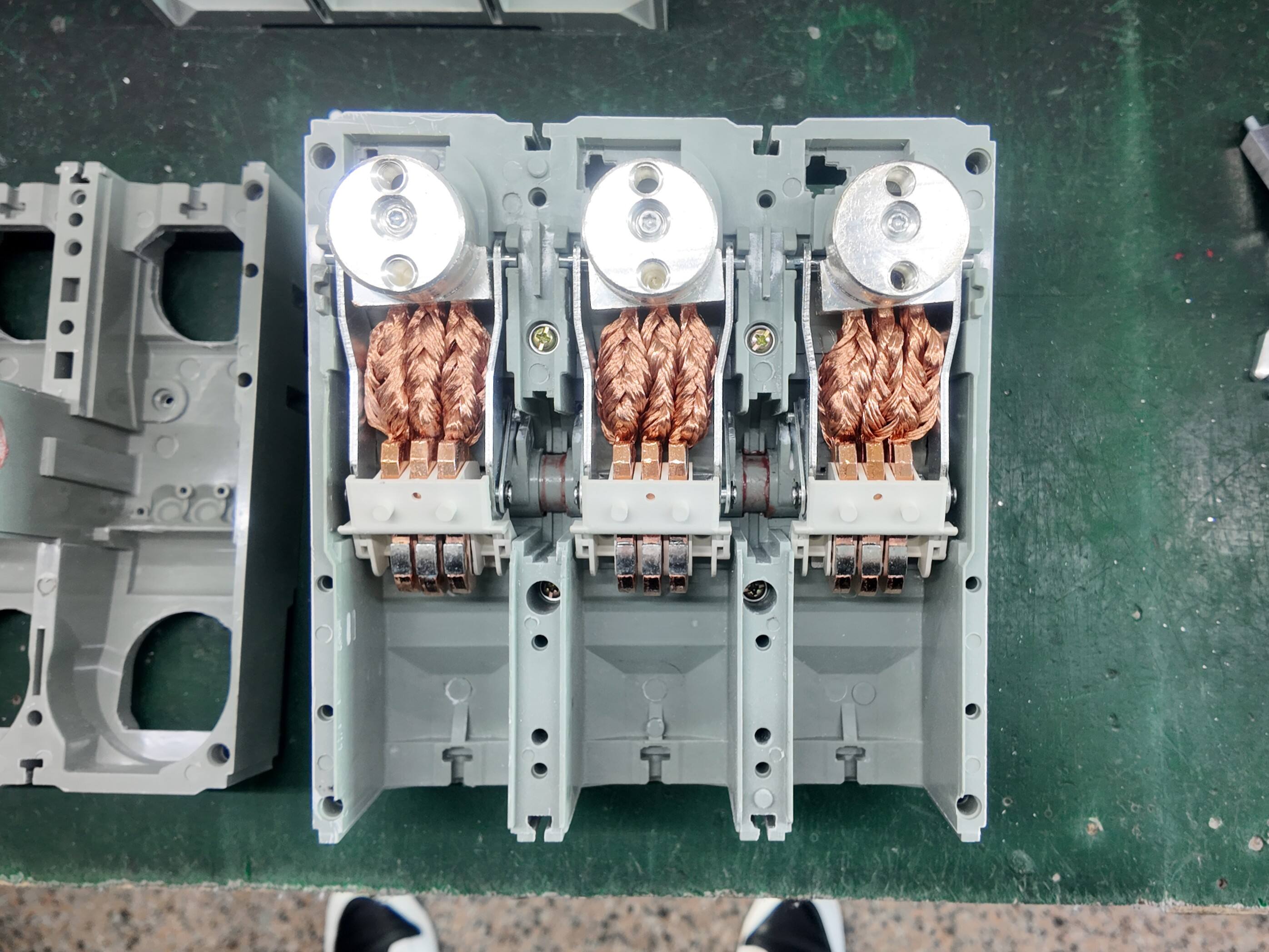

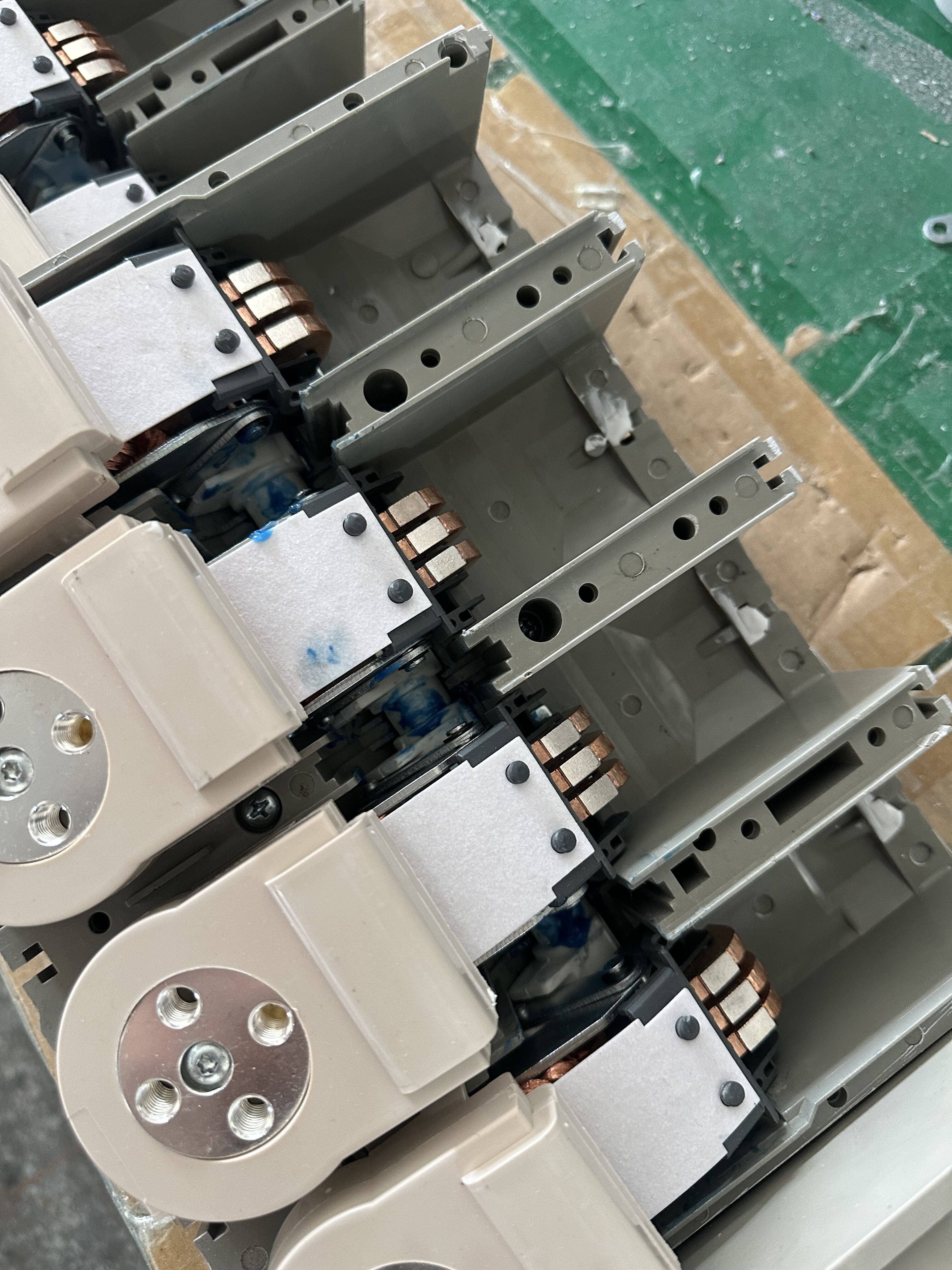

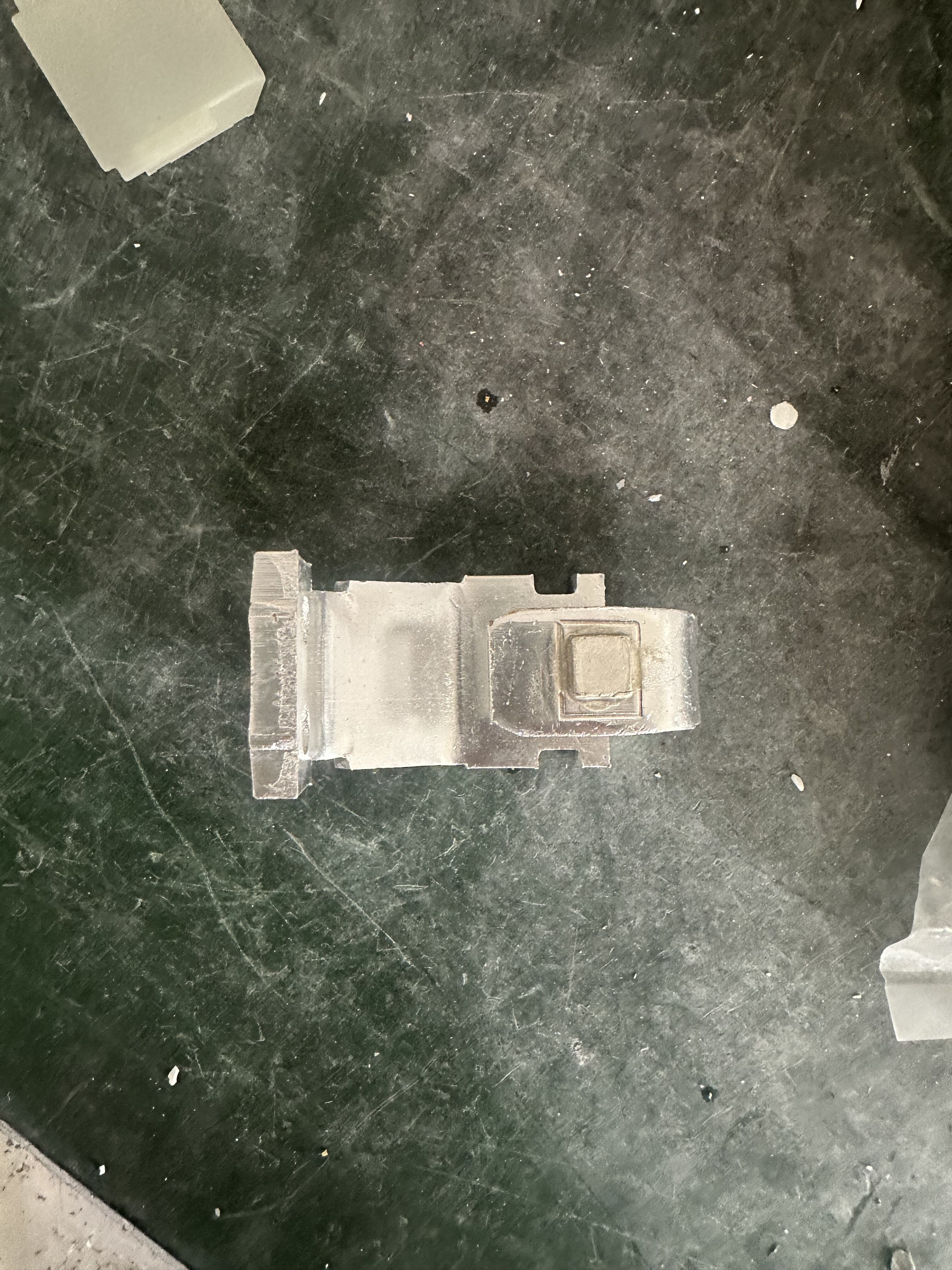

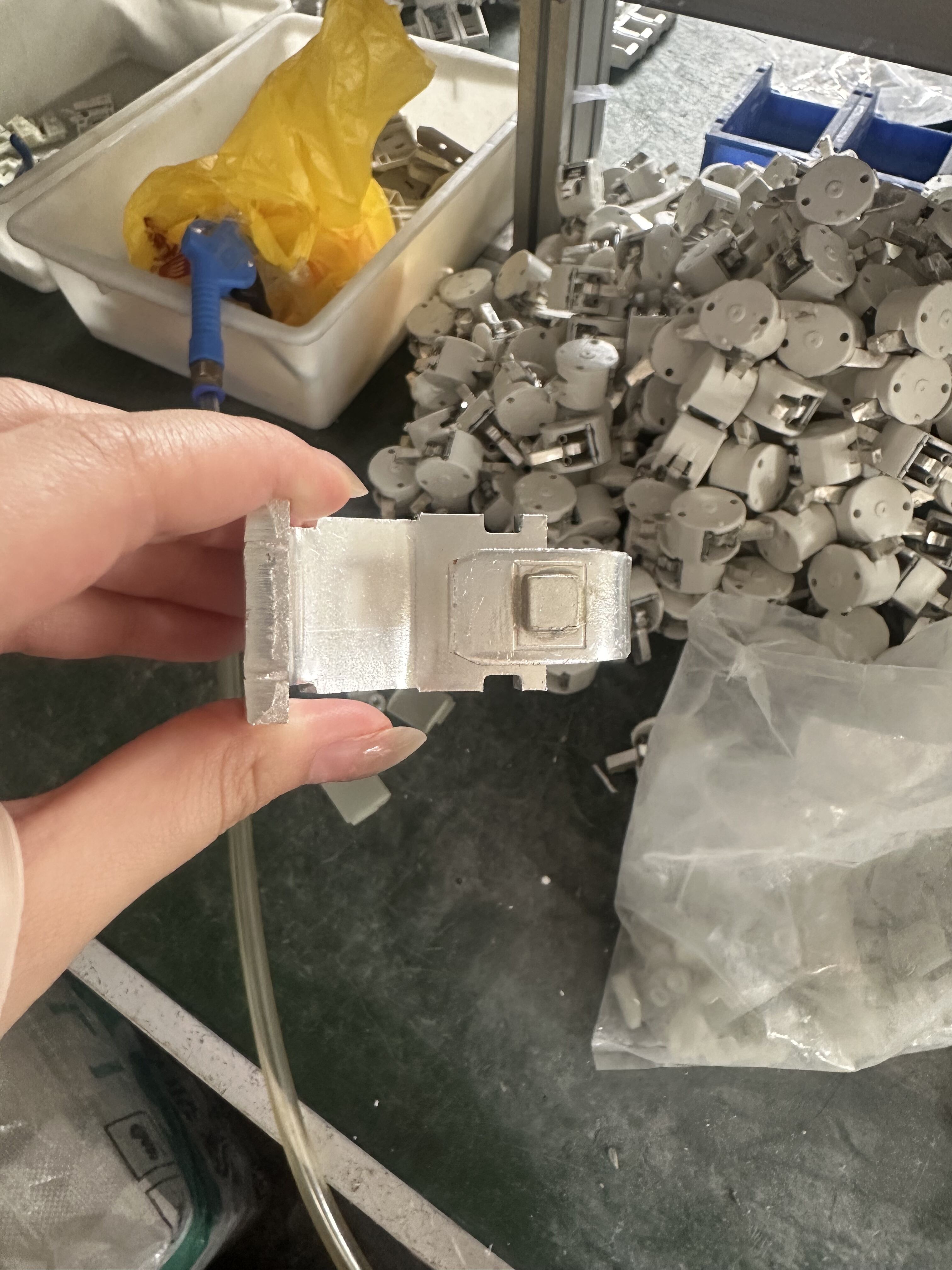

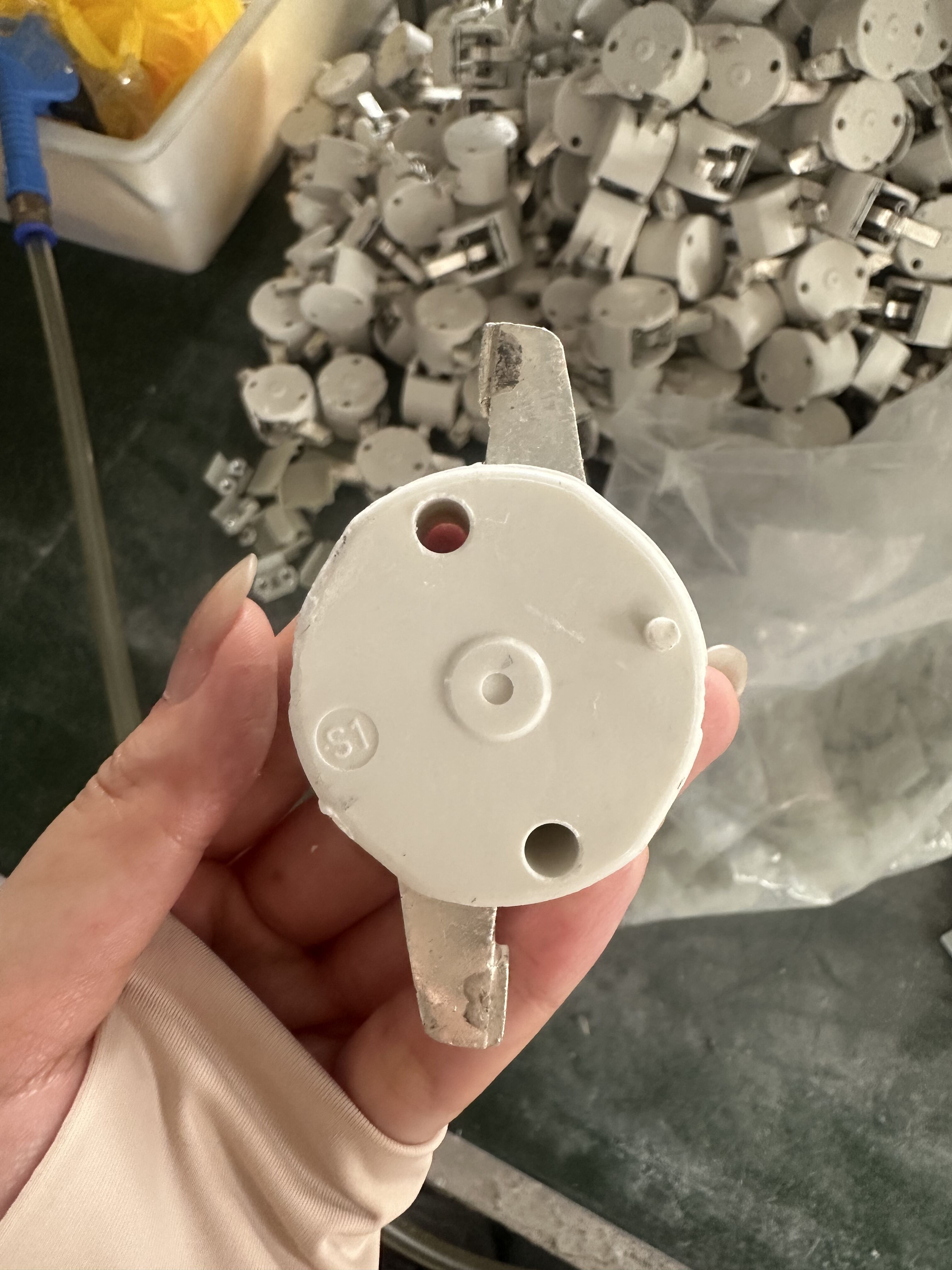

Moving Contact
The moving contact uses a parallel design (e.g., 3 contacts for 800A, 5 for 1600A), which effectively distributes current, reduces arcing and heat buildup, and improves breaking capacity, electrical life, and resistance to welding.
 |
 |
 |

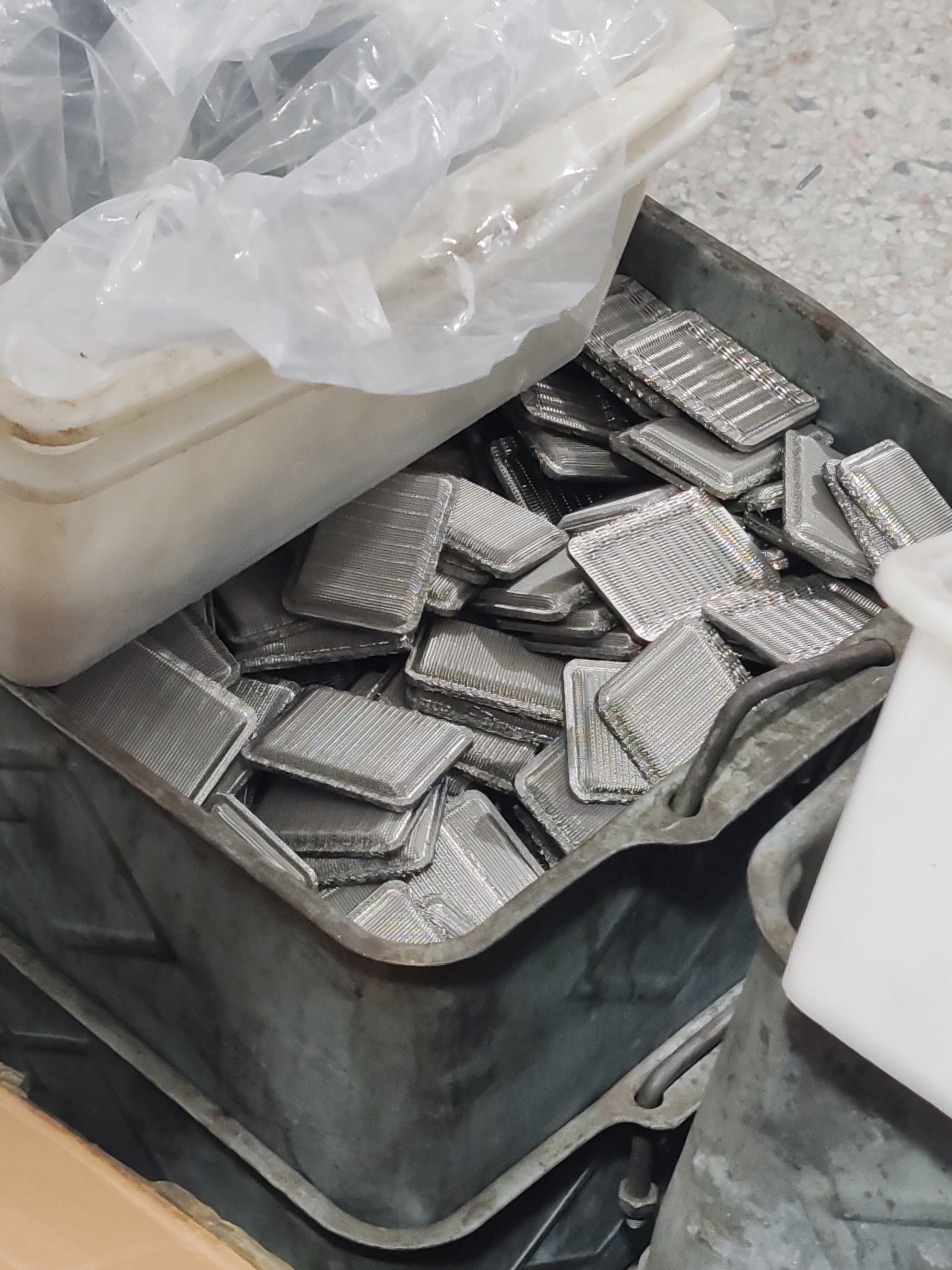

Contact Points
The contact points are made of silver alloy, offering excellent conductivity, low resistance, minimal heat generation, and strong resistance to wear and oxidation, ensuring reliable switching performance even after frequent operation
 |
 |
 |

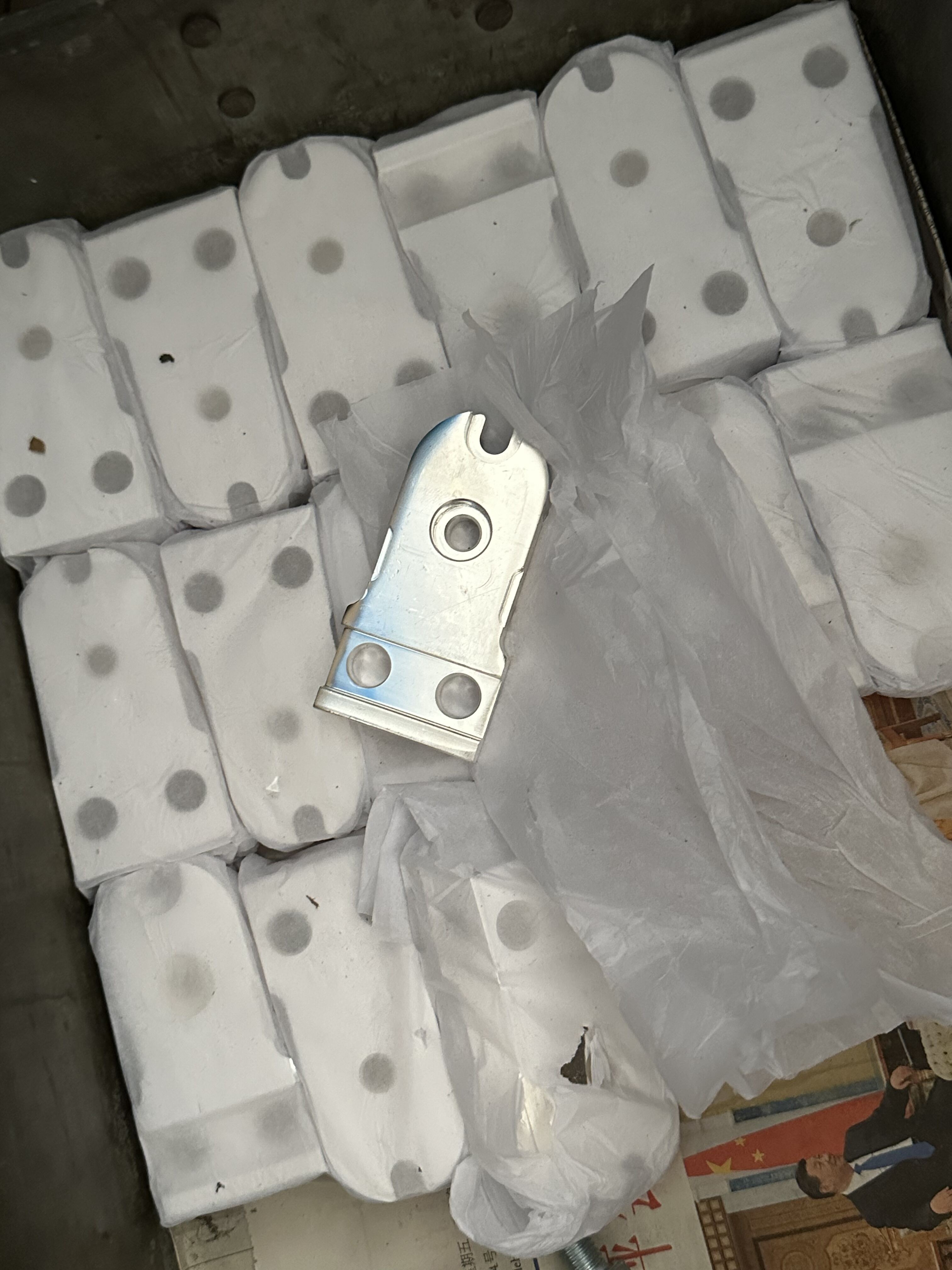

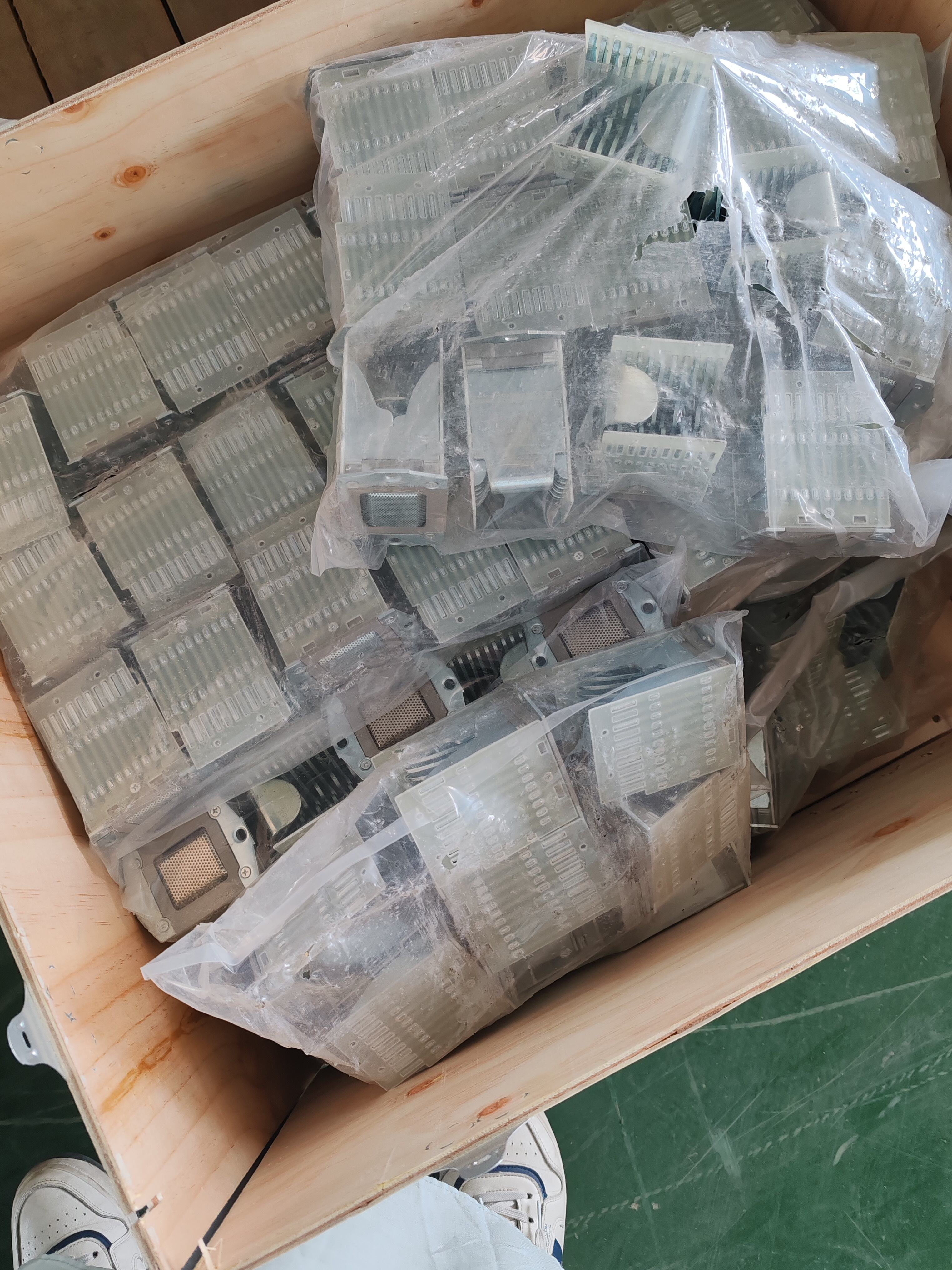

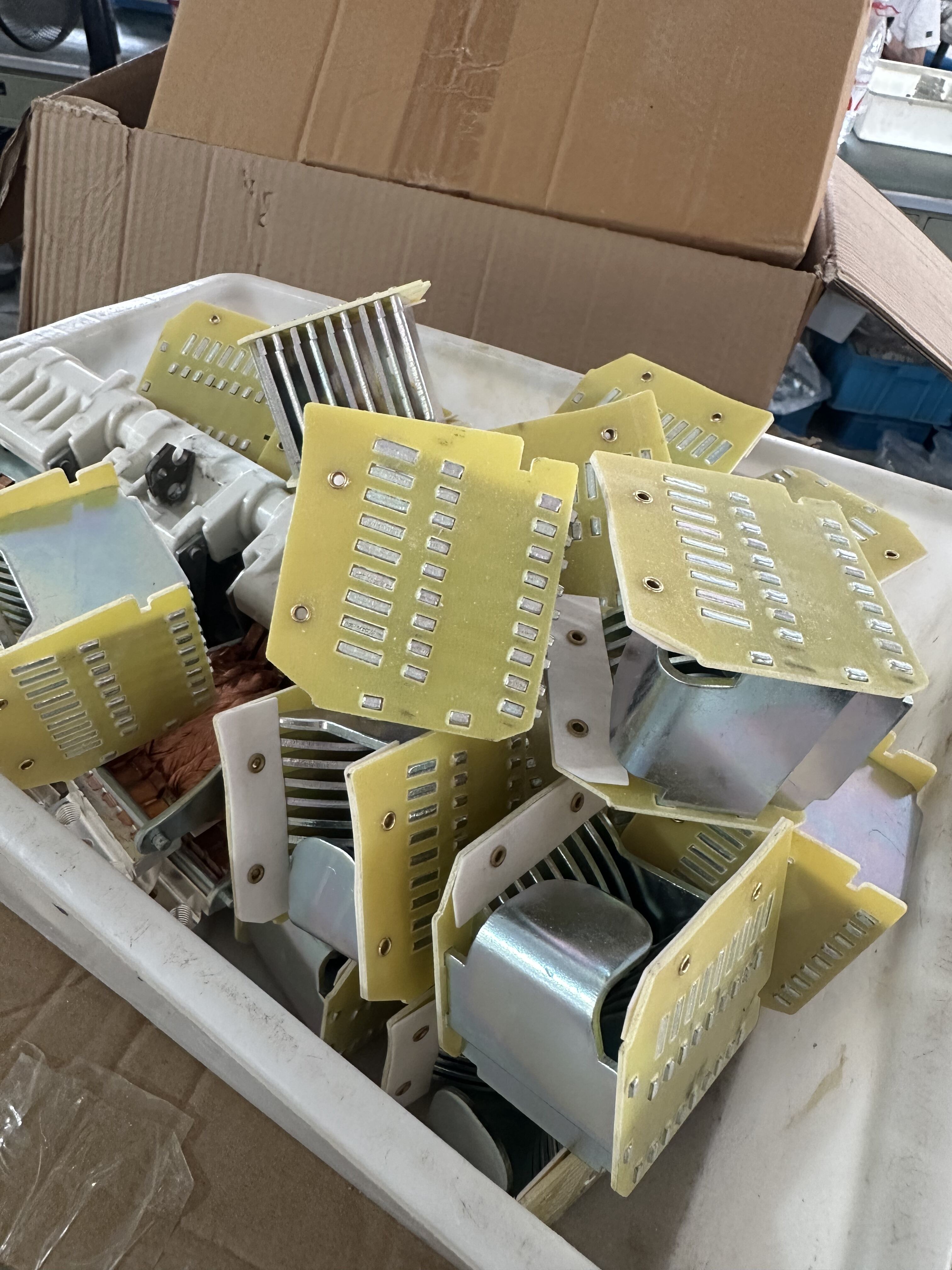

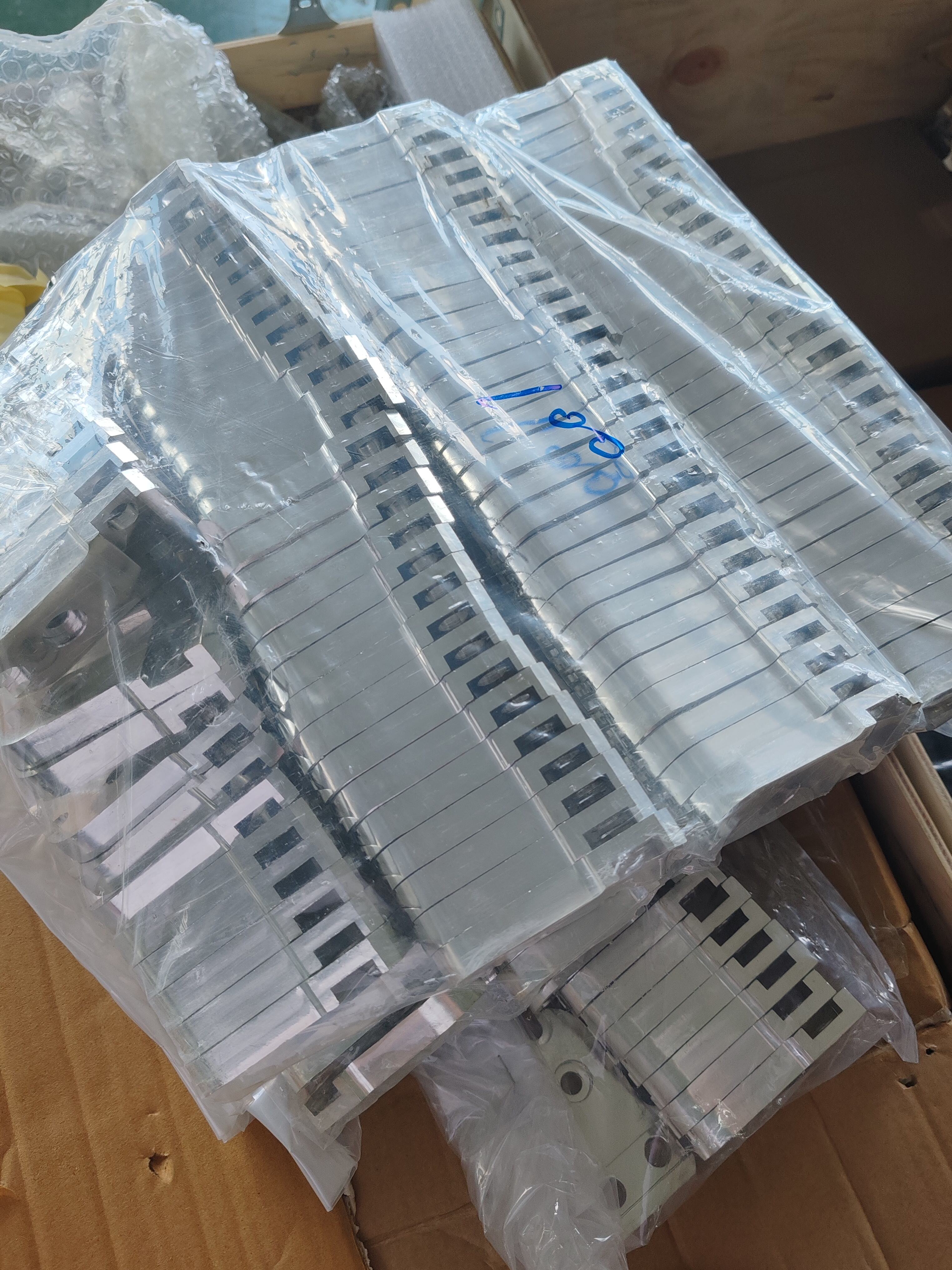

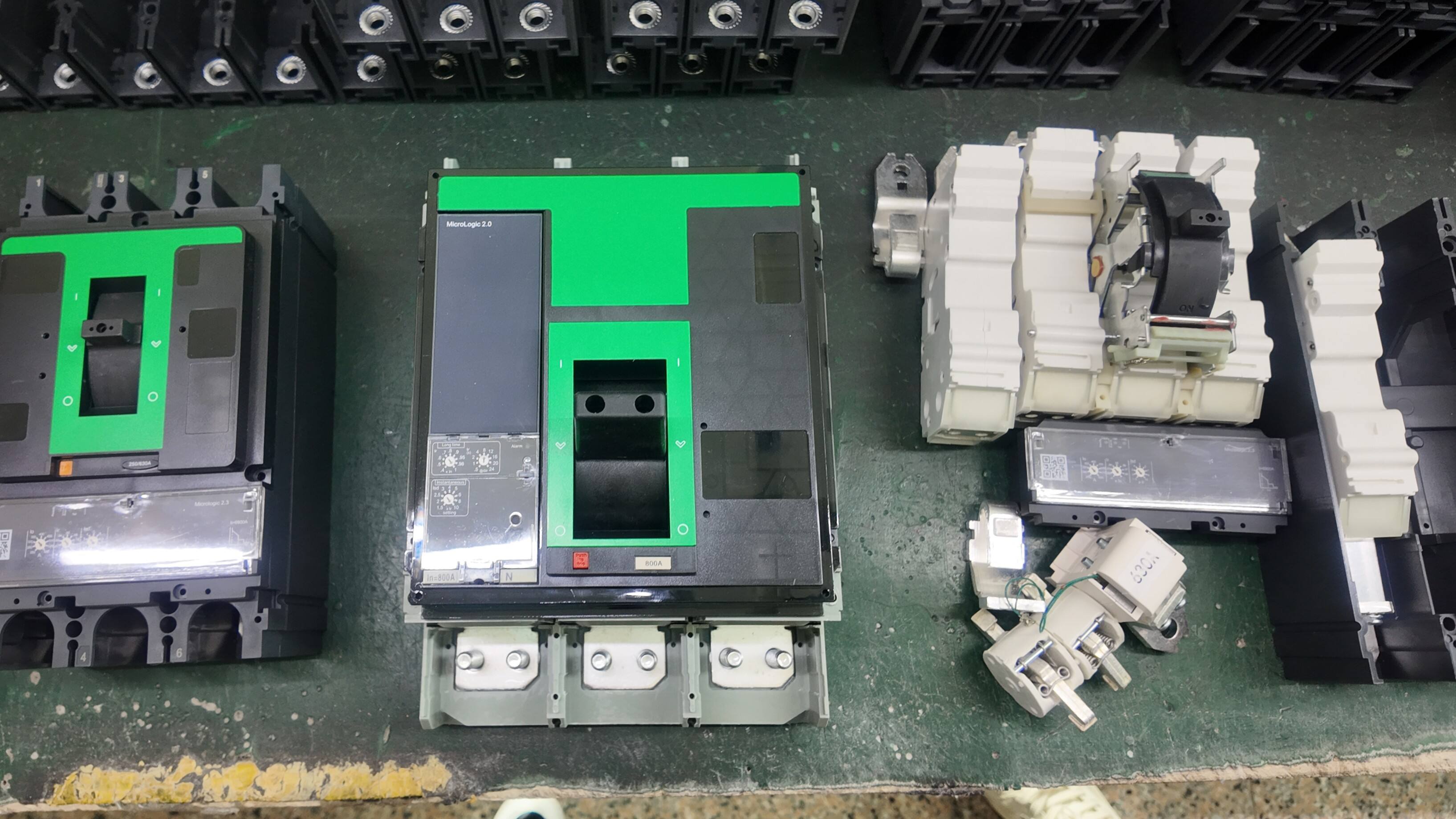

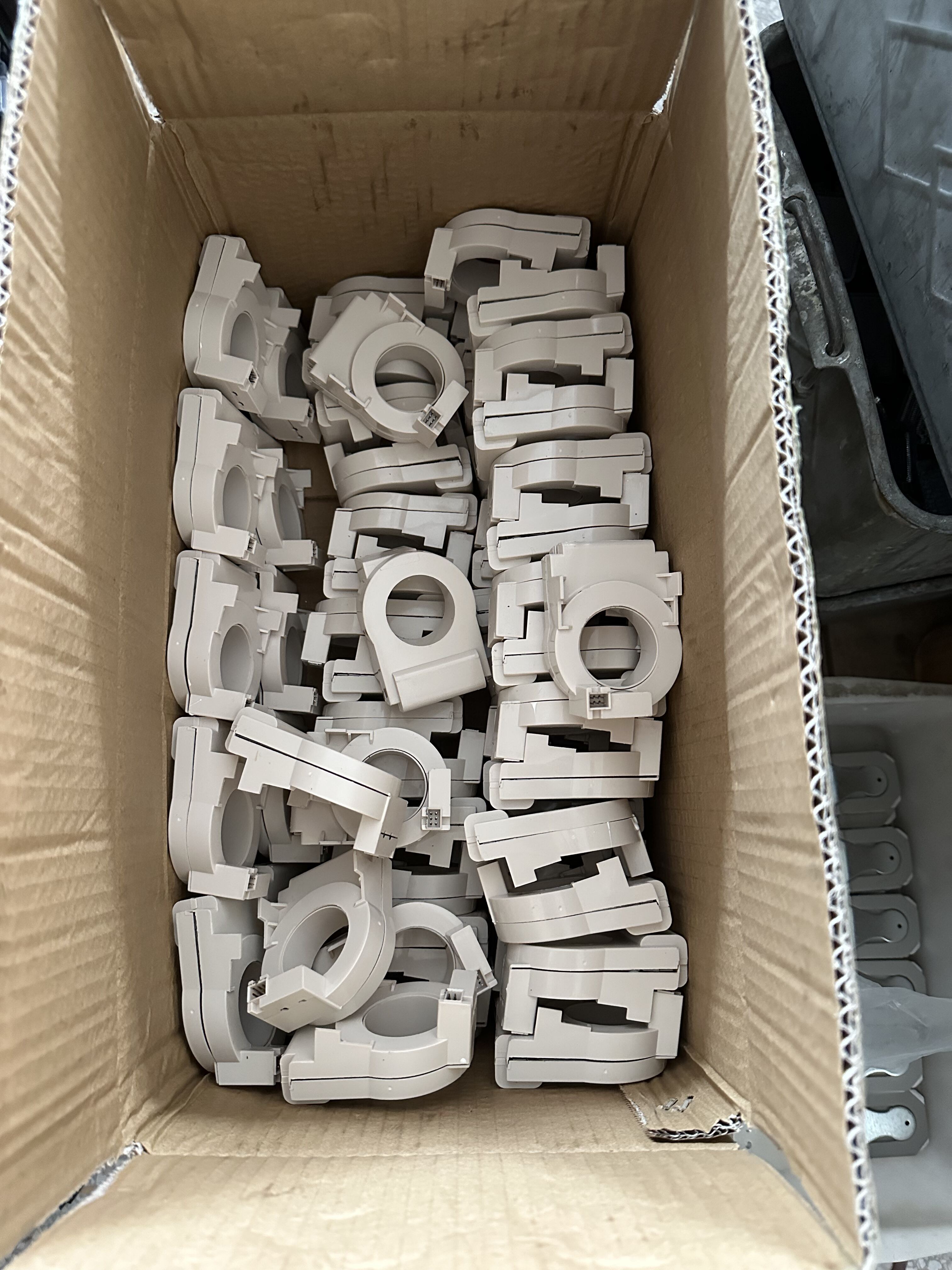

Other material
 |
 |
 |
 |
 |

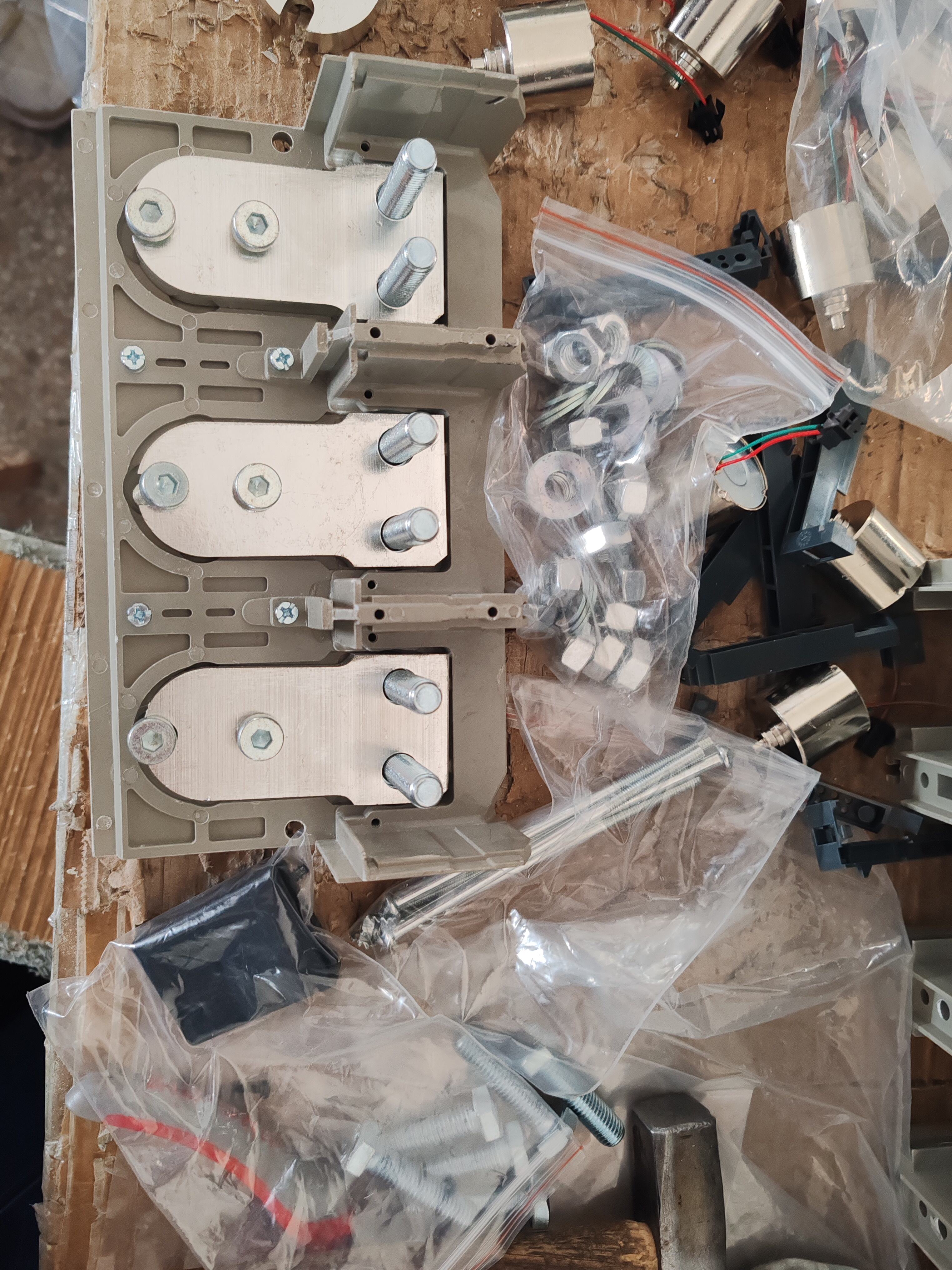

✳Tips: All accessories can be sold separately
 |
 |
 |
|
-Factory testing -On site testing |
 |
 |
Installation Guidelines
● Fixed Mounting
Mount the device securely inside the distribution cabinet to ensure stable and reliable positioning.
● Orientation
Generally installed vertically with the operating handle facing upward. Avoid inverted mounting unless explicitly allowed by the product specifications.
● Wiring Connections
Power supply cables: Attach to the circuit breaker's input terminals (labeled “L1”, “L2”, “L3”).
Load cables: Connect to the output terminals (labeled “T1”, “T2”, “T3”).
Grounding wire: If a grounding terminal is provided, ensure it is securely linked.
● Clearance Requirements
Leave adequate spacing from surrounding equipment to support proper heat dissipation and allow convenient maintenance. Refer to the product manual for specific clearance values.
● Safety Measures
Always de-energize the system before beginning installation to eliminate shock risk.
Use appropriate personal protective equipment, such as insulated gloves and safety goggles.
Comply fully with applicable electrical codes and installation standards throughout the process.
 |
 |
|

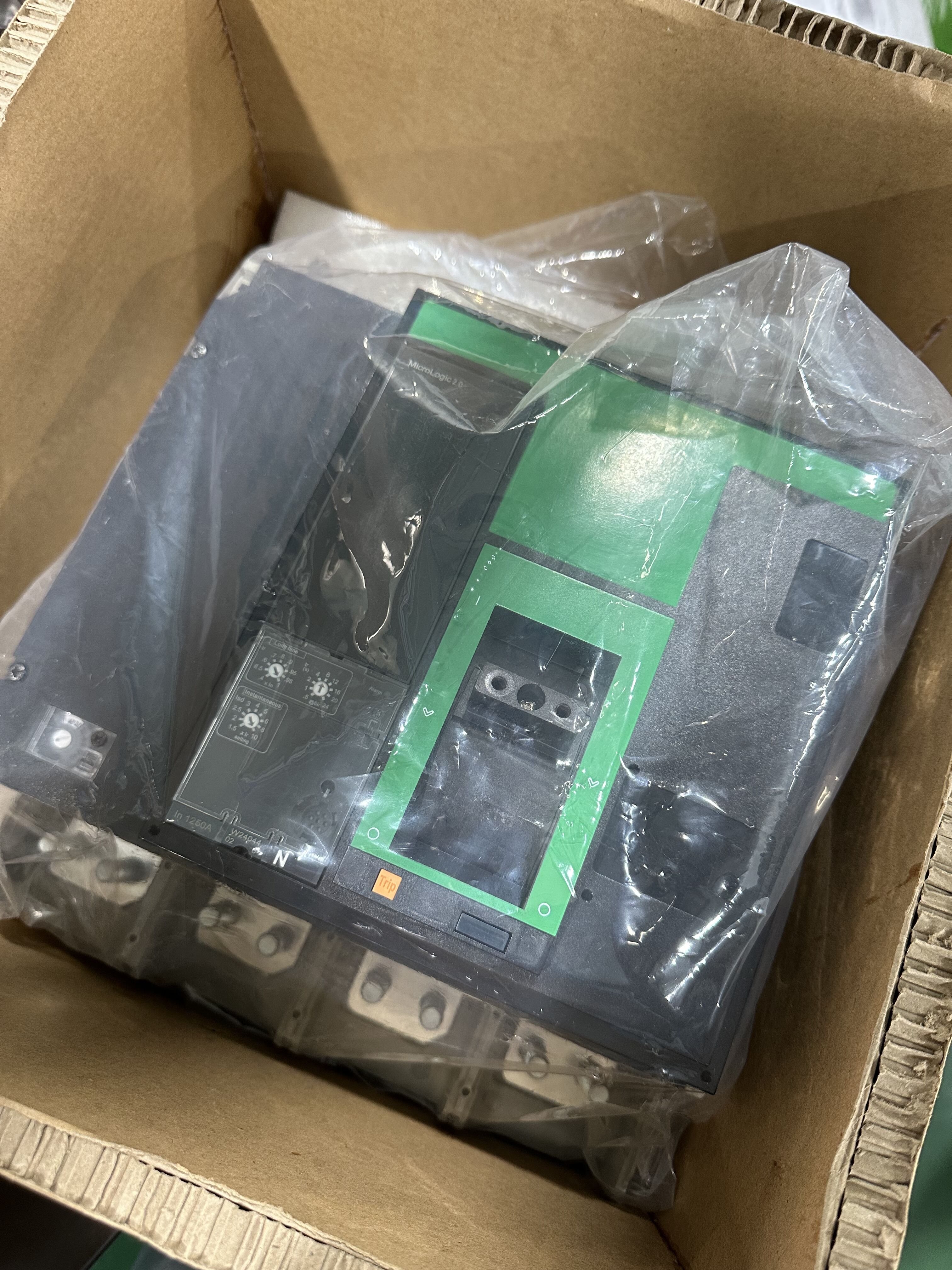

Packaging Specification:
This packaging solution is specifically designed for NSX Molded Case Circuit Breakers rated 800A and above. Given their substantial weight, we employ an overall reinforced and thickened packaging method to provide exceptional protection against drops, compression, and shock.

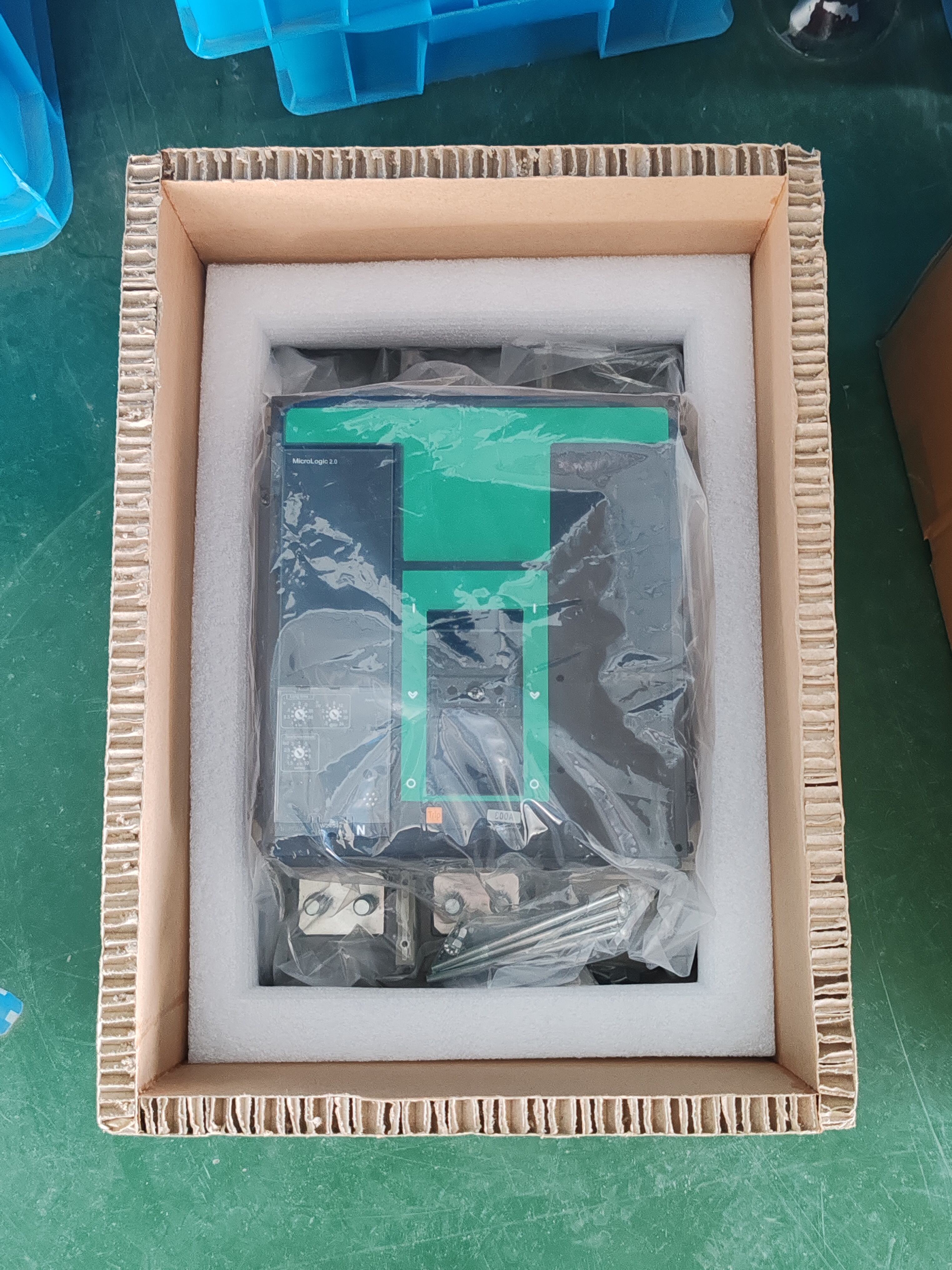

Internal Packaging
Materials: High-density shock-absorbing foam, bubble film
Placement: The circuit breaker is fully surrounded with uniform padding on all sides, top, and bottom to securely immobilize the product and absorb impacts.
External Packaging
Container: Custom extra-thick, high-strength honeycomb box (wall thickness up to 1-2cm)
Sealing Method: Reinforced sealing tape or strapping is applied
Requirement: Ensures the box remains firmly sealed to prevent splitting or deformation during transit
Upgraded Packaging

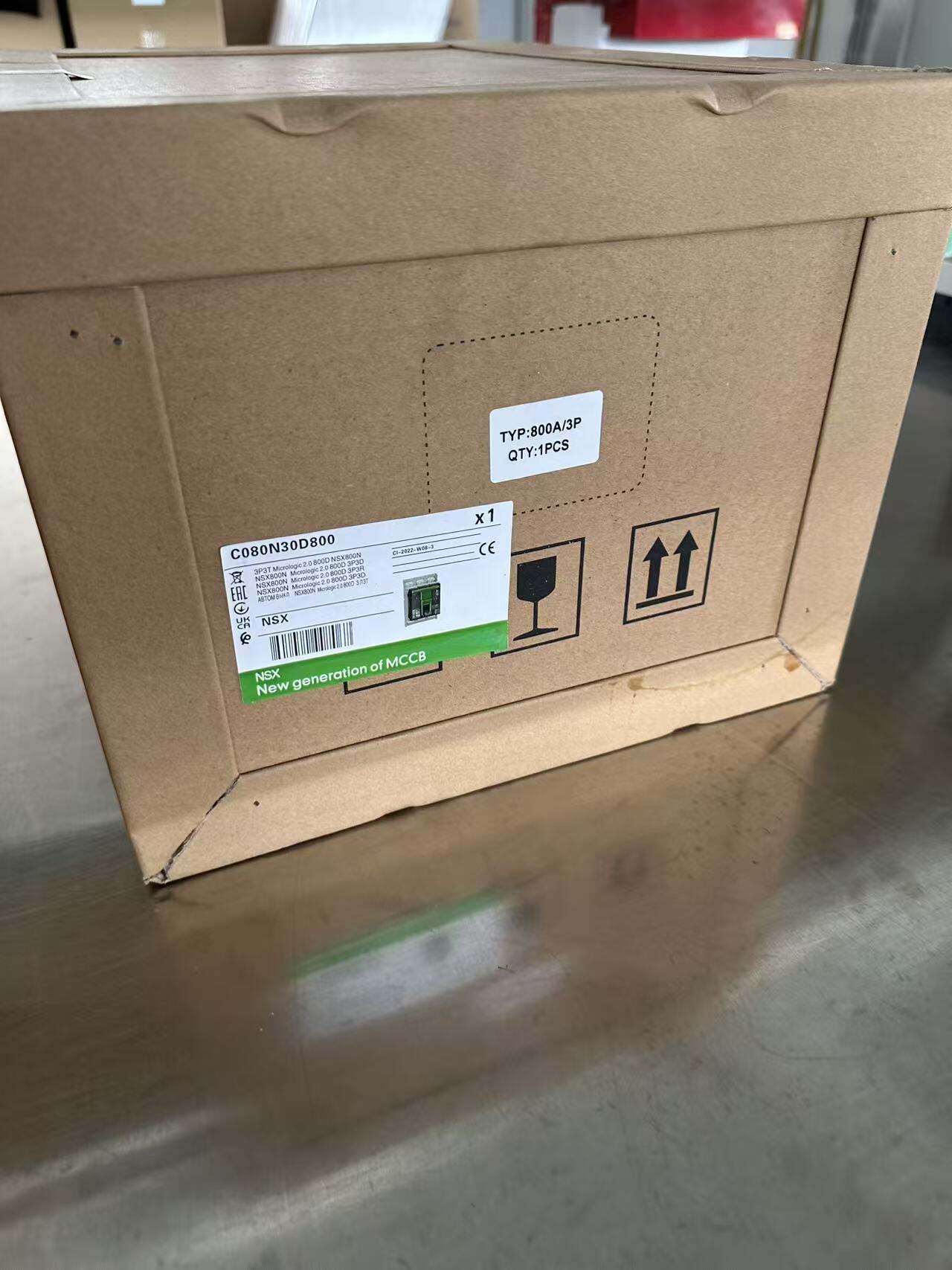

Marking & Labeling
Content: Product model, quantity, gross/net weight, manufacturer information, and necessary handling labels (e.g., Fragile, This Side Up, Keep Dry, etc.)
Location: All markings are clearly printed on the exterior of the honeycomb box.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

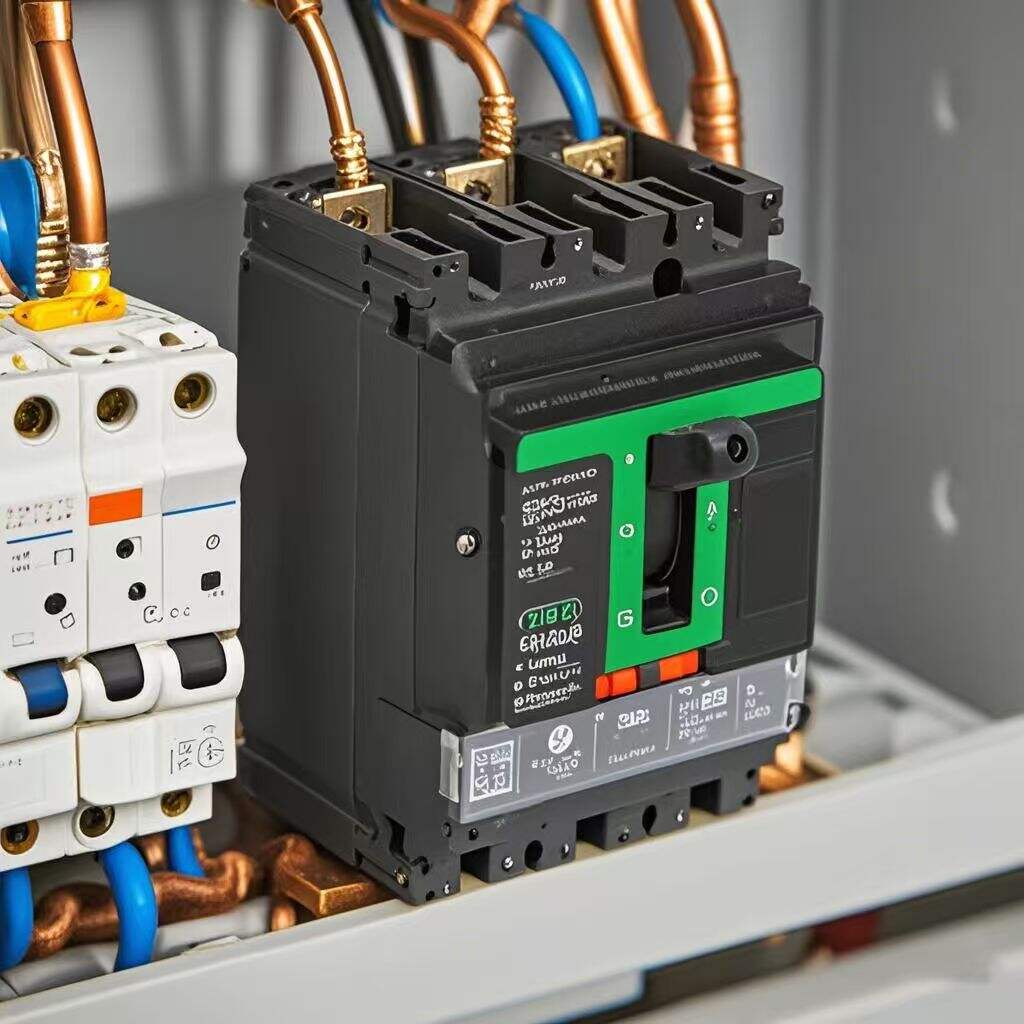

Key application scenarios include:
- Main power distribution panels
- Motor control centers and starter panels
- Generator protection systems
- Industrial machinery power supplies
- Commercial building electrical systems
- Renewable energy installations
