WATERPROOF SOCKET BOX
METAL TYPE
 |
 |
 |

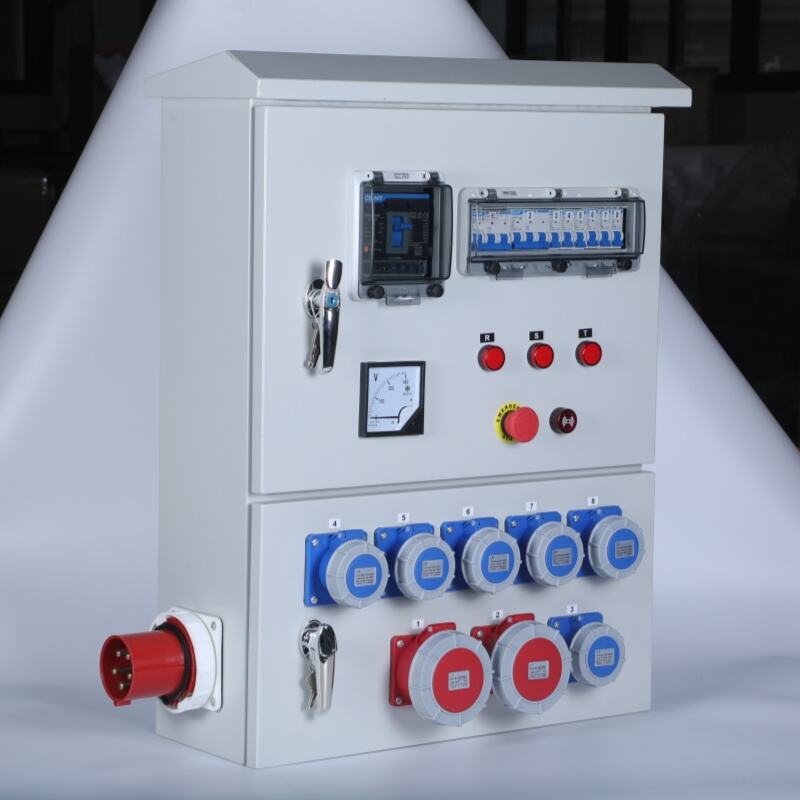

Metal Waterproof Socket Box: Industrial Strength, Built to Endure
Designed for the most demanding industrial conditions, our metal waterproof socket box combines robust protection, superior sealing, and flexible electrical configuration, providing a solid and reliable foundation for ensuring continuous power supply and safe equipment operation.
Core Advantages
Rugged Protection, Built for Tough Environments: Constructed from high-strength galvanized steel or aluminum alloy, the housing is impact-resistant and corrosion-proof. With protection ratings up to IP65/IP66/IP67, it provides complete dust ingress protection and withstands high-pressure water jets or temporary immersion, making it ideal for challenging locations such as outdoor sites, construction zones, factories, and docks where moisture, dust, oil, and physical impacts are common.
Precision Sealing, Leak-Proof Performance: High-grade silicone gaskets are used between the housing and cover, secured by a multi-point locking or bolted fastening design for uniform compression and an effective seal. Waterproof cable glands are fitted as standard at entry and exit points, completing a fully integrated sealing system.
Modular Design, Flexible Power Solutions: Internally fitted with high-quality mounting rails, the box allows flexible installation of industrial socket modules (e.g., IP44/IP67 sockets), circuit breakers, surge protectors, contactors, and more. It meets a wide range of needs—from basic power distribution to equipment control and signal transmission—serving as your compact, dedicated distribution hub.
Details That Define Professionalism
Surface finished with environmentally friendly electrostatic coating for corrosion resistance, durability, and easy cleaning.
Optional transparent viewing window for clear status monitoring at a glance.
Supports custom labeling via screen printing or optional waterproof PVC/metal nameplates for easy equipment identification and management.
 |
 |
 |
 |
Step 1: Define Core Electrical Specifications
Socket Selection Criteria:
Panel Layout:
Step 2: Choose Protection & Control Devices
Circuit Breaker Selection:
|
 |
Step 3: Enclosure Design & Final Layout
Enclosure Selection:
Drawing Approval:
Step 4: Manufacturing, Testing & Delivery
Assembly:
Factory Testing:
Delivery: |
General product information
Place of Origin: |
5th Floor, No. 3, Jinghong West Road, Liushi Town, Yueqing City, Wenzhou City, Zhejiang Province |
Brand Name: |
MINGTUO |
Model Number: |
industrial socket box |
Certification: |
IOS CE ROHS |
Product Commercial Terms
Minimum Order Quantity: |
1 |
Price: |
150$ |
Packaging Details: |
Wooden box packaging |
Delivery Time: |
Within fifteen days |
Payment Terms: |
100% prepaid, 70%/30%, 80%/20% |
Supply Ability: |
Available at any time |
Our waterproof socket boxes of industrial-grade are the perfect solution for providing reliable power connections where equipment may suffer from moisture, dust, vibrations, and physical impacts. The outer cover of each unit is made from precision molding coupled with reinforced sealing technology to guarantee not only durability but also the fulfillment of the most stringent electrical safety standards. These devices are the best in terms of protecting the inner parts while giving users a safe and stable power outlet.
Other styles of sockets
| German-style | French style | Universal style | South African style | European style | Brazilian style |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

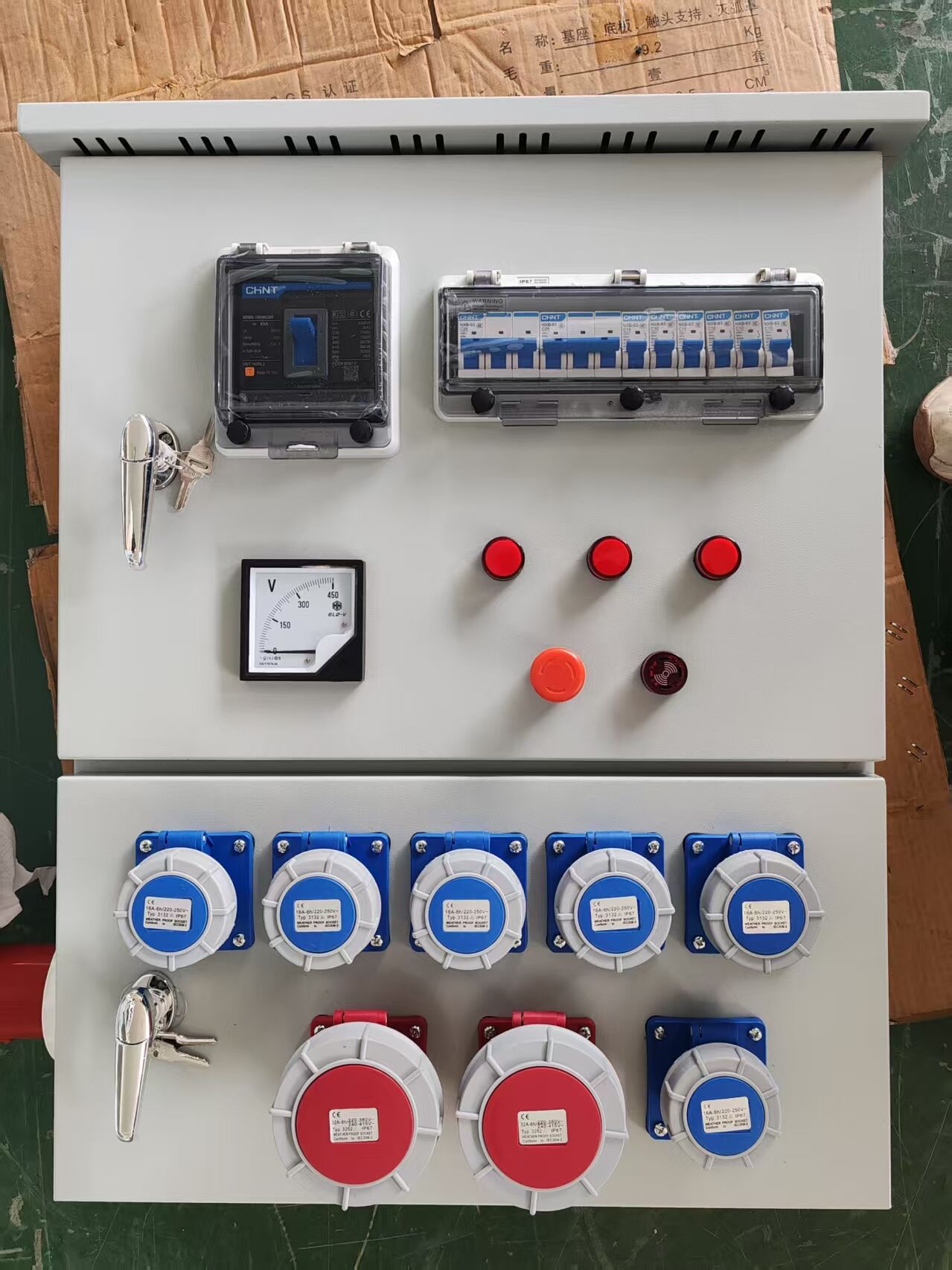

Building upon high protection and durability, the metal waterproof socket enclosure can be upgraded from a basic distribution unit into a multifunctional intelligent control terminal. By integrating multiple electrical components, it combines distribution, monitoring, control, and safety warning functions. Its core expansion capabilities are reflected in the following four areas:

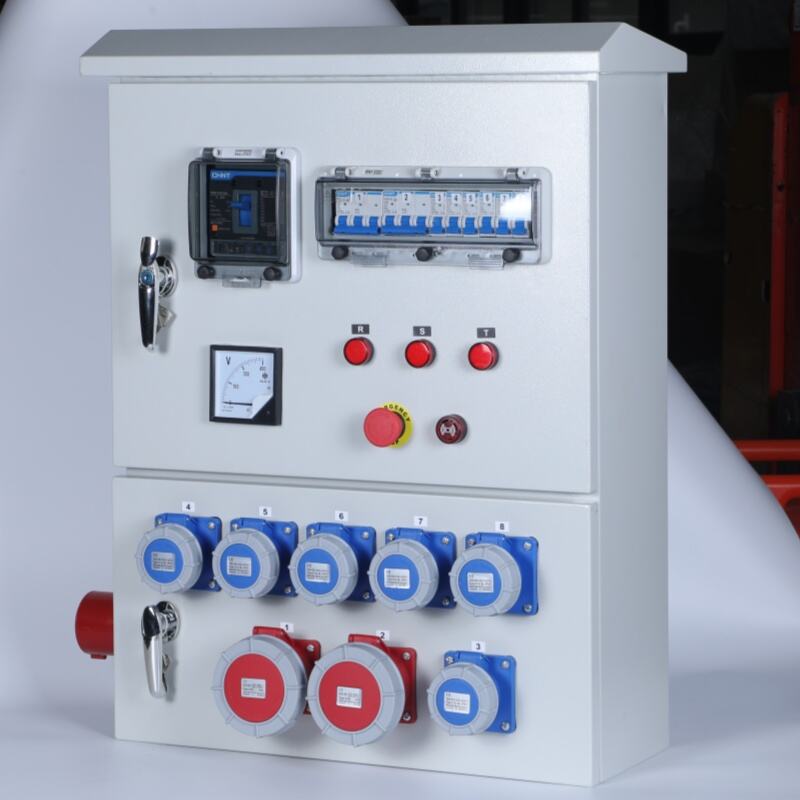

Status Monitoring & Display
By integrating a current/voltage meter or display, electrical parameters can be monitored in real time. This enables visualized power consumption tracking, facilitating overload prevention and fault diagnosis.
Core Control & Protection
Adding a contactor allows remote or automatic switching of the main circuit. Fuses provide reliable short-circuit and overload protection, together forming the core control and protection unit of the enclosure.
Safety Warning & Emergency Shutdown
Phase indicator lights provide intuitive power status indication. A buzzer can sound an alarm in case of abnormalities. An emergency stop button offers immediate power cut-off during emergencies. Combined, these significantly enhance operational safety and emergency response.
Modular Integrated Design
The above functional components can be flexibly and compactly integrated into the standard enclosure via DIN rail mounting or pre-installed interfaces. This allows customized functional configurations while maintaining the overall IP rating.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

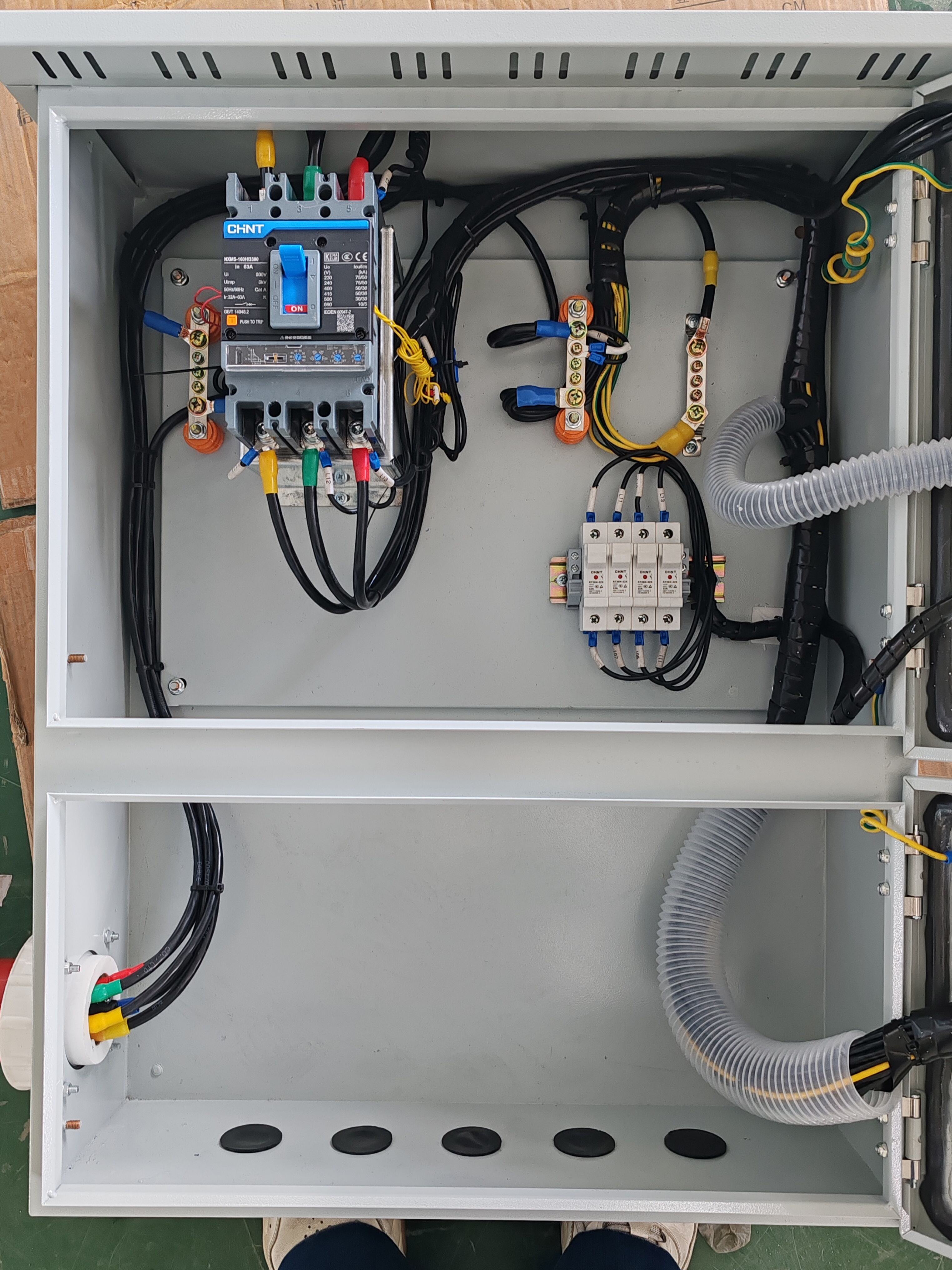

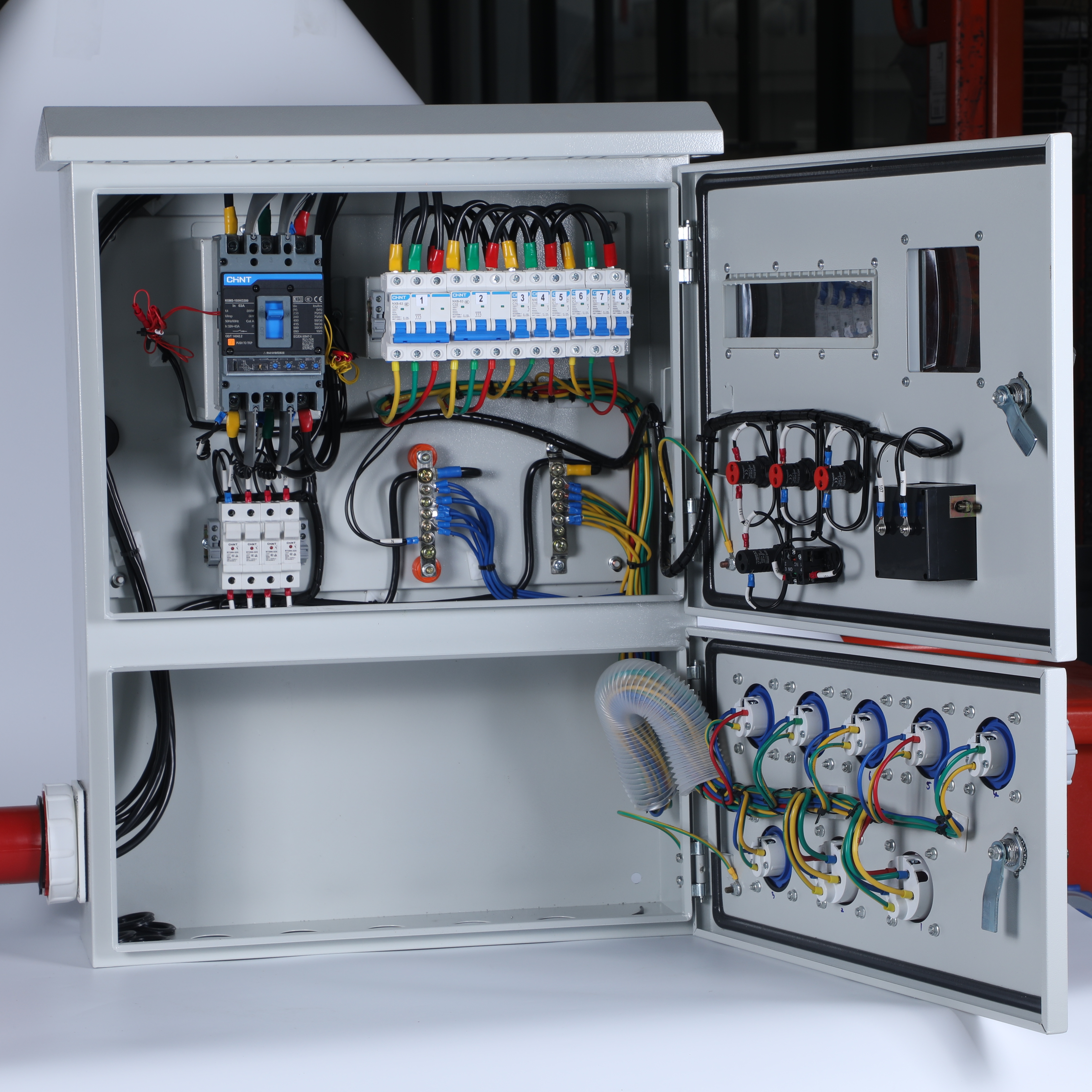

Safe & Standards-Compliant Wiring
Centralized Design: All power outlets are consolidated within a single housing, reducing cable clutter and improving operational safety.
Regulatory Adherence: Installation complies with applicable electrical standards (e.g., GB/T, IEC), ensuring secure and dependable terminations.
Versatile & Scalable Configuration
Broad Socket Compatibility: Supports a variety of socket types (e.g., 16A/32A, single-phase/three-phase, industrial-grade connectors) to meet diverse power demands.
Modular Expandability: Enables straightforward addition or replacement of sockets—including options like USB or smart sockets—with minimal rewiring required.
 |
 |
 |
 |
 |
Superior Materials: Constructed using high-strength, corrosion-resistant cold-rolled steel, stainless steel (e.g., 304/316 for highly corrosive conditions), or die-cast aluminum alloy.
Surface Treatment: Processes such as degreasing, phosphating, and electrostatic spraying are applied to form a durable, adherent anti-corrosion coating. Outdoor-rated models feature additional UV-resistant finishes.
Housing Seal: A high-quality silicone sealing gasket is fitted between the housing and cover, ensuring a tight, long-lasting seal resistant to aging or cracking.
Cable Entry Sealing: Waterproof cable glands (threaded glands) or knock-out entries with sealing rings are provided, maintaining a sealed interface even after cable installation.
Panel Thickness: The outer shell steel plate is of sufficient thickness (e.g., ≥1.2 mm) to ensure structural rigidity, impact resistance, and resistance to deformation.
Lock Design: The lock features a water-drainage design with local sealing to prevent water ingress into the lock mechanism.
Grounding Continuity: A dedicated grounding terminal is provided and reliably connected to the metal structure of the enclosure, ensuring electrical safety.
 |
 |
 |
1. Phased Commissioning and Functional Testing
Sequential Energization: First, close the main switch. Then, close each branch switch (such as RCDs and MCBs) one at a time, observing for any abnormalities (e.g., arcing or unexpected tripping).
Voltage Verification: Use a multimeter to measure the voltage at each outlet. Confirm that the line voltage (e.g., 220V ±10%) and phase sequence (for three-phase outlets) are correct, and that the voltage between neutral and earth is near 0V.
Polarity Check: Use a socket tester to verify each outlet, confirming that the wiring follows the required polarity (e.g., "live on the right, neutral on the left, earth terminal at the top/bottom") is entirely correct.
2. Protective Function Testing
RCD (Earth Leakage) Test: Press the "TEST" button on each Residual Current Device (RCD). It should trip immediately, confirming the proper operation of the earth leakage protection.
Switching Operation Test: Operate each switch to confirm it correctly controls the power supply to its corresponding socket.
3. Load Testing and Final Inspection
Load Operation: Connect actual loads (e.g., drills, lamps) or a test load. Run them for a short period while monitoring for abnormal heating, noise, or significant voltage drop in the sockets, switches, or wiring.
 |
 |
Test video
 |
 |

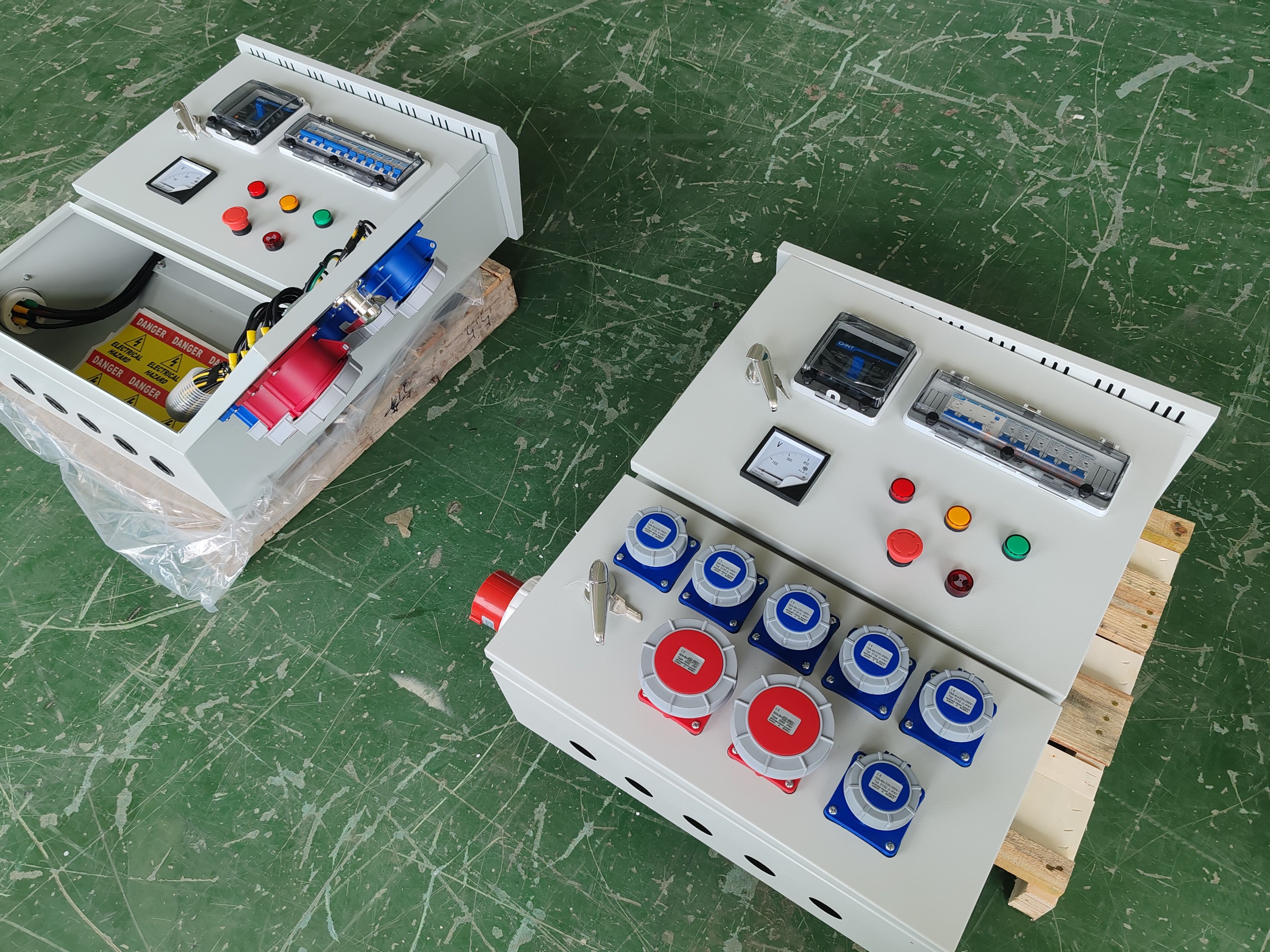

We offer a complete solution from design to finished product, with key strengths including:
Controlled Process: We strictly adhere to schematic drawings for custom housing fabrication and hole drilling, ensuring precision and compliance.
Comprehensive Service: Our offering includes assembly, testing, and optional services such as custom label application (available with waterproof PVC material), providing a complete end-to-end solution.
Stable Supply: Our monthly production capacity for metal enclosures reaches 300 units, ensuring reliable delivery efficiency and the ability to meet larger-scale demands.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
-Inner packaging
Shockproof material
Material: foam, bubble film, etc
Placement: Place evenly around the circuit breaker, at the top and bottom
-External packaging
Carton
Material: High strength corrugated cardboard box
Carton sealing
Method: Seal with tape or strapping
Requirement: Ensure a secure seal to prevent cracking of the box
Identification and labeling
Content:Product model, quantity, weight, manufacturer, transportation label (such as fragile, upward, moisture-proof, etc.)
Location: Clearly printed on the outside of the cardboard box.
Structural strength
Honeycomb structure design can effectively disperse pressure, has strong compressive strength, high load-bearing capacity, and is not easily deformed.
The edge of the box is reinforced to enhance overall stability and is suitable for stacking and transportation.
Material durability
High strength corrugated cardboard, plastic or composite materials are commonly used, which are lightweight and wear-resistant.
Waterproof and moisture-proof treatment (such as coating or film covering), suitable for different environments.
Buffer performance
The honeycomb core layer provides excellent shock absorption effect, protecting the contents from collision damage.
The aperture and thickness can be customized according to the needs, balancing protection and space utilization.
 |
 |
 |
Domestic transportation
If there is a designated freight forwarder in china, we willtransport the products to the designated location through road transportation or domestic express delivery after production is completed
International transport
When the quantity of goods is small and time is tight, and it needs to be transported to a designated location abroad, the three majorinternational express delivery companies are selected for transportation DHL,FEDEX,UPS
Sea freight/air freight
When there is a large quantity of goods and time is not urgent, we choose sea freight. We will choose a suitable freight company, who wil arrange for trucks to pick up the goods and transport them to the designated por for warehousing. Finaly, they will transpored by sea to the customer's desianated port, and the customer needs to pick up the goods with a bill of lading.
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Core Functions & Purpose
The Industrial Waterproof Socket Box is specifically engineered for power distribution and equipment connection in demanding environments. It serves three primary functions: safe power distribution, reliable equipment interconnection, and circuit protection. Its core value lies in providing stable and reliable power interfaces for industrial sites while ensuring electrical safety under harsh conditions.
Main Application Areas
Industrial Manufacturing
- Power connections for production line equipment
- Temporary power interfaces for machinery
- Power distribution for automated equipment
- Mobile equipment power supply in workshops
Outdoor Operations
- Temporary power at construction sites
- On-site power supply for municipal engineering
- Power distribution for outdoor events
- Connection systems for temporary lighting
Special Working Conditions
- Equipment power supply in ports and docks
- Mining operation sites
- Food processing plants
- Chemical plant facilities
Public Infrastructure
- Charging interfaces in underground parking
- Lighting control in public squares
- Power supply for landscape lighting
- Electrical applications in sports venues
Key Application Values
- Ensures safe power supply in harsh environments
- Provides standardized power interfaces
- Guarantees continuous and stable equipment operation
- Reduces electrical accident risks
- Improves power management efficiency
With excellent protective performance and reliable electrical characteristics, this product has become an essential power protection device in modern industrial settings, providing safe and convenient power connection solutions for various electrical equipment.
Competitive Advantages of Our Industrial Waterproof Socket Box
1. Superior Protection Performance
- IP68 highest protection rating with triple sealing system
- 100% waterproof verified through 72-hour immersion test
- IK10 impact resistance rating
- UV-resistant materials for outdoor applications
2. Premium Material Selection
- 316 stainless steel option for extreme corrosive environments
- Military-grade engineering plastics (PC+ABS)
- Self-extinguishing materials (UL94 V-0 rated)
- Salt spray resistance over 2000 hours
3. Advanced Engineering Design
- Tool-free cover opening mechanism
- 360° cable entry options
- Built-in mounting rail for easy installation
- Transparent cover for visual status check
4. Exceptional Durability
- Mechanical life: 15,000 open-close cycles
- Temperature resistance: -50°C to +120°C
- 10-year anti-corrosion warranty
- Maintenance-free operation period: 8 years
5. Quality Assurance
- 100% pressure testing before shipment
- Certified to IEC 60529, IEC 60309, UL 50
- Third-party laboratory test reports available
- 5-year comprehensive warranty
6. Customization Capabilities
- Any color matching within 7 days
- Laser engraving and custom printing
- Special dimensions and hole positions
- Mixed packaging accepted
7. Service Advantages
- 15-day express delivery for standard models
- Free sample program for qualified buyers
- 24/7 multilingual technical support
- On-site installation guidance available
Our waterproof socket boxes combine German engineering standards with Japanese manufacturing precision, delivering 40% longer service life and 50% better sealing performance than industry averages, while reducing maintenance costs by 60% through reliable performance and innovative design features.
