ATS/Automatic Transfer
|
|
Model meaning:
Designed as an AC power system, the MTQ3 ATS can accommodate 3P/4P configurations, various current levels and a broad voltage range, thus it can be used in the heavy-industrial, commercial and infrastructure-grade sectors. Its intelligent control logic combined with the mechanical interlocking structure and transfer performance reliability make it a perfect choice for power management in mission-critical situations.
The MTQ3 Automatic Transfer Switch is a device that guarantees, swiftly and fully automatic, the transfer of load execution between two independent power sources. The switch is equipped with a robust mechanical mechanism and advanced electrical control technology, thus providing power restoration in a short, but also safe, way in the case of a power outage. It is designed to work in both automatic and manual modes, thus providing an operation flexibility that depends on the system's requirements.
Constructed in compliance with IEC 60947-6 and quality controlled under ISO, CE, and RoHS certification systems, the MTQ3 ATS is a unit that assures stability, durability, and long-term reliability.
The unit is always checking for voltage, frequency, and power loss situations on both main and backup power sources.
Ensures that the two sources are not connected to the circuit at the same time and thus protects the operator's safety.
The emergency condition automatic switching is complemented with the manual switching for maintenance or inspection by the supported dual operation modes.
The LED lights offer an easy way to see the status of operation, fault, and source condition.
Input from the fire protection system is supported, thus enabling automatic switch off in the case of emergency.
The remote monitoring and system integration are enabled by a standard communication interface.

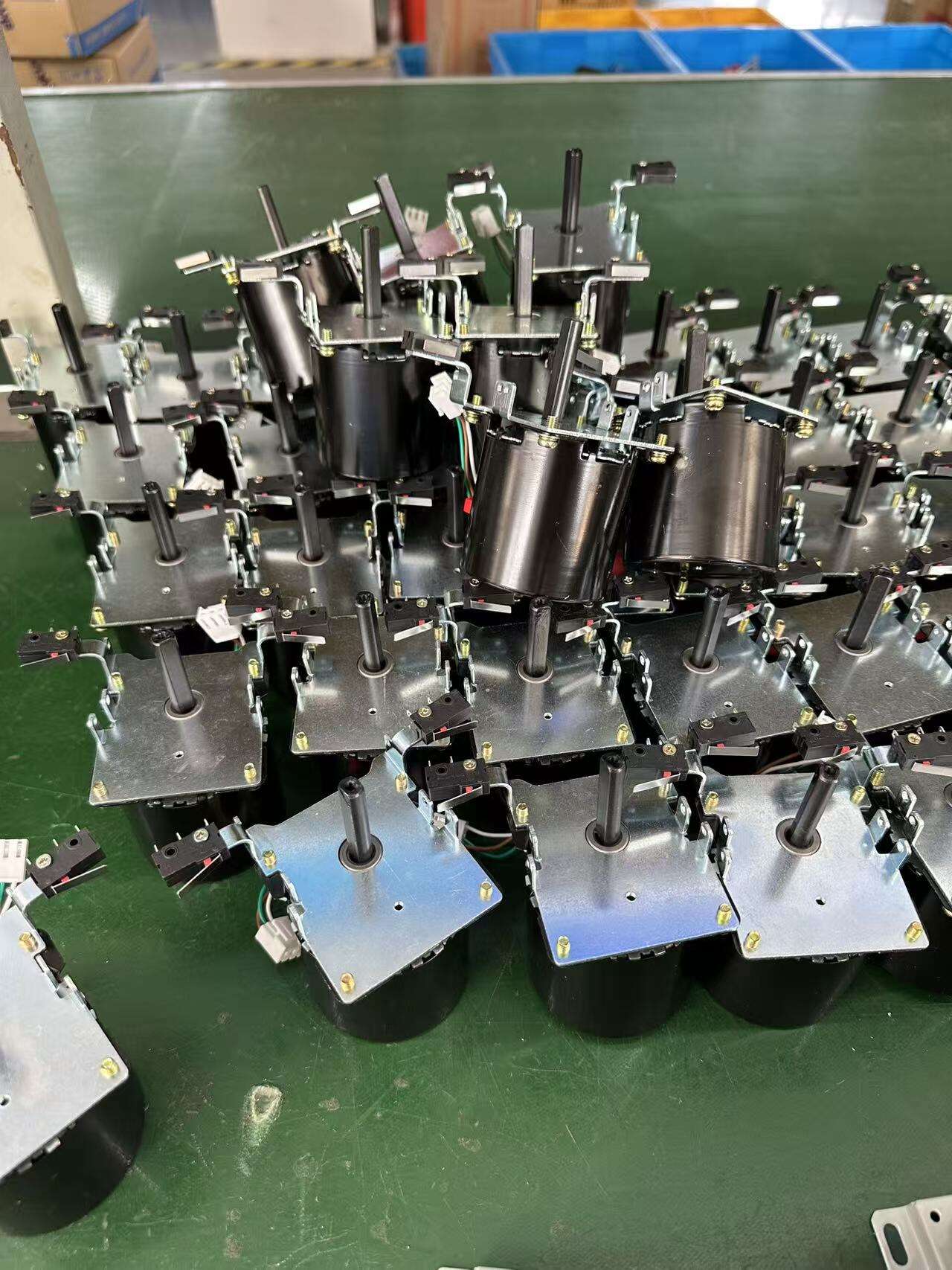

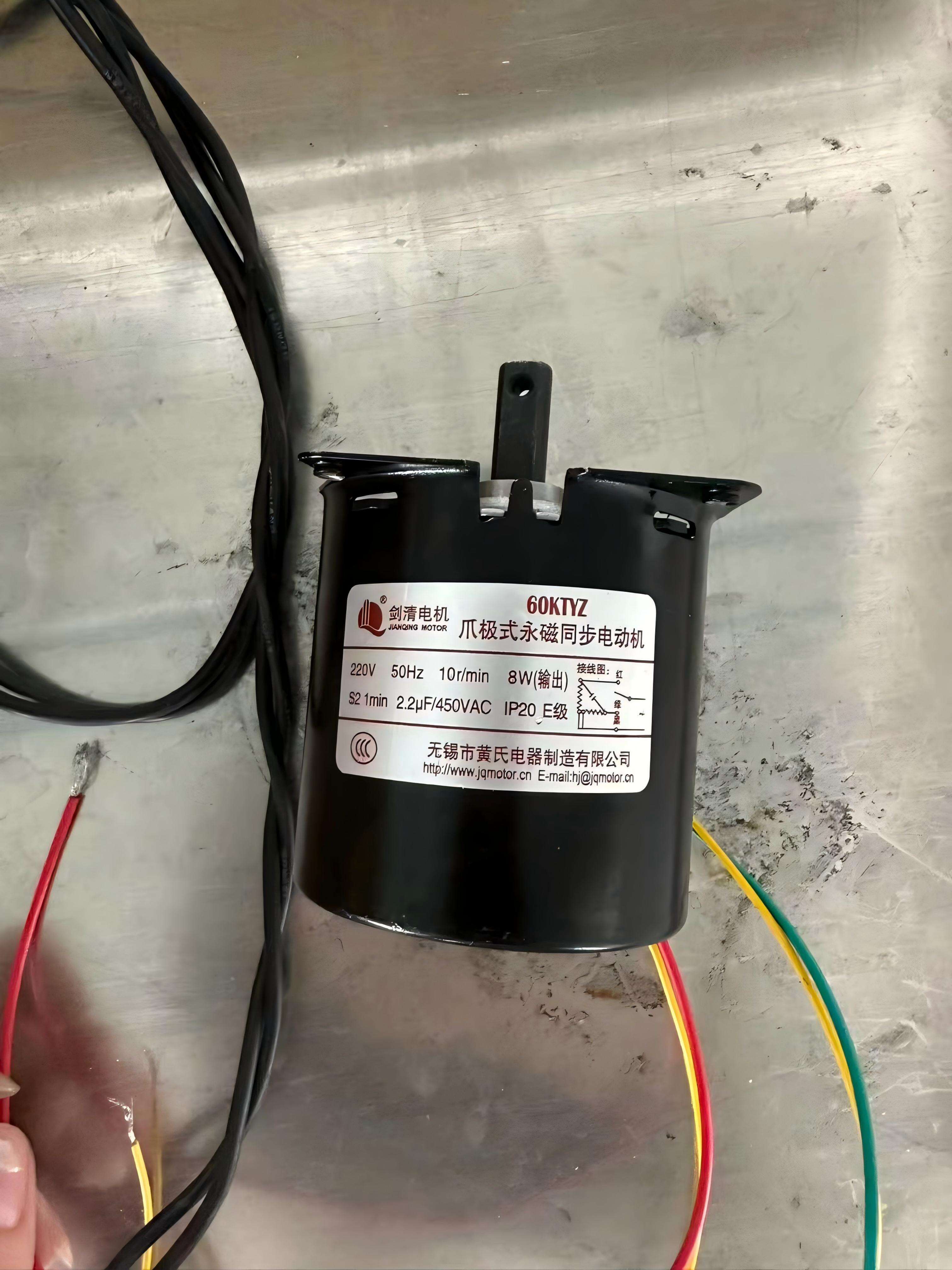

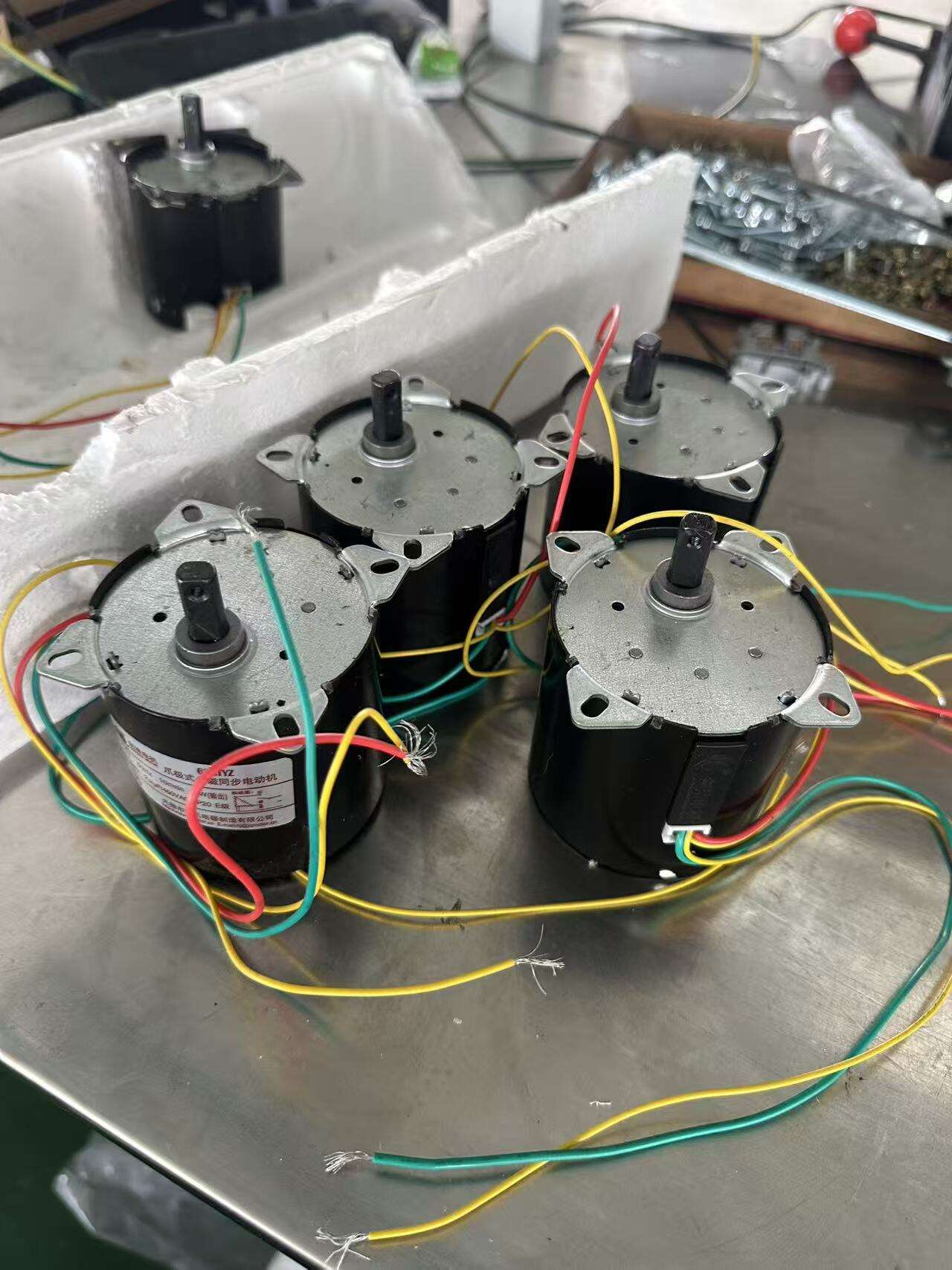

●The motor used is from the best motor factory in China, with fast switching speed
 |
 |
 |
 |

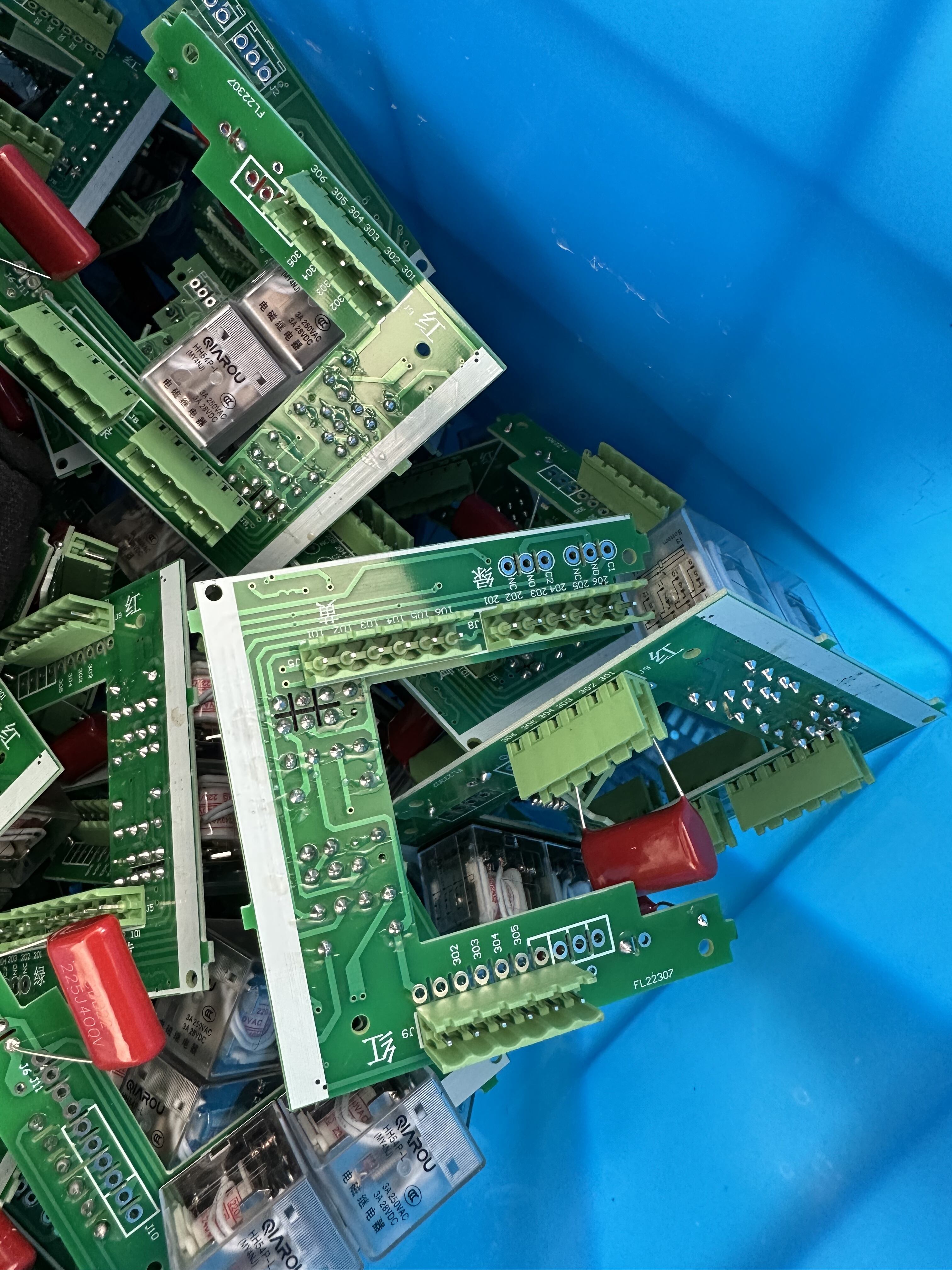

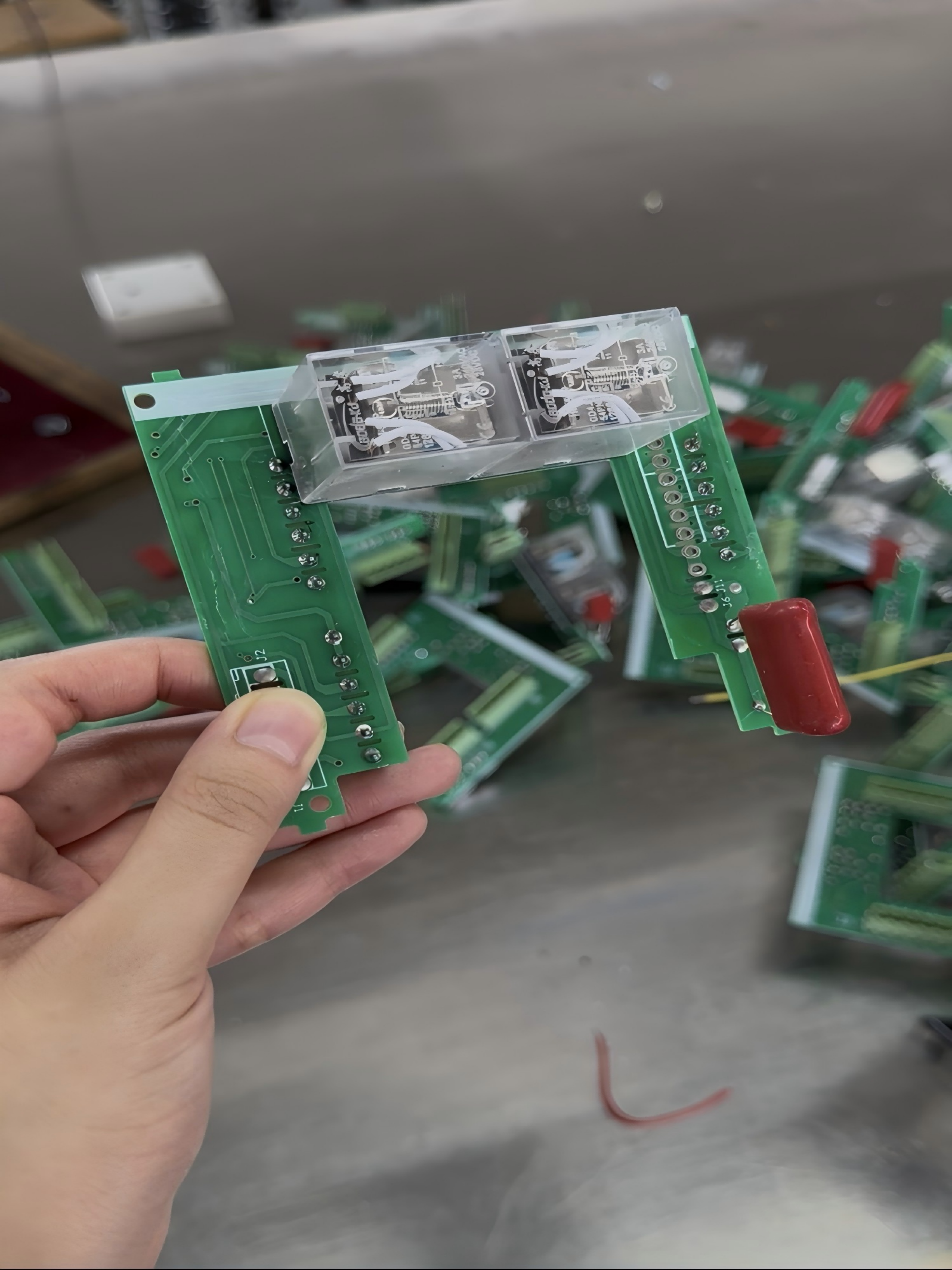

●The circuit board has undergone a 48 hour aging test. There are two relays for low current. There are four relays for high current
 |
 |
 |
 |

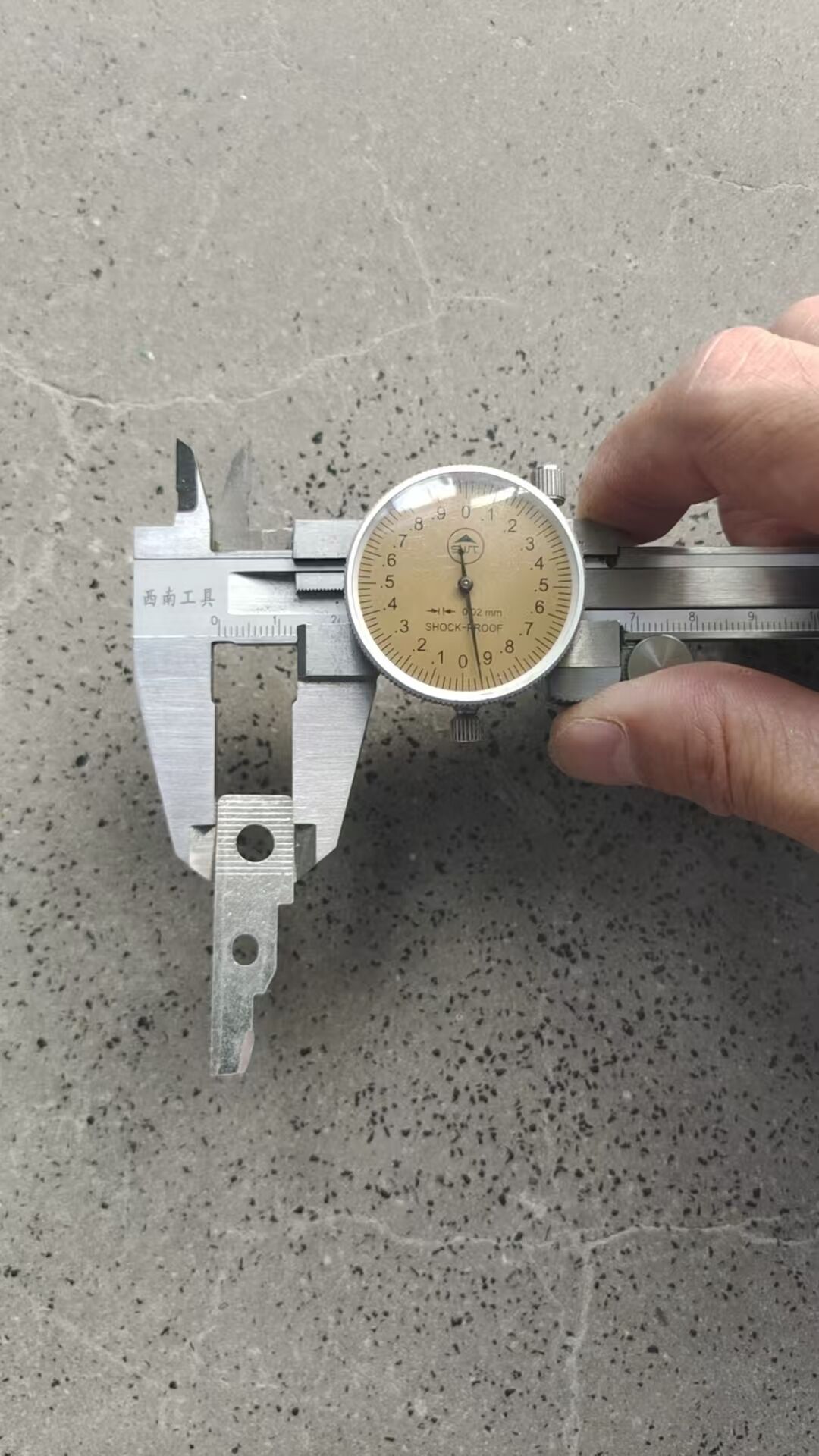

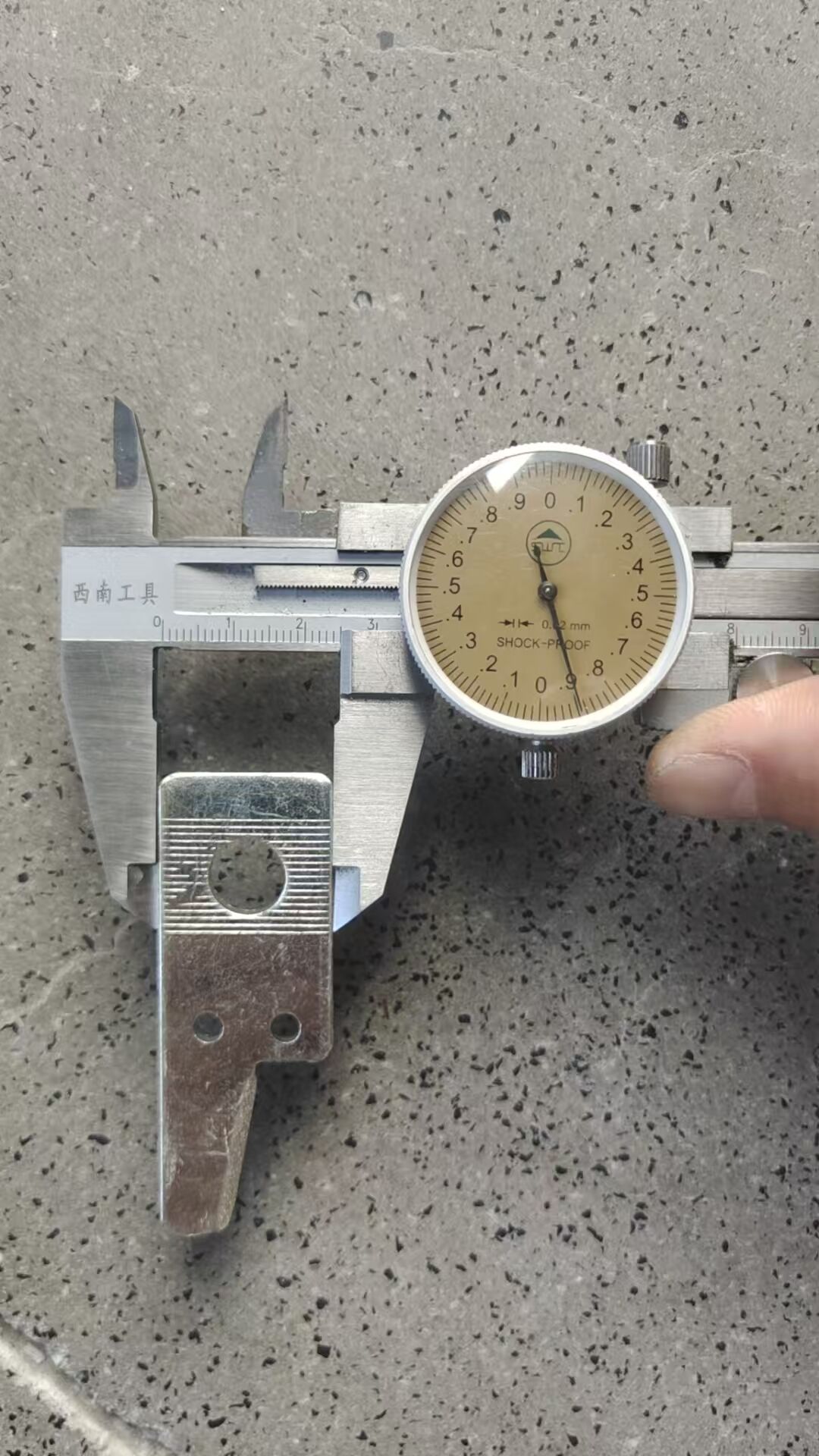

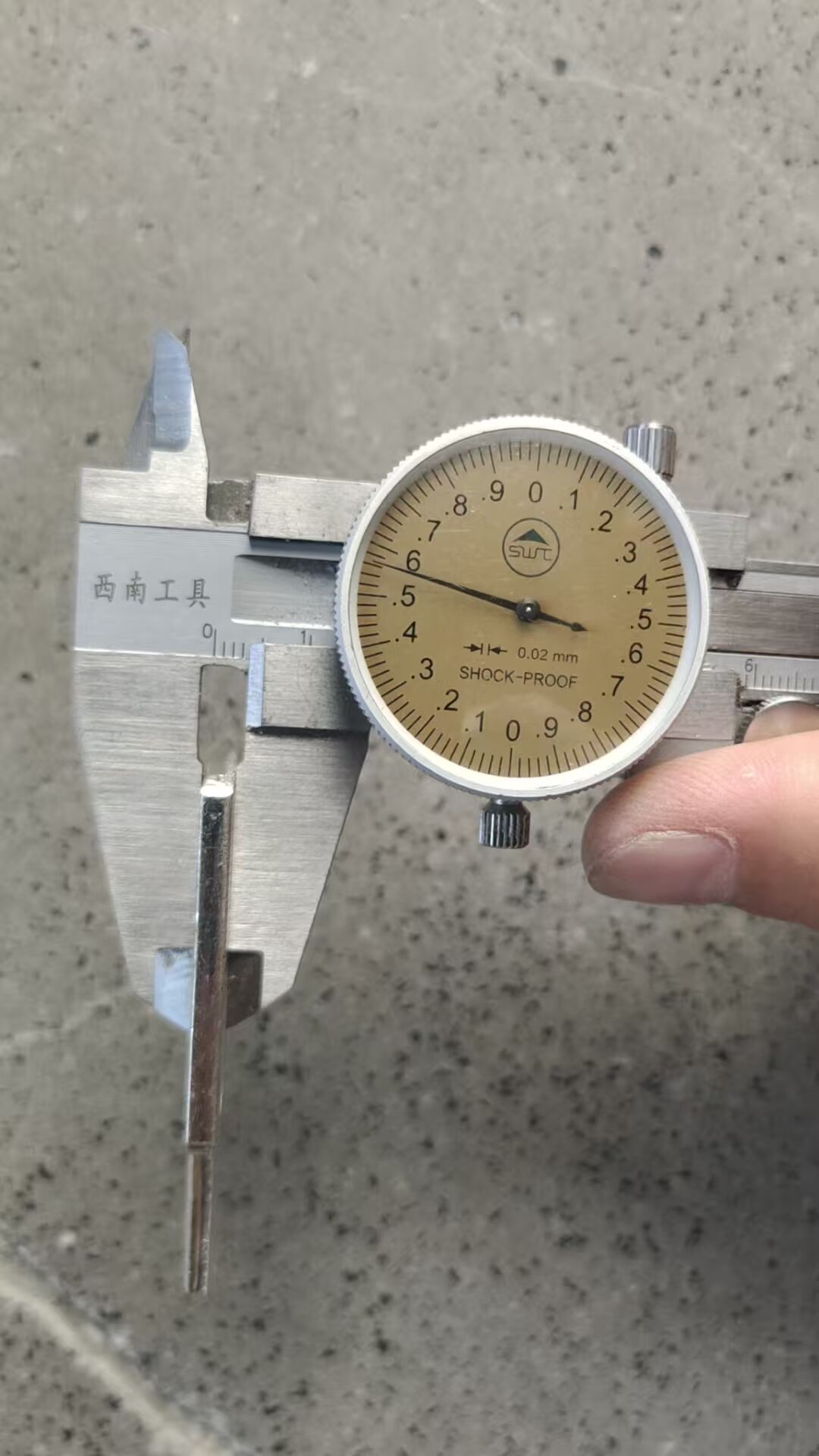

● Busbars are typically made of silver-plated copper, which offers high electrical conductivity, low contact resistance, weld resistance, corrosion resistance, oxidation resistance, and arc erosion resistance.
 |
 |
 |
 |
● Place of Origin: 5th Floor, No. 3 Jinghong West Road, Liushi Town, Yueqing, Wenzhou, Zhejiang, China
● Brand Name: MINGTUO
● Model: ATS MTQ3-100A-3600A
● Certification: ISO, CE, RoHS
Each unit of ATS is put through rigorous trials before releasing to the market:
● Mechanical endurance test
● Electrical switching reliability verification
● Temperature rise evaluation
● Short-circuit withstand and safety test
● Aging test
● conversion speed test
● automatic and manual switching test
Product Installation:

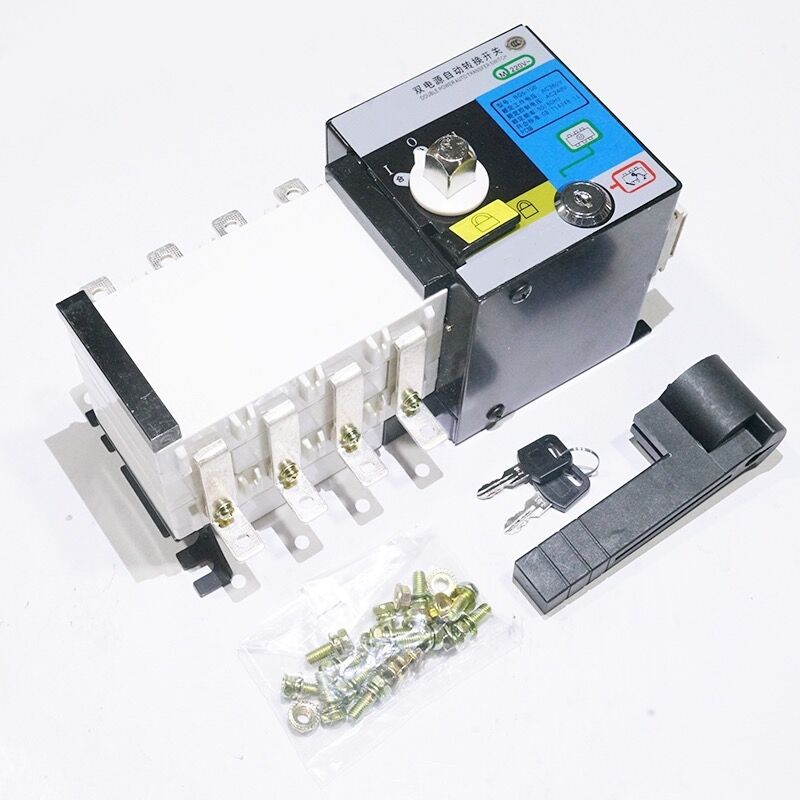

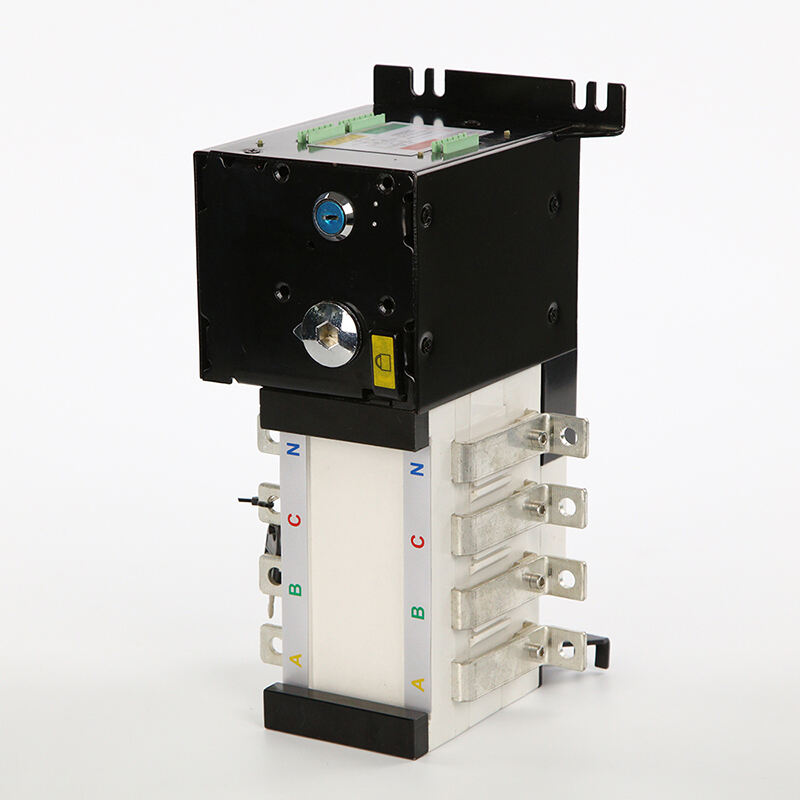

Switch Structure Explanation:
 |

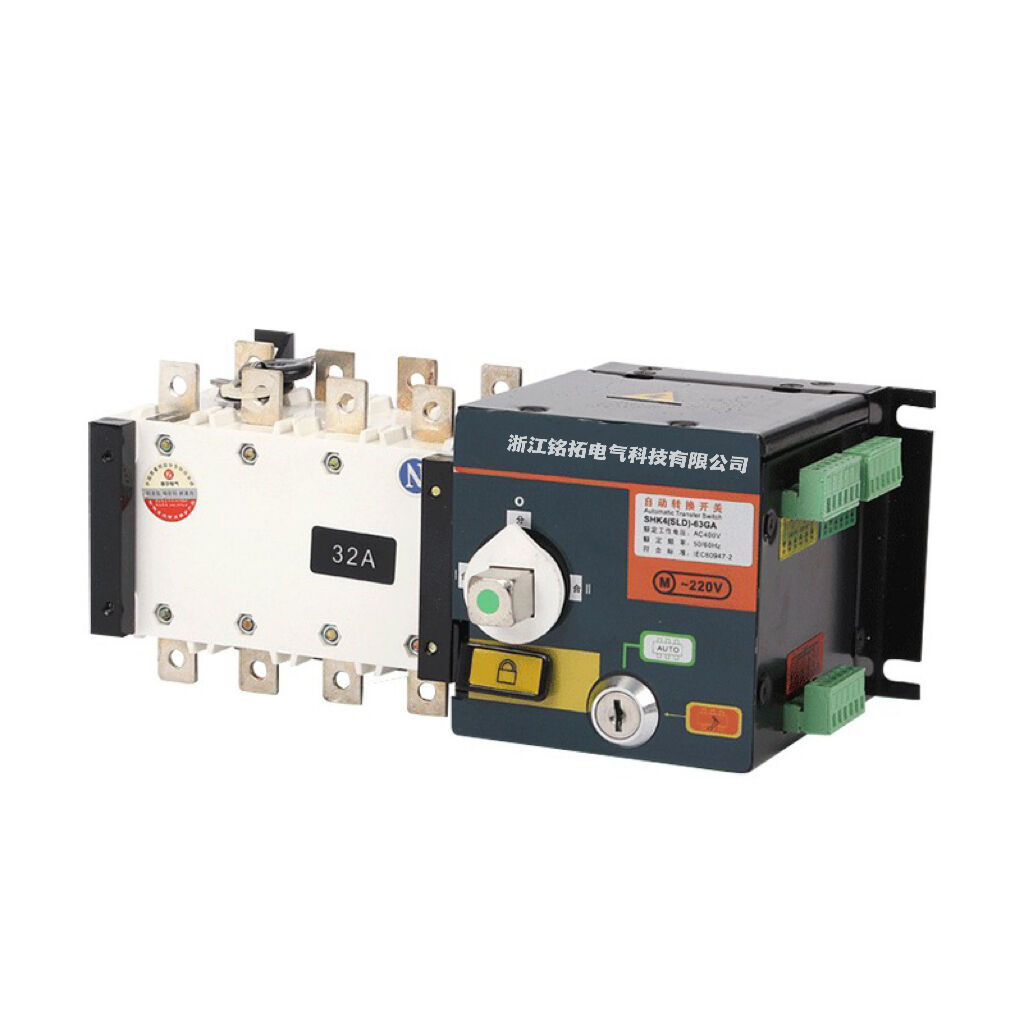

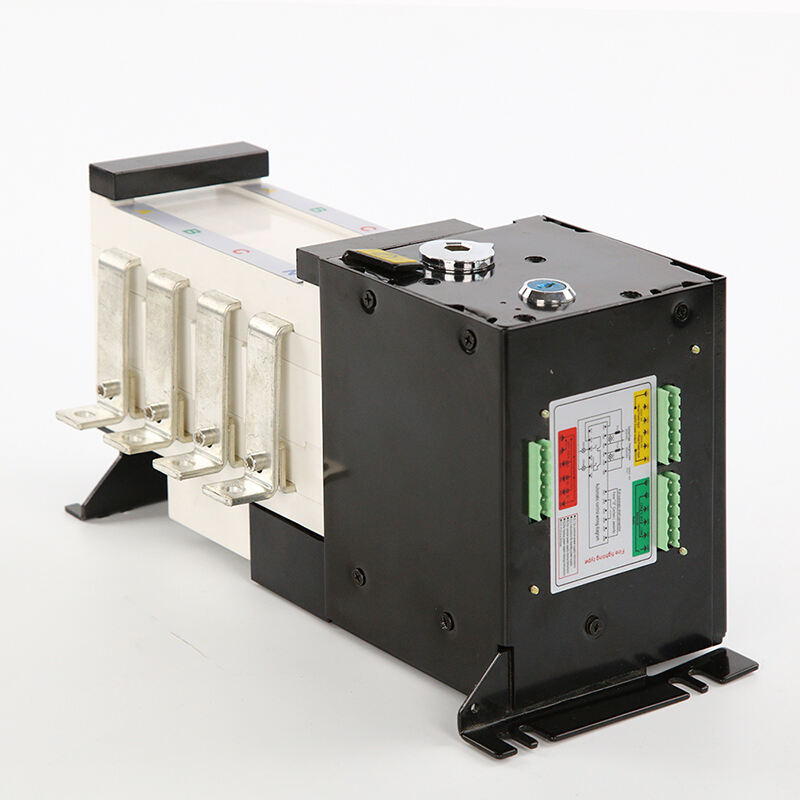

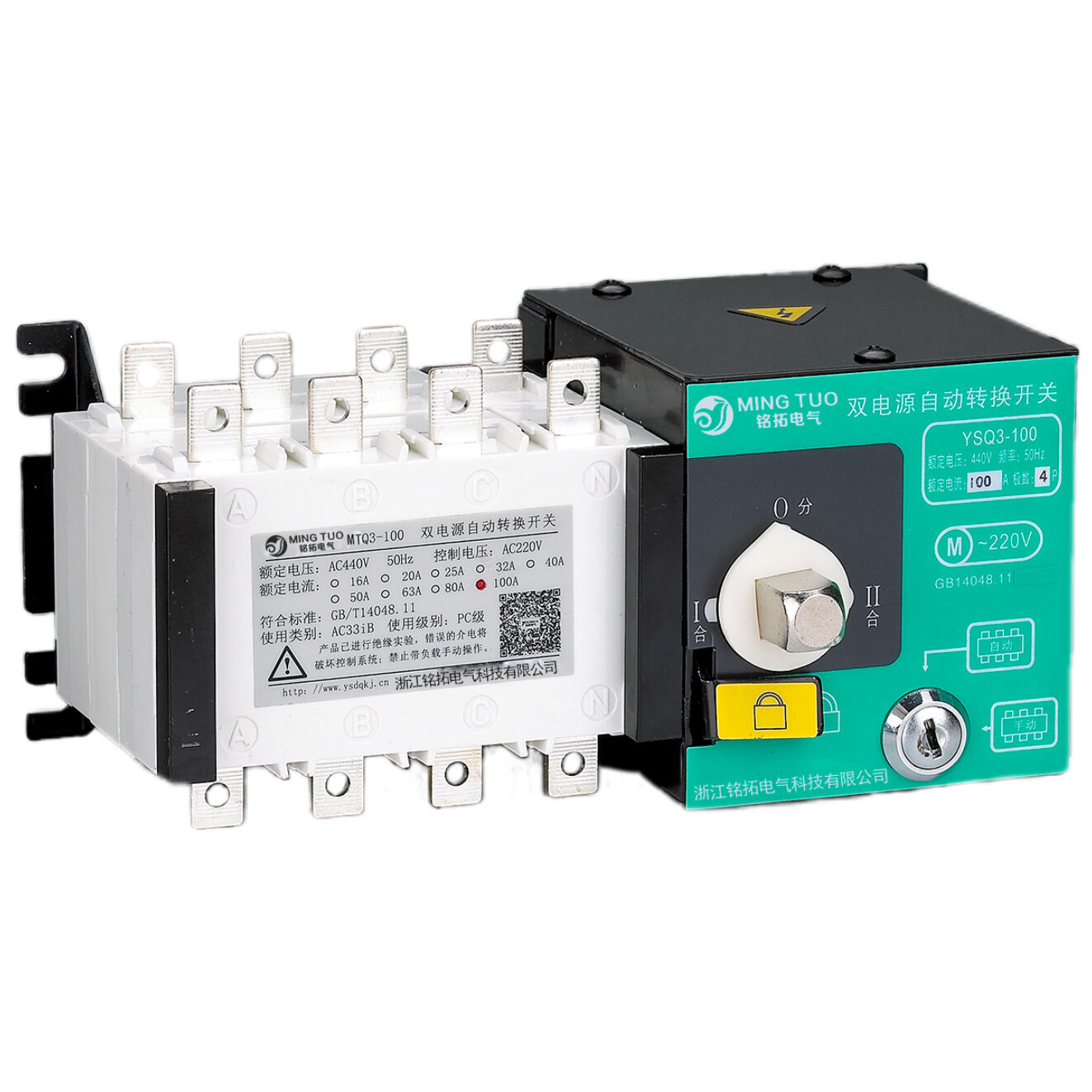

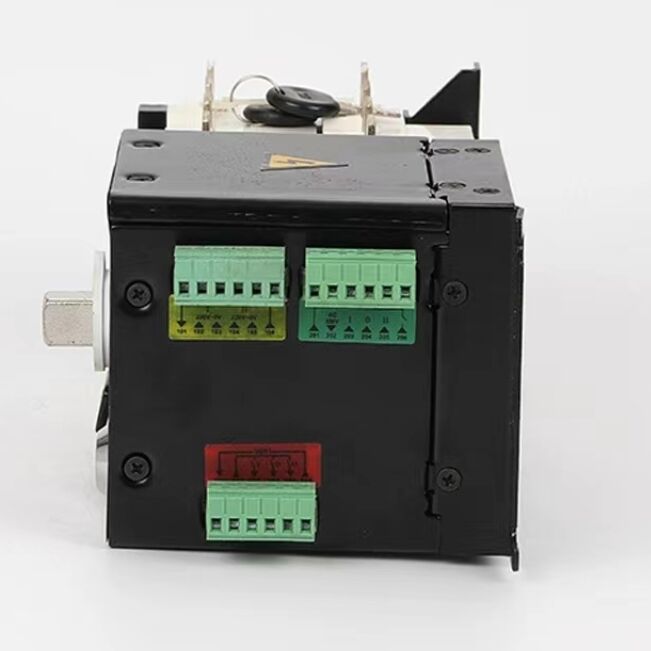

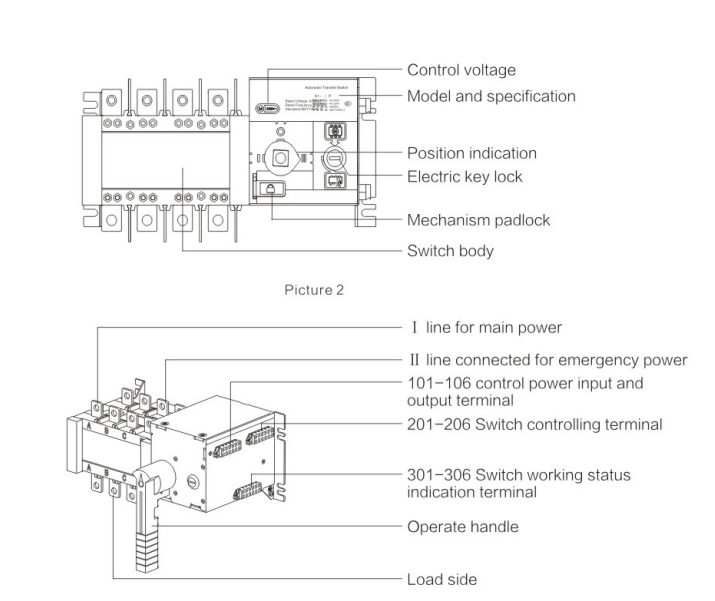

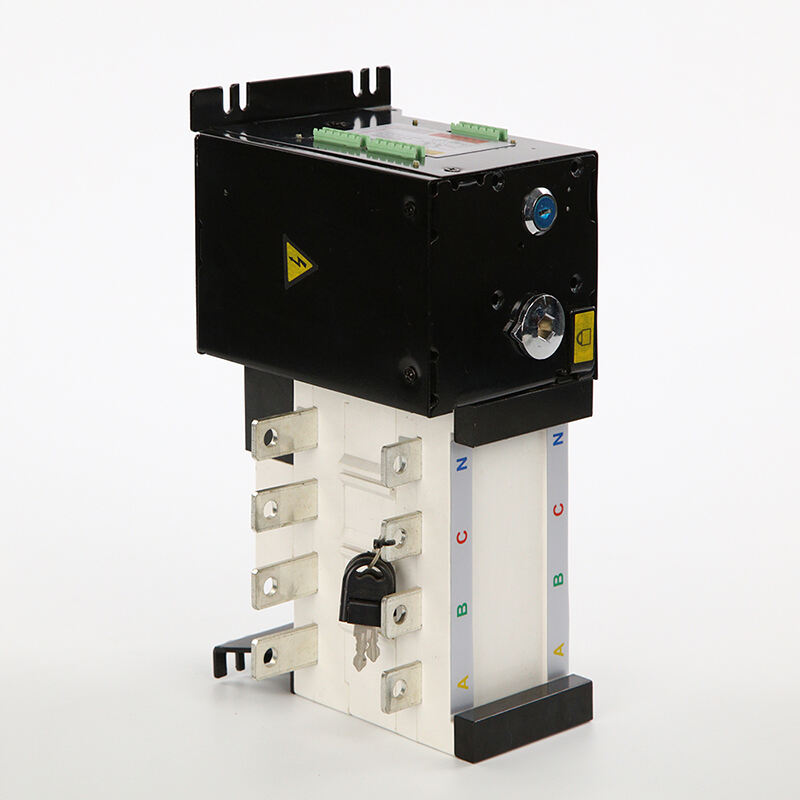

1. Electric Key Lock: This feature allows controlling the internal power supply line of the switch. When the electric lock is open, the switch is operable automatically and remotely. When closed, the switch must be operated manually using the handle. 2. Operating Handle: For manual operation using the handle, closing the electric lock is a prerequisite, ensuring secure handling. 3. Mechanic Padlock: Before inspection, shift the switch to the '0' position using the handle. Then, engage the padlock mechanism and secure it with the padlock, preparing it for inspection. Engaging the padlock mechanism disrupts the internal power supply, preventing both electric and manual operations of the switch. 4. Position Indication: This indicates the operational state of the switch, displaying positions I, 0, and II, ensuring a clear understanding of its current state. |
Item Details：
● Minimum Order Quantity：1 unit
● Price：USD 20
● Packaging：Carton
● Delivery Time：Within 15 days
● Payment Terms：100% prepaid / 70%-30% / 80%-20%
● Supply Ability：In stock, available anytime
● Current Rating: 100A–630A
● Pole Options: 3P / 4P
● Rated Voltage: AC 400V
● Breaking Capacity: 10–50kA
● Withstand Current: 50–100kA
● Transfer Time: 1–3 seconds
MTQ3 ATS is a device that can be found at the heart of such places where are extremely important the supply of continuous power:
Commercial Buildings● High-rise buildings ● Hotels and resorts ● Shopping complexes ● Convention centers ● Schools and universities |
Public & Emergency Services● Fire stations ● Police command centers ● Transport hubs ● Broadcasting networks ● Government institutions |
Special Applications● Field medical units ● Mobile power systems ● Offshore platforms ● Remote monitoring stations ● Disaster recovery facilities |
Infrastructure● Data centers ● Hospital life-support systems ● Air traffic control and aviation facilities ● Telecommunication hubs ● Financial transaction systems |
Industrial Operations● Industrial automation control system ● Production lines ● Petrochemical and mining industries ● Energy and water treatment plants ● Heavy machinery facilities |
 |
 |
 |
Seamless Installation Method for Dual Power Automatic Transfer Switch (ATS):
● Perfect Installation Location:
Choose a dry and well-ventilated area that provides convenient access to both the primary and reserve power supply inlets. This strategic placement ensures effortless operation and maintenance.
● Precise Wiring Specifications:
Connect the primary and reserve power supplies meticulously to the ATS input terminal. Ensure the output terminal is linked to the load, maintaining a strict distinction in the phase sequence (L1/L2/L3/N/PE) for optimal performance.
● Efficient Switching Test:
Conduct a simulated main power failure once powered on, to verify the automatic switching time, which typically should not exceed 1.5 seconds. This guarantees uninterrupted power to the load.
● Stringent Safety Requirements:
Achieve reliable grounding with a shell protection level that corresponds to the environment, such as IP40 for indoor use. Ensure all installations comply with the GB/T 14048.11 standard for ultimate safety.

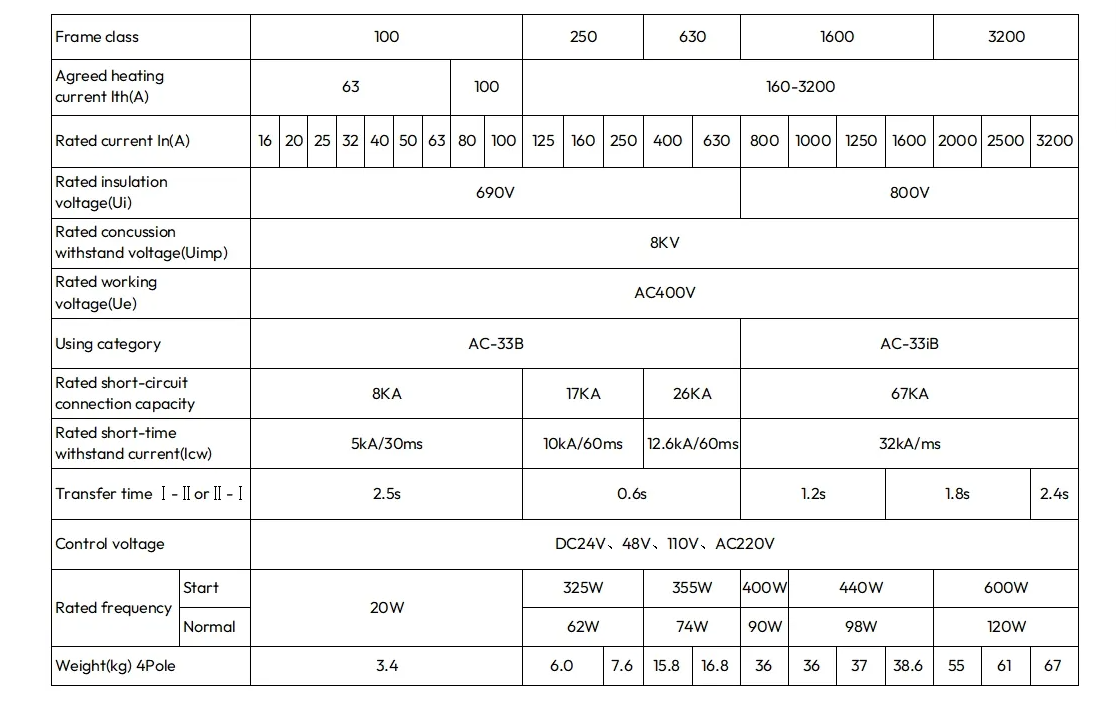

Product Parameters
Packaging & Shipping
 |
 |
 |
-Inner Packaging
Shockproof Material
Material: Premium foam, bubble film, etc.
Placement: Strategically placed to cushion the circuit breaker, providing protection at the top, bottom, and all around.
-External PackagingCarton
Material: Robust high-strength corrugated cardboard box ensures durability.
Carton Sealing
Method: Expertly sealed using reliable tape or durable strapping
Requirement: Achieve a secure seal to prevent any damage or cracking of the box during transit.
Identification and Labeling
Content:Essential details such as Product model, quantity, weight, manufacturer, and necessary transportation labels (including fragile, upward, moisture-proof symbols)
Location: Prominently and clearly printed on the exterior of the cardboard box.
Advantages
Competitive Advantages of Our ATS Automatic Transfer Switch
1. Advanced Technical Performance
- Ultra-fast transfer time: ≤1.5 seconds (standard type), ≤80ms (high-speed type)
- The switch can handle a current of up to 100kA
- Dual power monitoring with voltage and frequency detection
- Microprocessor-based intelligent control system
2. Superior Safety Features
- Mechanical and electrical dual interlock system
- The complete arc extinguishing structure
- Zero-position fire protection linkage function
- Overload and short-circuit protection
3. Exceptional Reliability
- Mechanical life: ≥30,000 times
- Electrical life: ≥5,000 times
- IP65 protection level can be achieved
- Broad operating temperature range: -25°C to +70°C
4. Smart Control Capabilities
- The LCD display shows real-time parameters
- RS485 communication interface (Modbus protocol)
- Remote monitoring and control capability
- Diagnosis and fault alarm functions
5. Quality Assurance
- Entirely factory-tested include:
- Mechanical operation test
- Electrical performance verification
- Temperature rise test
- Short-circuit withstand test
- Compliant with IEC 60947-6-1, GB/T 14048.11
- The product is warranted for 3 years
6. Customization Services
- Different current ratings (up to 6300A)
- Customized transfer logic
- Different enclosure materials (IP20-IP65)
- Emergency delivery within 10 days
7. Service Advantages
- 24-hour, 7-day technical support
- Support for obtaining global certificates
- On-site installation guidance
- Spare parts assurance
Customer feedback
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |

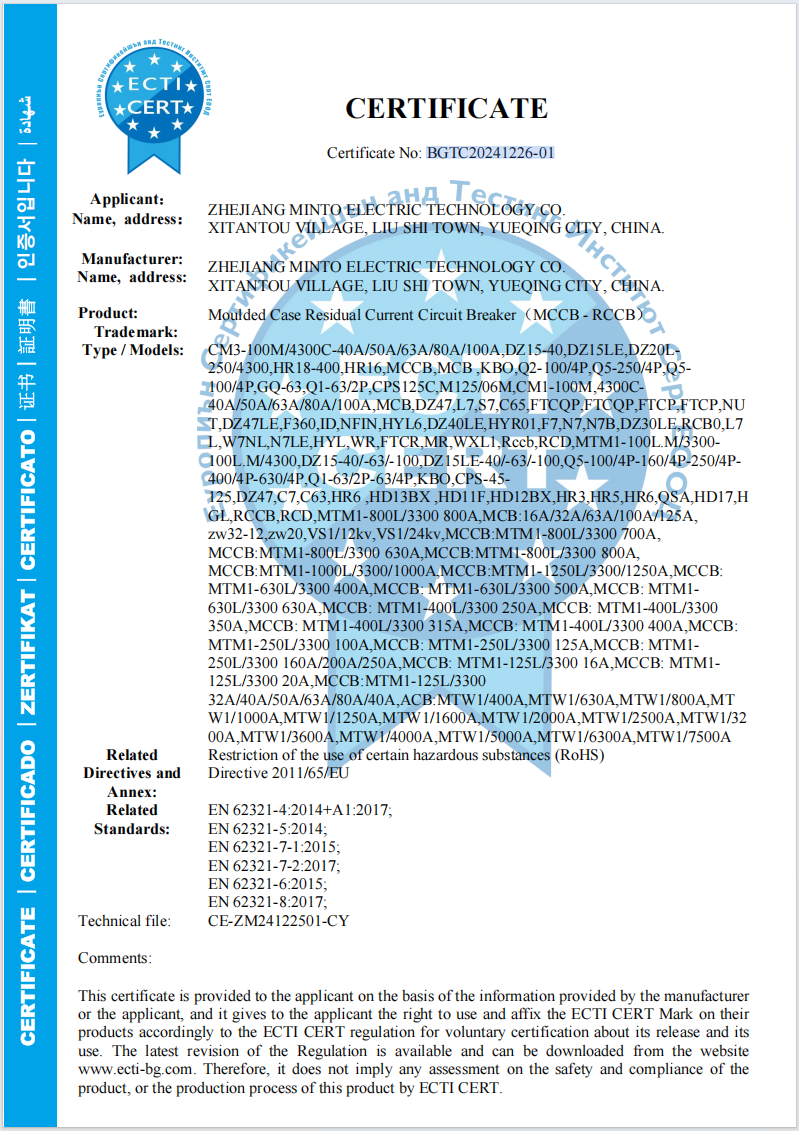

Certificate
 |
 |
 |
