MT-NSX 3/4P 100A-1600A Molded case circuit breakers AC MCCB

MT-NSX 3/4P 100A-1600A Molded case circuit breakers AC MCCB

Overview
Testing
Installation

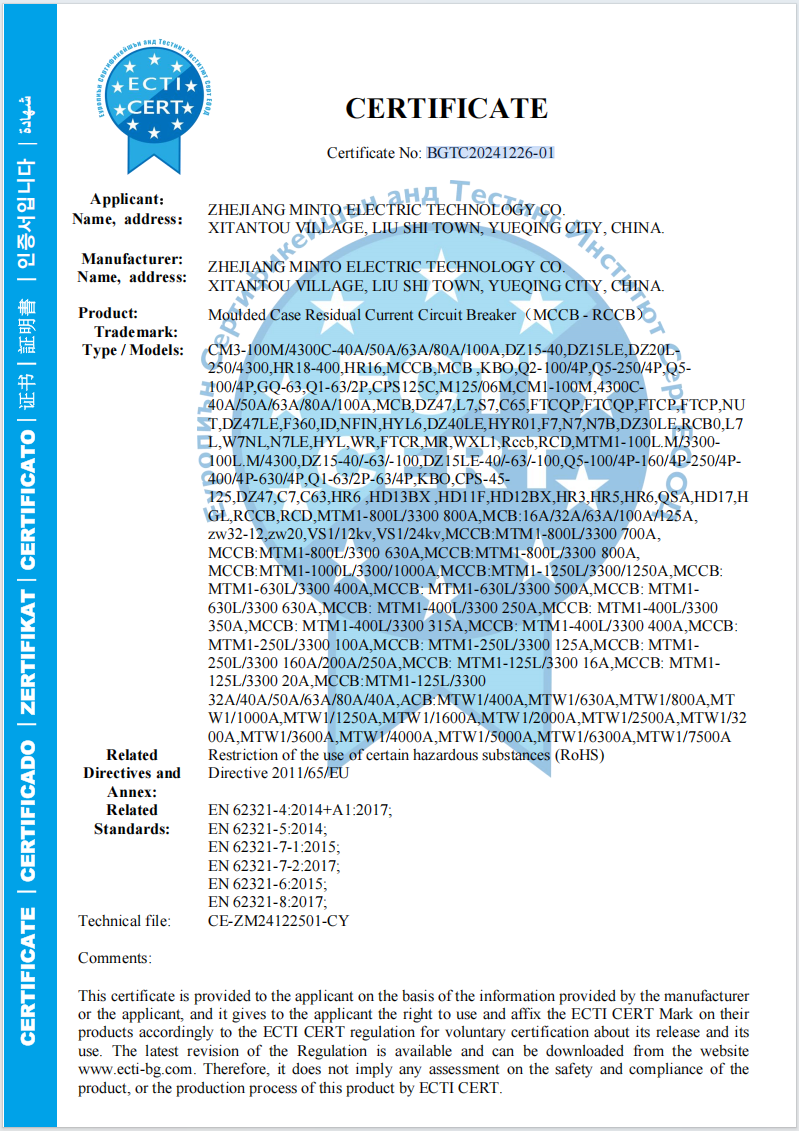

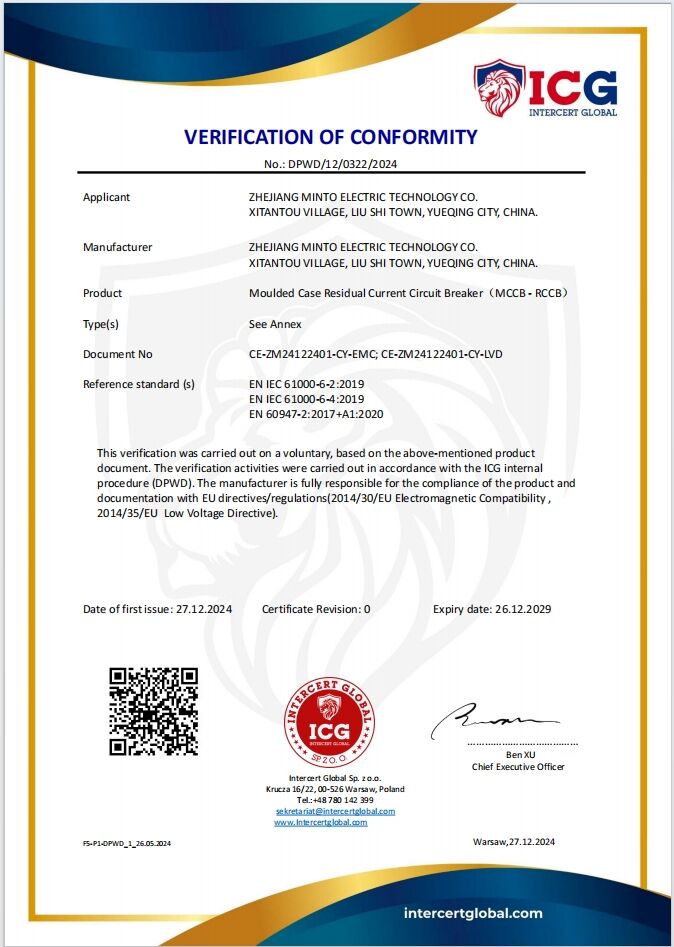

Certificate
Recommended Products

MT-NSX/MOLDED CASE CIRCUIT BREAKER

100, 160, 250, 400, 630, 800, 1000, 1250, 1600

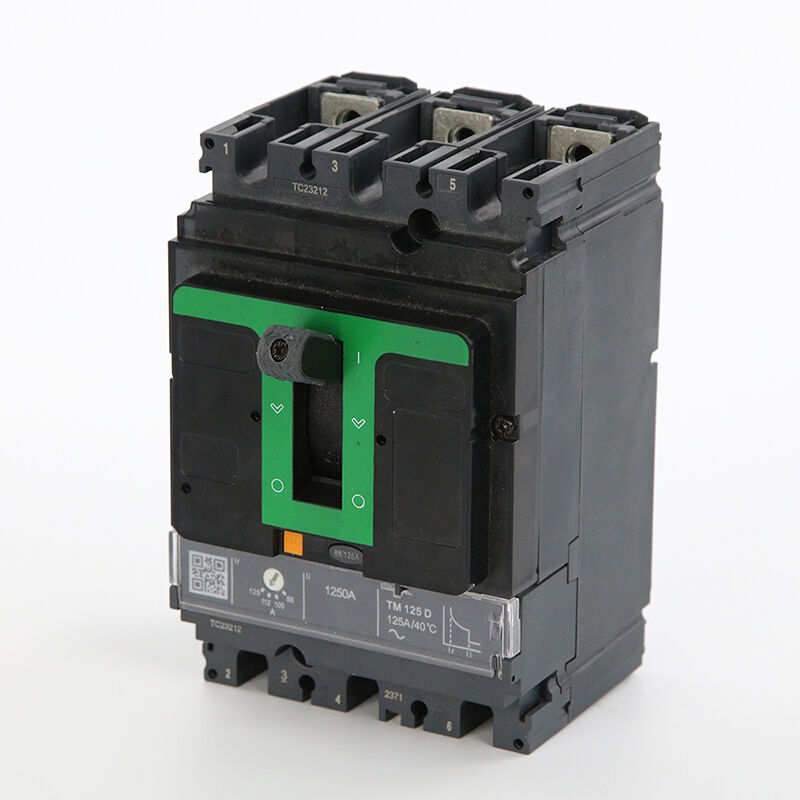

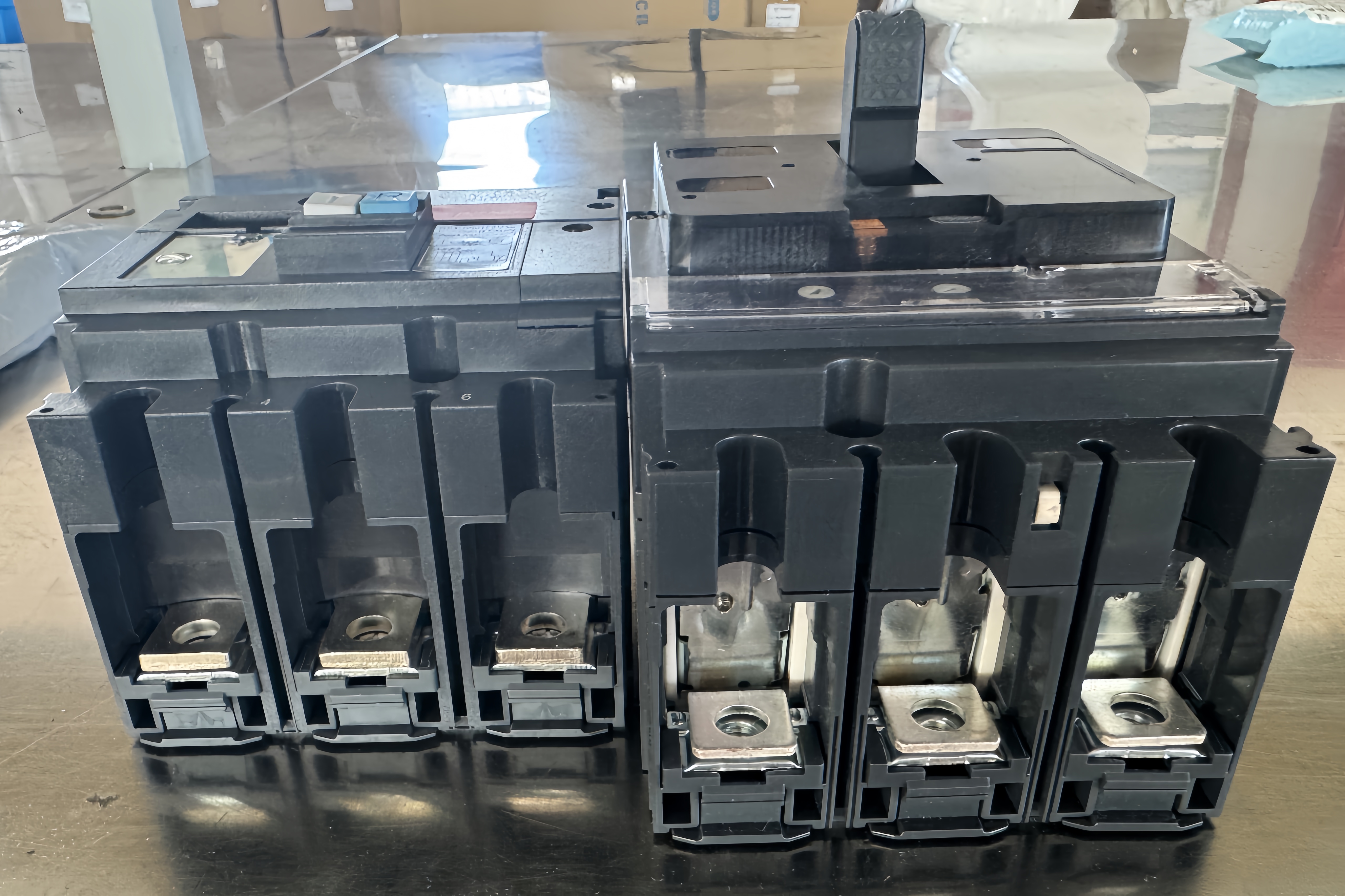

MT-NSX 3/4P 100A-1600A Molded case circuit breakers AC MCCB details

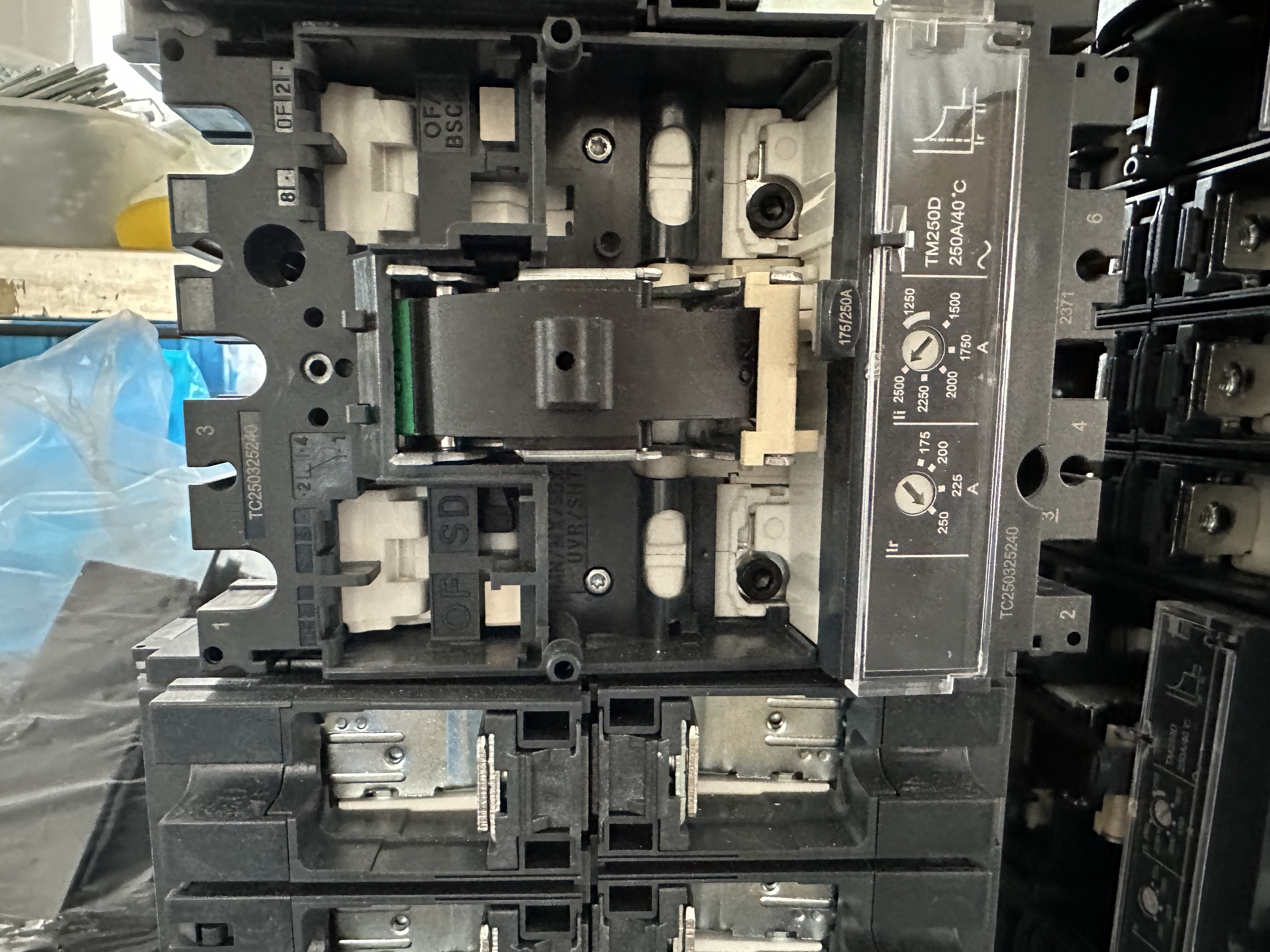

MT-NSX 3/4P 100A-1600A Molded case circuit breakers AC MCCB supplier

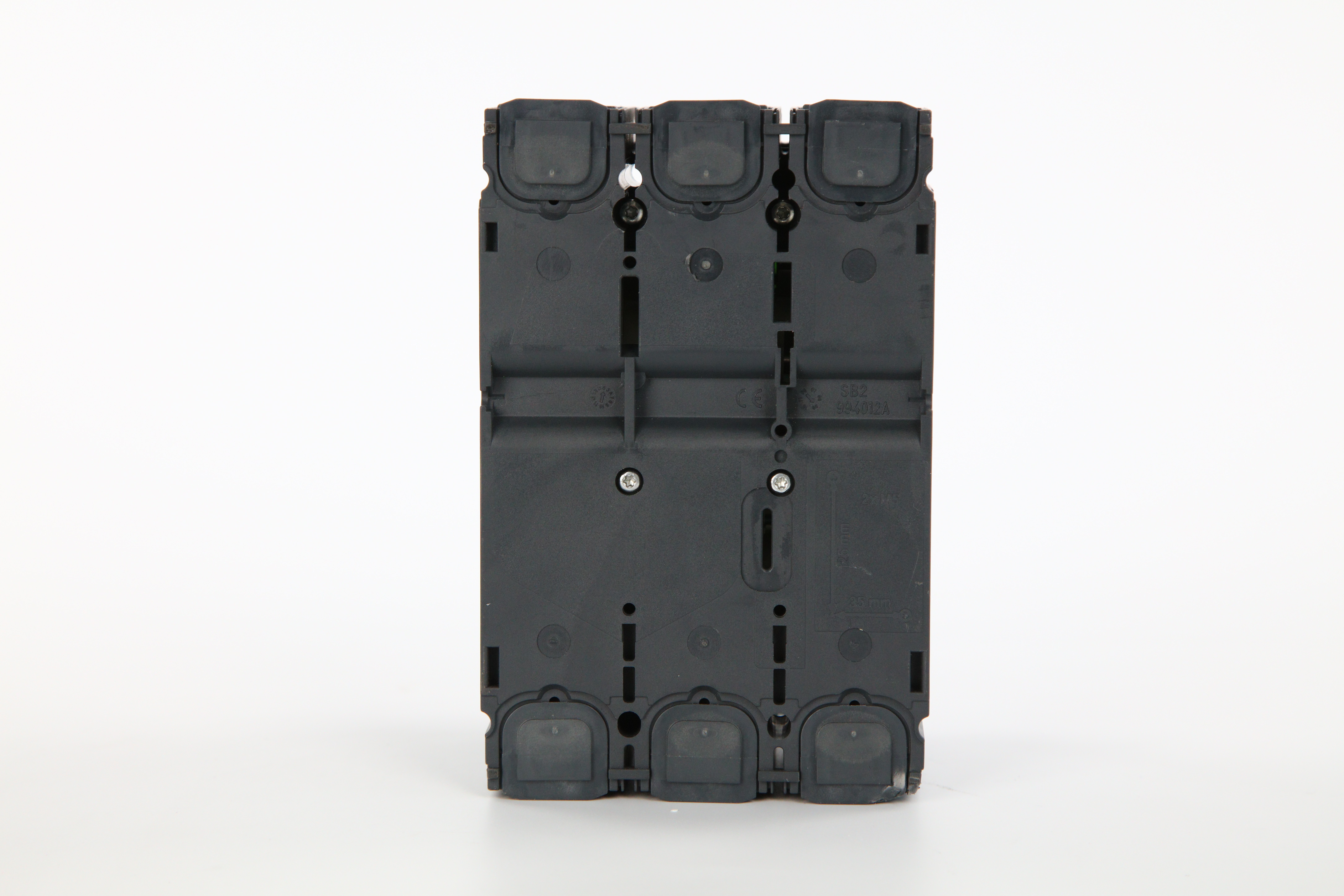

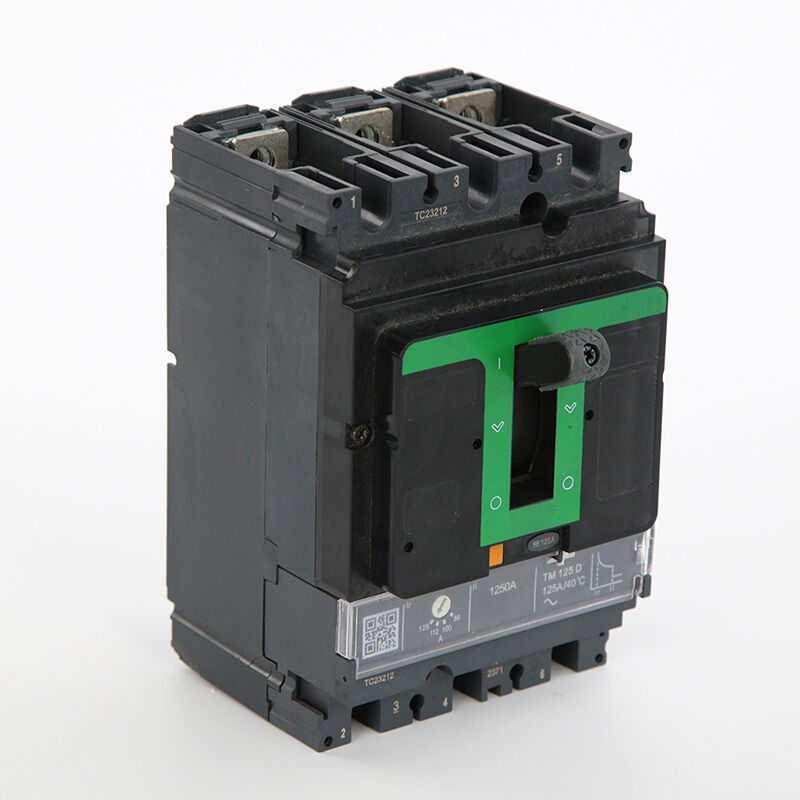

MT-NSX 3/4P 100A-1600A Molded case circuit breakers AC MCCB manufacture

General product information:

Place of Origin:	5th Floor, No. 3, Jinghong West Road, Liushi Town, Yueqing City, Wenzhou City, Zhejiang Province	Price:	20$
Brand Name:	MINGTUO	Packaging Details:	Wooden box packaging
Model Number:	MCCB MSX-160	Delivery Time:	Within fifteen days
Certification:	IOS CE ROHS	Payment Terms:	100% prepaid, 70%/30%, 80%/20%
Minimum Order Quantity:	1	Supply Ability:	Available at any time

Description：

The MTNSX series molded case circuit breakers (MCCBs) are high-performance electrical protection devices widely used in industrial, commercial, and infrastructure sectors. Their core features include:

1. High breaking capacity:

High breaking capacity ensures reliable protection of electrical systems under short-circuit or overload conditions.

2. Modular design:

Supports various functional modules (e.g., residual current protection, communication modules) to meet diverse needs.

3. Precise protection:

Equipped with thermal-magnetic or electronic trip units, providing precise overload, short-circuit, and ground fault protection.

4. Compact design:

Saves installation space and is suitable for high-density distribution cabinets.

5. Intelligent functions:

Supports communication interfaces (e.g., Micrologic) for remote monitoring and energy management.

6. High durability:

Utilizes high-quality materials and advanced technology to ensure long service life and stable performance.

Detail Photo:

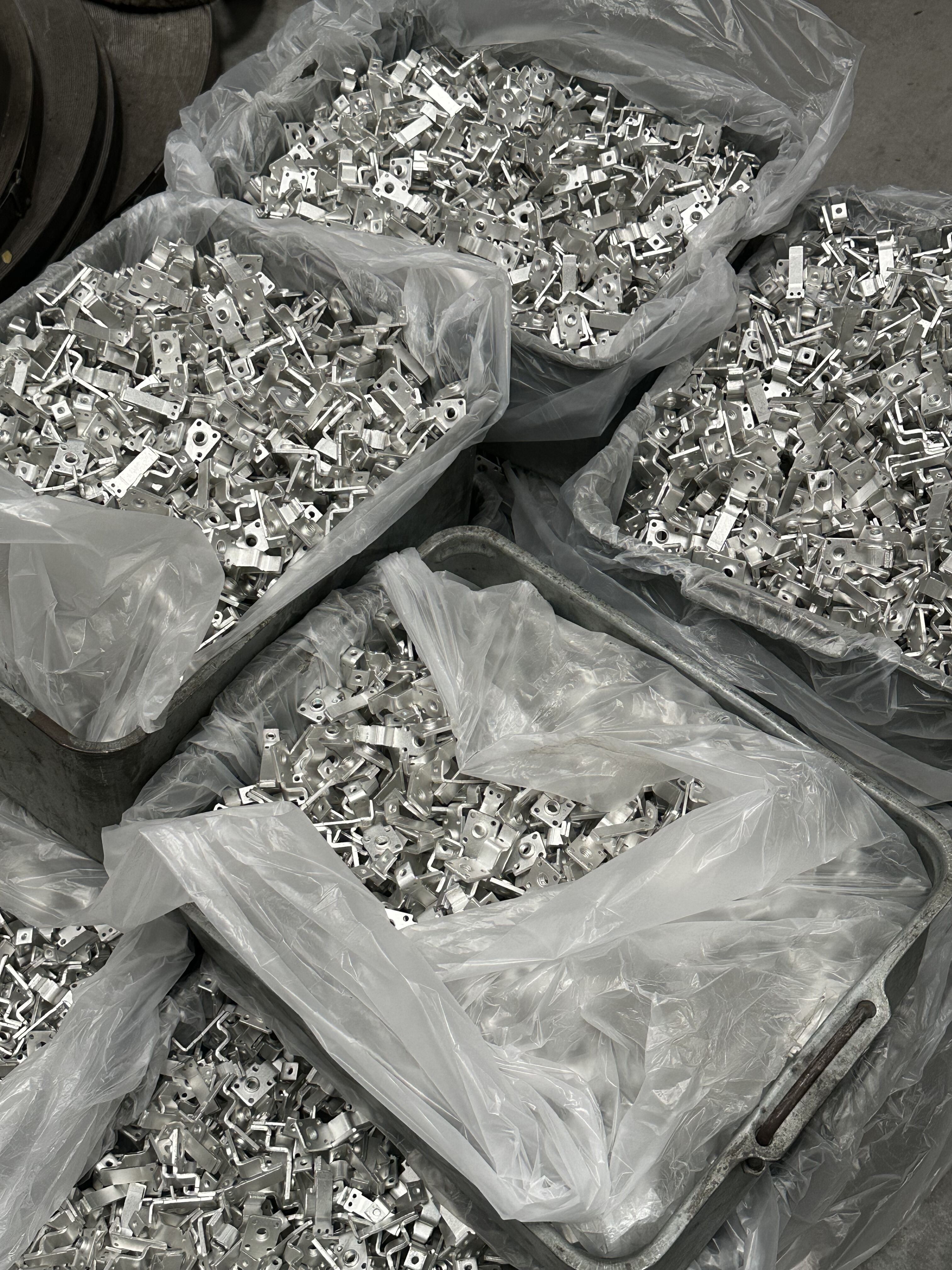

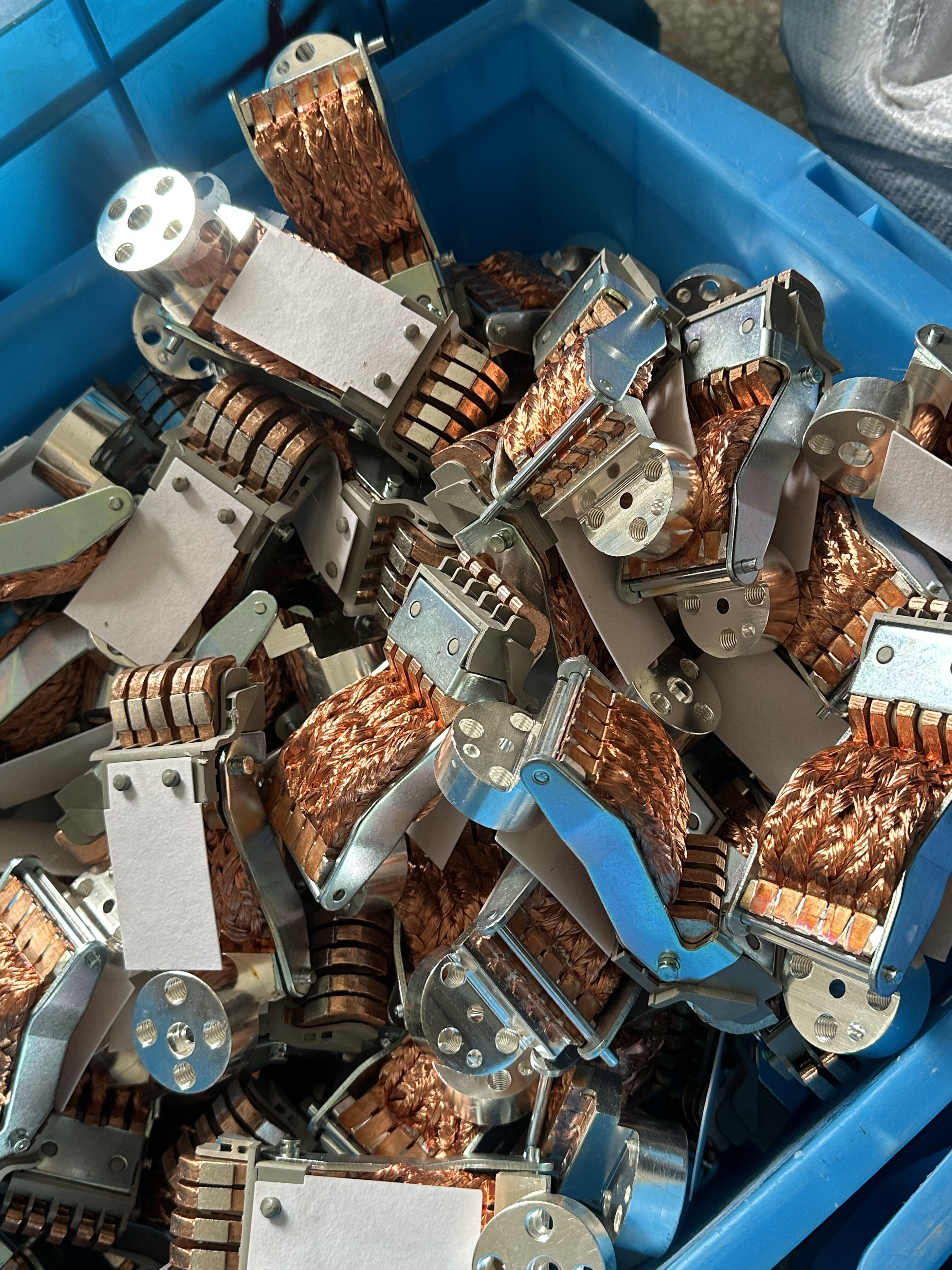

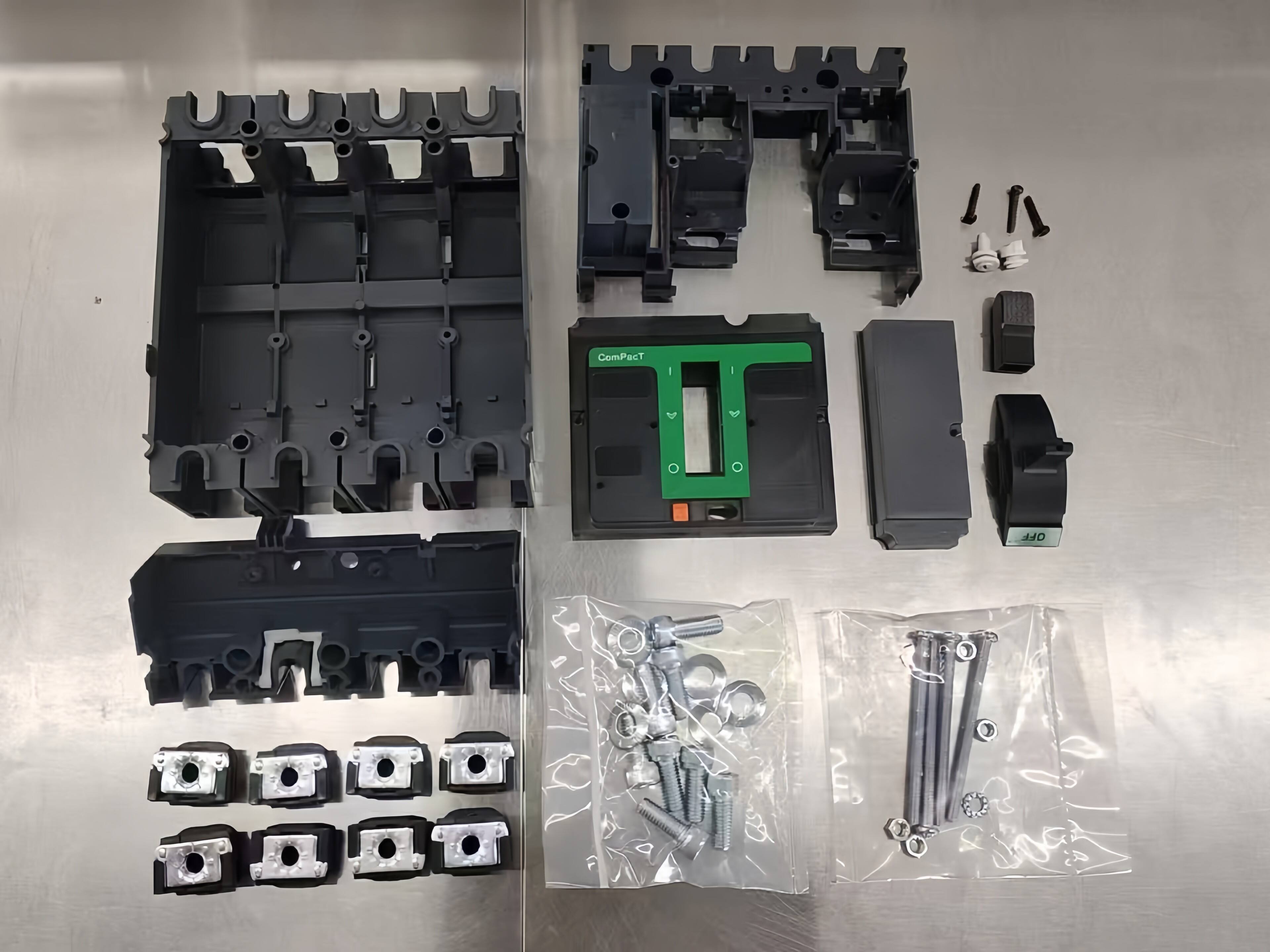

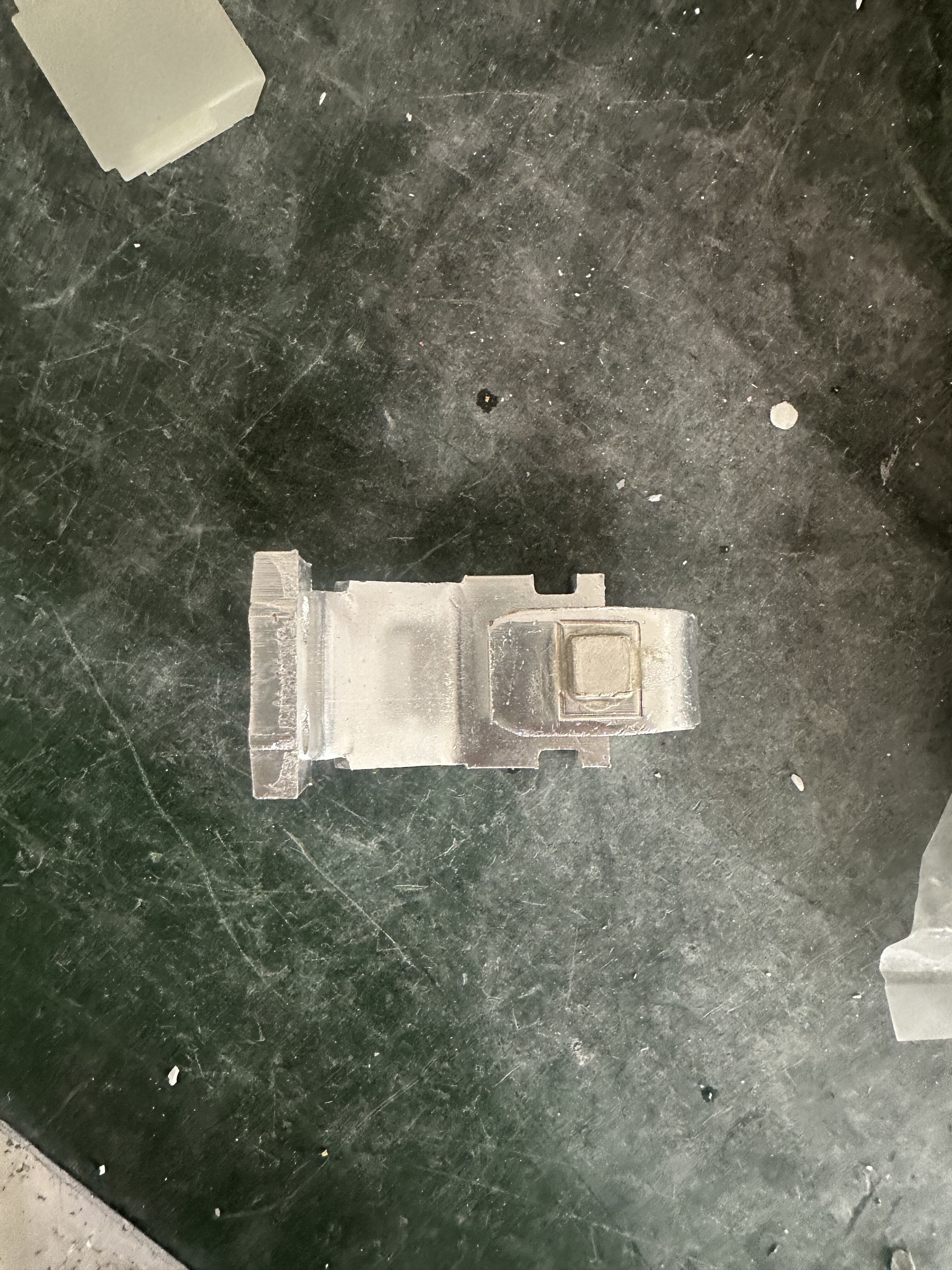

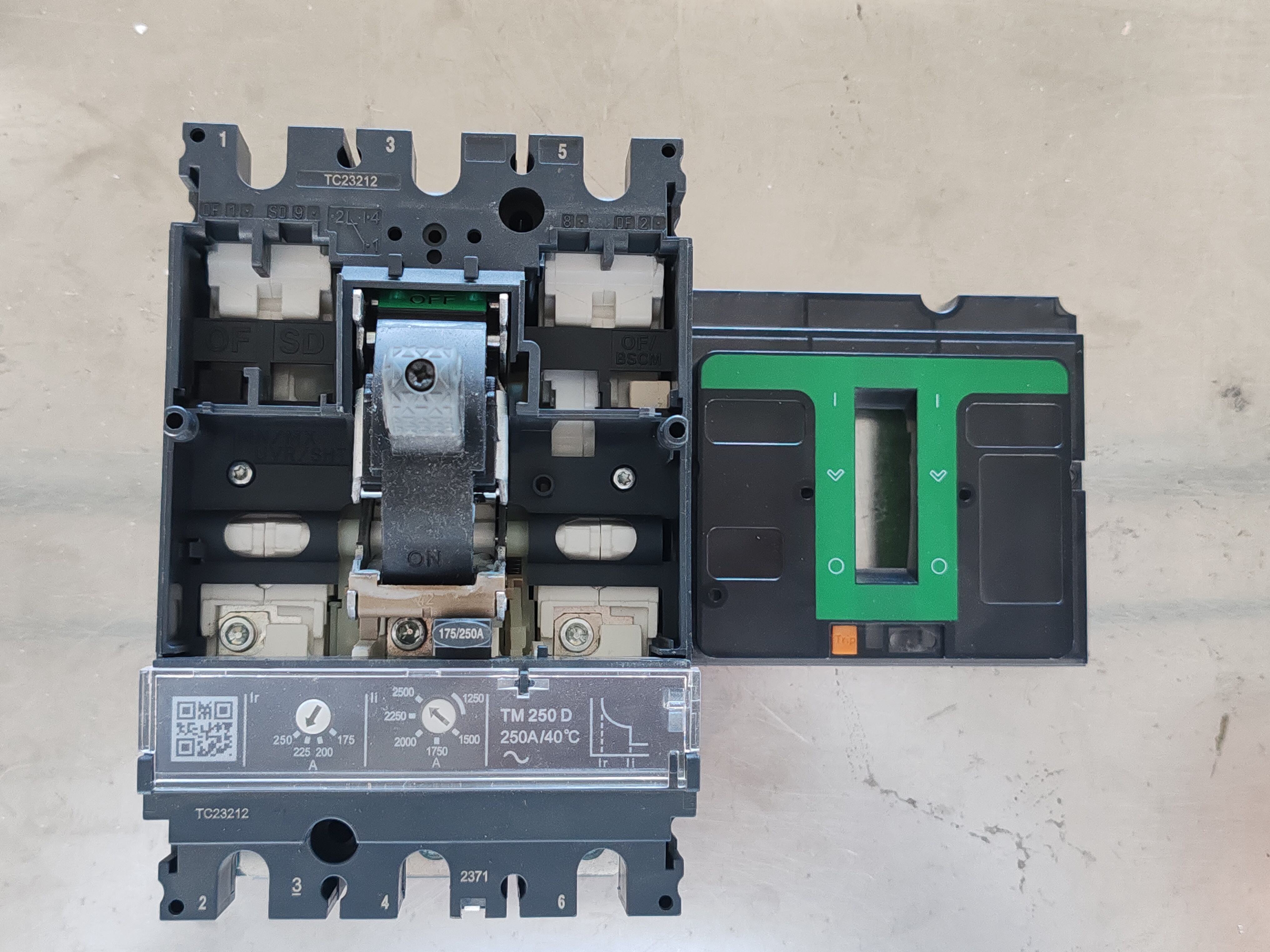

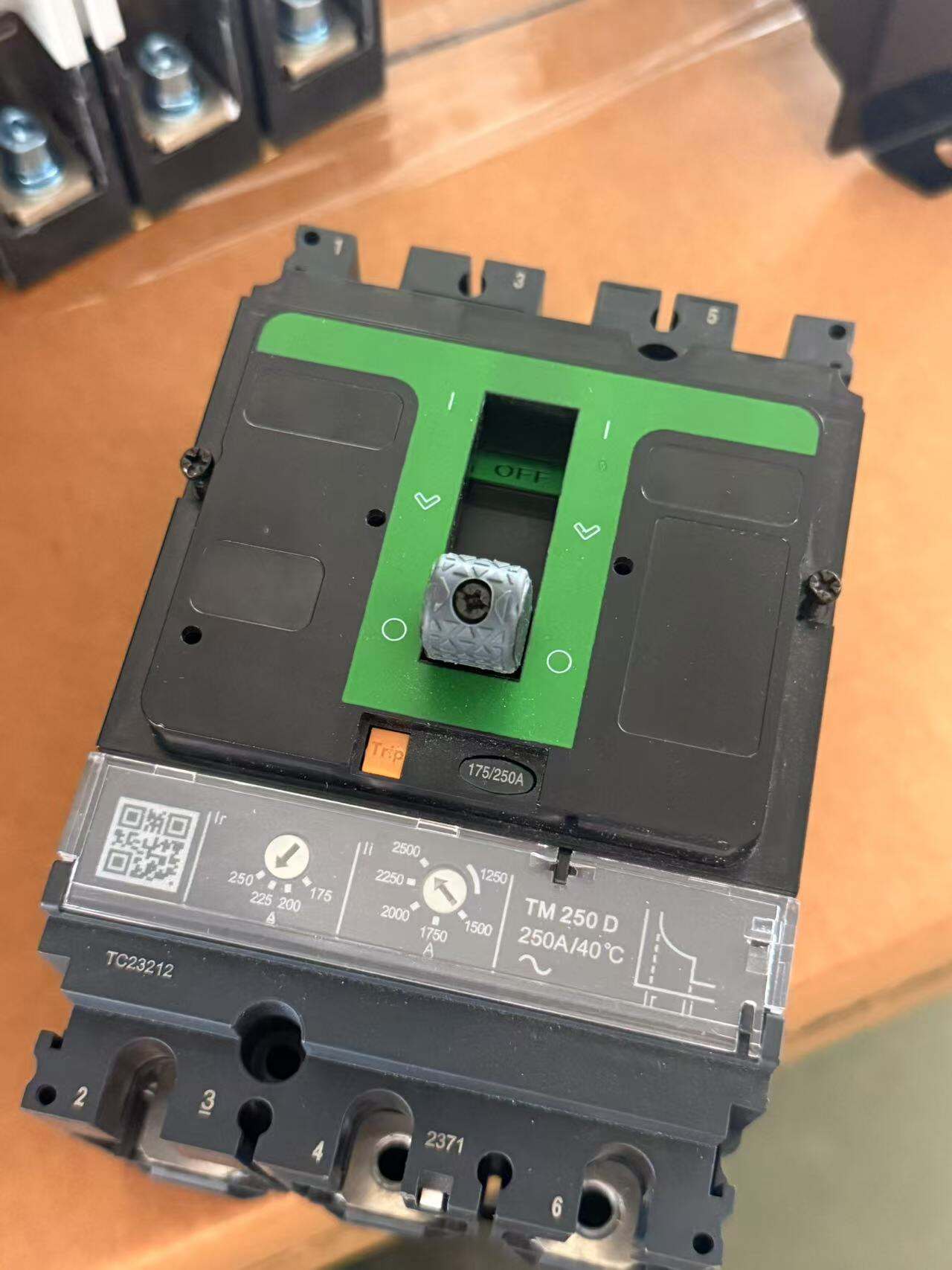

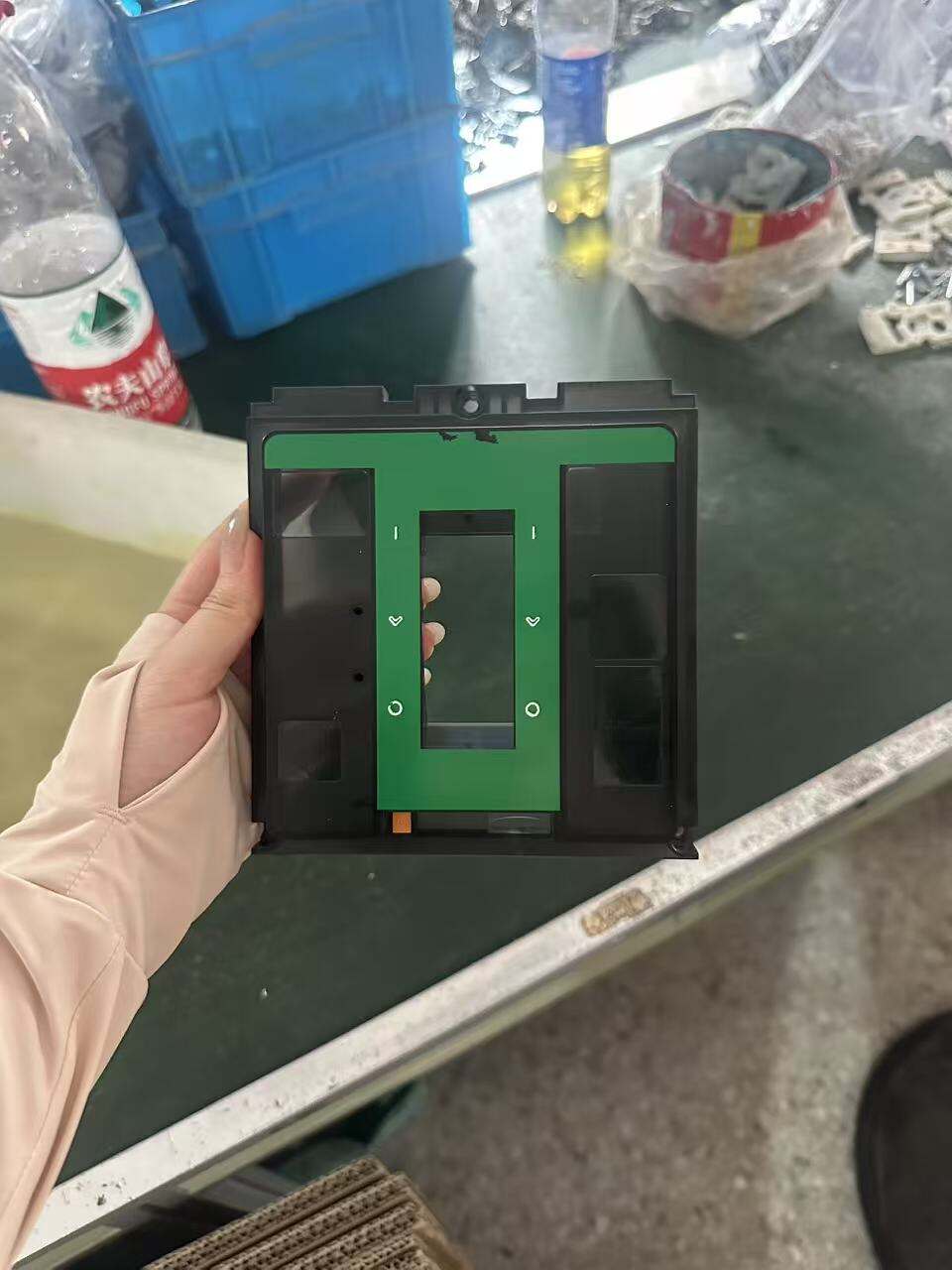

MT-NSX 3/4P 100A-1600A Molded case circuit breakers AC MCCB factory

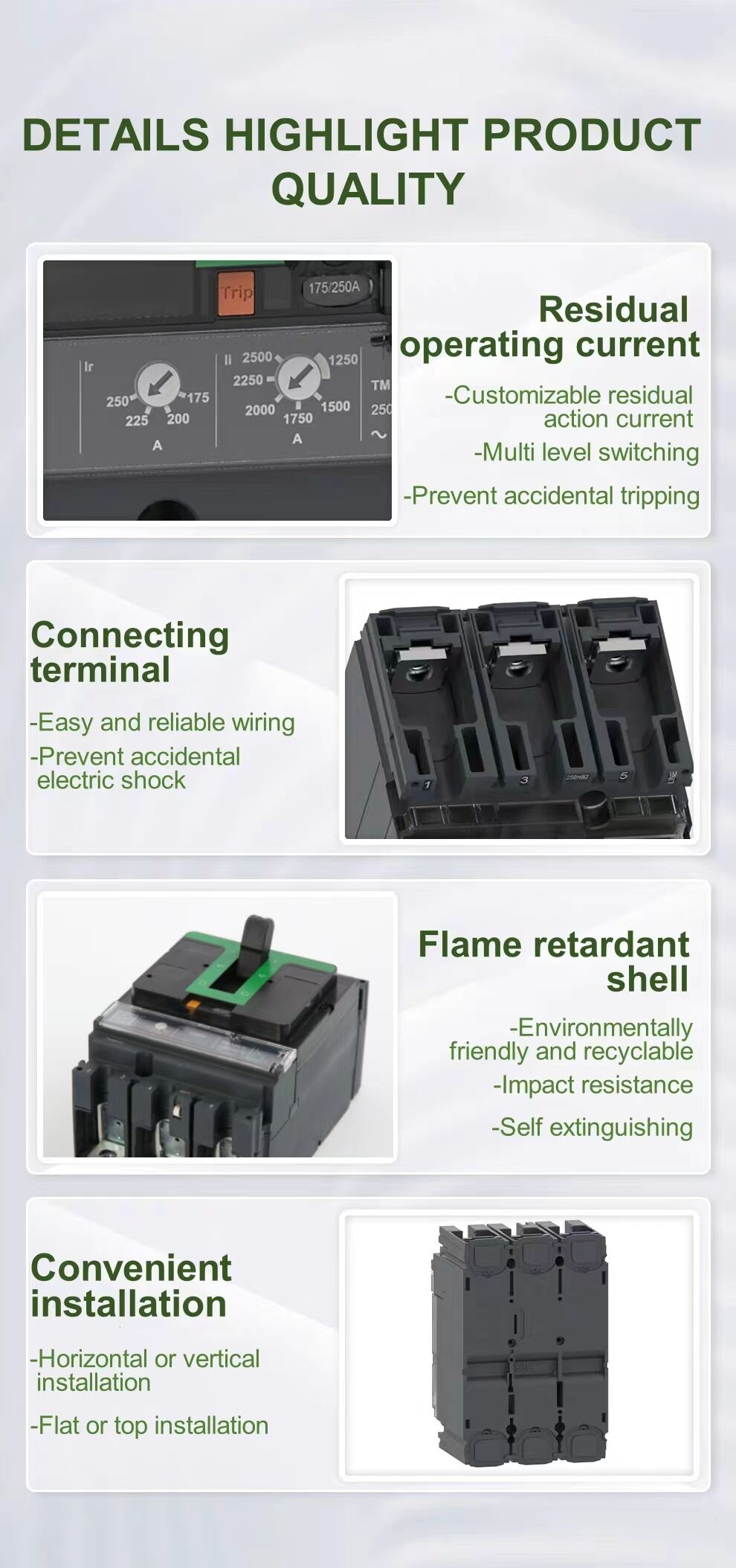

Residualoperating current

Customizable residualaction current

-Multi level switching

-Prevent accidental tripping

Connecting terminal

-Easy and reliable wiring

-Prevent accidentalelectric shock

Flame retardant shell

-Environmentallyfriendly and recyclable

-Impact resistance

-Self extinguishing

Convenient installation

-Horizontal or verticalinstallation

-Flat or top installation

High temperature resistant andflame-retardant shell

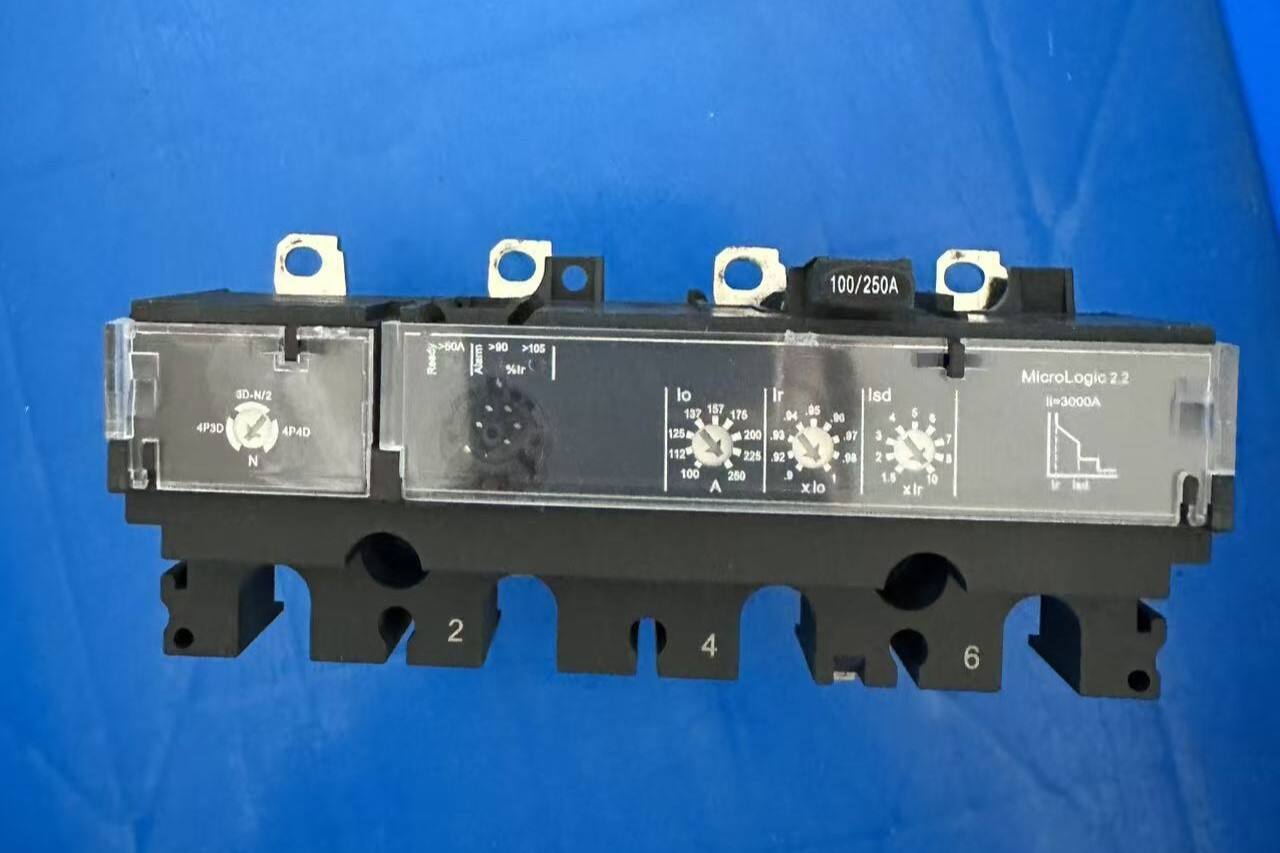

MTNSX100H can provide high-performance,widely applicable,and interchangeable trip units to meet various needs.

Among them,the electronictrip unit will provide you with more spiritual protection, while integrating measurement to provide reliable support for your power management.

Internal materials：

Product testing

-Factory testing
● Mechanical operation testing
Content: Operate the circuit breaker multiple times to check whether the opening and closing are flexible and reliable.
● Insulation resistance test
Content. Use an insulation resistance tester to measure the insulation resistance between each pole of the circuit breaker and between the pole and the casing.
● Voltage withstand test
Content: Apply high voltage (usually twice the rated voltage+1000V) for 1 minute and check for breakdown.
● Temperature rise test
Content. Run at rated current and measure the temperature rise of wiring terminals and contacts.

-On site testing
● Power-on test
Content: Check if the circuit breaker can open and close normally after power on.
● Protection function test
Overload protection: Simulate overload and check if the circuit breaker trips within the specified time.
Short circuit protection: Simulate a short circuit and check if the circuit breaker trips instantly.

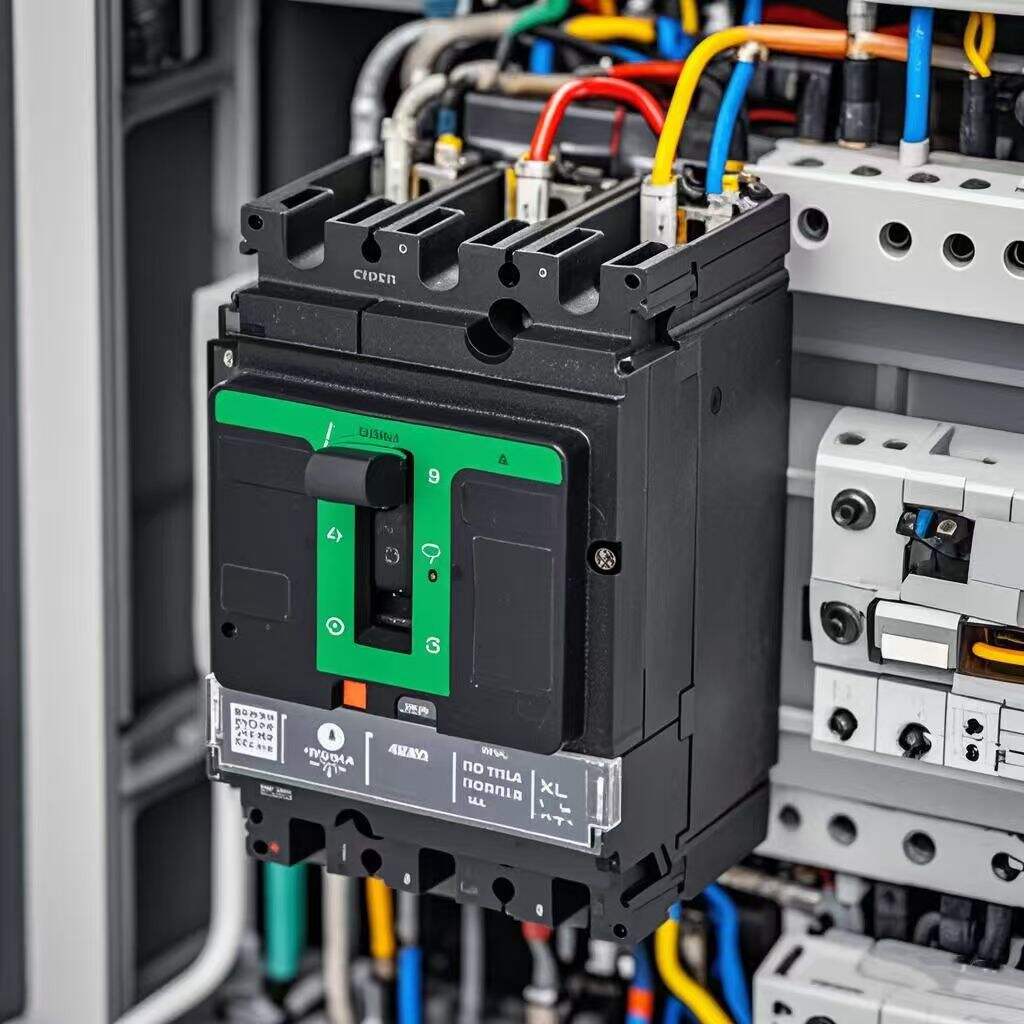

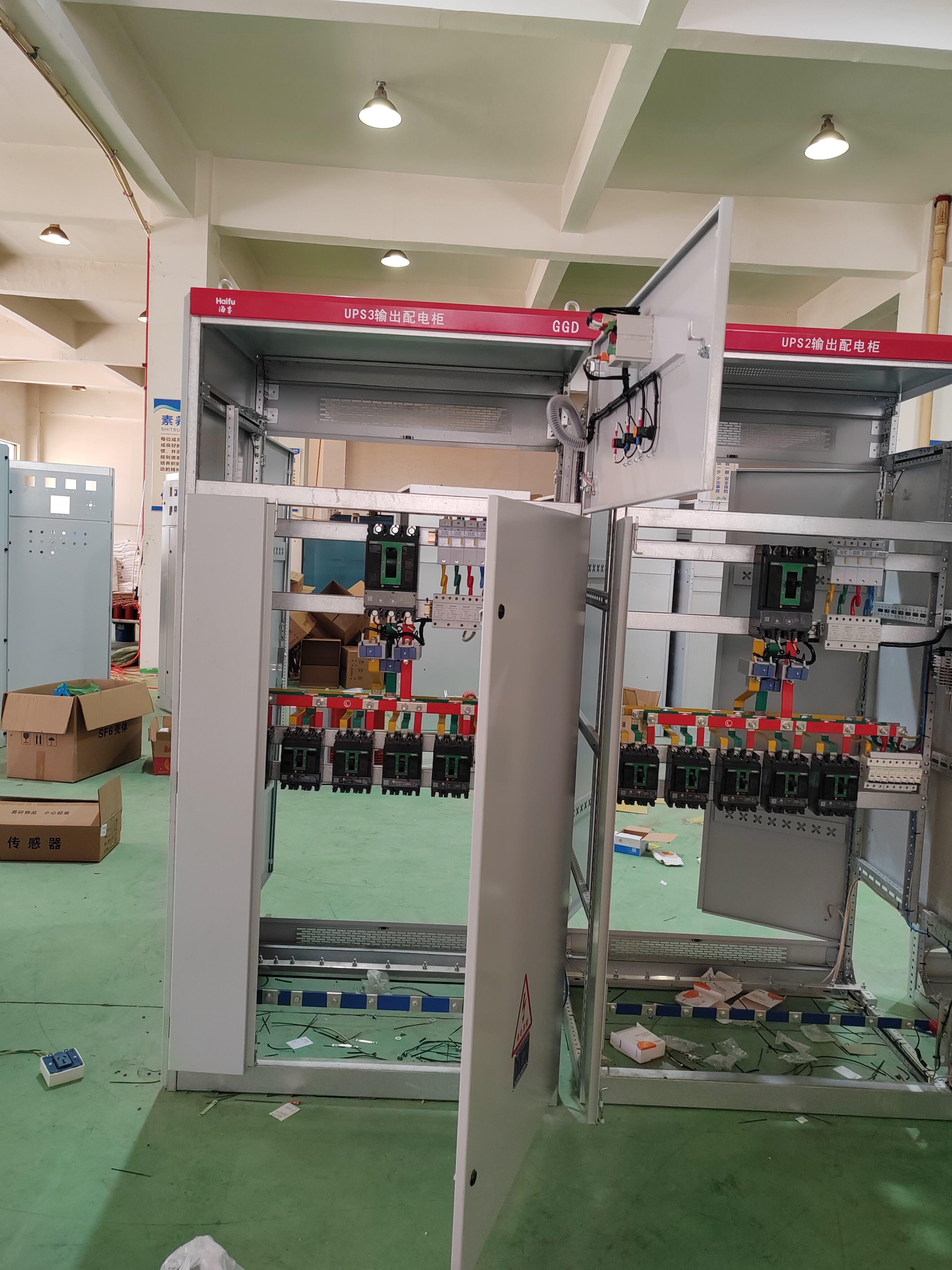

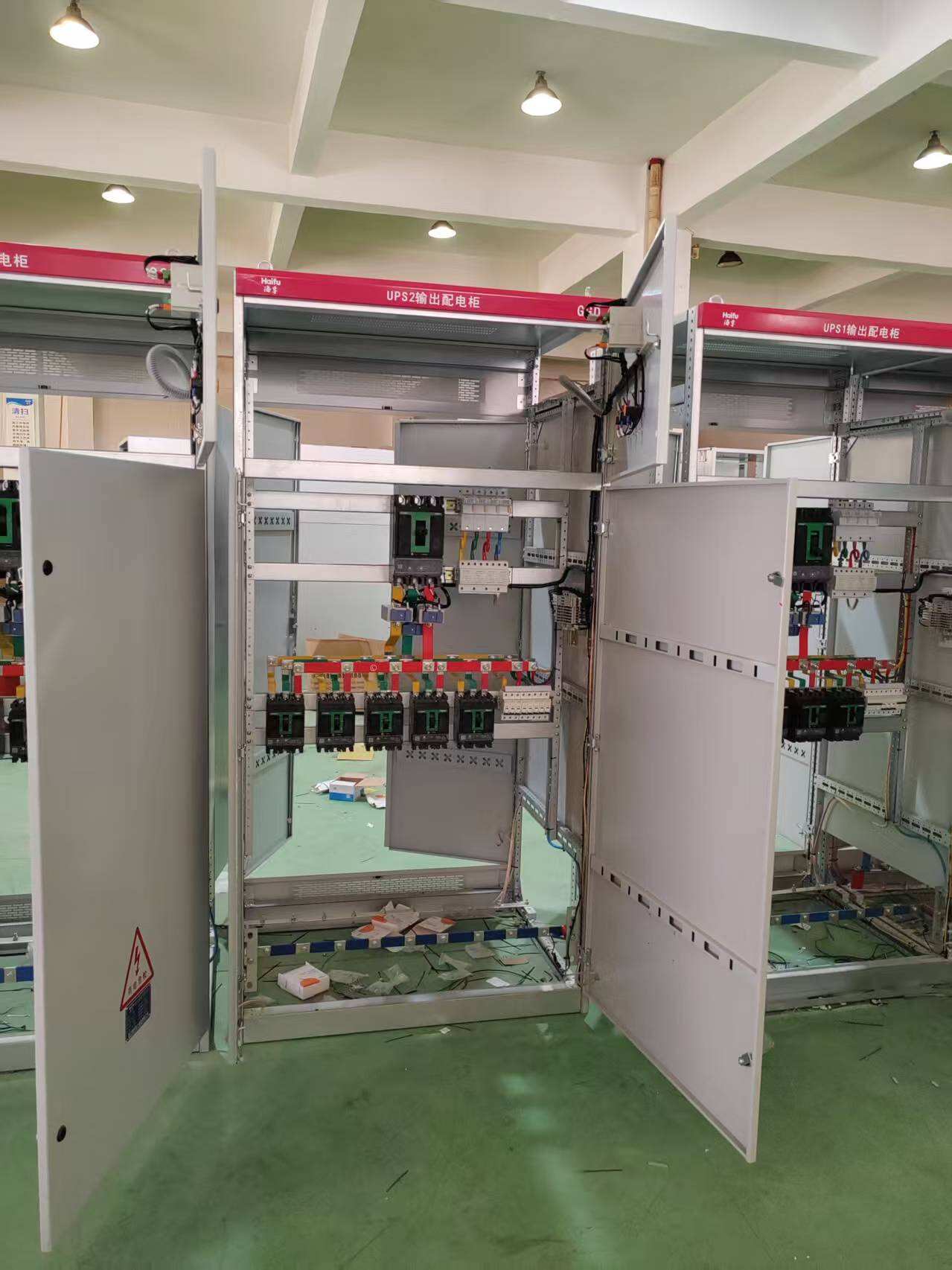

Installed inside the panel

4p 100a 1600a molded case circuit breakers ac mccb-0

4p 100a 1600a molded case circuit breakers ac mccb-1

Installation method:

● Fied installation

Distribution box: installed inside the distribution box to ensure firmness.

● Vertical installation

Direction: Usually installed vertically, with the operating handle facing upwards

Avoid: inverted installation, unless permitted by the product.

● Connection

Power cord: Connect to the input terminal of the circuit breaker (marked as "L1", "L2", "L3")

Load line: Connect to the output terminal (marked as "T1","T2","T3")

Grounding wire: lf there is a grounding terminal, it must be firmly connected.

● Distance requirements

Spacing: Maintain sufficient distance from other devices for easy heat dissipation and maintenance.

Reference: Please refer to the product manual for specific spacing.

● Safety precautions

Power off operation: The power must be cut off during installation to prevent electric shock.

Protective equipment: Wear insulated gloves and goggles

Standard compliance: Strictly follow the electrical installation specifications for operation

Application scenarios
