MCCB & GV2 Motor Protector, Circuit Breaker and Starter Combo

Model meaning

"GV2" refers to the type, "current" and "voltage" (3/4P) are modifiers, and "Motor protection Circuit Breaker" is the keyword.

The GV2 circuit breaker is a well-designed and reliable expert in motor protection. It integrates comprehensive protection functions and high breaking capacity in a compact size, making it a classic and widely used choice for industrial motor control circuits.

Description

Our integrated motor protection solution combines molded case circuit breakers (MCCBs) with the GV2 series motor protectors to provide comprehensive electrical safety for industrial applications. The system offers reliable short-circuit protection via the MCCB, while the GV2 protectors ensure precise thermal overload and phase loss protection for motors ranging from 0.1 to 32A. This combination, made with robust thermosetting materials and featuring a compact design, enables seamless integration, easy installation, and long-lasting performance in motor control centers, machinery, and industrial automation systems.

General product information

Product Commercial Terms

Quick Detail

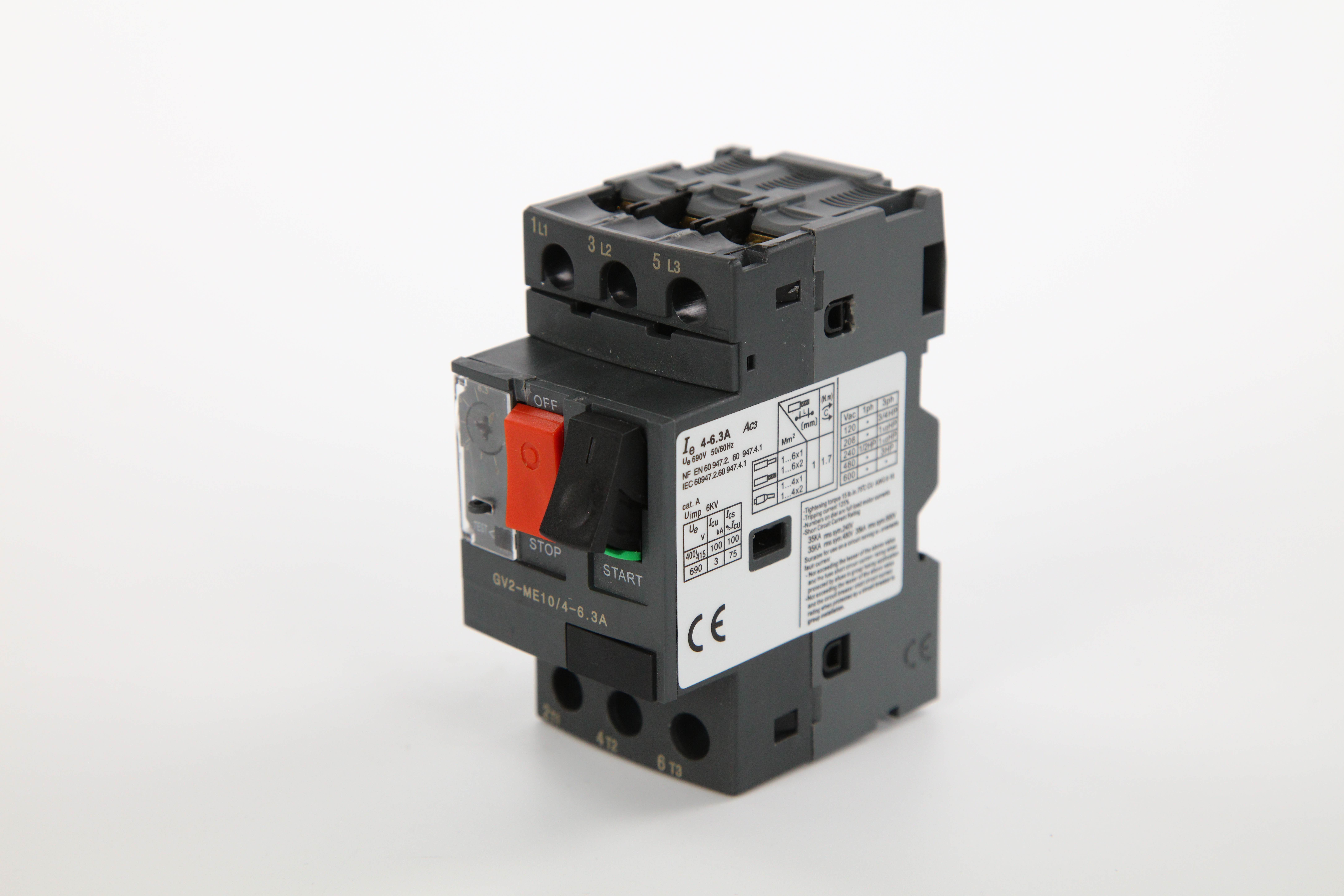

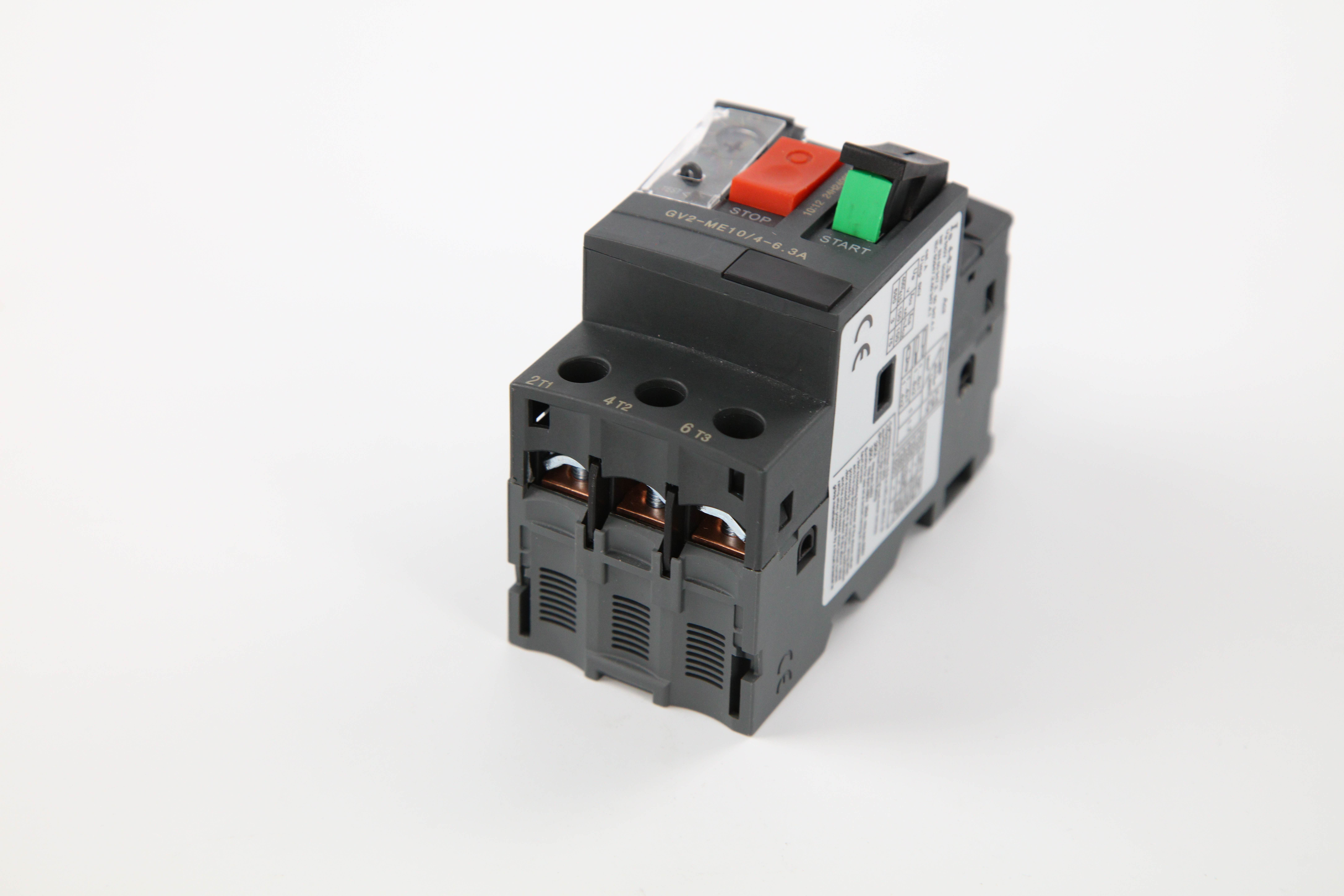

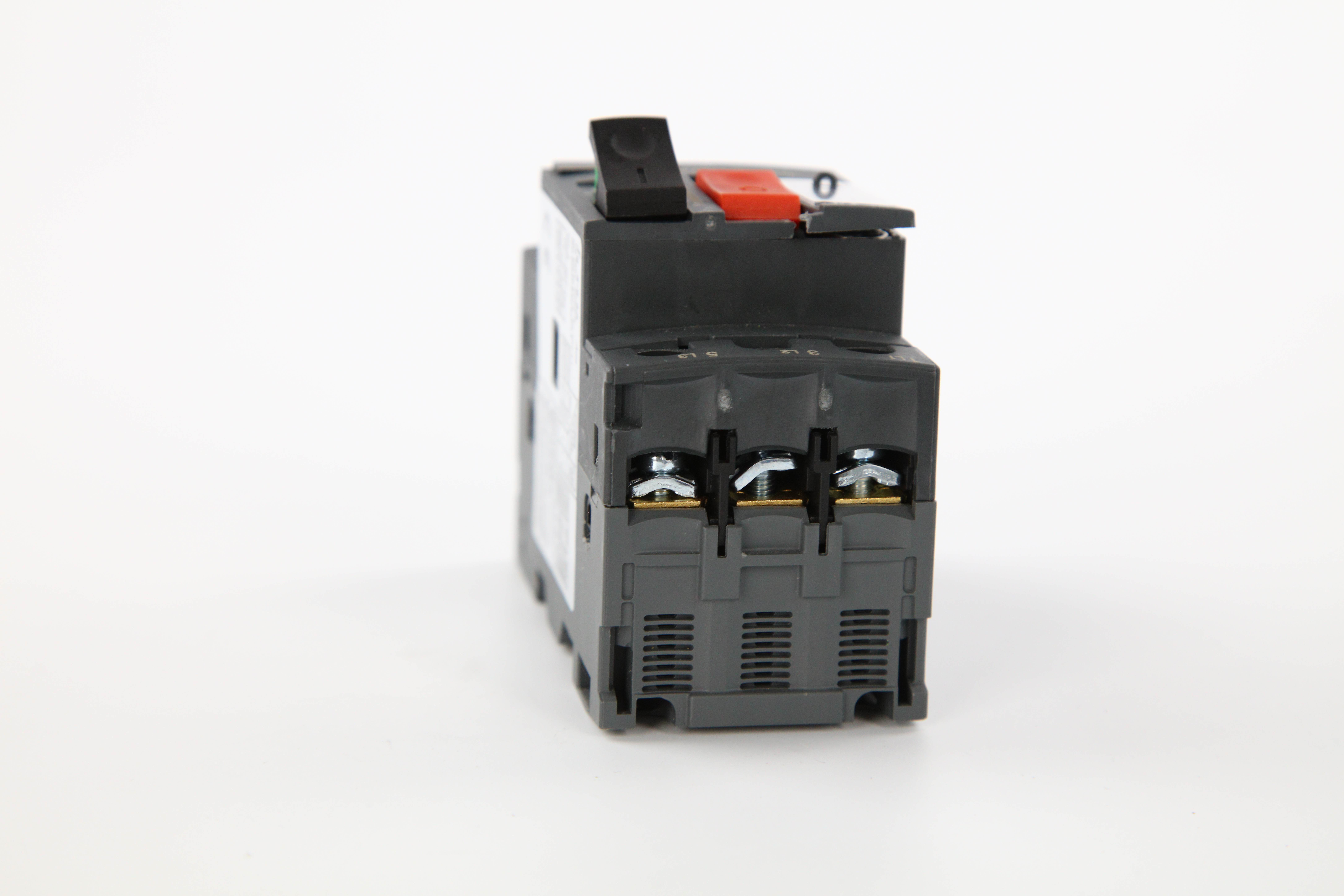

 GV2 Motor Protector

GV2 Thermal Overload Relay

GV2 ME Series

Motor Protective Switch

Thermal Magnetic Switch

Motor Circuit Protector

Motor Management Relay

Compact Motor Starter

DIN Rail Motor Protector

Manual Motor Starter

Motor Protective Circuit Breaker

MPCB (Motor Protective Circuit Breaker)

Motor Safety Switch

Overload Relay

Motor Protective Cover

Thermal Protector

Motor Isolating Switch

Starter Protector

Main Applications of the GV2 Motor Protector

The GV2 motor protector is designed to provide comprehensive protection for three-phase induction motors in industrial applications. It integrates short-circuit protection, overheat protection, and phase loss protection into a compact device, offering a powerful solution. The GV2 motor protector is crucial for motor-driven machinery. In case of motor overload, phase loss, or jamming, it automatically disconnects the power supply to prevent motor burnout and ensure safe operation.

Typical applications include:

- Pump and compressor systems

- Conveying and transmission equipment

- Fan and blower systems

- Machine tools and processing equipment

- Agricultural and food processing machinery

By maintaining motor integrity and reducing downtime, the GV2 protector helps optimize maintenance plans and extend equipment life, making it a key component in industrial automation and motor control centers.

The GV2 Motor Protector is widely deployed across various industrial sectors for robust motor management and protection. Its primary application fields encompass industrial automation systems, manufacturing production lines, and building management installations where reliable three-phase motor protection is critical.

Competitive Advantages of the GV2 Motor Protector

1. Precise Protection

- 10A trip capability for rapid motor protection

- Current calibration accuracy up to ±5% ensures reliable overload detection

- Integrated phase loss protection prevents damage from single-phase operation

2. Enhanced Durability

- Rugged thermosetting housing with IP20 protection rating

- Over 100,000 mechanical operation cycles

- Wide operating temperature range from -25°C to +55°C

3. Easy Installation

- Compact width of only 45mm saves panel space

- DIN rail mounting with snap-on design

- Clear trip indication and easy reset mechanism

4. Cost-Effective

- 30% cost savings compared to standalone component solutions

- Reduced maintenance costs through preventative protection

- 2-year warranty and global technical support

5. Wide Application

- Wide measuring range: 0.1-32A

- Compatible with all major contactor brands

- Suitable for various industries and environments

6. Excellent Service

- Customized calibration services available for special applications

- Global certification system (IEC/UL standards)

- Expedited delivery of urgent projects within 15 days

Our GV2 protectors offer the precision of German engineering at a highly competitive price, perfectly combining reliable performance with excellent cost-effectiveness, ensuring protection for motor protection applications worldwide.
