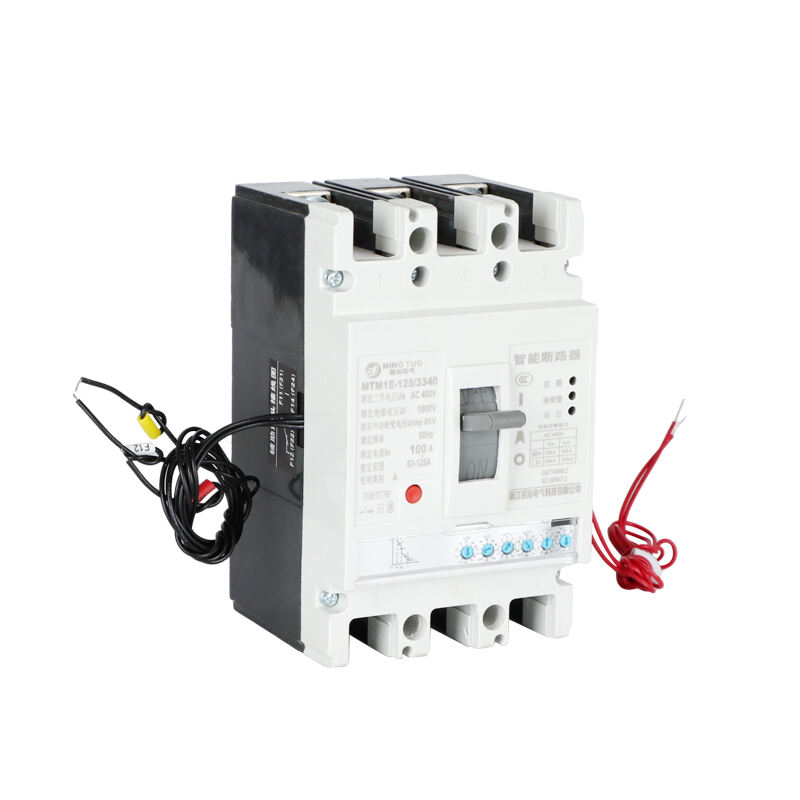

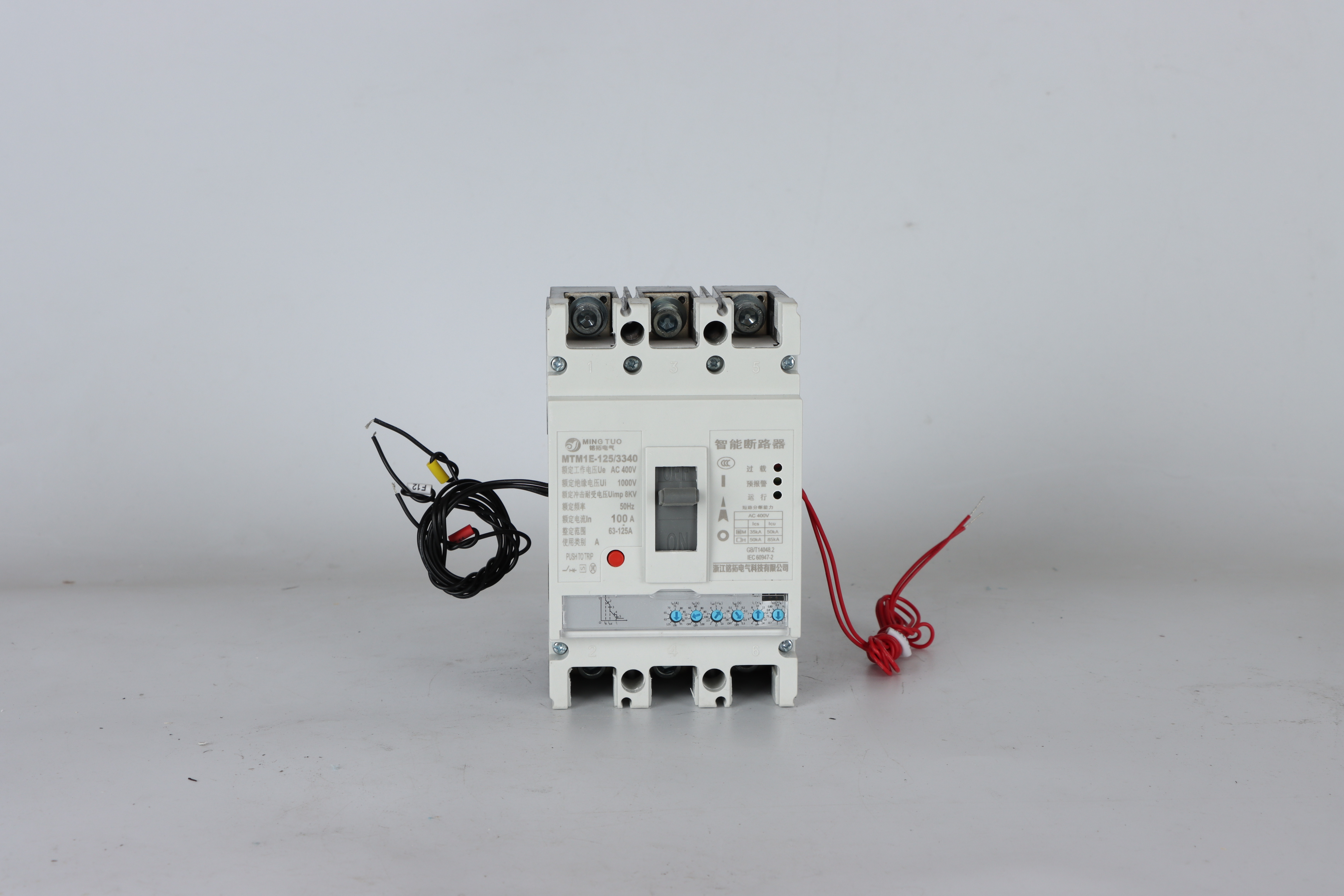

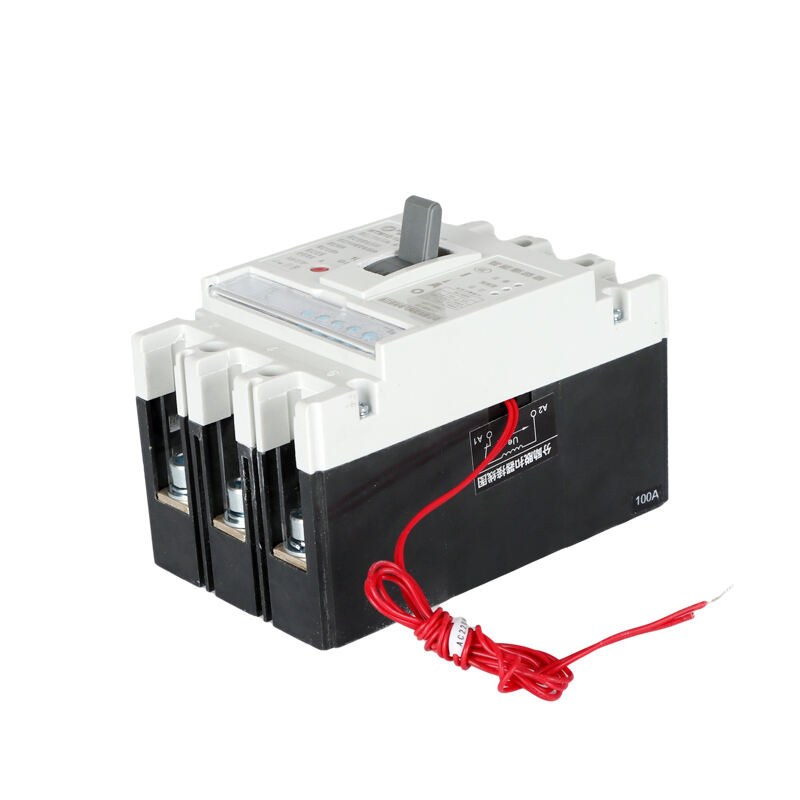

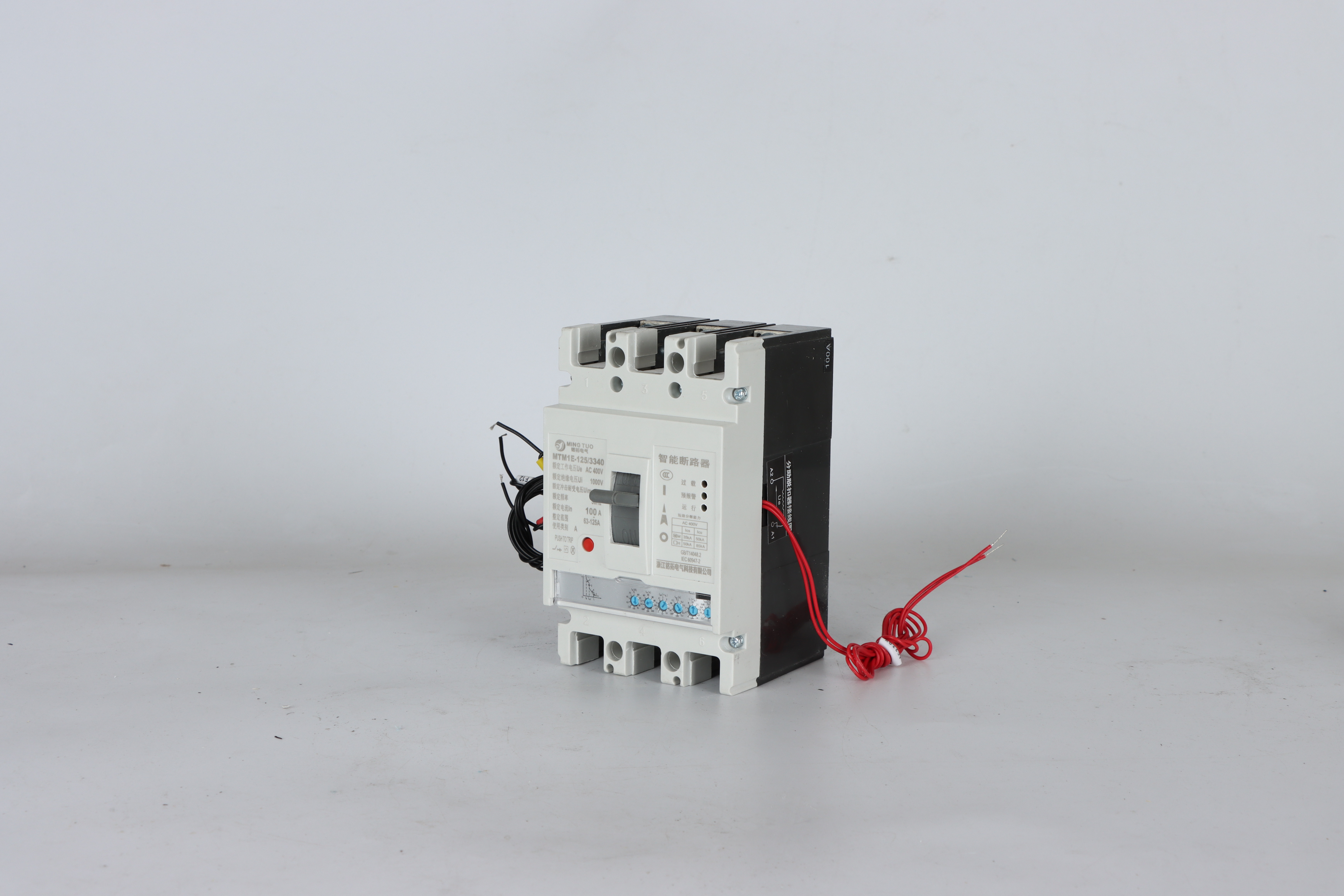

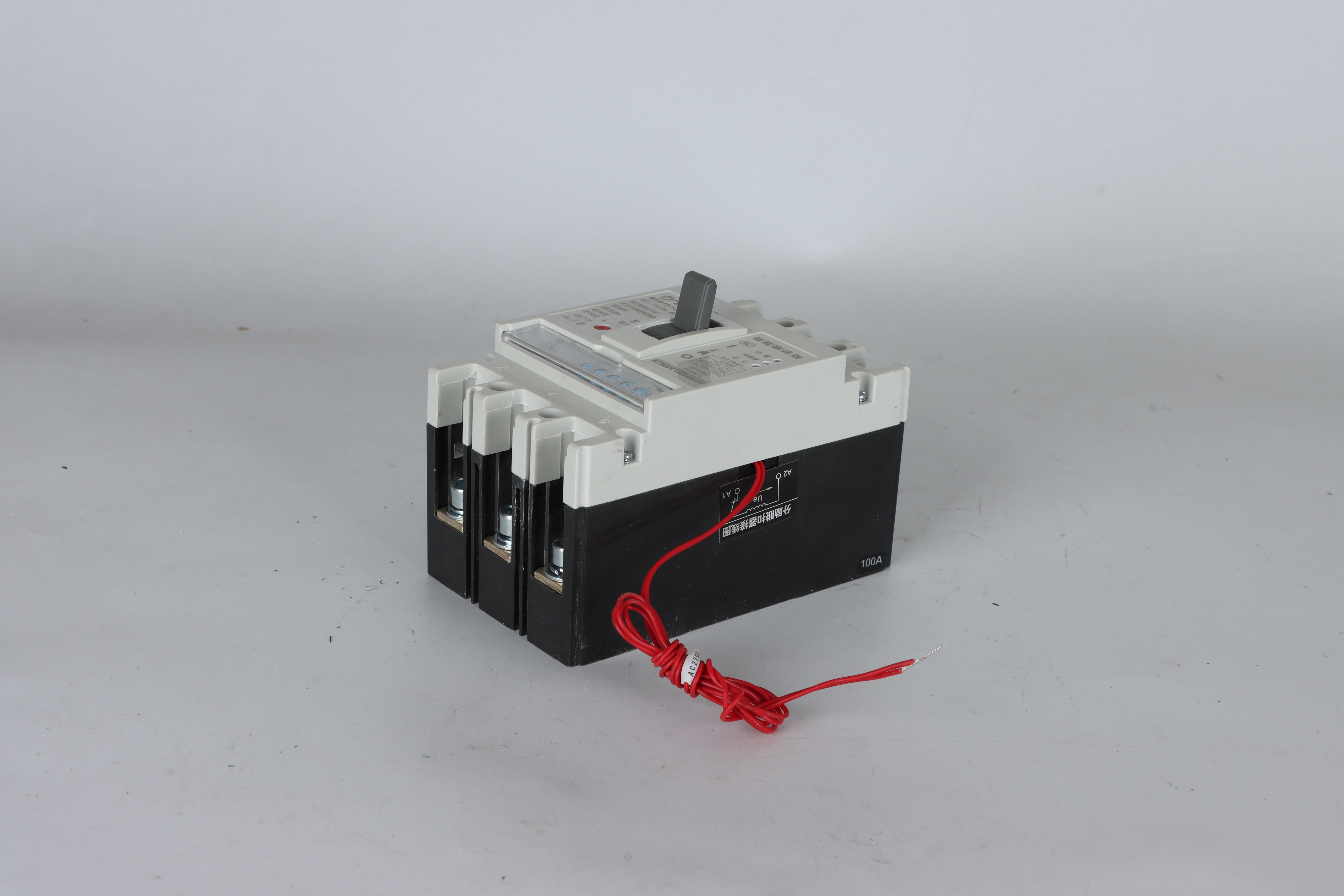

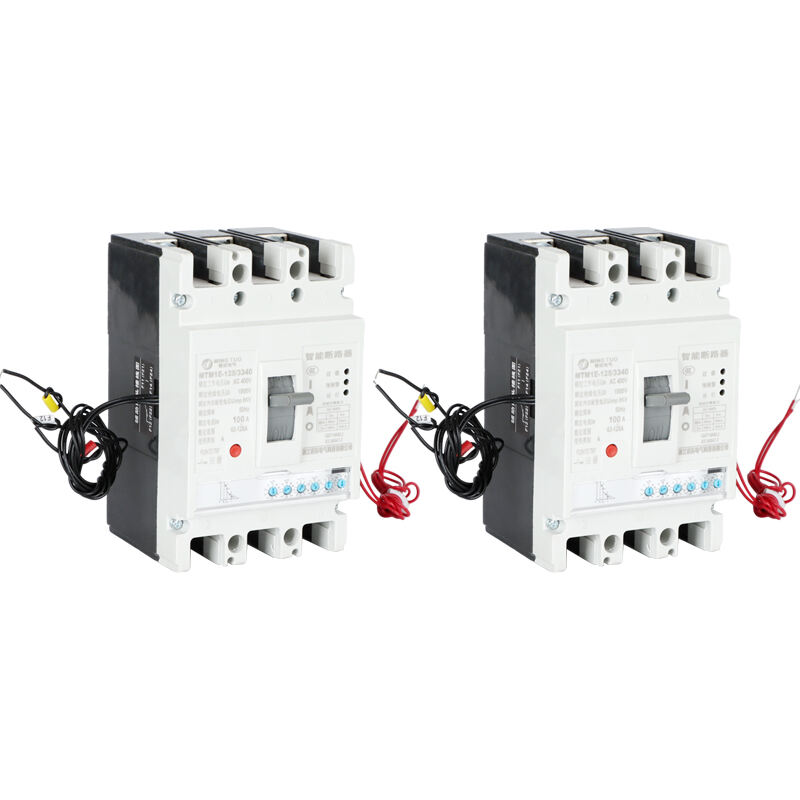

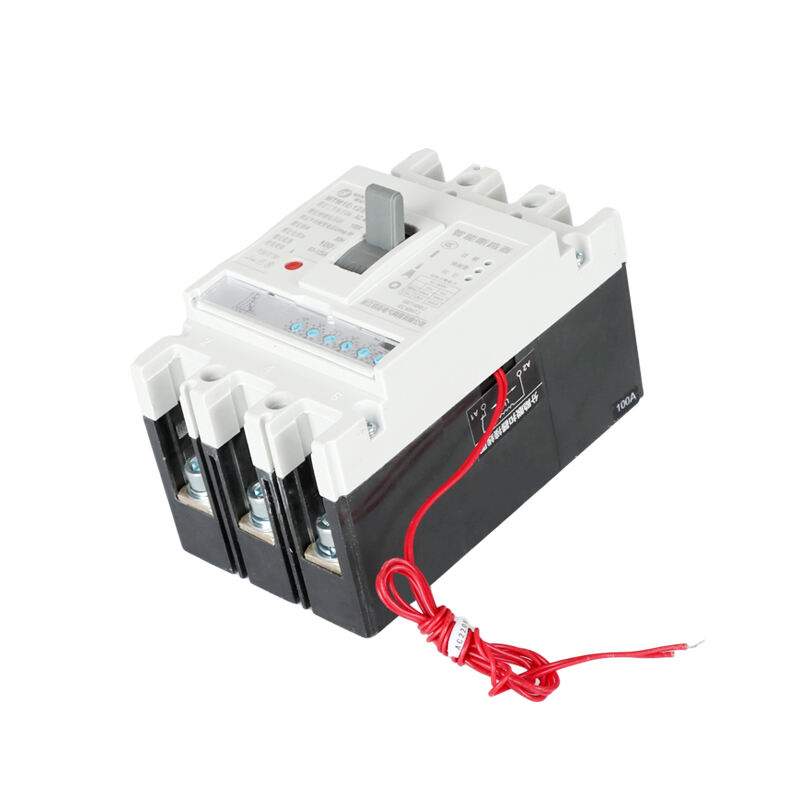

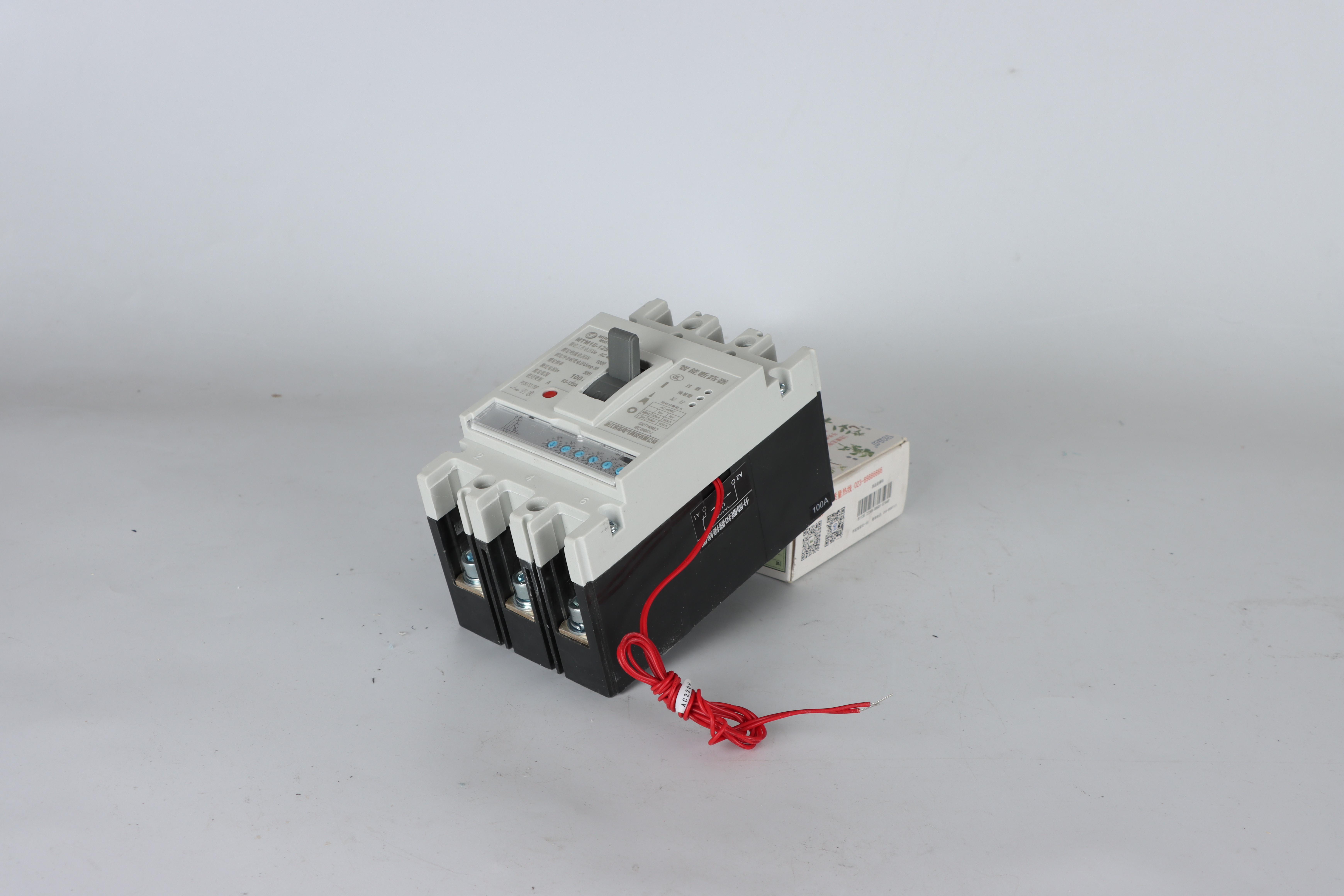

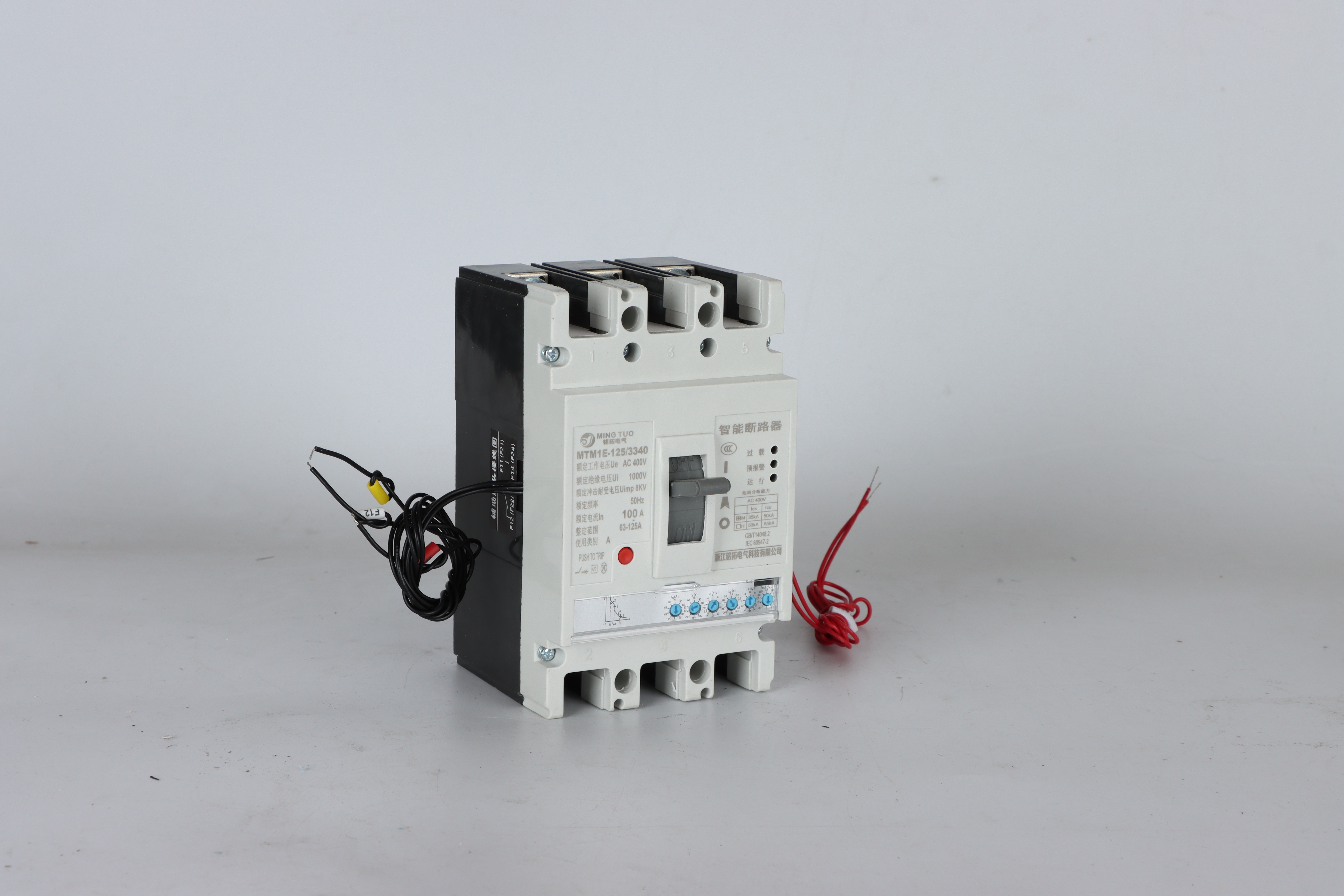

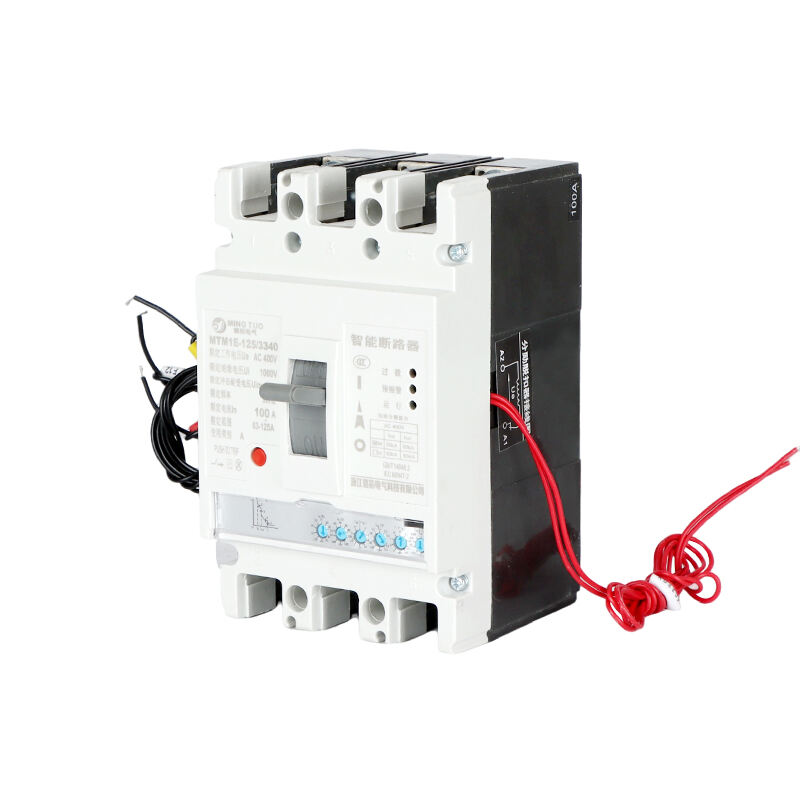

MT-M1 3/4P 63A-1600A Electronic Molded case circuit breakers AC/DC MCCB

Model meaning

MT-M1- refers to the type; 63A-1600A refers to the maximum peak current range of the molded case circuit breaker; electronic molded case circuit breaker is the keyword (mccb is the English abbreviation); AC is alternating current and DC is direct current, which can be used as embellishment.

Text description: This circuit breaker has a rated insulation voltage up to 800V and is suitable for AC 50Hz power distribution network circuits with a rated operating voltage up to 400V and a rated operating current up to 800A. It is used to distribute electrical energy and protect lines and power equipment from overload, short circuit, undervoltage, and other faults. It can also be used for infrequent starting of motors and for overload, short circuit, and undervoltage protection. This circuit breaker features small size, high breaking capacity, and short arc, making it an ideal product for users. The circuit breaker can be installed vertically (i.e., vertical mounting) or horizontally (horizontal mounting). This product complies with IEC60947-2, GB140482, and other standards.

General product information

Place of Origin:	5th Floor, No. 3, Jinghong West Road, Liushi Town, Yueqing City, Wenzhou City, Zhejiang Province
Brand Name:	MINGTUO
Model Number:	MCCB MT  M1 -160
Certification:	IOS  CE  ROHS

Product Commercial Terms

Minimum Order Quantity:	1
Price:	31$
Packaging Details:	Wooden box packaging
Delivery Time:	Within fifteen days
Payment Terms:	100% prepaid, 70%/30%, 80%/20%
Supply Ability:	Available at any time

Description：

Our​‍​‌‍​‍‌​‍​‌‍​‍‌ Electronic Molded Case Circuit Breaker (MCCB) marks the next level of circuit protection.

It combines digitally precise monitoring with traditionally reliable interruption performance.

The trip unit is programmable and microprocessor-based, so it gives you the freedom to adjust the protection of overload, short-circuit, and ground-fault situations by setting the parameters accordingly.

The neat little thermoset compartment, which is strong, houses evolved electronics that can measure current in real-time, track energy, and keep detailed records of faults.

Core attributes:

• Adjustable protection curves (L, S, I, G)
• LCD interface for viewing settings and operational parameters
• Communication integration blocked with RS485 and Modbus
• Breaking capacity at 415 V up to 100 kA
• Covering a large current range from 100A to 1600A
• Enabling installations either on DIN-rail or panel

Advanced capabilities:

• They are continuously monitoring of current and voltage values.
• Through energy measurement, it is possible to analyze consumption.
• Pre-alarm alerts and early fault warnings.
• Event recording is used for system diagnostics and optimization.
• Through the communication interface, remote operation and monitoring are feasible.

Main uses:

• Intelligent networks for power distribution
• Power management in data centers
• Industries automation and control systems
• The energy-saving and building management system
• Essential infrastructure and the power supply of the future

The design of this electronic MCCB is explicitly for electrics that are not only modern but also high-precision protective consideration, intelligent monitoring, and data integrated technology.

It offers an advanced level of circuit safety while being compatible with extensive energy management and easy system ​‍​‌‍​‍‌​‍​‌‍​‍‌connectivity.





Critical​‍​‌‍​‍‌​‍​‌‍​‍‌ Power Systems

- Data center power distribution units (PDUs)

- Hospital emergency power circuits

- Airport and transportation infrastructure

- Financial institution backup systems

Industrial Automation

- Manufacturing process control panels

- Motor control centers with precision protection

- Production line power management

- Industrial machinery with complex starting characteristics

Energy Management

- Building management systems (BMS)

- Smart grid applications

- Renewable energy installations

- Power monitoring and control centers

Specialized Applications

- Transformer protection

- Generator backup systems

- Critical circuit protection

- Load center main ​‍​‌‍​‍‌​‍​‌‍​‍‌breakers

1.​‍​‌‍​‍‌​‍​‌‍​‍‌ Precision Protection Technology

-The advanced 32-bit microprocessor ensures that the current measurement is accurate within ±2%.

- 8 adjustable protection parameters (Ir, Tr, Isd, Tsd, Ii, Ig, tg, k)

- Protection by four-level (L-S-I-G) can be set independently

2. Intelligent Monitoring System

-It is a real-time display for electrical parameters (U, I, P, Q, F, PF, kWh).

- Exact timing that can go back to 128 fault records in memory

- The first warning system function leading to the early recognition of potential faults

3. Superior Technical Performance

-At 415V AC, the breaking capacity goes as high as 100kA (Icu/Ics).

- The device can work in the temperature range of -40°C to +85°C

- Not less than 20,000 mechanical operation cycles

- Double Power Supply Scheme (Self-Powered + Auxiliary Power Supply)

4. Advanced Communication Functions

-The standard RS485 interface on the device supports Modbus-RTU protocol

- That helps Ethernet and PROFIBUS-DP options to be available

- Control from a distance and also real-time monitoring are some of the functions

5. User-Friendly Design

-The 128×64 graphics LCD display is compatible with multi-language interface

- There is also a front panel setting button protected by a password

- A communication module that is plug-and-play makes the installation simple

6. Quality Assurance

- The product is built in accordance with IEC 60947-2 and GB 14048.2 standards

- 5-year product warranty

- Strict 72-hour testing prior to shipment

7. Customization Services

-Protective curve config for the special area of use

-Brand OEM/ODM services ​‍​‌‍​‍‌​‍​‌‍​‍‌available
