Motor protector/Motor circuit breaker
MPCB GV2
 |
 |
 |
Motor protection circuit breaker, also known as motor protection type circuit breaker or motor protection circuit breaker, is an integrated control and protection device designed specifically for AC motors. It integrates the isolation and short-circuit breaking functions of circuit breakers, as well as the overload protection function of overload relays, and can replace the traditional combination scheme of "contactor+thermal relay+fuse", providing more reliable, accurate, and integrated protection and control for electric motors.
Model meaning
"GV2" refers to the type, "current" and "voltage" (3/4P) are modifiers, and "Motor protection Circuit Breaker" is the keyword.
The GV2 circuit breaker is a well-designed and reliable expert in motor protection. It integrates comprehensive protection functions and high breaking capacity in a compact size, making it a classic and widely used choice for industrial motor control circuits.
Main advantages:
Highly integrated: replacing the traditional solution of "circuit breaker+contactor+thermal relay", saving space and simplifying wiring.
Precise protection: Based on microprocessor technology, the protection curve is more matched with the motor's thermal characteristics, and the action is more accurate.
Rich functionality: Provides various electrical fault protection, status monitoring, and fault diagnosis.
Intelligence: Supporting remote control, status monitoring, and fault recording, it is the fundamental component of smart factories.
Reduce downtime: Quickly identify the cause of faults and shorten maintenance time.
General product information
Place of Origin: |
5th Floor, No. 3, Jinghong West Road, Liushi Town, Yueqing City, Wenzhou City, Zhejiang Province |
Brand Name: |
MINGTUO |
Model Number: |
MCCB GV2 |
Certification: |
IOS CE ROHS |
Product Commercial Terms
Minimum Order Quantity: |
1 |
Price: |
10$ |
Packaging Details: |
Wooden box packaging |
Delivery Time: |
Within fifteen days |
Payment Terms: |
100% prepaid, 70%/30%, 80%/20% |
Supply Ability: |
Available at any time |

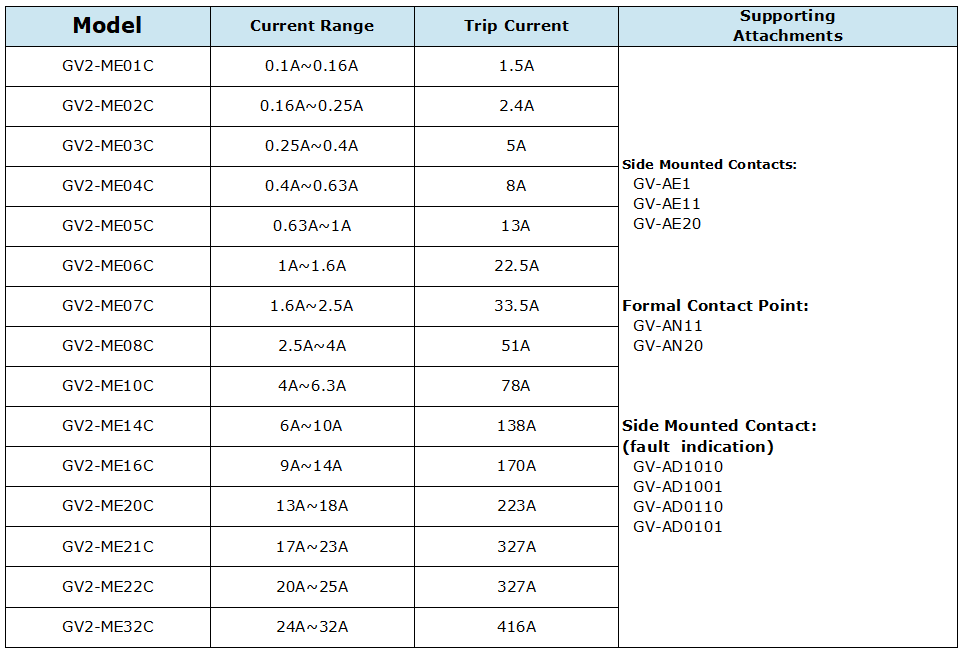

Product Technical Parameters
| GV2 | Setting range(A) |
Standard power ratings of 3-phase motors 50/60 Hz in category AC-3(KW) |
Magnetic tripping current Id±20 %(A) |
||
| 400/415V | 500V | 690V | |||
| ME01 | 0.01-0.16 | 一 | 一 | 一 | 1.5 |
| ME02 | 0.16-0.25 | 0.06 | 一 | 一 | 2.4 |
| ME03 | 0.25-0.4 | 0.09 | 一 | 一 | 5 |
| ME04 | 0.4-0.63 |
0.12 0.18 |
一 |
0.37 - |
8 |
| ME05 | 0.63-1 | 0.25 | 一 | 0.55 | 13 |
| ME06 | 1-1.6 |
0.37 0.55 |
0.37 0.55 0.75 |
0.75 0.11 |
22.5 |
| ME07 | 1.6-2.5 | 0.75 | 1.1 | 1.5 | 33.5 |
| ME08 | 2.5-4 |
1.1 1.5 |
1.5 2.2 |
2.23 | 51 |
| ME10 | 4-6.3 | 2.2 | 3 | 4 | 78 |
| ME14 | 6-10 | 34 |
4 5.5 |
5.5 7.5 |
138 |
| ME16 | 9-14 |
5.5 - |
7.5 - |
9 11 |
170 |
| ME20 | 13-18 | 7.5 | 9 | 15 | 223 |
| ME21 | 17-23 | 9 | 11 | 18.5 | 327 |
| ME22 | 20-25 | 11 | 15 | 一 | 327 |
| ME32 | 24-32 | 15 | 18.5 | 22 | 416 |

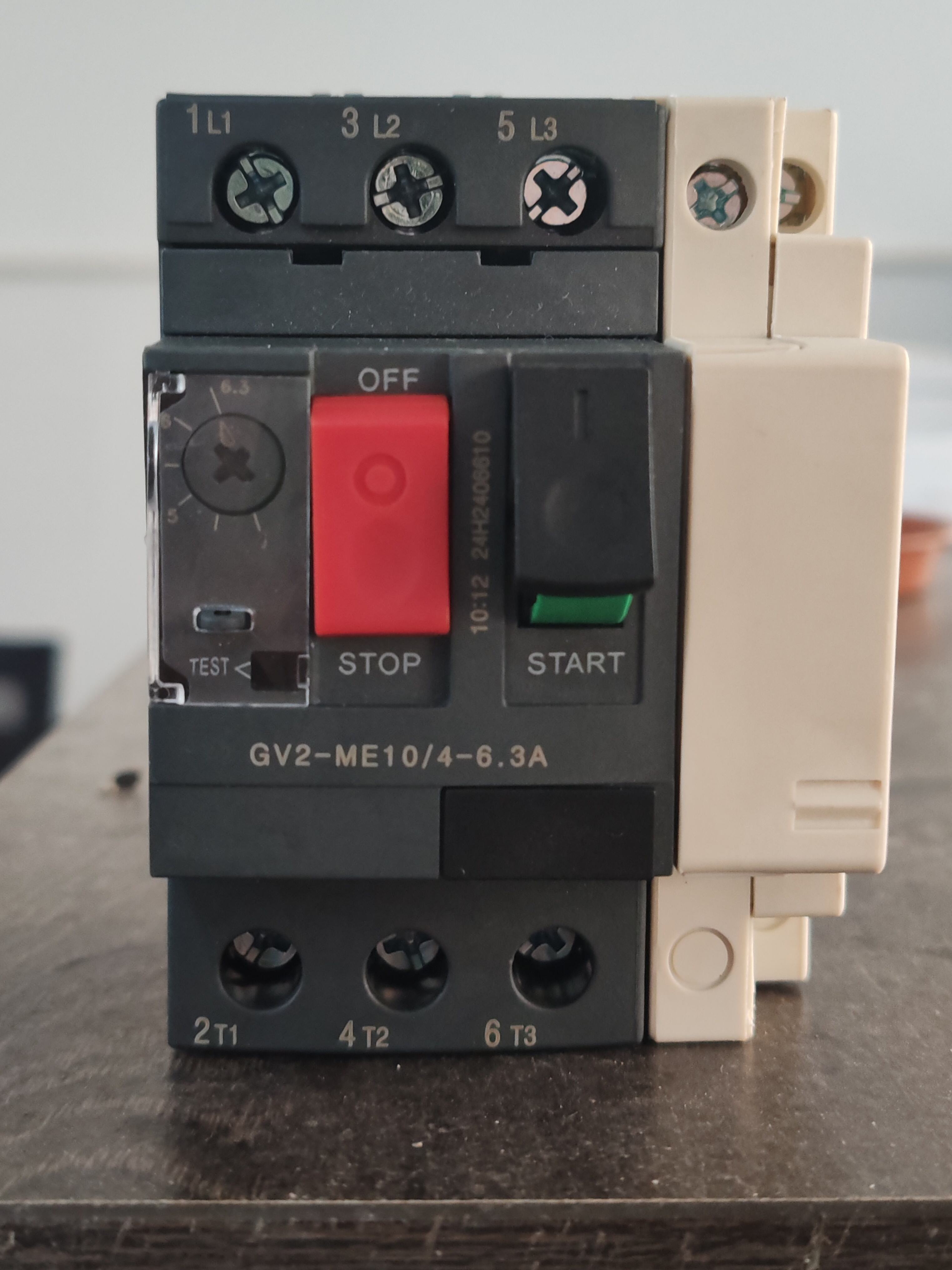

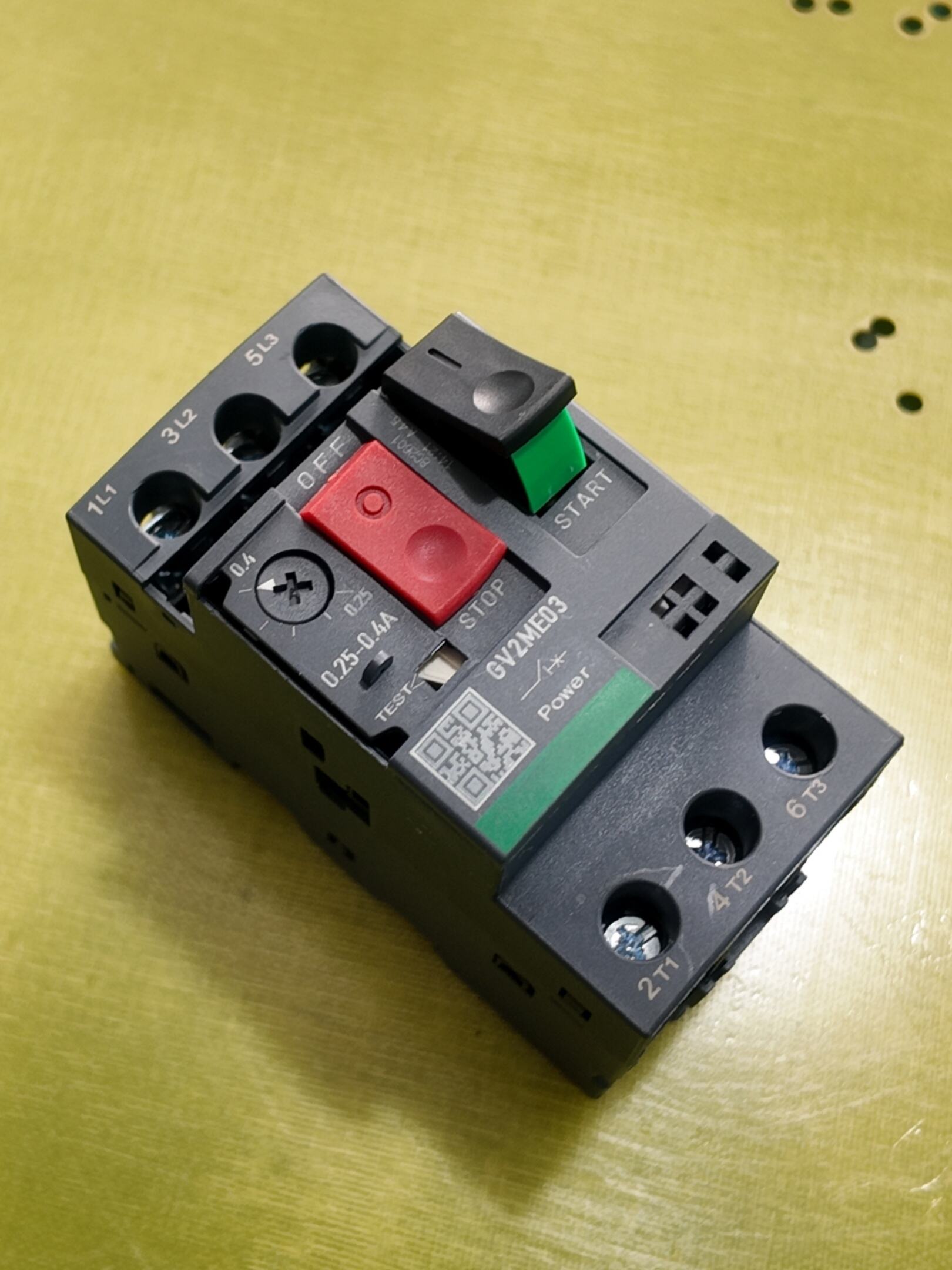

Product actual photos
 |
 |
 |
Multiple styles
 |
 |
 |
 |
 |
 |
Quick Detail

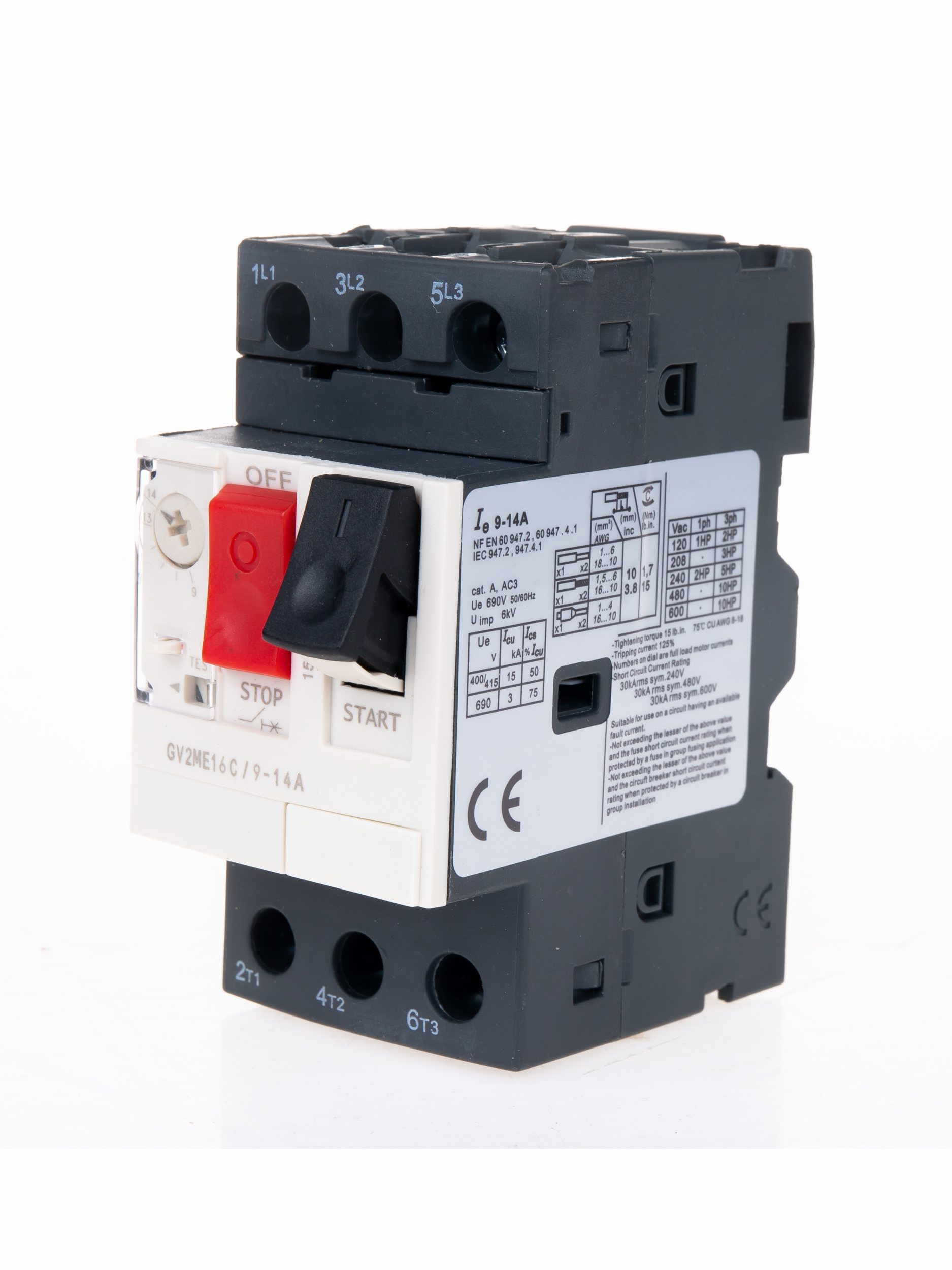

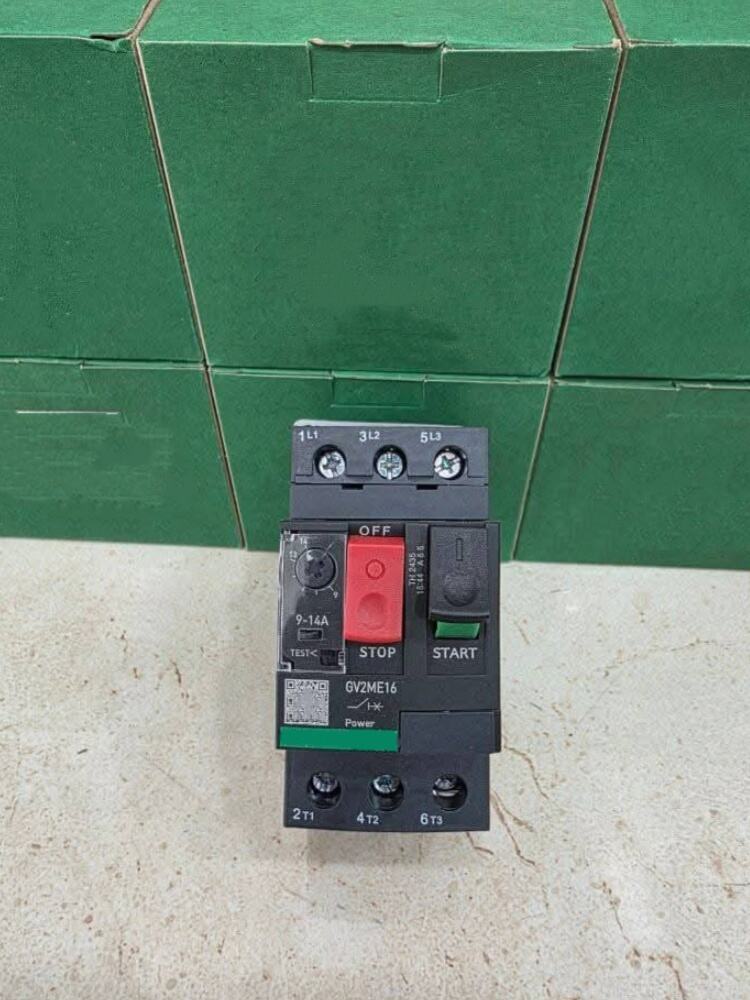

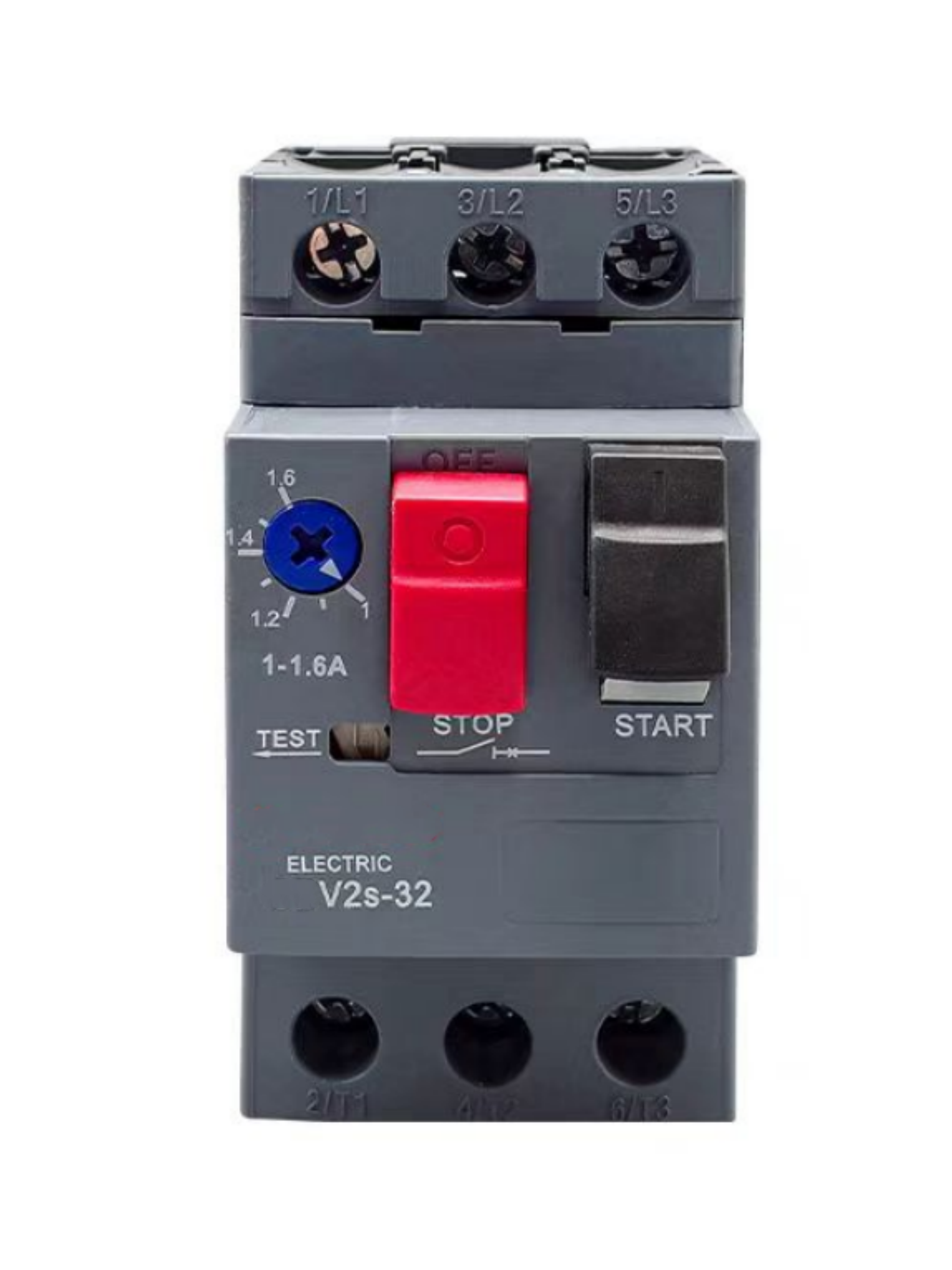

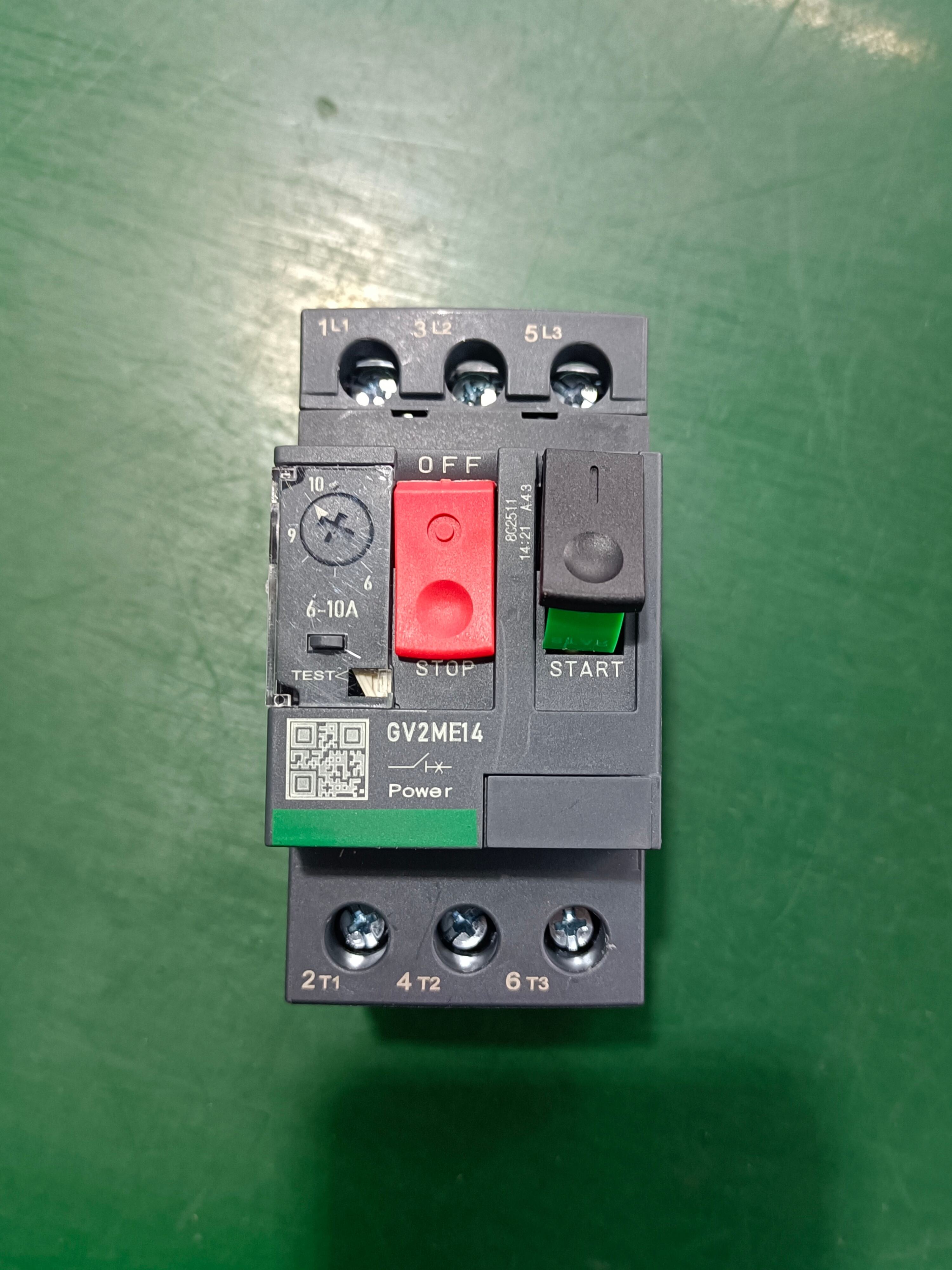

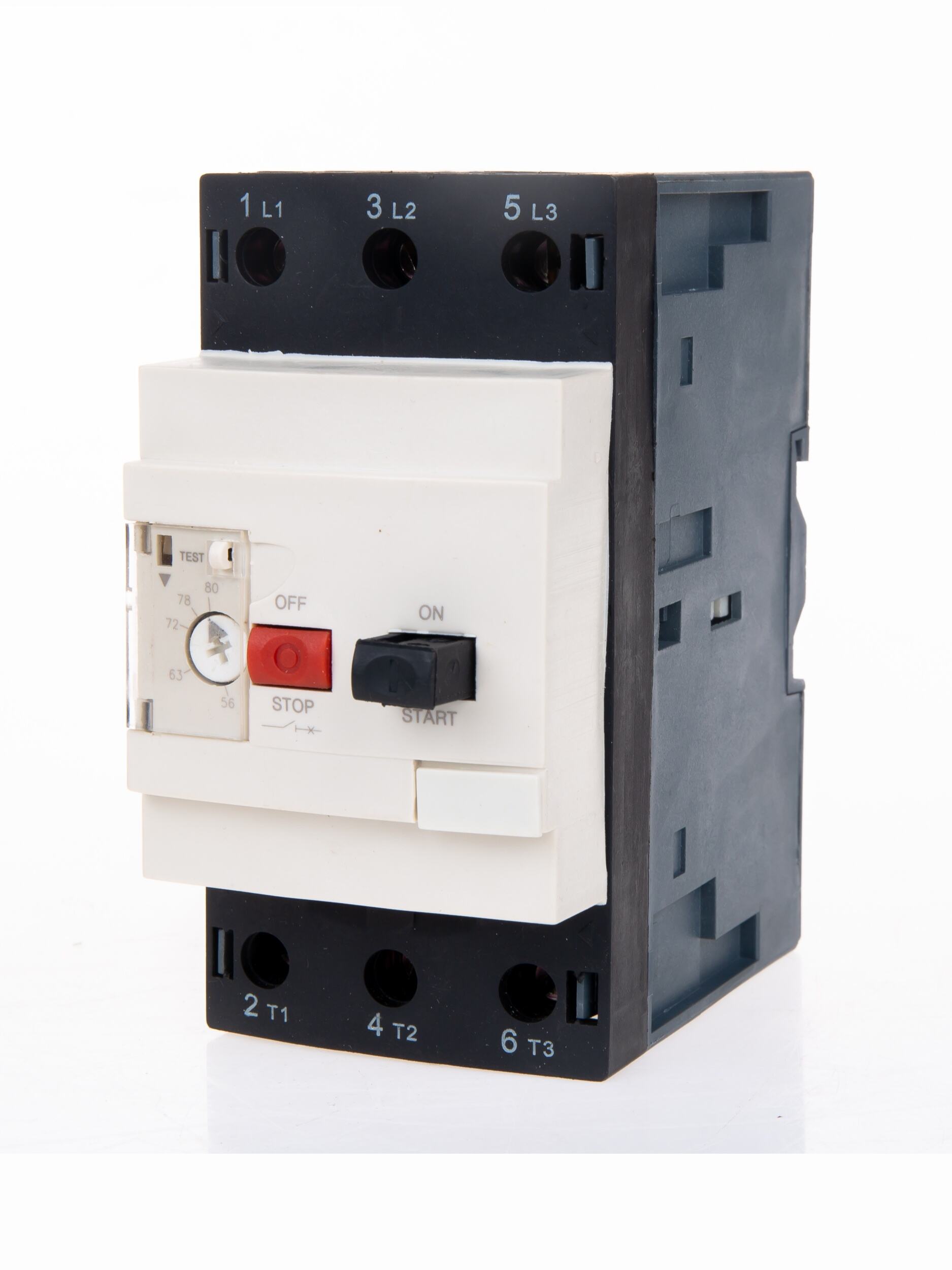

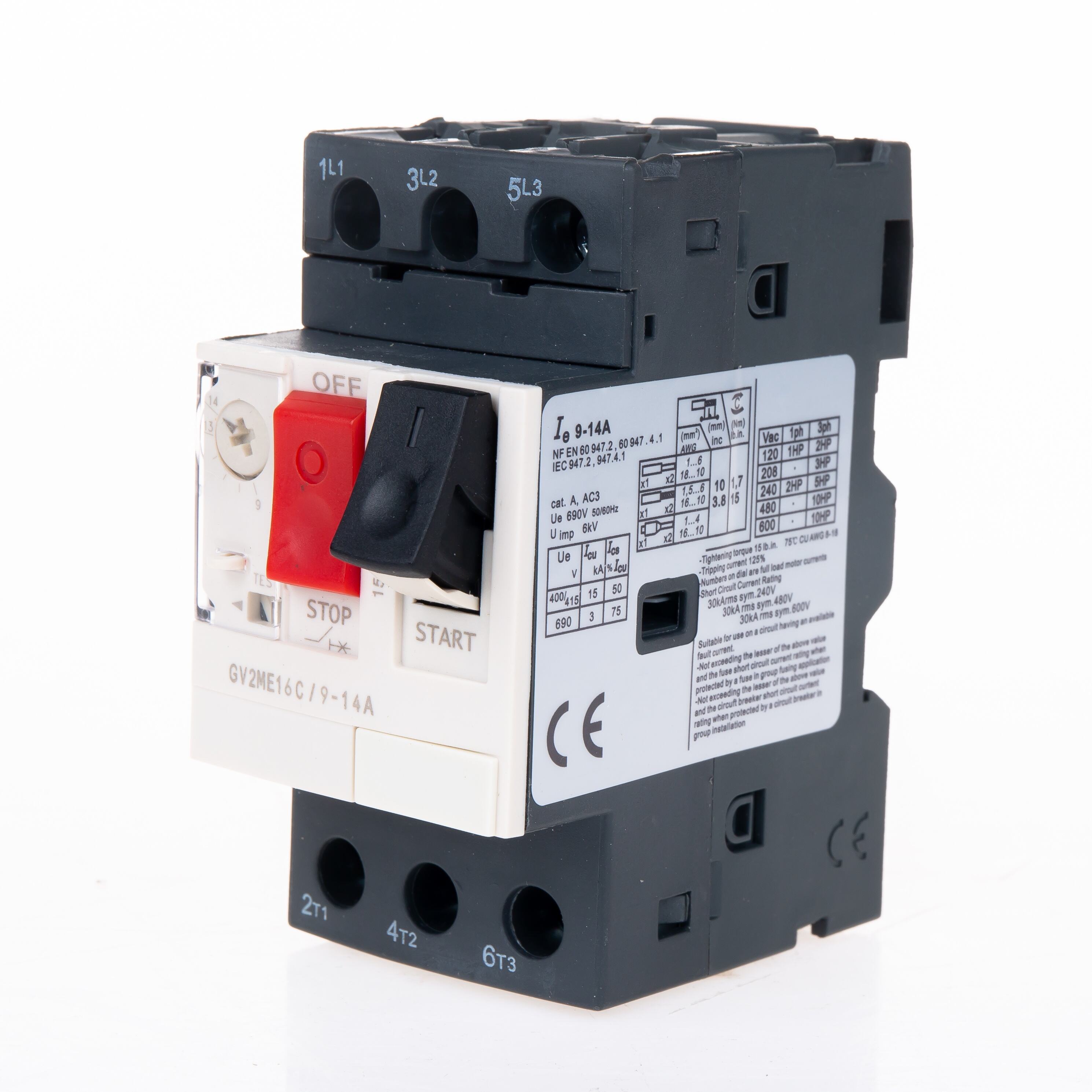

GV2 Motor Protector
GV2 Thermal Overload Relay
GV2 ME Series
Motor Protective Switch
Thermal Magnetic Switch
Motor Circuit Protector
Motor Management Relay
Compact Motor Starter
DIN Rail Motor Protector
Manual Motor Starter
Motor Protective Circuit Breaker
MPCB (Motor Protective Circuit Breaker)
Motor Safety Switch
Overload Relay
Motor Protective Cover
Thermal Protector
Motor Isolating Switch
Starter Protector
 |
 |
 |
 |
 |
 |
 |
 |
Installation Example
 |
 |
 |
 |
 |
 |
Product quality
1.High protection accuracy and reliability
Accurate thermal memory: Its bimetallic overload protection can accurately simulate the heating curve of the motor, provide matching "inverse time limit" protection, avoid misoperation and refusal to move, and effectively extend the life of the motor.
Reliable breaking capacity: The short-circuit breaking capacity meets the standard requirements and can safely and reliably cut off the circuit when a fault occurs, protecting downstream equipment.
2. Mechanical durability and solid materials
Durable operating mechanism: The mechanical operating mechanism has a clear tactile feel and has undergone rigorous lifespan testing (usually tens of thousands of mechanical operations), ensuring stability even in frequent start stop situations.
Excellent shell material: The engineering plastic shell is flame retardant, impact resistant, and resistant to chemical corrosion. The internal metal components are sturdy and can adapt to harsh industrial environments.
3. The attachment system is complete and has strong compatibility
Modular design: Auxiliary contacts, shunt/undervoltage release and other accessories adopt standard modular design, easy installation, reliable connection, and excellent compatibility with the body.
Flexible expansion: The rich variety of accessories enables it to flexibly adapt to various control cabinet designs and automation system integration requirements.
4. Outstanding long-term stability and consistency
Stable performance: The product has high consistency, and after different batches and long-term use, its protective characteristics (such as trip curves) drift very little, ensuring long-lasting and stable protection effect.
Good temperature rise control: The internal conductive circuit design and material selection are reasonable, and the temperature rise is low during long-term operation at rated current, reducing thermal aging and ensuring service life.
 |

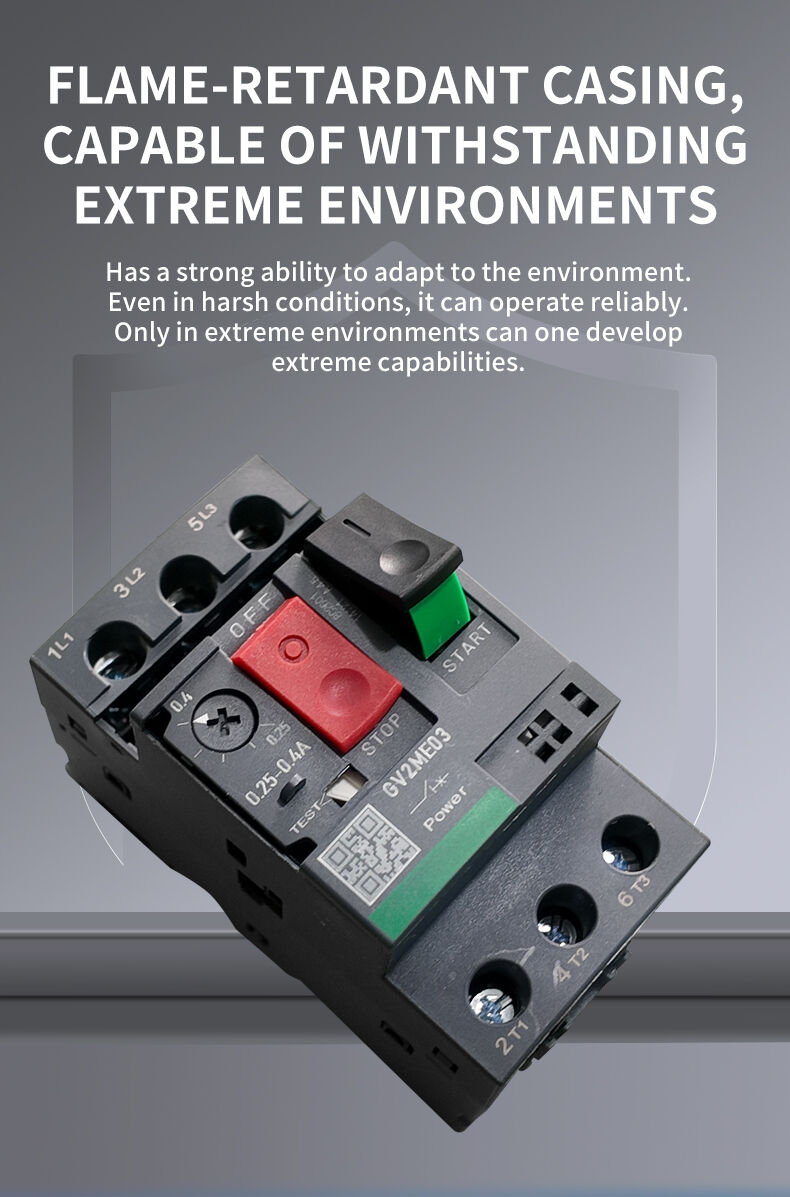

Flame-retardant casing
sturdy and durable Does not ignite when exposed to open flames Wear resistant and corrosion-resistant, with a long service life |
|

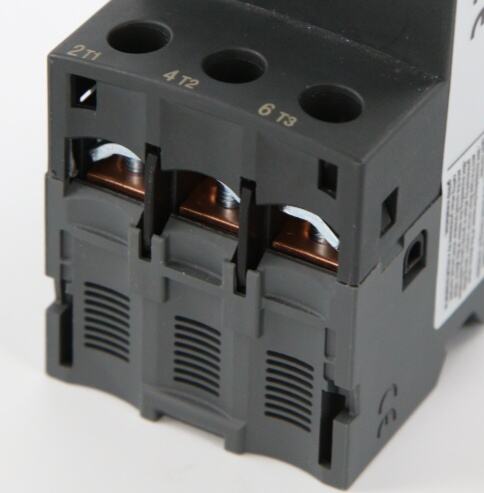

Terminal block
Copper nickel plated screws Tunnel type terminal block Tight and reliable wiring |
 |
 |

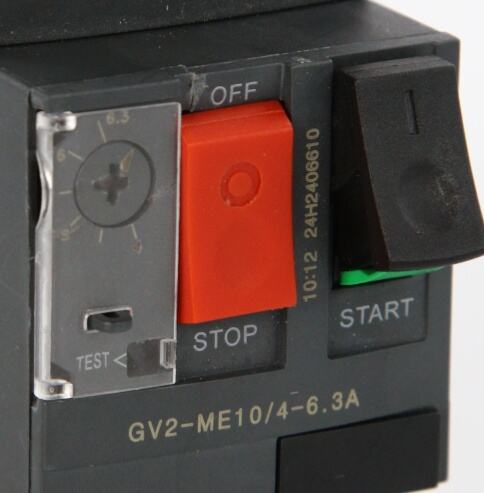

Dial adjustment
More precise current Stable electrical safety performance |
|

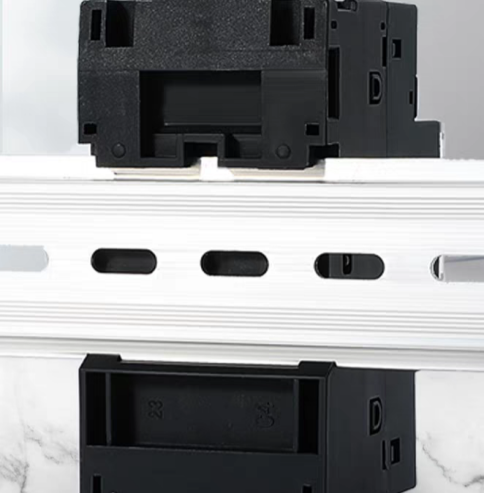

Rail-mounted installation
The status mechanical indicator light is easy to observe and improves work efficiency |
 |

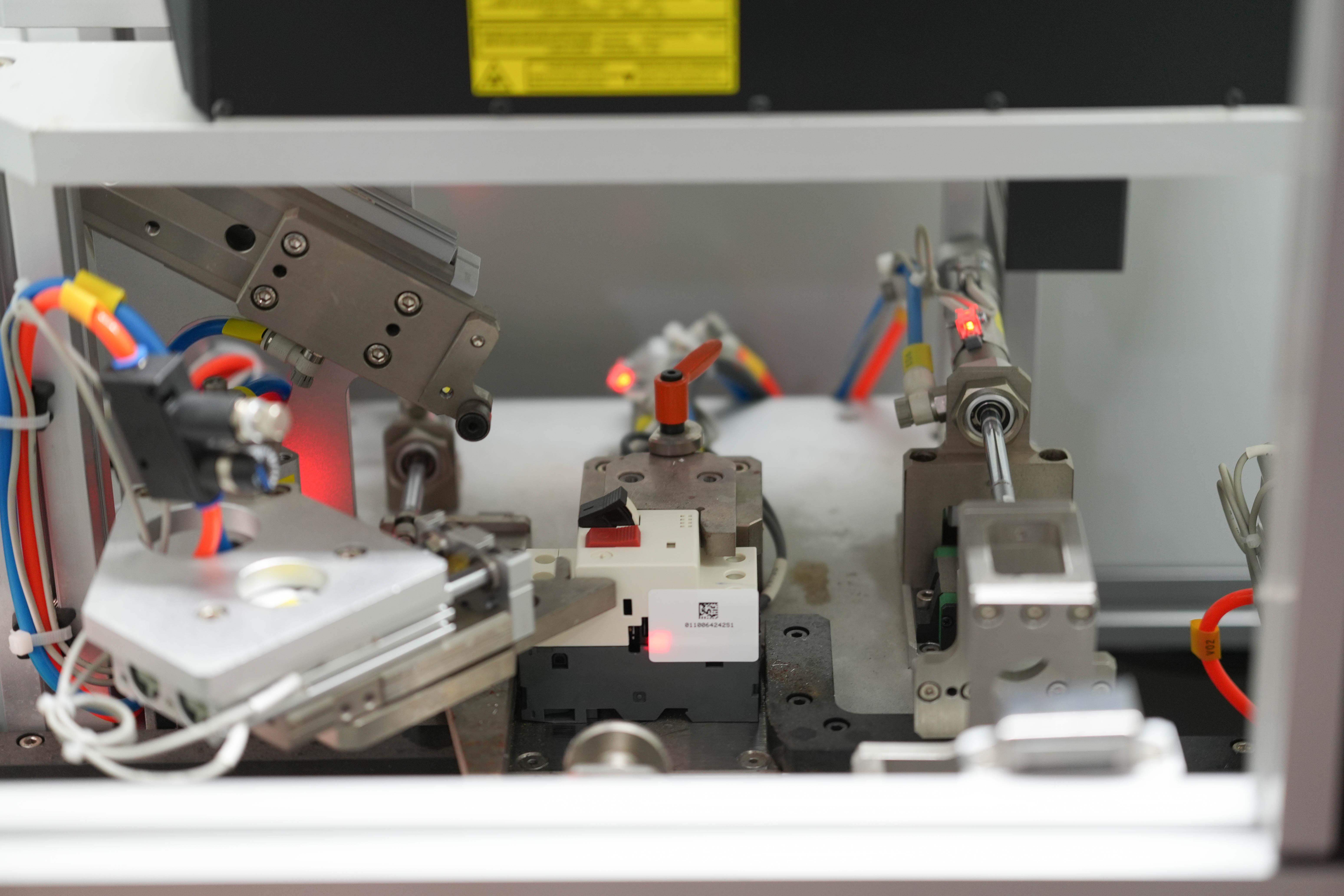

1.Mechanical characteristics and operational testing
Mechanical operation
Institutional strength
2. Key electrical performance tests
Voltage withstand test (insulation test)
Contact resistance test
Protection function calibration and verification (core):
Overload protection calibration
3. Function and accessory testing
Attachment action test
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Inner packaging
Shockproof material
Material: foam, bubble film, etc
Placement: Place evenly around the circuit breaker, at the top and bottom
External packaging
Carton
Material: High strength corrugated cardboard box
Carton sealing
Method: Seal with tape or strapping
Requirement: Ensure a secure seal to prevent cracking of the box
Identification and labeling
Content:Product model, quantity, weight, manufacturer, transportation label (such as fragile, upward, moisture-proof, etc.)
Location: Clearly printed on the outside of the cardboard box.
 |
 |
 |
Domestic transportation
If there is a designated freight forwarder in china, we willtransport the products to the designated location through road transportation or domestic express delivery after production is completed
International transport
When the quantity of goods is small and time is tight, and it needs to be transported to a designated location abroad, the three majorinternational express delivery companies are selected for transportation DHL,FEDEX,UPS
Sea freight/air freight
When there is a large quantity of goods and time is not urgent, we choose sea freight. We will choose a suitable freight company, who wil arrange for trucks to pick up the goods and transport them to the designated por for warehousing. Finaly, they will transpored by sea to the customer's desianated port, and the customer needs to pick up the goods with a bill of lading.
Application
Main Applications of the GV2 Motor Protector
The GV2 motor protector is designed to provide comprehensive protection for three-phase induction motors in industrial applications. It integrates short-circuit protection, overheat protection, and phase loss protection into a compact device, offering a powerful solution. The GV2 motor protector is crucial for motor-driven machinery. In case of motor overload, phase loss, or jamming, it automatically disconnects the power supply to prevent motor burnout and ensure safe operation.
Typical applications include:
- Pump and compressor systems
- Conveying and transmission equipment
- Fan and blower systems
- Machine tools and processing equipment
- Agricultural and food processing machinery
By maintaining motor integrity and reducing downtime, the GV2 protector helps optimize maintenance plans and extend equipment life, making it a key component in industrial automation and motor control centers.
