VD4 Vacuum Circuit Breaker 12kV 630A-1250A for Medium Voltage Switchgear

Product Installation:

Model meaning

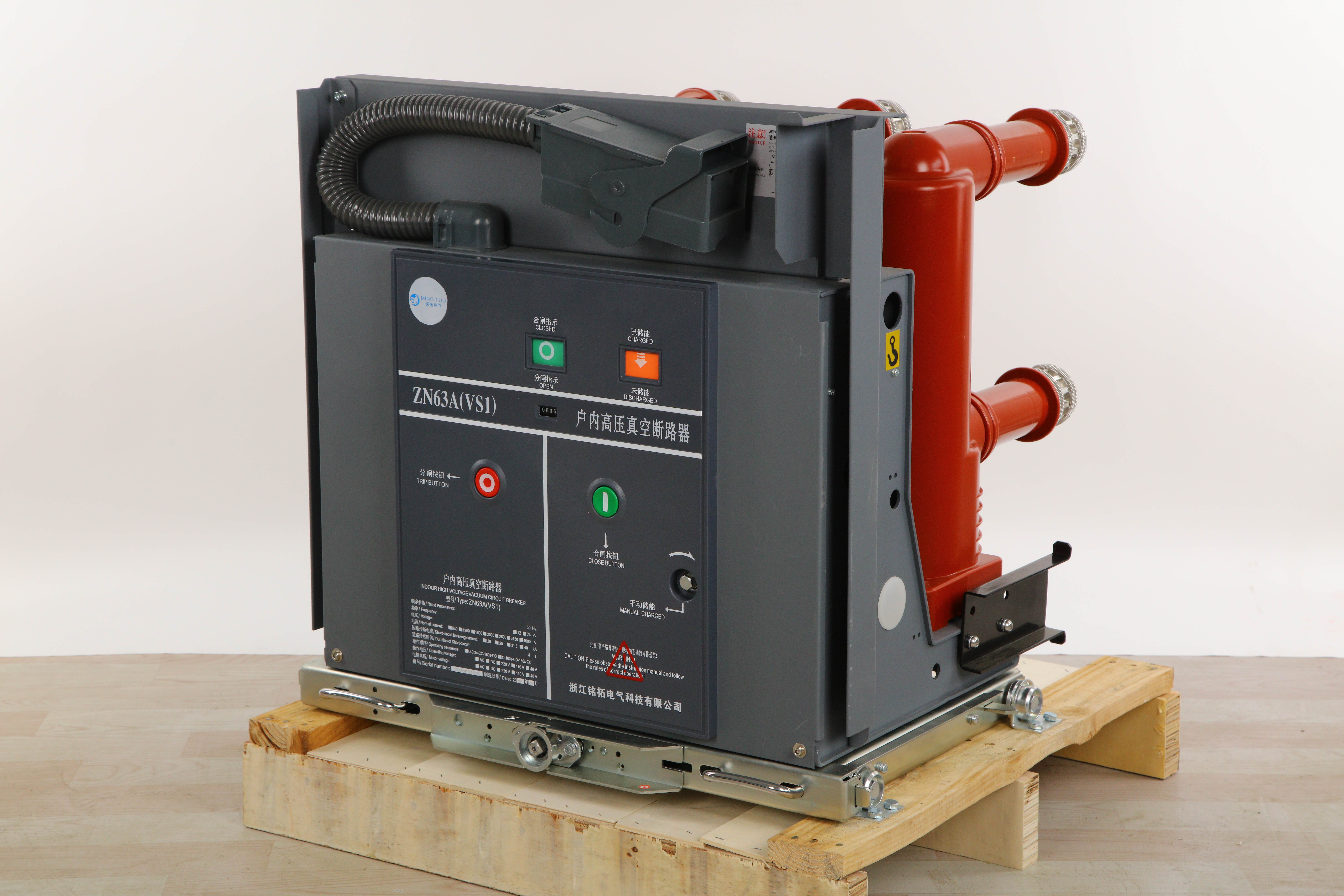

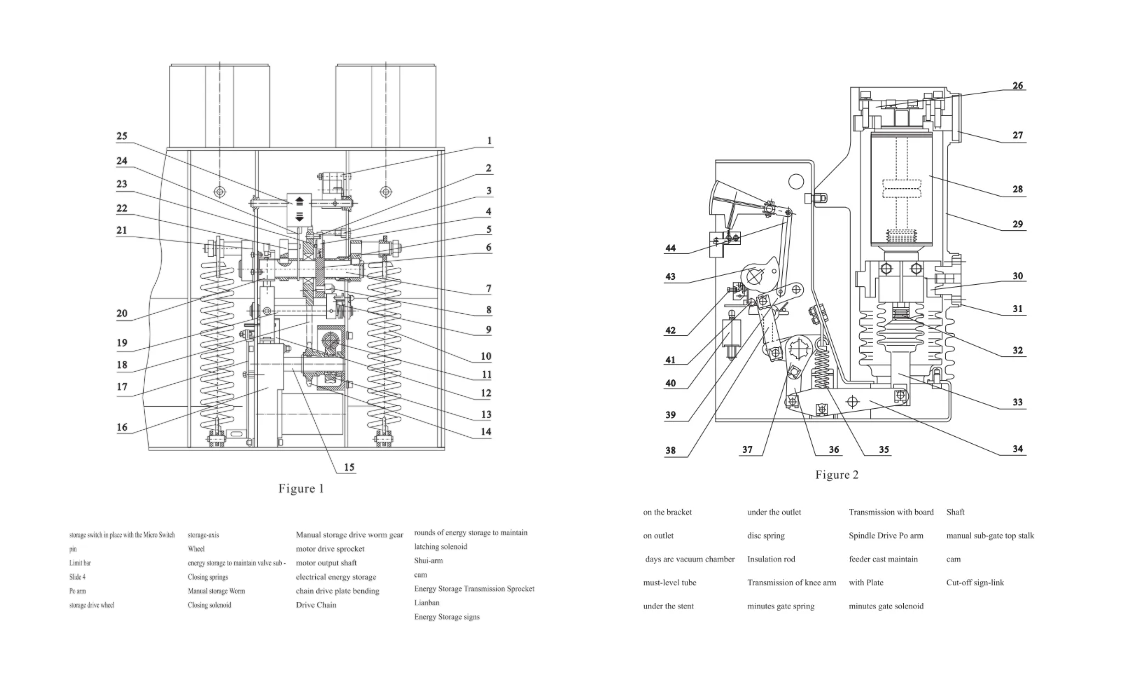

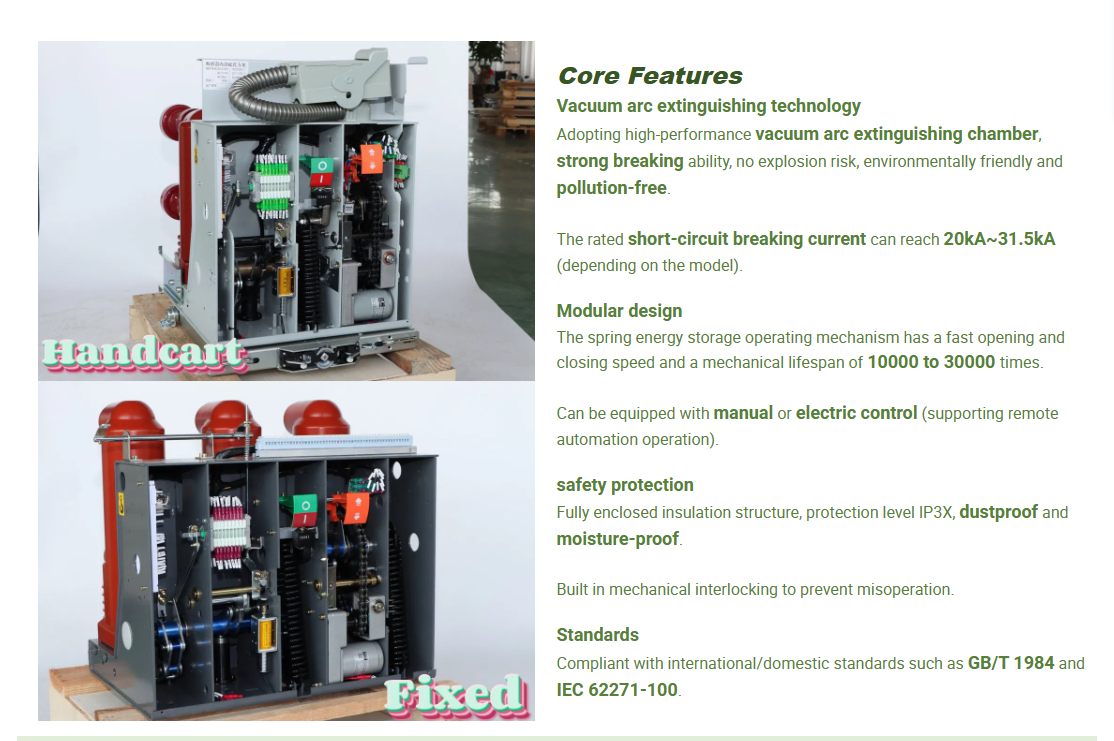

The​‍​‌‍​‍‌​‍​‌‍​‍‌ ZN63 high-voltage circuit breaker, or simply the VS1 circuit breaker (VS1 being its most known model), is a series of indoor medium-voltage vacuum circuit breakers intended for the reliable switching and protection of a power network. More specifically, the fixed trolley type means a stationary handcart-style configuration.

By using a high-tech vacuum arc-extinguishing unit, the breaker finds its extensive application in three-phase AC 50Hz power systems with rated voltages from 3.6kV to 12kV. As a protective and controlling device for power equipment, it is the most vital switching component of the new power distribution system in substations, industrial, and mining enterprises' power distribution ​‍​‌‍​‍‌​‍​‌‍​‍‌systems.

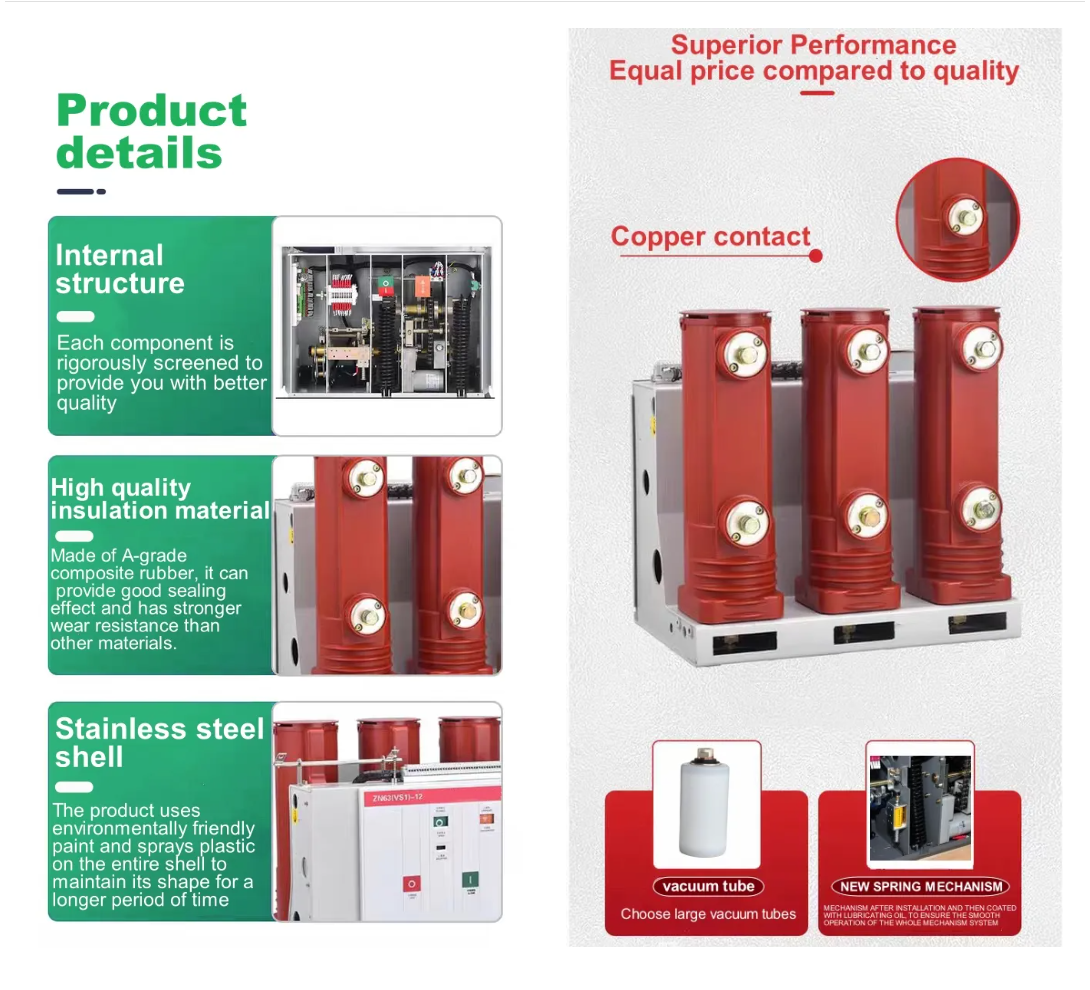

General product information

Product Commercial Terms

Environmental​‍​‌‍​‍‌​‍​‌‍​‍‌ and Installation Conditions

 Ambient Air Temperature

The temperature range for normal use is from -5°C to +40°C. The 24-hour average temperature should not go beyond +35°C. In low-temperature conditions, the device can still work at -10°C or -25°C, but the user must be informed first. If any service is performed above the limit of +40°C or below -10°C/-25°C, the user should be consulted beforehand.

 Installation Altitude

The place where the device is installed should be less than 2000 meters above the sea level.

Atmospheric Conditions

• At +40°C, the maximum relative humidity should be 50%. At lower temperatures, higher relative humidity is also acceptable.
• At the time of wet months, the average maximum relative humidity can be 90%, and the average minimum temperature can be +25°C.
• It should also be considered that moisture may form on the product surface due to temperature changes. If the conditions exceed these limits, consultation with the user will be necessary.

Protection Grade

The gadget is rated as IP30 in terms of protection.

 Usage Category

Class A or Class B.

 Installation Category

• The circuit breakers and undervoltage releases with the rated voltages of operating 660V (690V) or less, together with the power transformers primary winding, are intended for N Installation Category.
• The designation for auxiliary and control circuits is Category III for Installations.

 Installation Requirements

In order to ensure the proper functioning of the circuit breakers, their installation should follow the guidelines contained in this manual.

• The vertical tilt of the circuit breaker should not be more than 5°.
• The tilt of the mining circuit breakers should not be more than ​‍​‌‍​‍‌​‍​‌‍​‍‌15°.

1. Competitive pricing, factory quality assurance

2. Customizable housings

3. Extensive production and installation experience, ready to provide guidance

4. Assistance with commissioning and selection

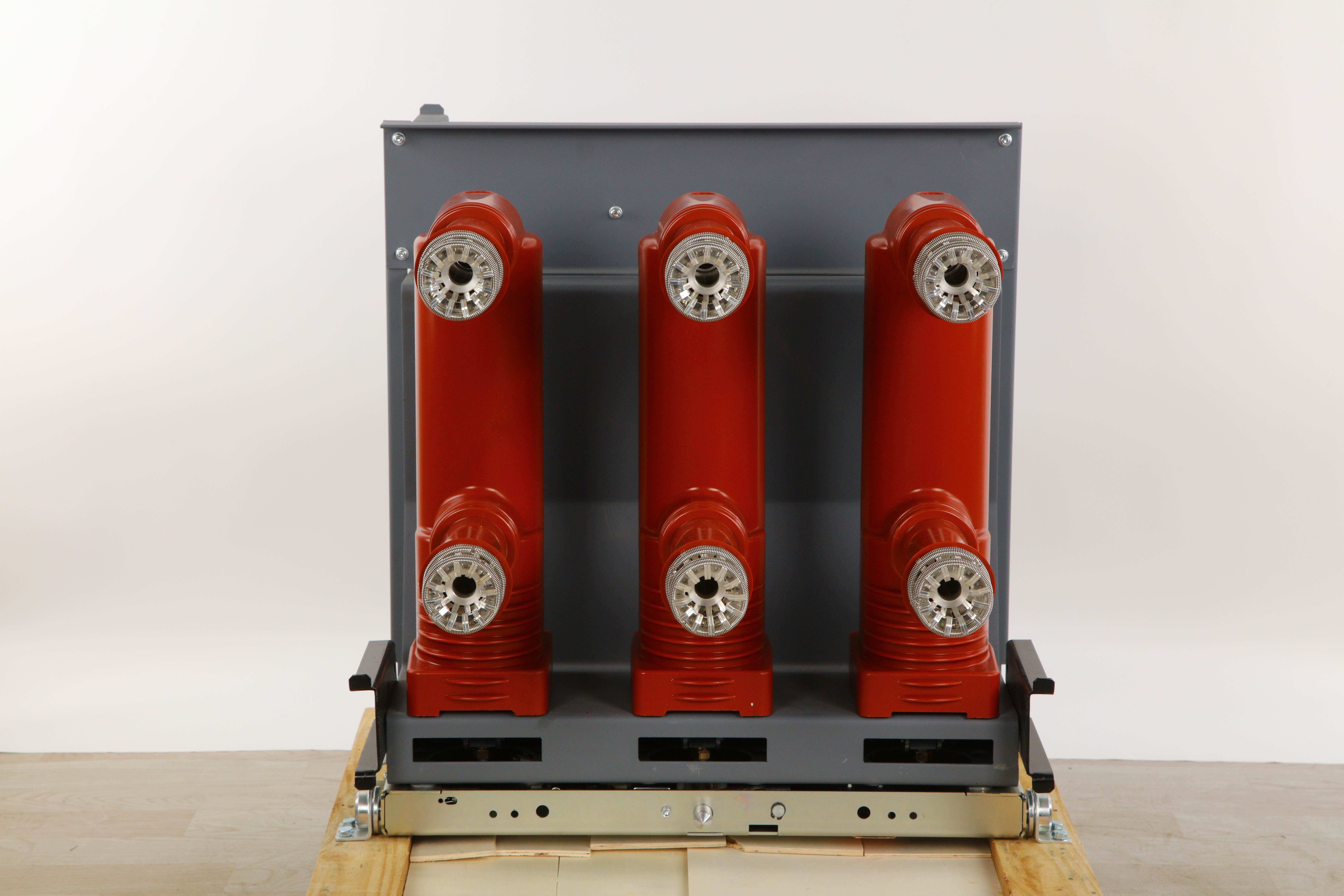

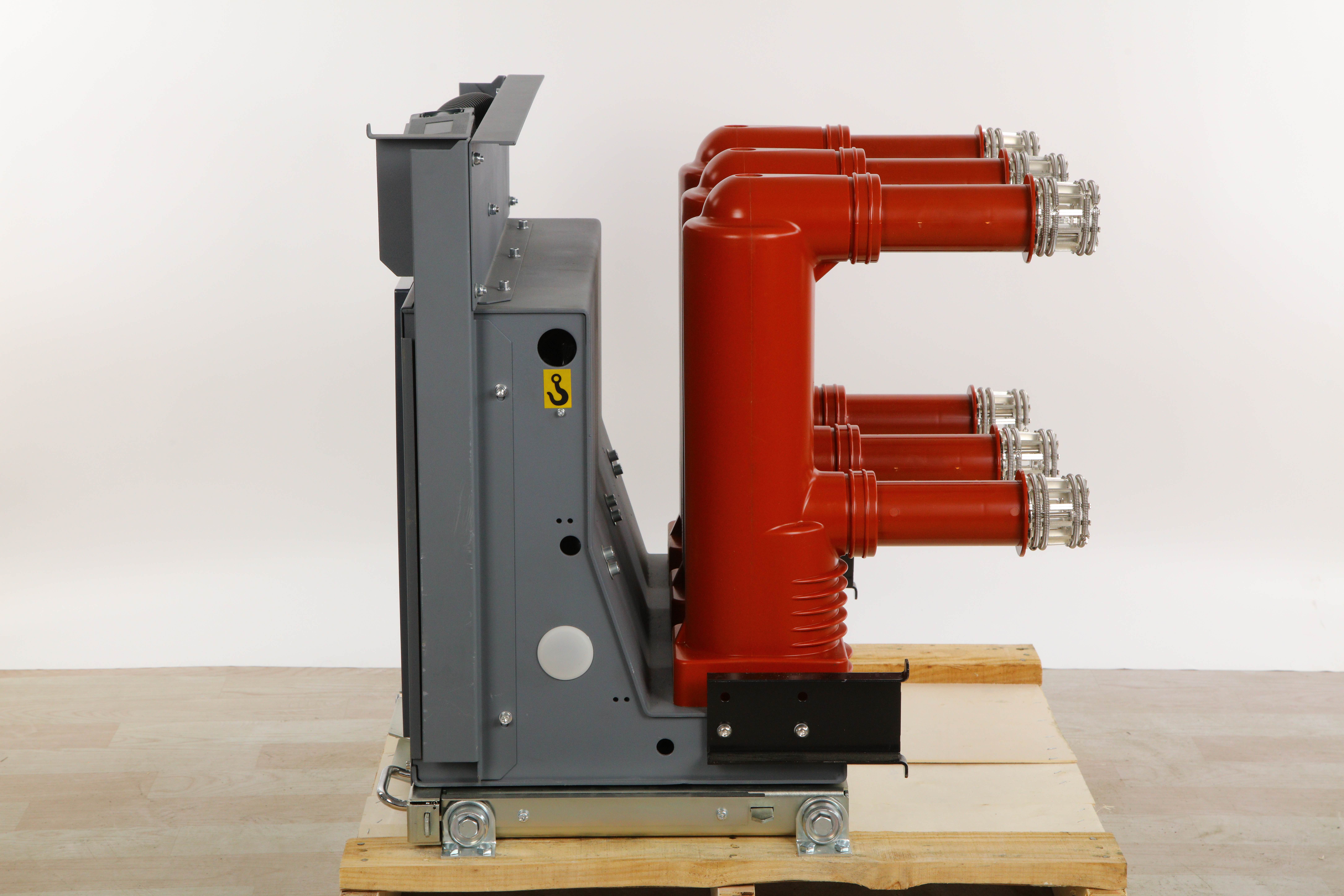

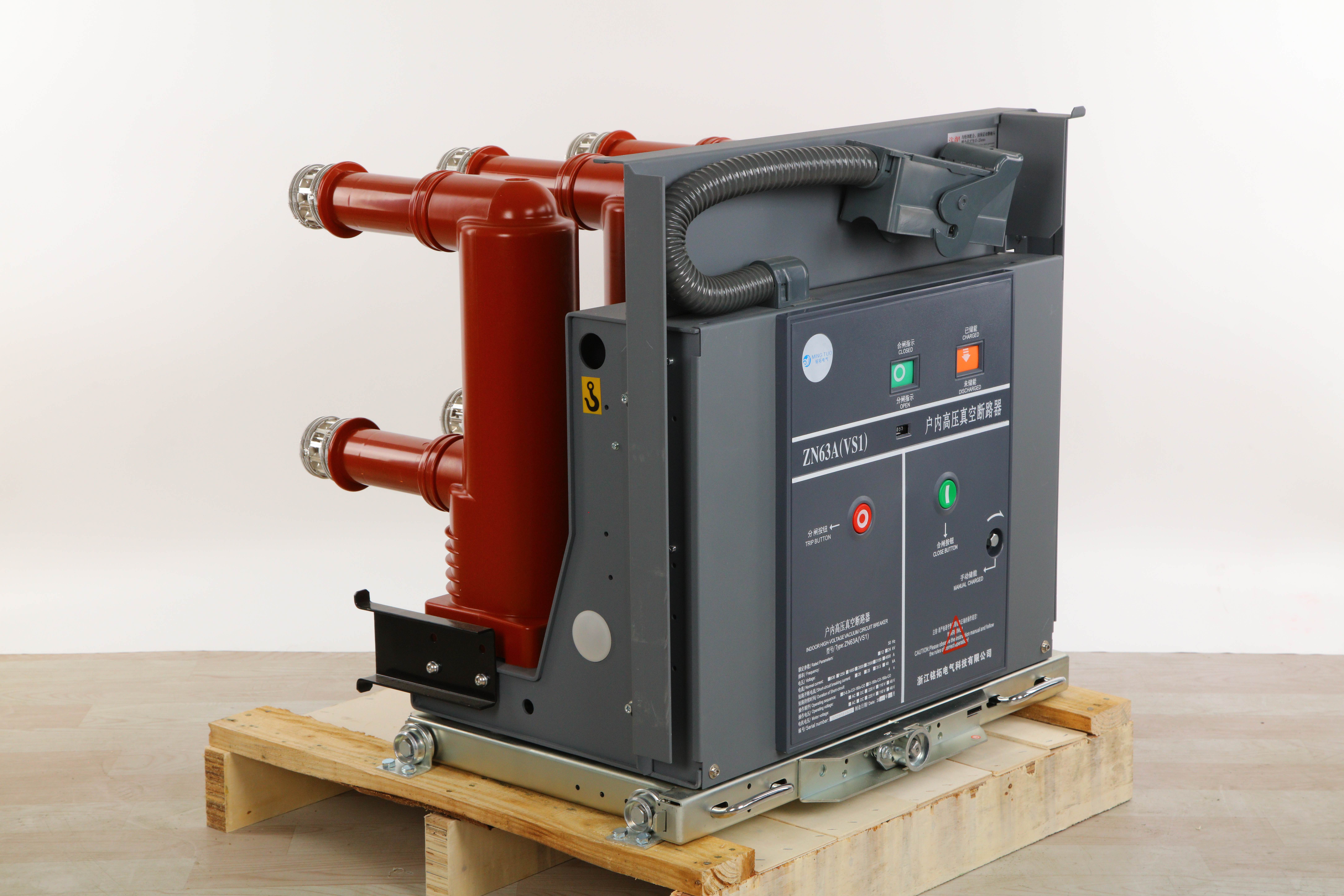

Real photos

Q: What is the voltage/current range of this product? What is its breaking capacity?

A: Please contact customer service for details.

Q: What is the minimum order quantity? Do you accept sample orders?

A: The minimum order quantity is 1 set, and we accept sample orders.

Q: What is the warranty period? How do I apply for a warranty?

A: The product warranty is 1 to 2 years. Please contact customer service directly to apply.

Q: Do you have CE, RoHS, UL, or other certifications? Can you provide certificates?

A: We have CE and RoHS certifications and can provide certificates.

Q: Does the price include tax/shipping?

A: The price does not include shipping/tax.

Q: What notable clients or project examples have you worked with?

A: State Grid Corporation of China, Chint Group.
