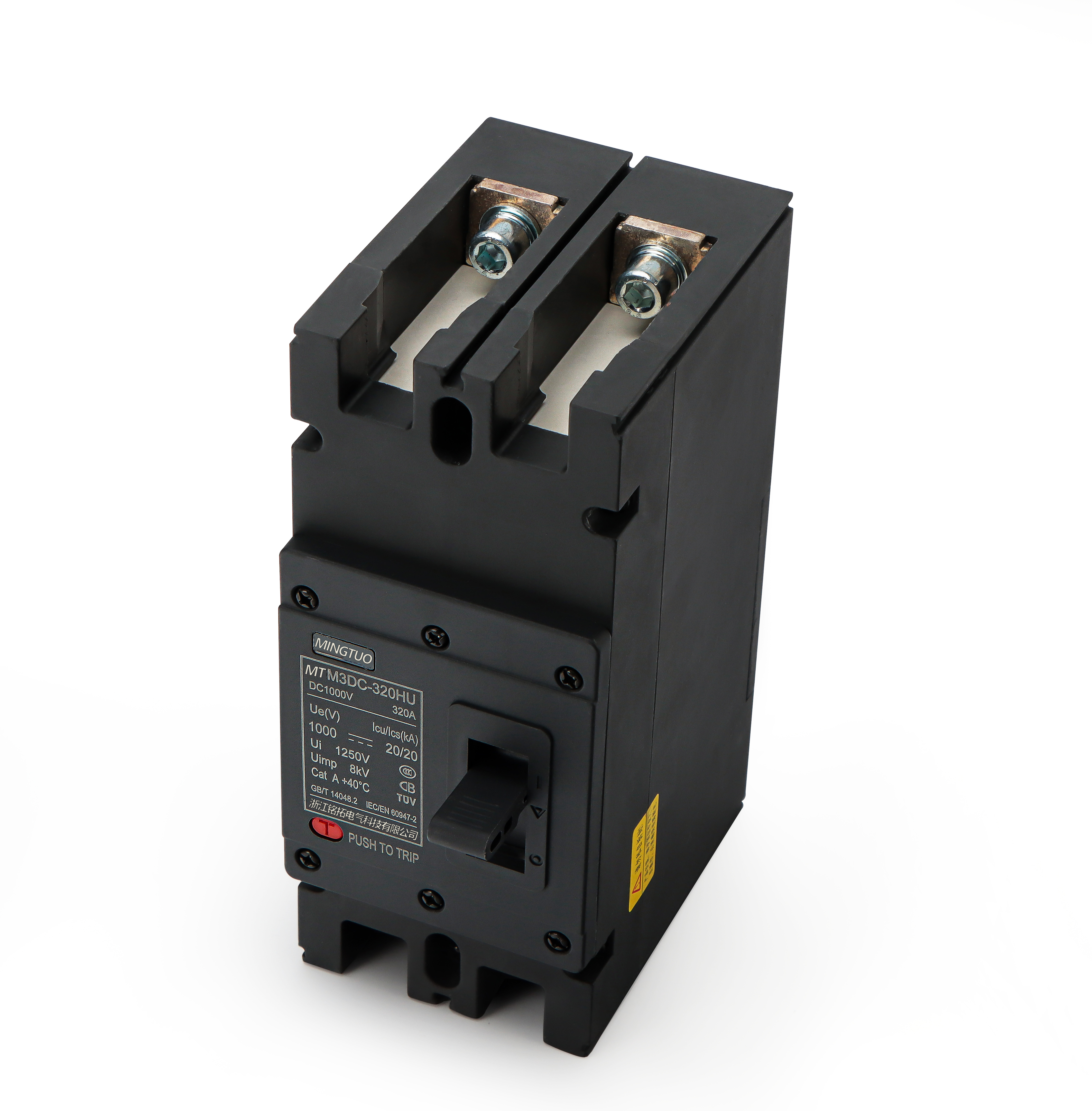

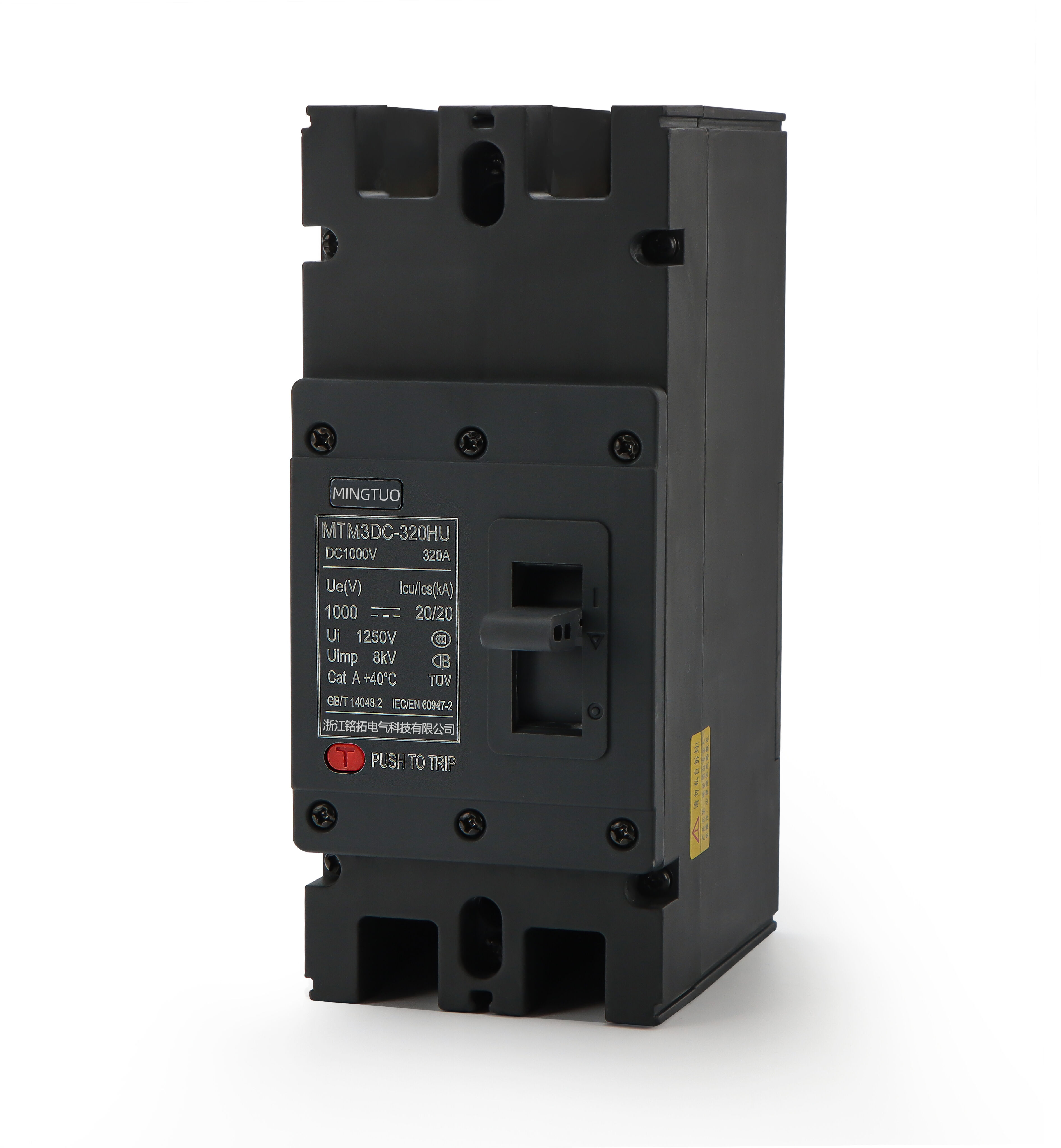

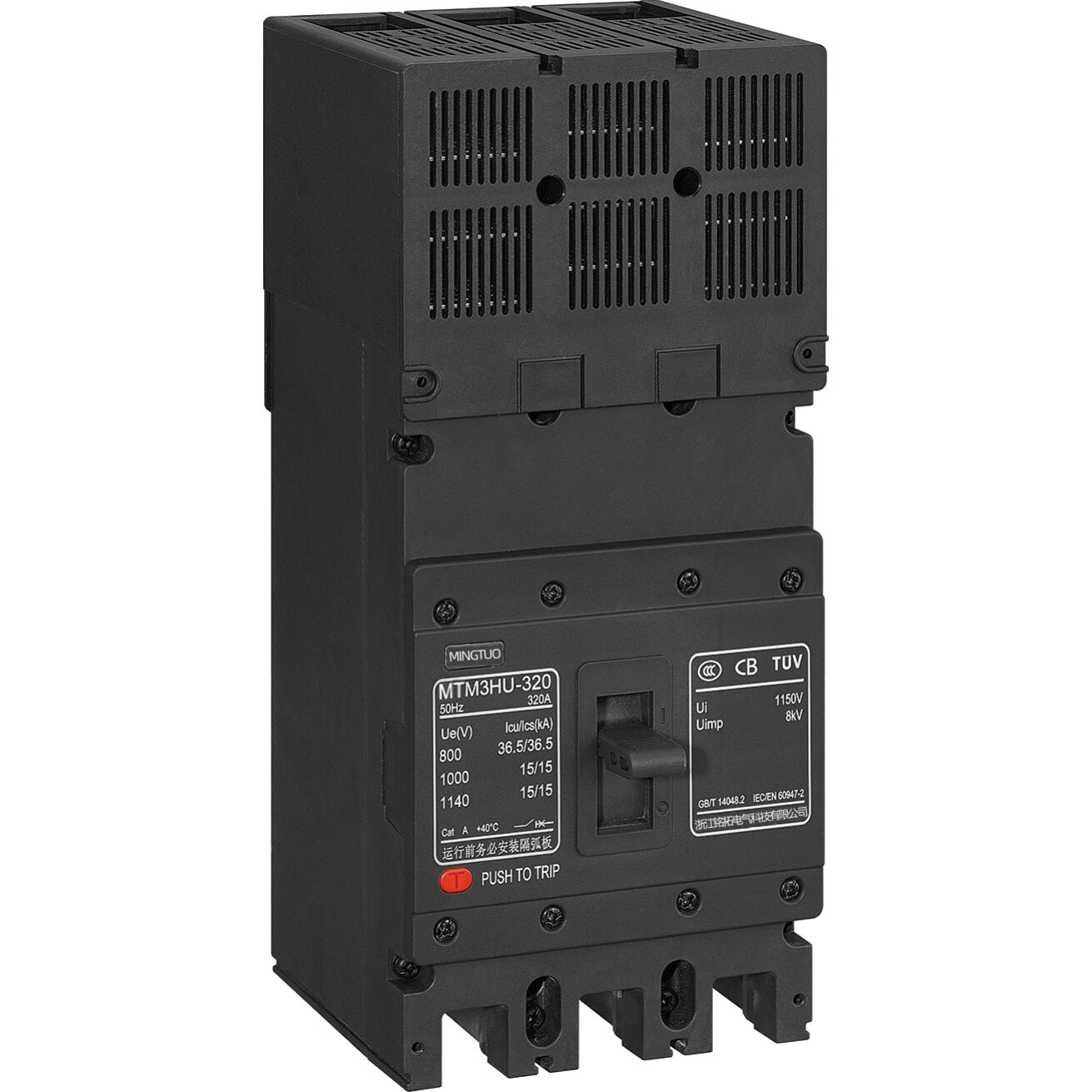

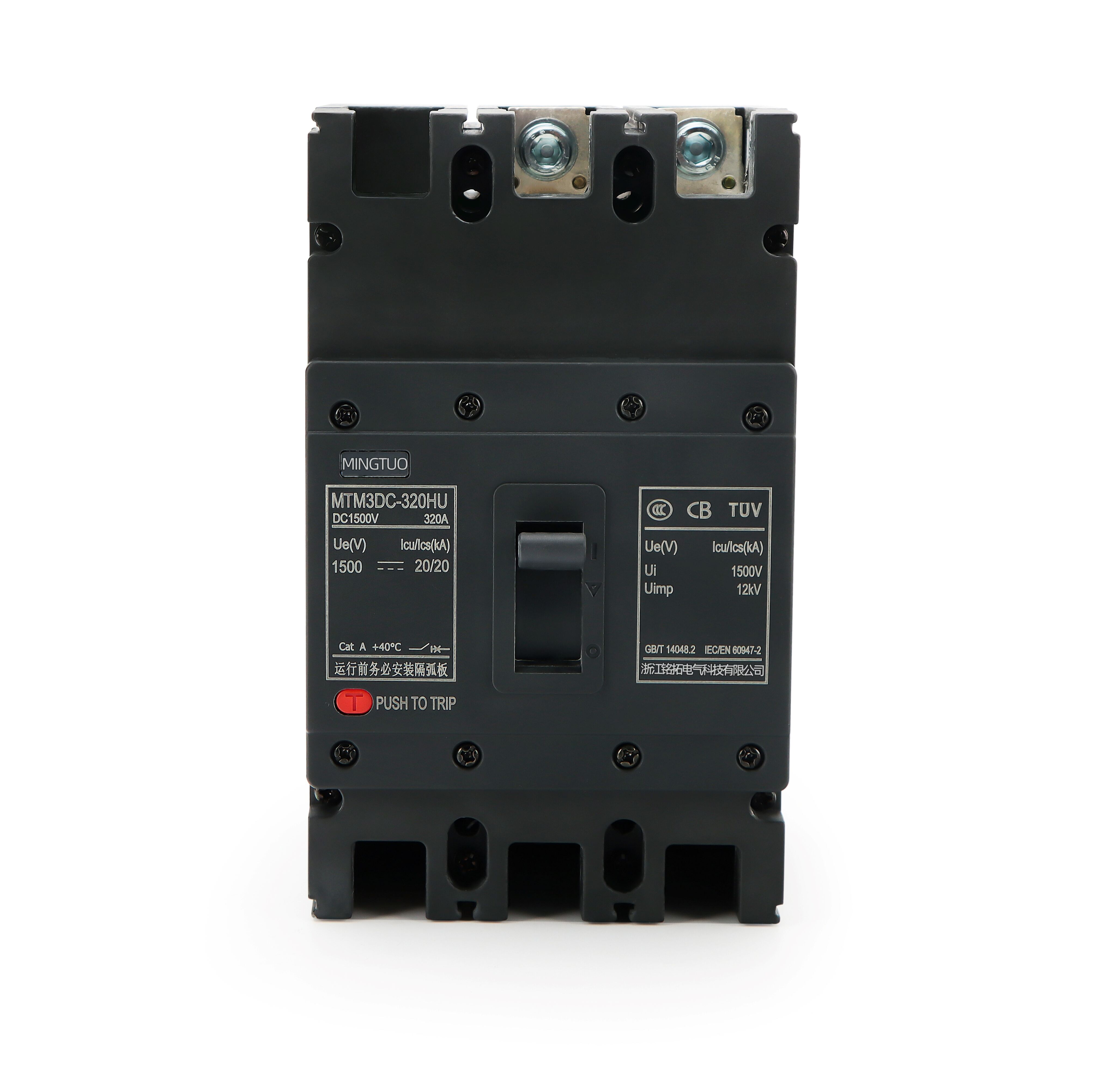

SRM3 3/4P 1000/1500V Photovoltaic molded case circuit breaker DC MCCB

Description:

Specialty engineered for photovoltaic applications, our DC Molded Case Circuit Breaker provides reliable circuit protection in solar power systems. With 1000V/1500V DC rating and 63A-630A current range, it ensures safe operation under demanding environmental conditions.

Key Features:

- DC voltage rating: 1000V/1500V

- Current range: 63A-630A

- 2P/3P/4P configurations

- Enhanced DC arc extinguishing capability

- Flame-retardant thermoset housing

- -40°C to +85°C operating temperature

Applications:

- Solar inverter input/output protection

- PV combiner boxes

- DC distribution cabinets

- Commercial and utility-scale solar plants

- Energy storage systems

Quality Assurance:

Compliant with international safety standards, our breakers undergo rigorous testing to ensure reliable performance throughout your system's 25-year service life.

 Quick Detail:

Photovoltaic DC Molded Case Circuit Breaker

Solar DC Circuit Breaker

Photovoltaic DC Circuit Breaker

Solar Application DC Molded Case Circuit Breaker (MCCB)

Photovoltaic System Circuit Breaker

Solar DC Molded Case Switch

Photovoltaic Disconnect Switch

Solar Array Protector

DC Overcurrent Protection Device

Solar Combiner Box Circuit Breaker

Inverter Protection Circuit Breaker

Photovoltaic System Disconnect Switch

1000VDC Circuit Breaker

Double Pole DC Circuit Breaker

630A Solar Circuit Breaker

Photovoltaic DC Disconnect Switch

Solar Fuse Replacement

String Combiner Box Circuit Breaker

SRM3 refers to the type 1500V refers to the maximum peak voltage range of the molded case circuit breaker;

photovoltaic molded case circuit breaker is the keyword (MCCB is an abbreviation); DC stands for direct current, which can be used as a modifier.

Text Description: A photovoltaic circuit breaker is a circuit breaker specifically designed and used for solar photovoltaic power generation systems. It is an indispensable key electrical protection component in photovoltaic systems, and its main functions are to safely connect and disconnect circuits, and to provide overload and short-circuit protection.

Direct Current: Photovoltaic modules generate direct current.

High Voltage: To reduce losses, photovoltaic systems typically connect multiple modules in series, forming a high-voltage direct current of up to 1000V or even 1500V.

Continuous Arcing: Direct current does not have a natural zero-crossing point like alternating current, so once an arc occurs, it is more difficult to extinguish, posing a very high fire risk.

General product information

Product Commercial Terms

Main Applications of Photovoltaic DC Molded Case Circuit Breakers

Core Functions and Uses Our photovoltaic DC molded case circuit breakers are designed specifically for protecting and controlling DC circuits in solar power generation systems. It ensures safe and efficient operation by:

- Providing reliable on/off controlfor the DC power generated by the photovoltaic array

- Providing advanced overload and short-circuit protection for the DC line

- Achieving safe isolation during system maintenance or emergencies

Key Application Scenarios

- Solar combiner boxes: Protect individual photovoltaic strings and integrate outputs

- Inverter input/output circuits: Protect the inverter from DC-side faults

- DC distribution cabinets: Manage power flow in commercial/utility-scale power plants

- Energy storage systems: Ensure the safety of DC connections in battery energy storage systems

Key Protection Functions

- Preventing reverse current and minimizing DC arc risk

- Withstanding harsh environmental conditions (UV radiation, extreme temperatures)

- Ensuring system uptime by reducing downtime due to electrical faults

It is ideal for installers and engineers seeking certified, durable protection devices that meet the needs of modern solar infrastructure.

1. Superior DC Performance

- 1500V DC rating with 25kA breaking capacity

- Advanced magnetic blowout technology for DC arc suppression

- 0.5ms rapid fault detection and response

2. Enhanced Durability

- UV-resistant housing with IP65 protection rating

- -40°C to +85°C operational temperature range

- 20,000 mechanical operations minimum

- Salt spray corrosion resistance (1000h test)

3. Smart Features

- Integrated fault current monitoring

- Remote operation capability

- Real-time status indication

- Temperature compensation technology

4. Certified Quality

- TUV Rheinland certified

- UL 489B compliant

- IEC 60947-2 standard

- 100% factory testing

5. Installation Advantages

- 35% more compact than conventional DC breakers

- Tool-free accessories installation

- Front-facing connection terminals

- DIN rail and panel mount compatible

6. Cost Efficiency

- 30% longer service life than industry average

- Reduced maintenance requirements

- Direct manufacturer pricing

- 3-year warranty with global support

Our PV DC breakers combine German-designed protection technology with rigorous quality control, delivering 40% faster arc extinction and 50% higher breaking capacity than standard solutions, while cutting maintenance costs by 35% through predictive monitoring capabilities.

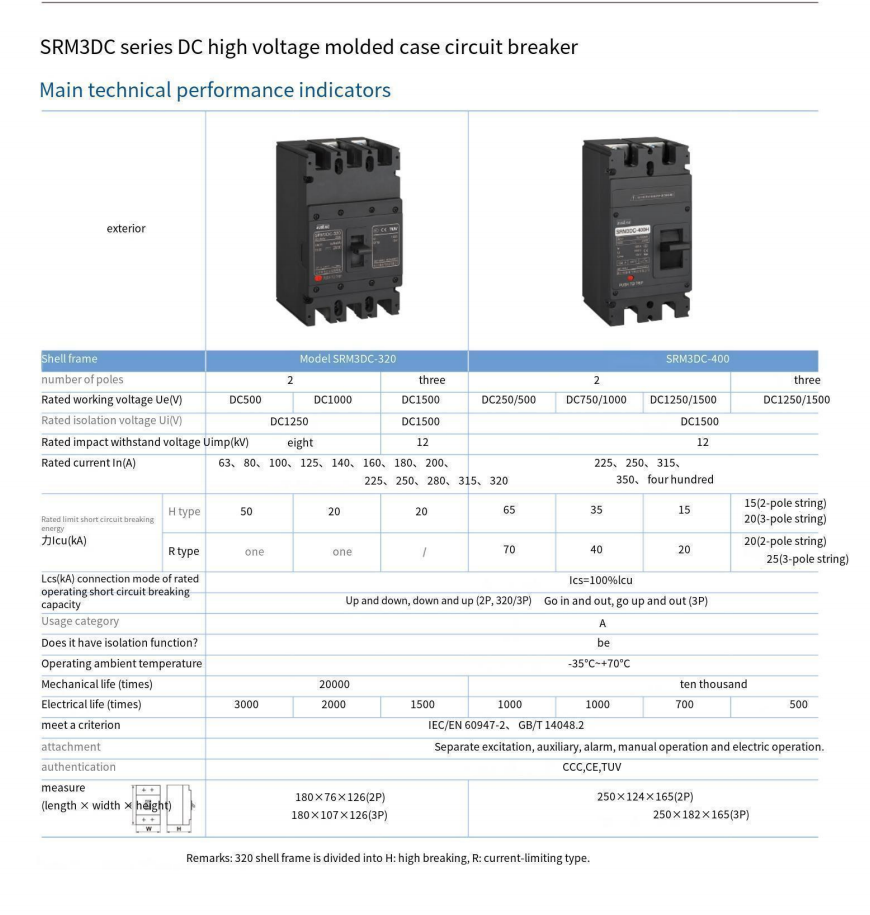

Technical specifications (a user manual and detailed specifications will be provided after purchase).

1. Utility-Scale Solar Farms

- Centralized DC combiner boxes

- Inverter station input protection

- DC feeder circuit protection

2. Commercial Rooftop Systems

- Building-integrated PV arrays

- Shopping mall solar installations

- Industrial plant rooftop systems

3. Residential Solar Applications

- Home energy storage integration

- Residential DC distribution panels

- Backup power system protection

4. Specialized Solar Installations

- Floating solar plants

- Agricultural solar projects

- Remote off-grid power systems

5. Critical Infrastructure

- Solar-powered telecom stations

- Emergency power systems

- Public service facility installations

Our breakers provide reliable DC protection across diverse environments from desert solar farms to coastal installations, ensuring 25-year performance warranty compliance and reduced maintenance costs for all project scales.
