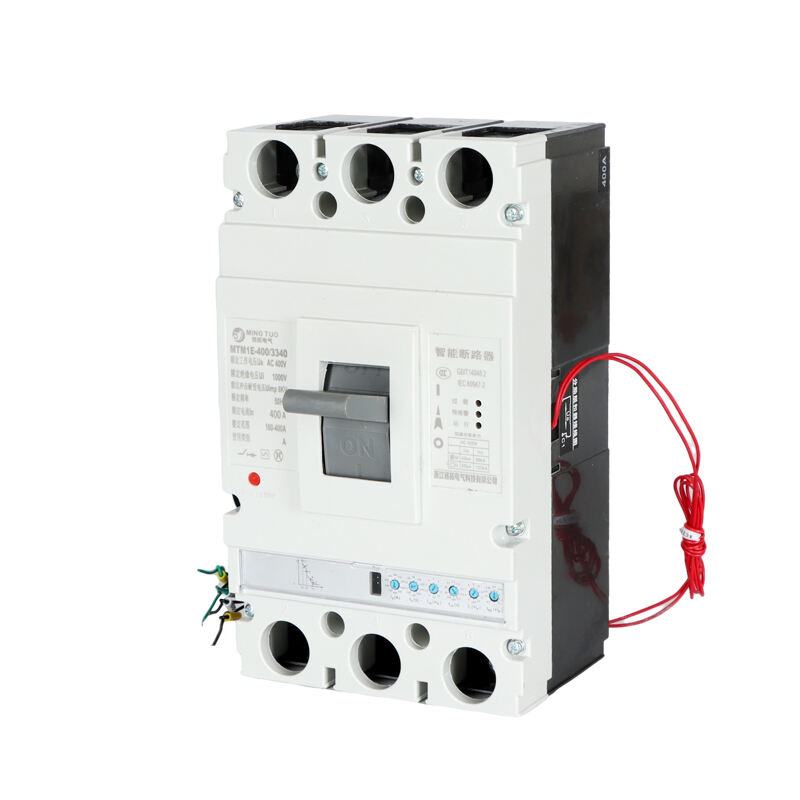

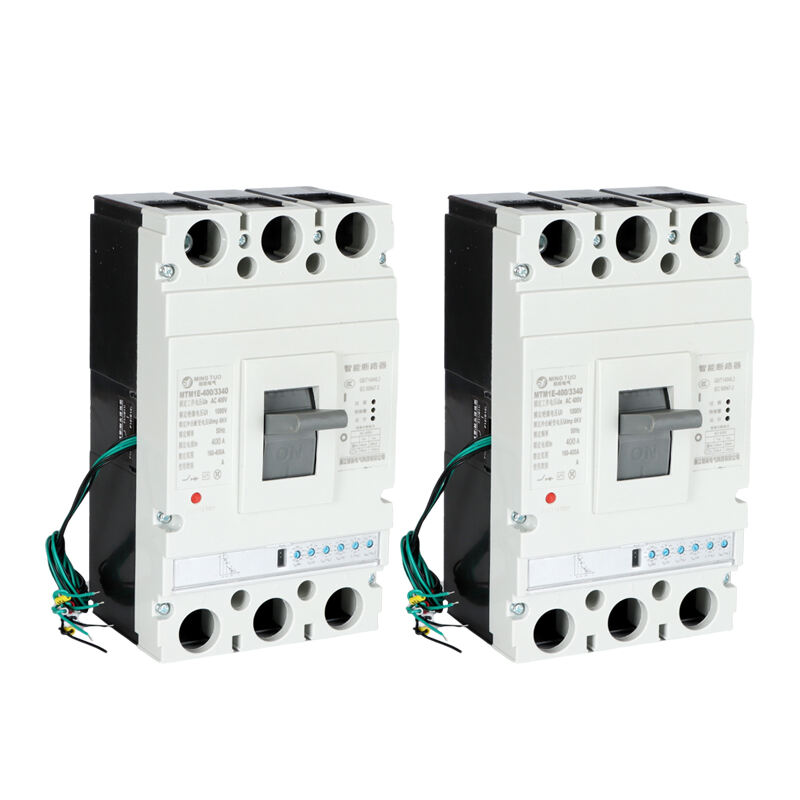

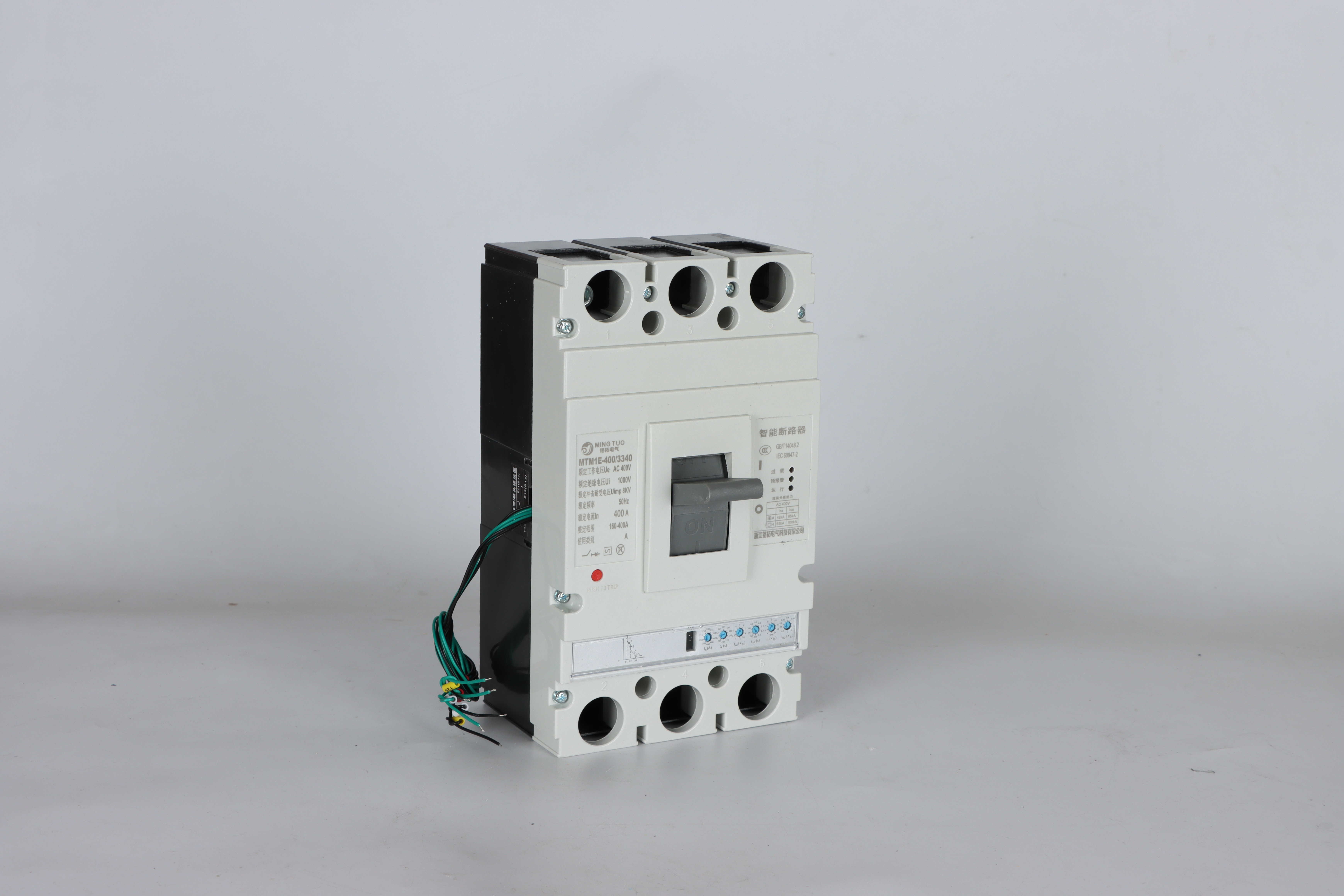

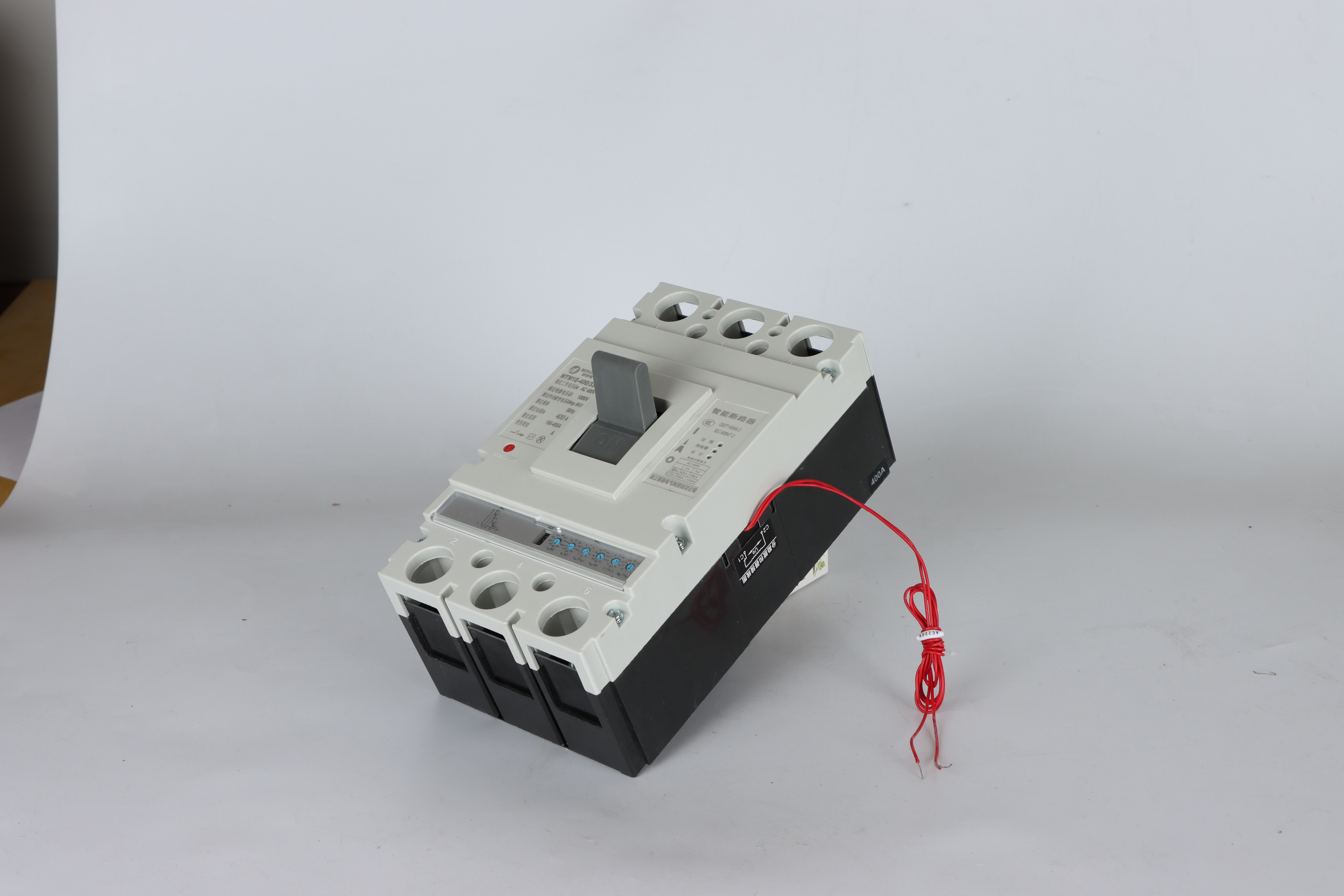

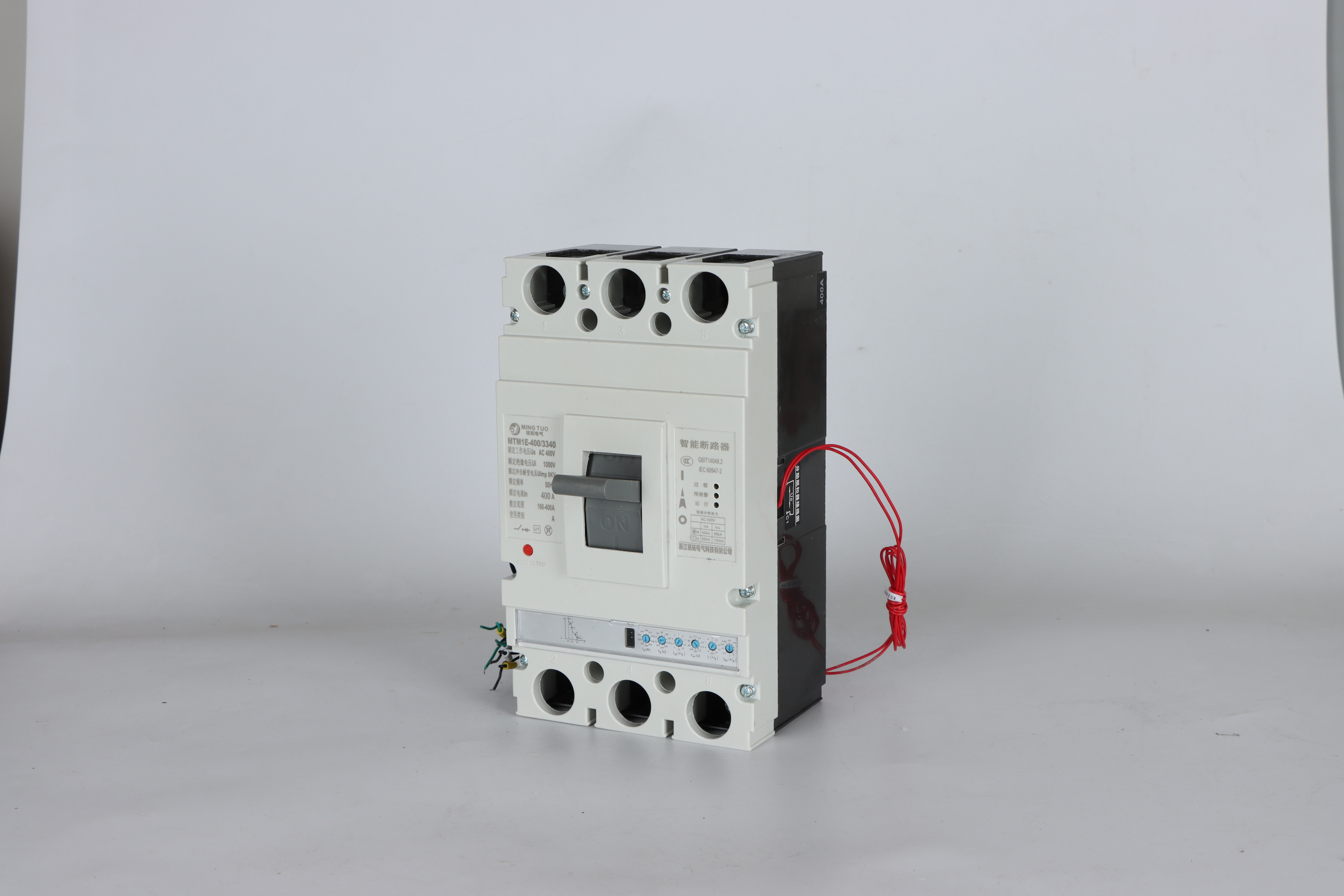

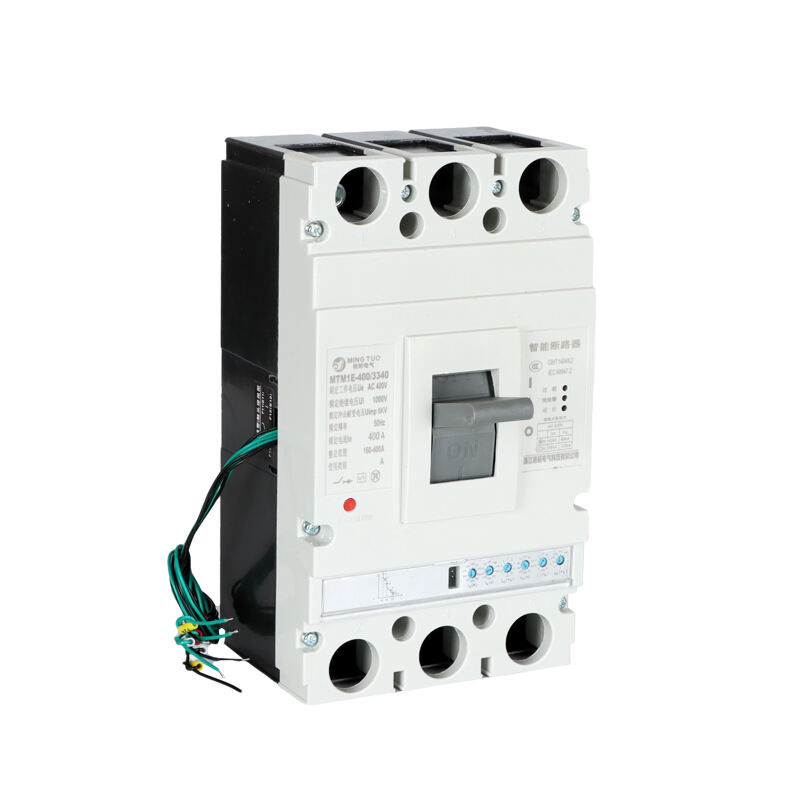

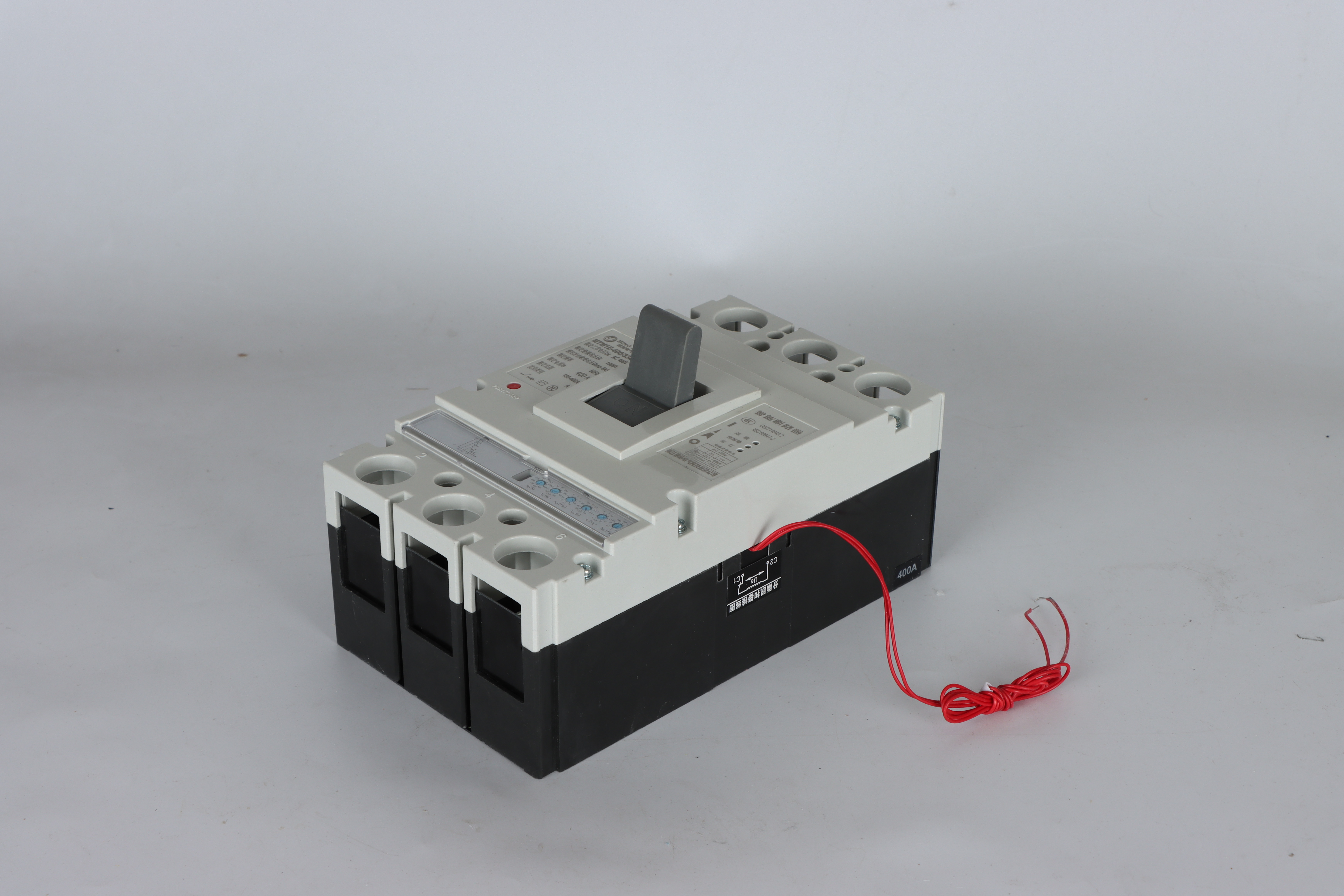

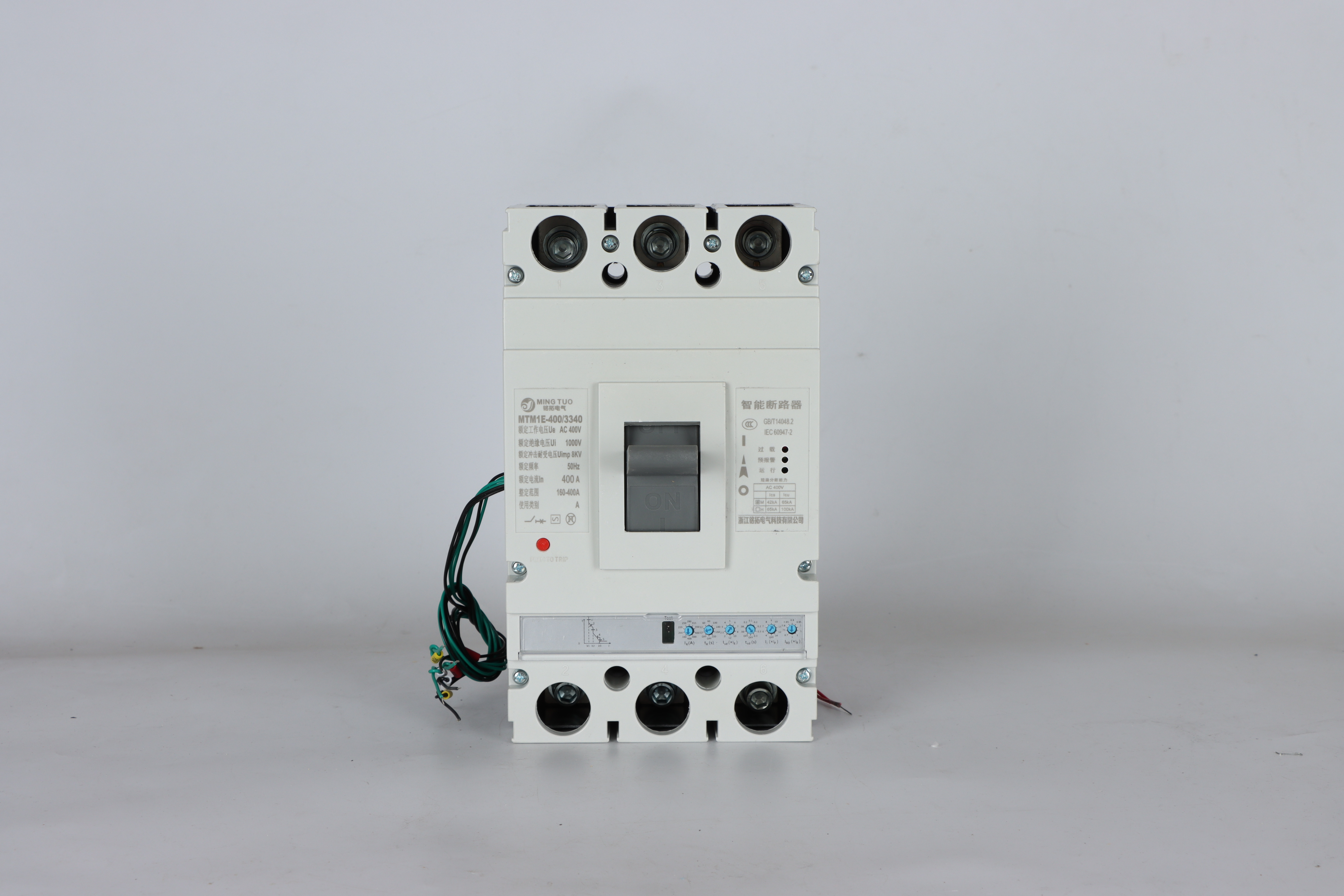

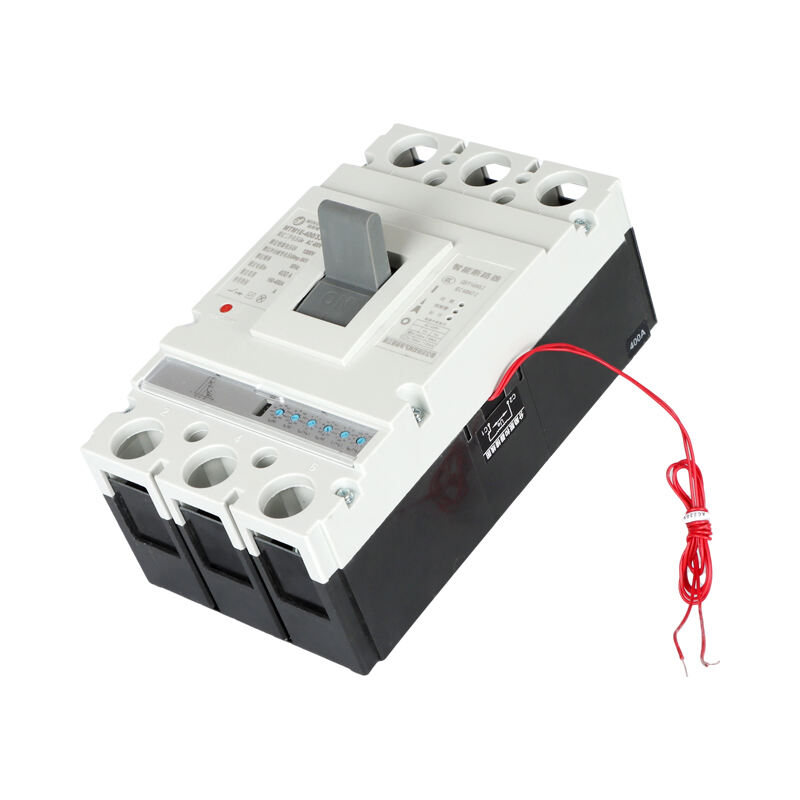

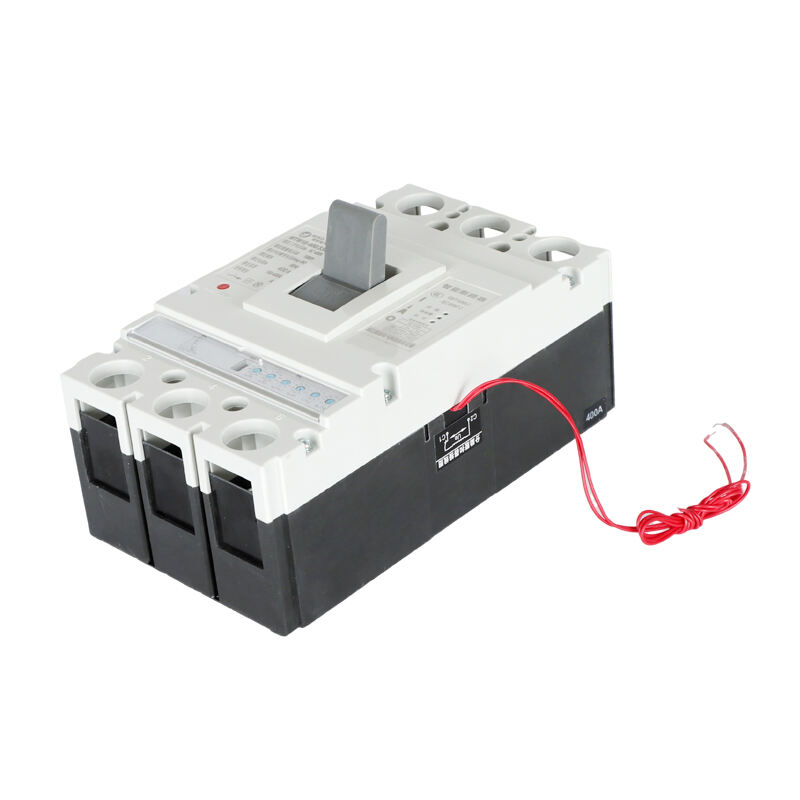

Electronic MCCB 400A 3/4P, Digital Molded Case Circuit Breaker 50kA

Model meaning

Moreover, it can be used for the infrequent starting of motors while ensuring overload, short-circuit, and undervoltage protection. The equipment has a compact design, high breaking capacity, and short arcing distance, which makes it an excellent and convenient solution.

The molded case circuit breaker (MCCB) can be installed vertically and horizontally. The product complies with the requirements specified in IEC 60947-2, GB 14048.2, and relevant standards. AC (alternating current) and DC (direct current) can be used as additional indications where ​‍​‌‍​‍‌​‍​‌‍​‍‌necessary.

General product information

Place of Origin:	5th Floor, No. 3, Jinghong West Road, Liushi Town, Yueqing City, Wenzhou City, Zhejiang Province
Brand Name:	MINGTUO
Model Number:	MCCB MT  M1 -160
Certification:	IOS  CE  ROHS

Product Commercial Terms

Minimum Order Quantity:	1
Price:	31$
Packaging Details:	Wooden box packaging
Delivery Time:	Within fifteen days
Payment Terms:	100% prepaid, 70%/30%, 80%/20%
Supply Ability:	Available at any time

Description：

Our​‍​‌‍​‍‌​‍​‌‍​‍‌ Electronic Molded Case Circuit Breaker (MCCB) is a step forward in the evolution of intelligent circuit protection, as it digitizes the monitoring process while maintaining the reliable interruption performance. Through a microprocessor-based trip unit, it is possible to program and adjust the trip parameters for overload, short-circuit, and ground-fault situations. A robust and compact thermoset casing is designed to protect a set of high-accuracy electronic components that are capable of continuous current measurement, energy metering, and recording of the fault diagnostic data.

Key Features:

• Protection curves (L, S, I, G) fully adjustable
• Integrated LCD screen for viewing the set parameters and electrical values
• Communication-ready design that supports RS485 and Modbus protocol
• High breaking capacity of up to 100 kA at 415 V
• Broad current range from 100A to 1600A
• It is applicable for both DIN rail and panel-mounted installations

Advanced Capabilities:

• Continuous measurement of current and voltage
• Energy consumption metering and reporting
• Pre-alarm notifications and fault warning messages
• Event logging for troubleshooting and maintenance guidance
• Through the communication interface remote control and monitoring is possible

Primary Applications:

• Smart power distribution networks
• Data center electrical management
• Industrial automation and control systems
• Building management and energy control platforms
• Critical power and infrastructure ​‍​‌‍​‍‌​‍​‌‍​‍‌protection

1.​‍​‌‍​‍‌​‍​‌‍​‍‌ Precision Protection Technology

• High-speed 32-bit microprocessor ensures a current measurement accuracy of ±2%
• Eight fully configurable protection parameters (Ir, Tr, Isd, Tsd, Ii, Ig, tg, k)
• Four stages of the protection function (L-S-I-G), each separately programmable

2. Intelligent Monitoring System

• Continuously updated and visually attractive representation of the most important electrical parameters such as U, I, P, Q, F, PF, and kWh
• Precision internal clock that can hold up to 128 fault records
• An early-warning device that allows anticipating abnormal situations well in advance

3. Superior Technical Performance

• Ability to break short circuit current up to 100 kA (Icu/Ics) at 415 V AC
• The device is operable in a very wide temperature range: from −40°C to +85°C
• The product is guaranteed for a minimum of 20,000 mechanical operations
• Dual power supply model: a unit can derive power from a self-powered source as well as from an external source

4. Advanced Communication Functions

• A standard RS485 interface that is capable of supporting the Modbus-RTU protocol
• Communication modules that are optionally available in Ethernet and PROFIBUS-DP variants
• Supports the functions of remote control, status monitoring, and data transmission

5. User-Friendly Design

• Graphical LCD 128×64, with support for multilingual user interface
• Setting keys of the front panel, secured by a password to prevent unauthorized access
• Communication modules designed for easy installation without complex wiring

6. Quality Assurance

• Complete harmony with IEC 60947-2 and GB 14048.2 standards
• Backed by a 5-year warranty
• A rigorous 72-hour test is performed on each unit before it is shipped

7.​‍​‌‍​‍‌​‍​‌‍​‍‌ Customization Services

• Customizing protection curves for special application necessities
• Support of OEM/ODM branding and customization
• Extension of firmware upgrade possibilities for additional ​‍​‌‍​‍‌​‍​‌‍​‍‌features

Technical specifications (a user manual and detailed specifications will be provided after purchase).

Critical​‍​‌‍​‍‌​‍​‌‍​‍‌ Power Systems

• Data center power distribution units (PDUs)
• Dedicated hospital emergency and life safety power circuits
• Electrical infrastructure of airports and other transportation facilities
• Networks of backup power for financial institutions

Industrial Automation

• Process control panels in the manufacturing environment
• Motor control centers that require accurate and stable protection
• Power supply to automated production lines
• Industrial equipment with complicated or demanding starting conditions

Energy Management

• Building Management Systems (BMS)
• Smart grid and intelligent distribution applications
• Hybrid energy generation and storage systems
• Power monitoring, metering, and centralized control centers

Specialized Applications

• Transformer protection and coordination
• Generator and standby power system protection
• Highly important circuit protection in mission-critical systems
• Main breakers for load centers and distribution ​‍​‌‍​‍‌​‍​‌‍​‍‌boards
