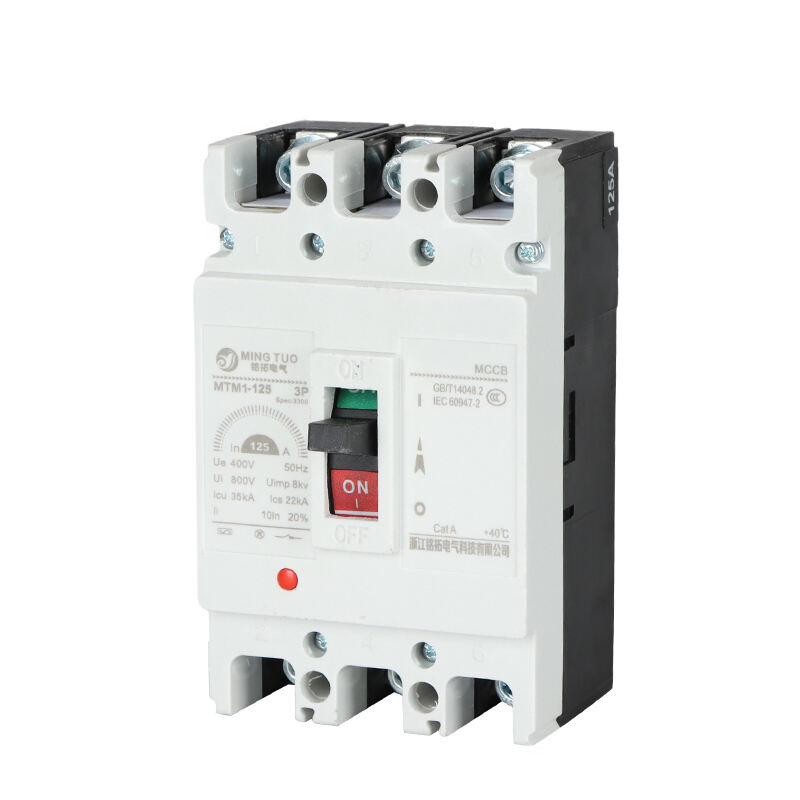

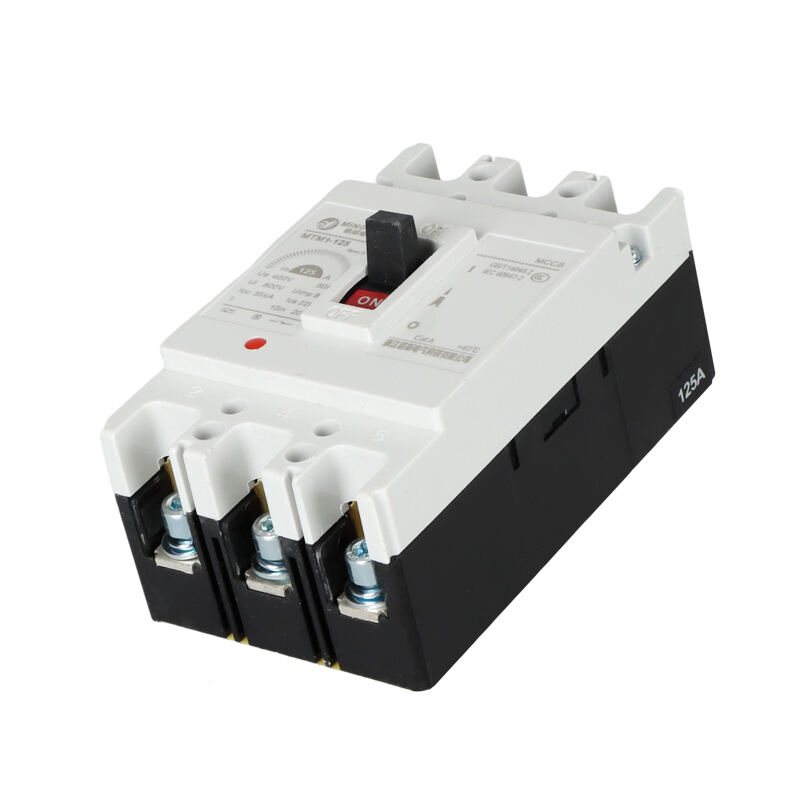

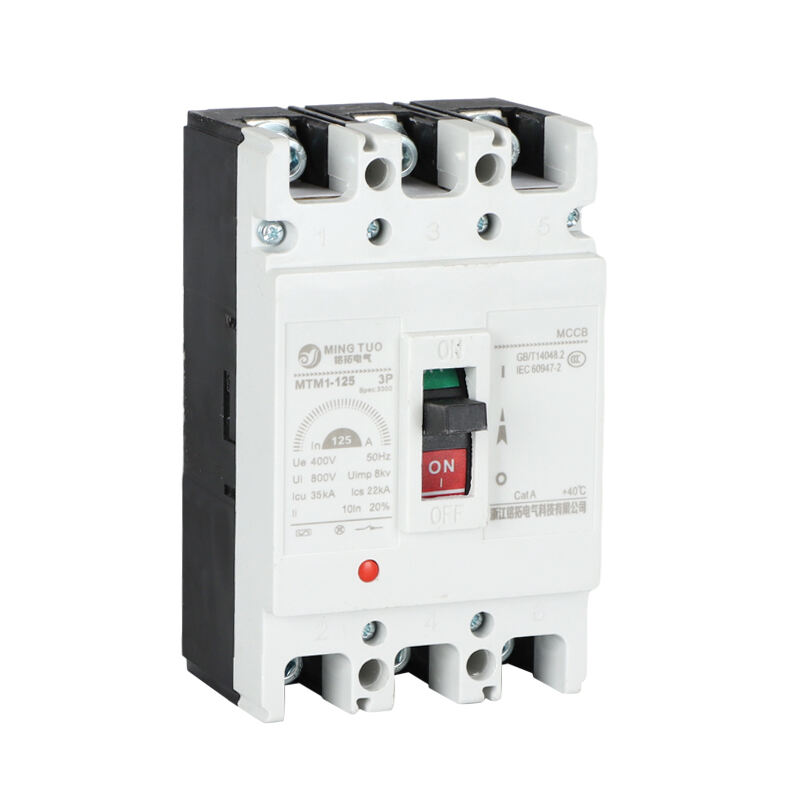

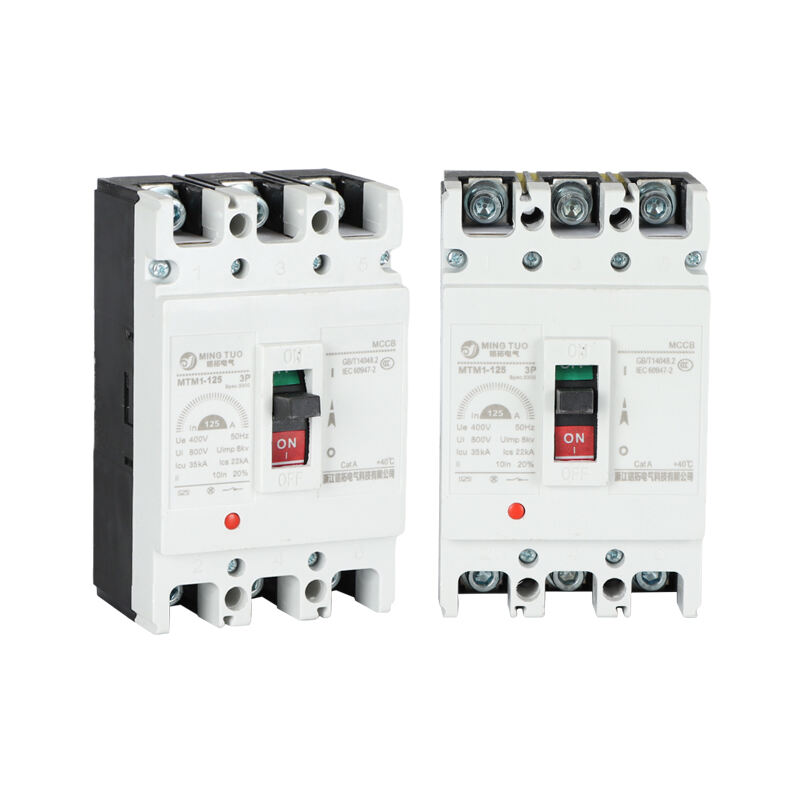

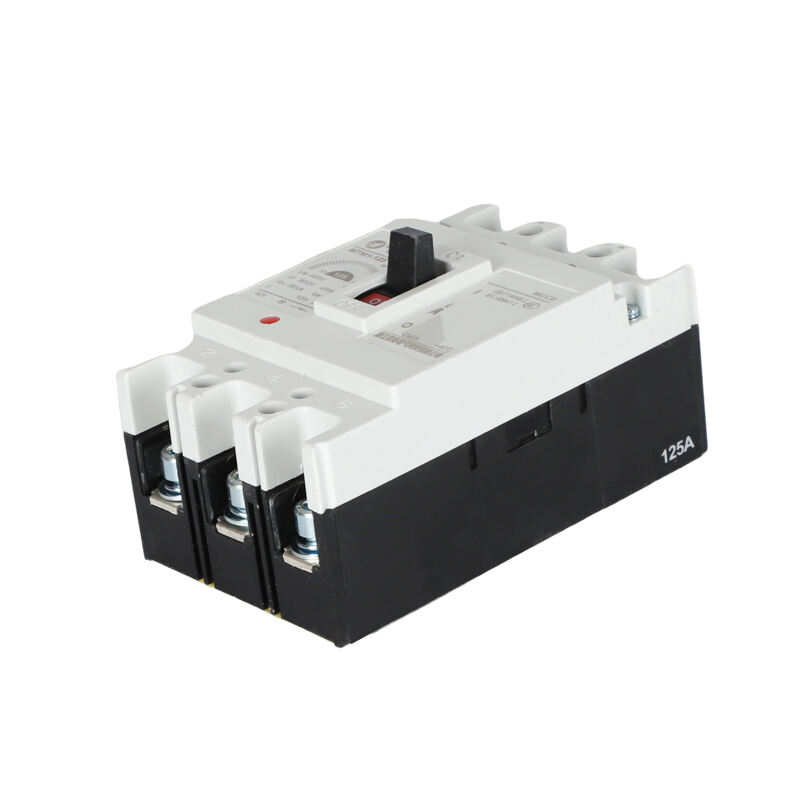

IEC 125A MCCB Molded Case Switch 3P Circuit Protector

Product​‍​‌‍​‍‌​‍​‌‍​‍‌ Description

This molded case circuit breaker (MCCB) is a perfect fit for AC 50Hz power distribution networks, rated operating voltages up to 400V and rated currents up to 800A and a max insulation voltage of 800V. It is excellent for electrically distributing energy and at the same time, safeguarding the circuit and the connected equipment against overloads, short circuits, and undervoltage. Moreover, it is capable of handling a limited motor starting and can be used as a trustworthy protection device for electrical systems. Small in size, with high breaking capacity and minimal arcing, the MCCB can be mounted either vertically or horizontally. The product conforms to IEC60947-2, GB14048.2, and other standards.

Quick Overview

• MCCB (Molded Case Circuit Breakers)
• MCCB (Molded Case Switch)
• Thermal-Magnetic Circuit Breaker
• Electro-Mechanical Circuit Breaker
• Circuit Protector
• Power Disconnect Switch
• Load Break Switch
• Industrial Circuit Breaker
• Motor Protection Breaker
• Distribution Breaker
• 3-Pole Circuit Breaker
• 100A Circuit Breaker
• High Current Breaker
• Safety Switch
• Electrical Isolator
• Overcurrent Protection Device

Function and Application

The Molded Case Circuit Breaker is the main protective equipment in an electrical distribution system. Its main function is to protect the circuits as well as the devices from overload and short circuits. The trip device on the unit is adjustable and the breaker has a high interrupting capacity which guarantees reliable protection as well as selective coordination in complicated network configurations. Due to its flexible design, this protective device is ideal for use in the industrial, commercial, and utility sectors where the need for reliable and flexible circuit protection is ​‍​‌‍​‍‌​‍​‌‍​‍‌present.

- Main power distribution panels

- Motor control centers and starter panels

- Generator protection systems

- Industrial machinery power supplies

- Commercial building electrical systems

- Renewable energy installations

Engineering​‍​‌‍​‍‌​‍​‌‍​‍‌ Excellence

• Very accurate thermal-magnetic trip units for reliable overload and short-circuit protection.
• Innovative arc-quenching chamber with 50kA interrupting capacity.
• Long-lasting thermoset housing providing great heat resistance and mechanical strength.

Reliable Performance

• At least 30,000 electrical operation cycles.
• Works effectively within -25°C to +70°C.
• Compliant with both IEC 60947-2 and UL 489 standards.

Installation Benefits

• Footprint 15% more compact than that of standard models.
• Accessories that can be easily serviced from the front.
• Clear visual indicators for contact and trip conditions.

Cost Effectiveness

• Lifetime 25% longer than that of standard breakers.
• Maintenance lowering through self-lubricating parts.
• Factory price at a competitive level with a 3-year warranty.

Technical Support

• Individualized calibration for unique situations.
• Help with local certifications required for the export of goods into foreign markets.
• 4/7 expert technical support available
