Place of Origin: |
5th Floor, No. 3, Jinghong West Road, Liushi Town, Yueqing City, Wenzhou City, Zhejiang Province |
Brand Name: |
MINGTUO |
Model Number: |
MCCB MT M1 -125 |
Certification: |
IOS CE ROHS |
Minimum Order Quantity: |
1 |
Price: |
20$ |
Packaging Details: |
Wooden box packaging |
Delivery Time: |
Within fifteen days |
Payment Terms: |
100% prepaid, 70%/30%, 80%/20% |
Supply Ability: |
Available at any time |
Description:

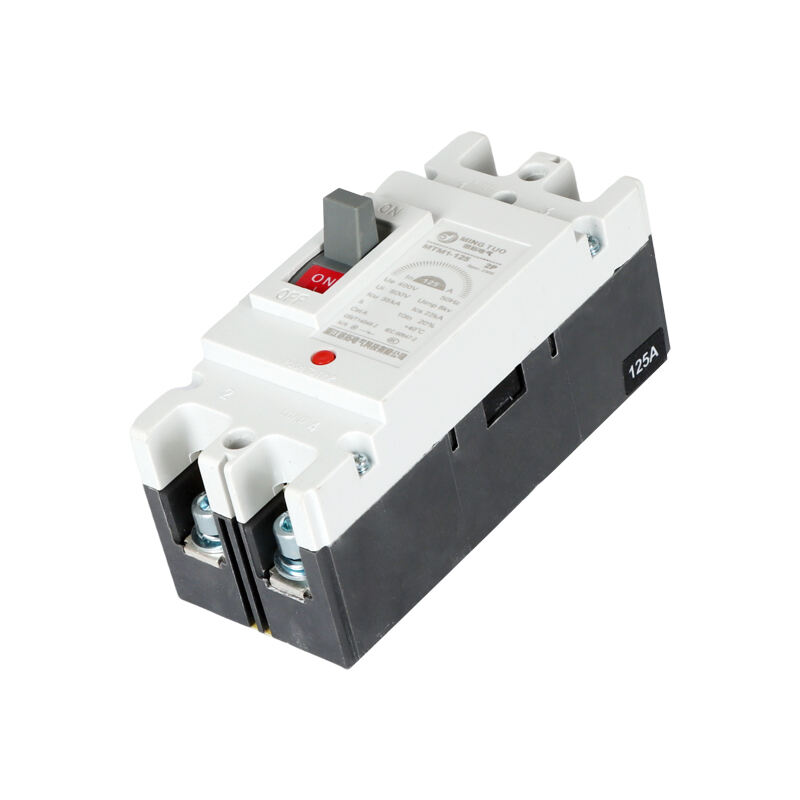

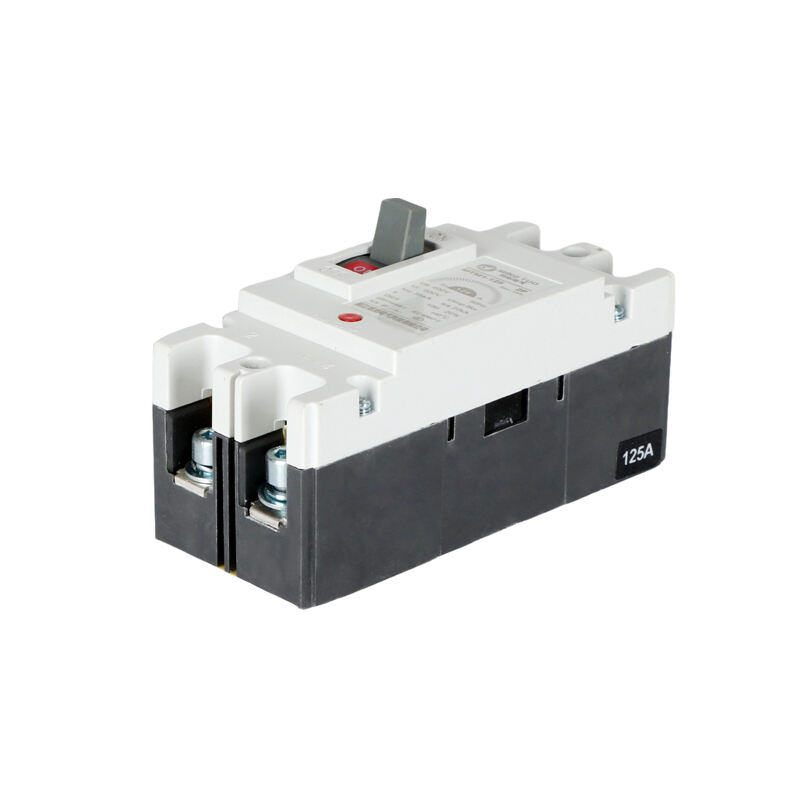

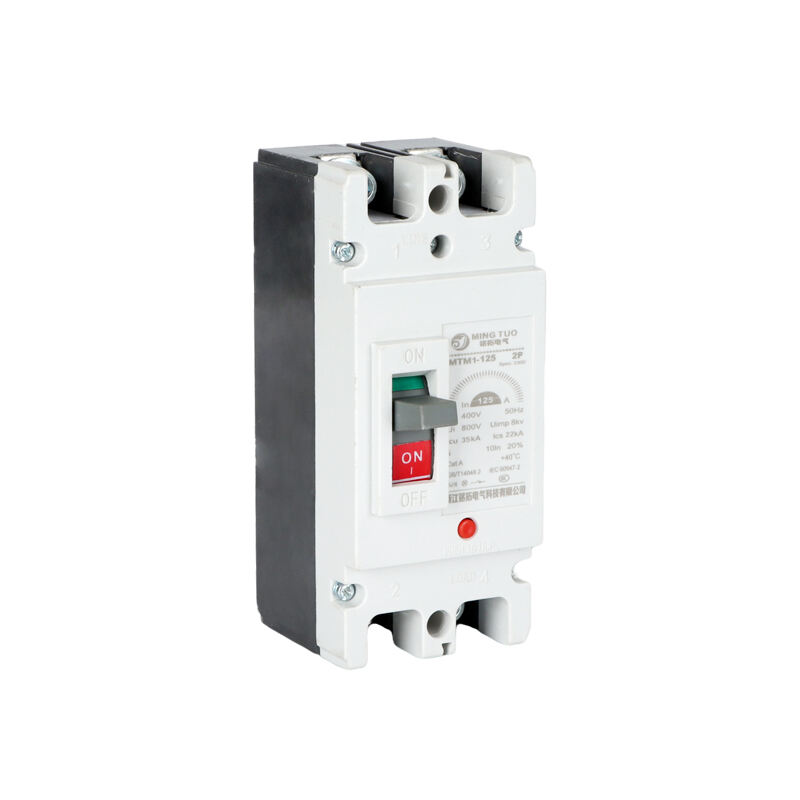

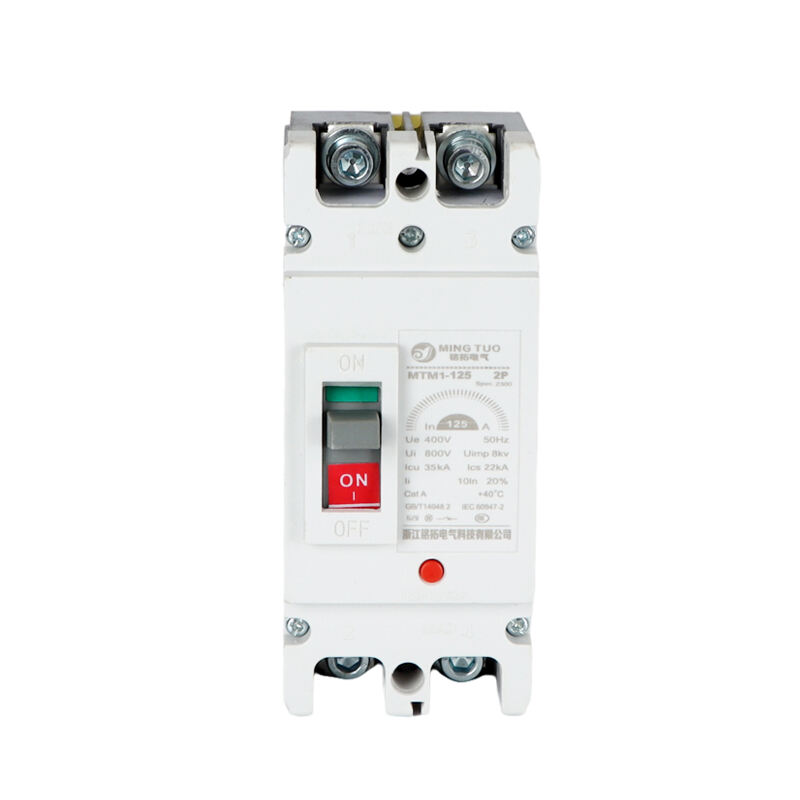

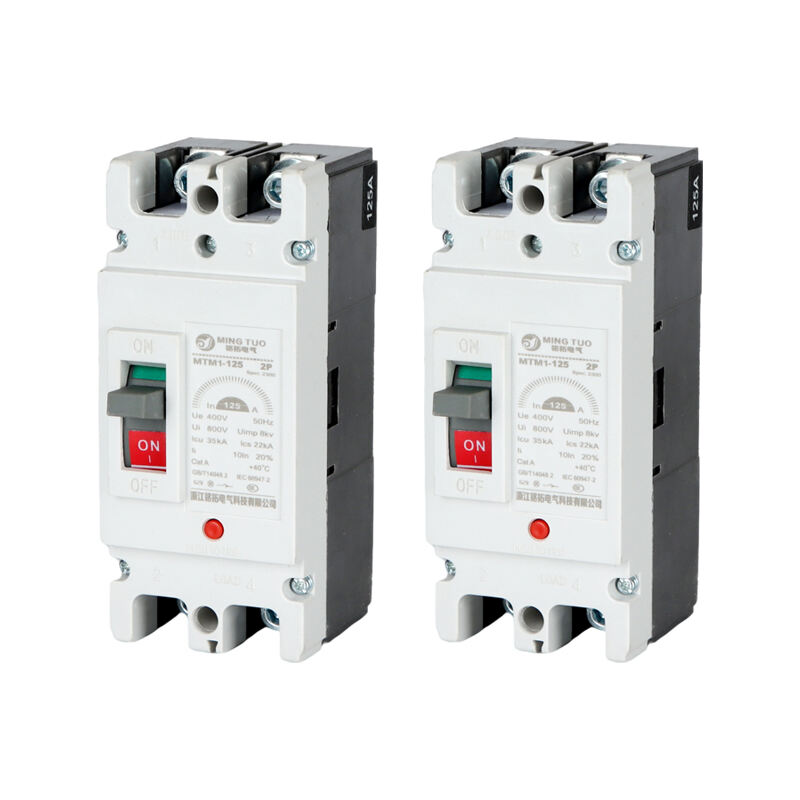

This Molded Case Circuit Breaker (MCCB) is characterized by insulation voltages of up to 800V and is specifically made for AC 50Hz power distribution networks with a maximum rated operating voltage of 400V and a rated current of up to 800A. It introduces a safe and efficient way of energy distribution to the users while the protected circuits and equipment are being guarded against the overload, short-circuits and undervoltage faults by the unit. Besides, it is also appropriate for the at-temporary motor start and capacity-indicators high, short arcing time and compact size is offered by it. The device is usable either vertically or horizontally and fully accords with IEC60947-2, GB14048-2, and other related standards.
The MCCB represents the main protection element in power electrical networks. It is the defender of circuits and appliances when faced with swellings and short-circuit situations. The unit combines the flexibility of using the trip point adjustments with the high interrupting capacity to guarantee the excellence of the protection and also allow for the selective coordination feature to be implemented in most complex industrial, commercial, and utility electrical networks, thus making it perfect for these kinds of applications.
- Main power distribution panels
- Motor control centers and starter panels
- Generator protection systems
- Industrial machinery power supplies
- Commercial building electrical systems
- Renewable energy installations
Performance Reliability
- 30,000 electrical endurance cycles minimum
- -25°C to +70°C operational temperature range
- Dual-certification to IEC 60947-2 and UL 489 standards
Installation Advantages
- 15% more compact dimensions than industry standard
- Front-mounted accessories for easy maintenance
- Clear visible contact indication and trip status display
Cost Efficiency
- 25% longer service life compared to conventional breakers
- Reduced maintenance requirements through self-lubricating mechanisms
- Direct factory pricing with 3-year warranty coverage
Technical Support
- Custom calibration services for special applications
- Global certification support for export markets
- 24/7 technical consultation available
