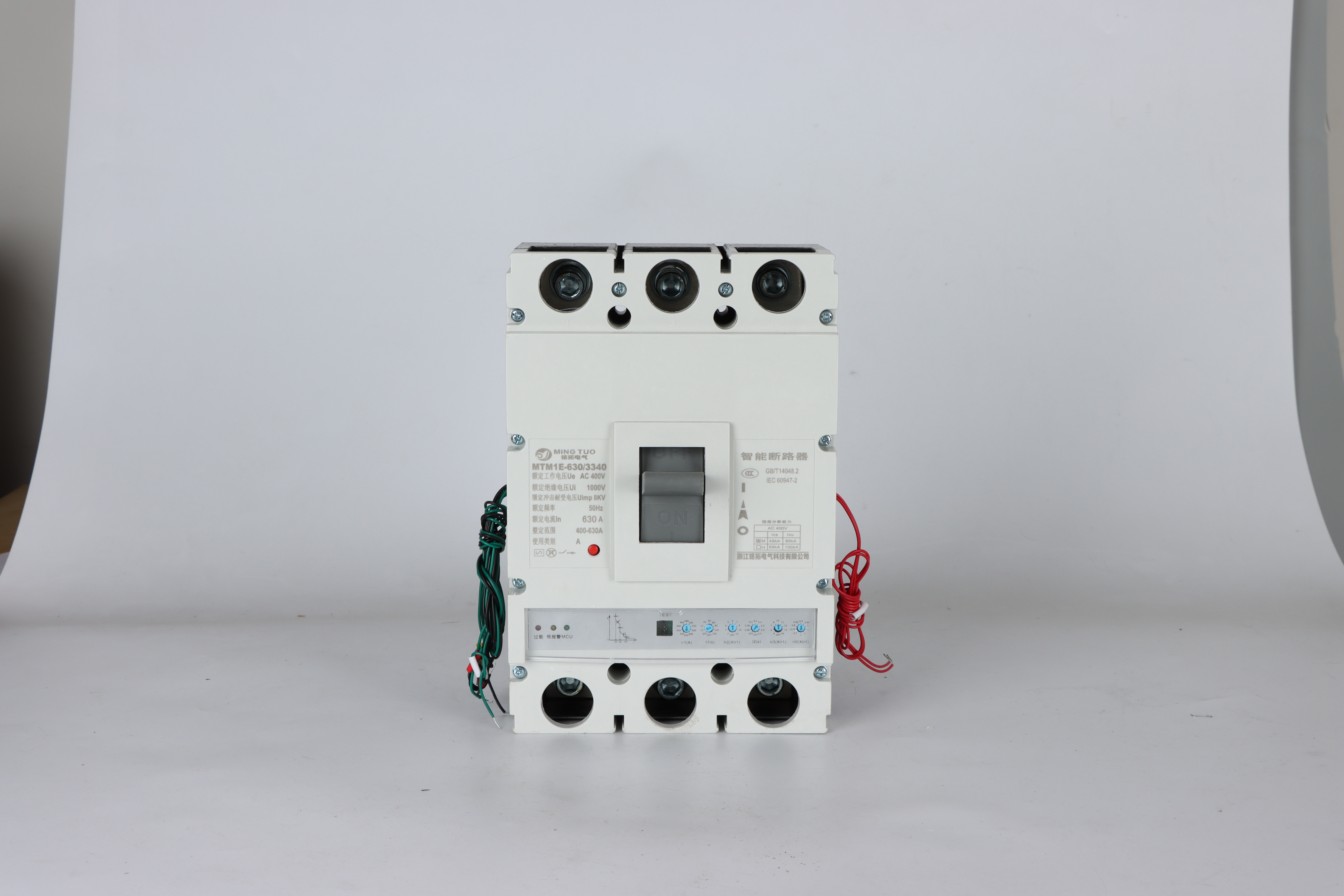

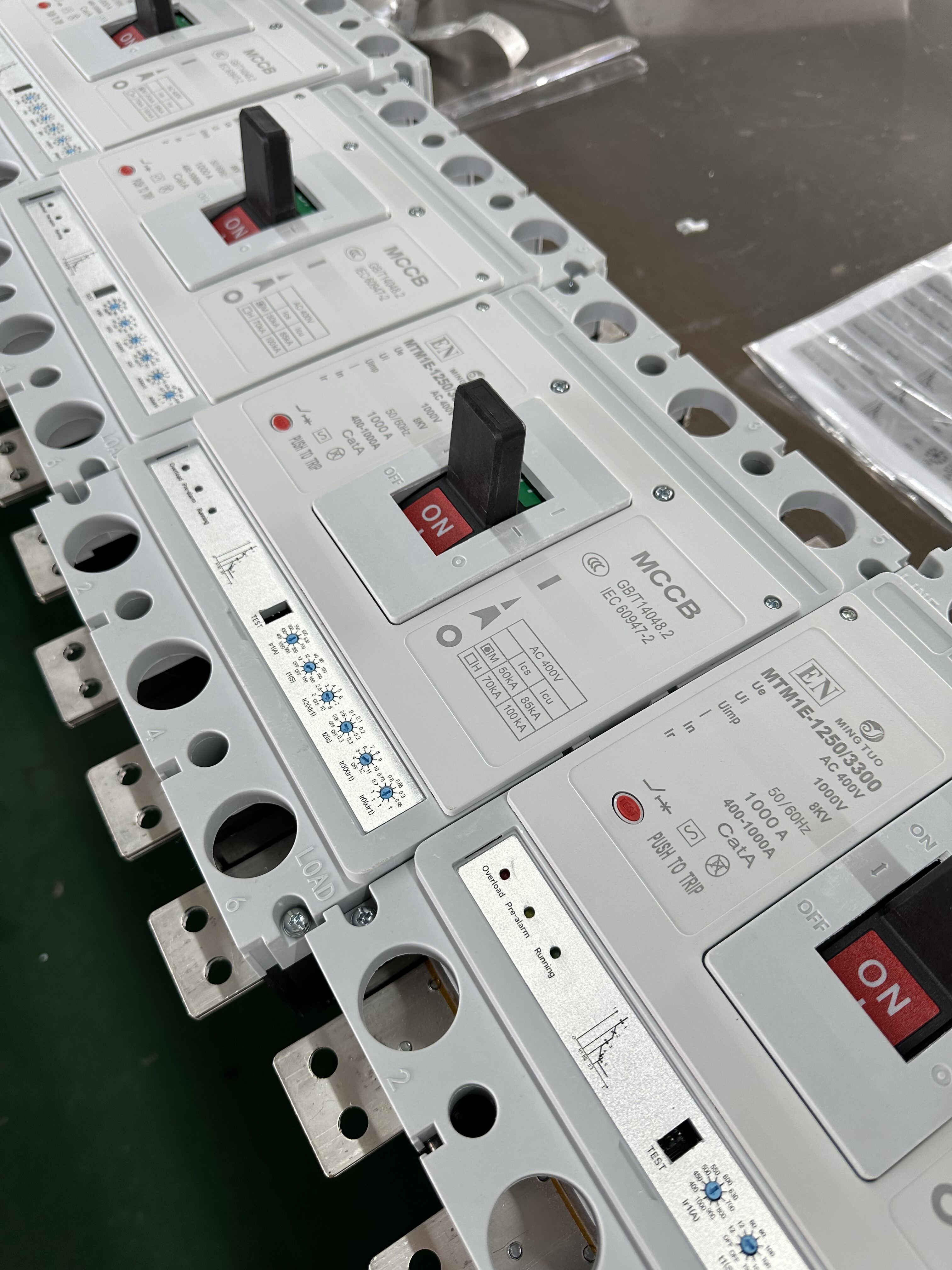

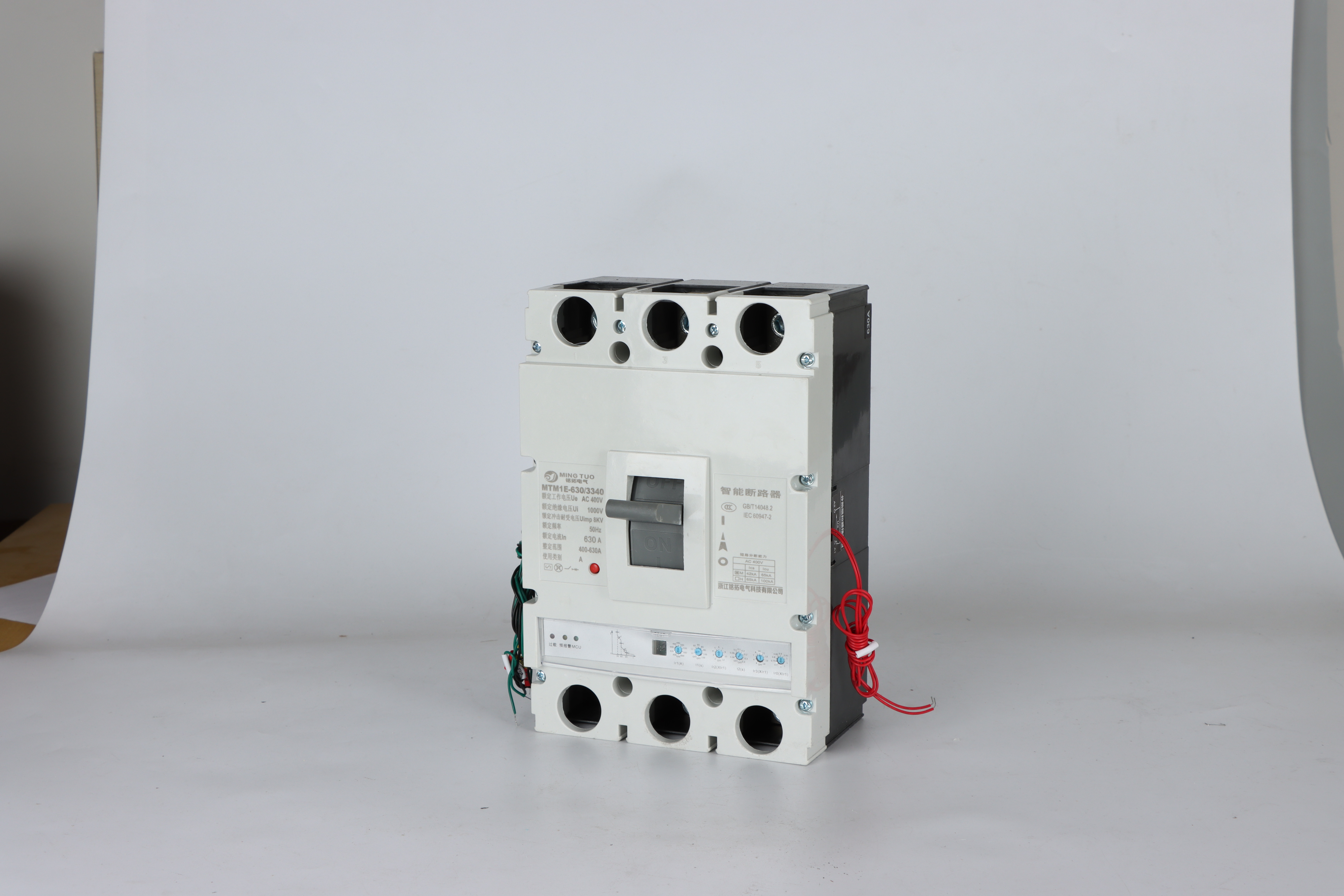

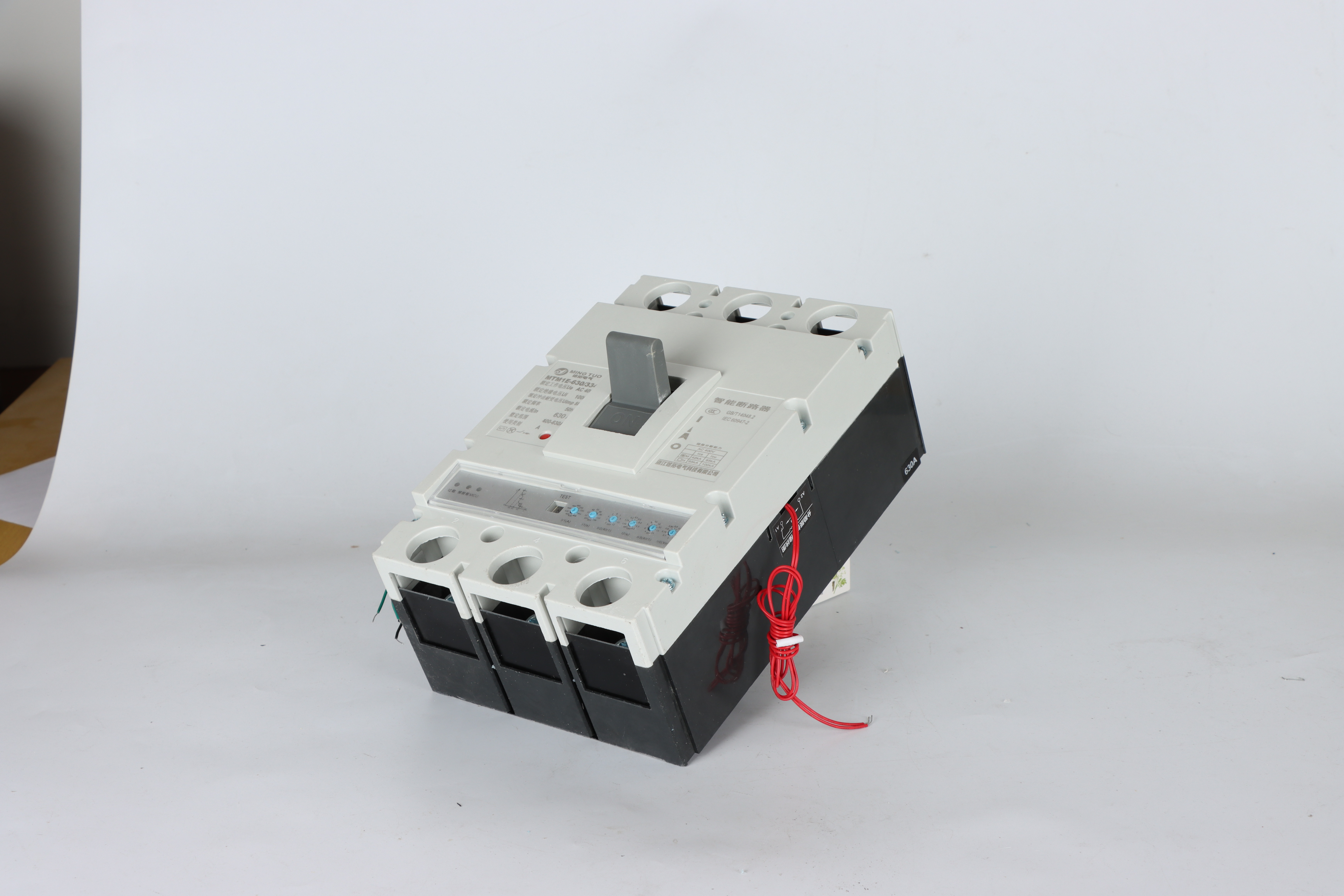

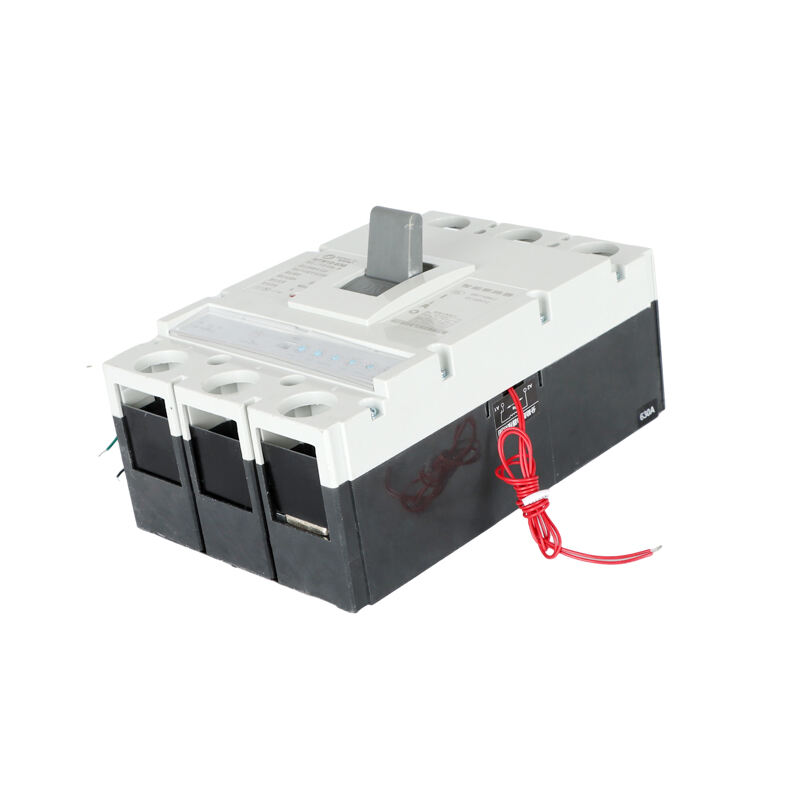

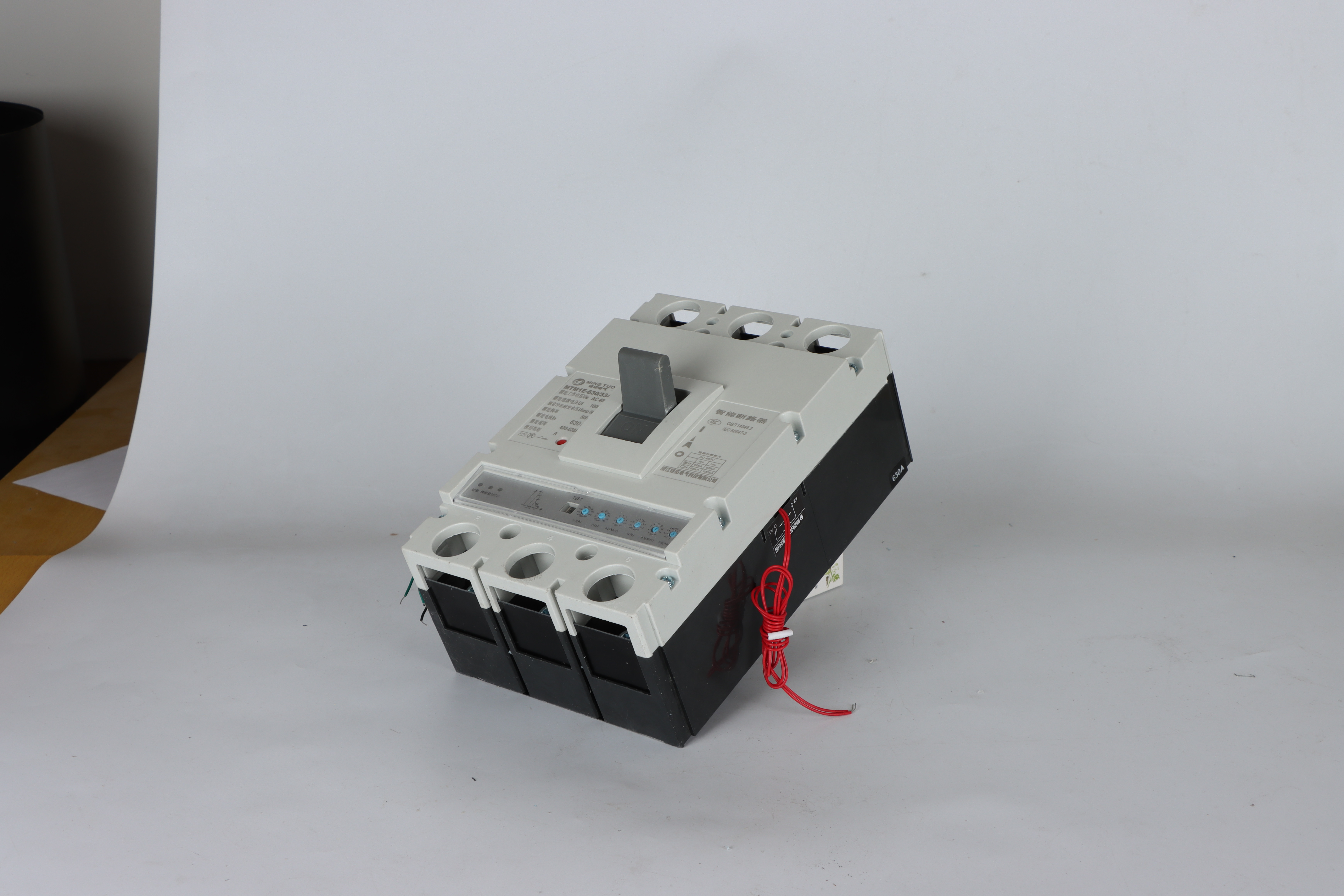

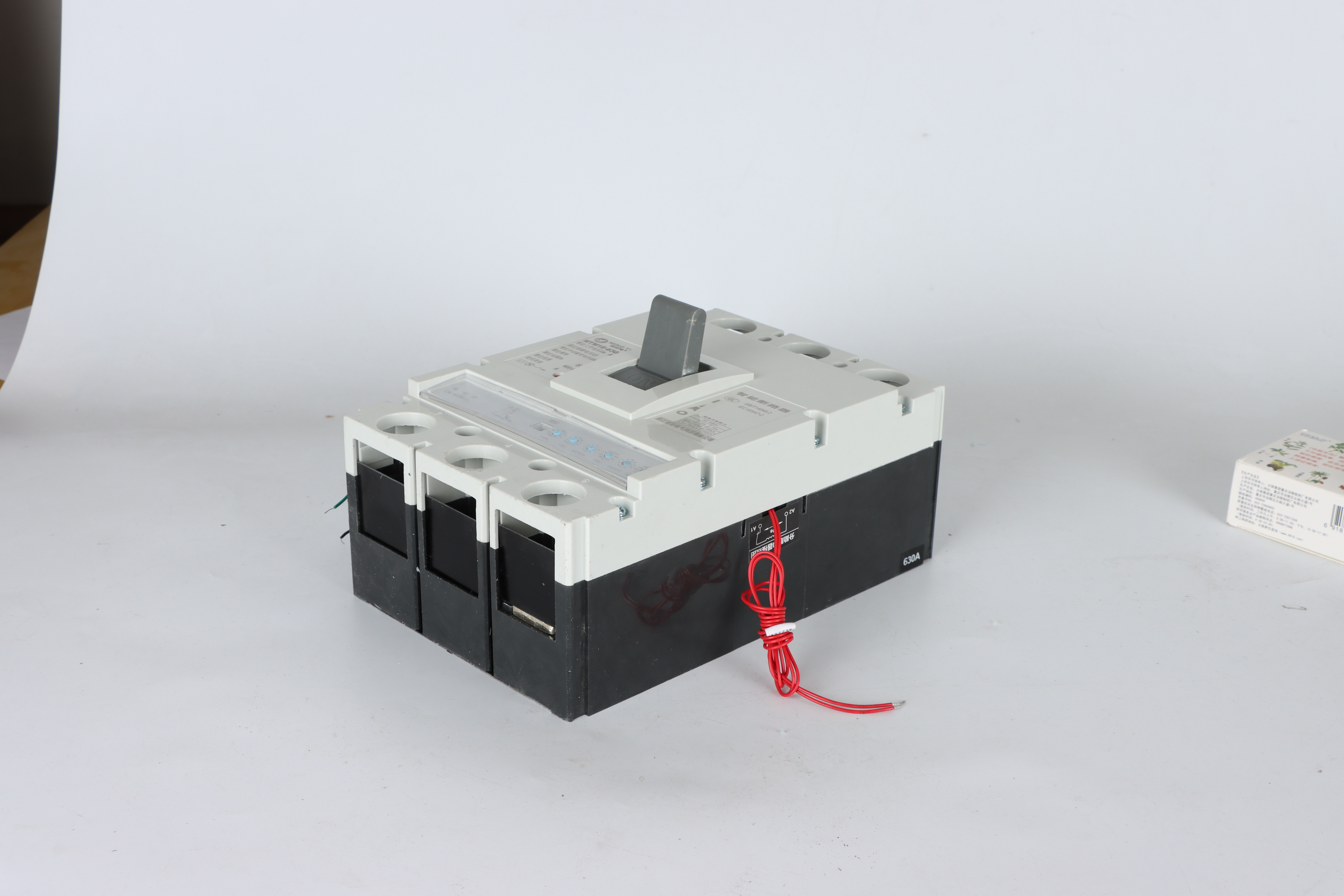

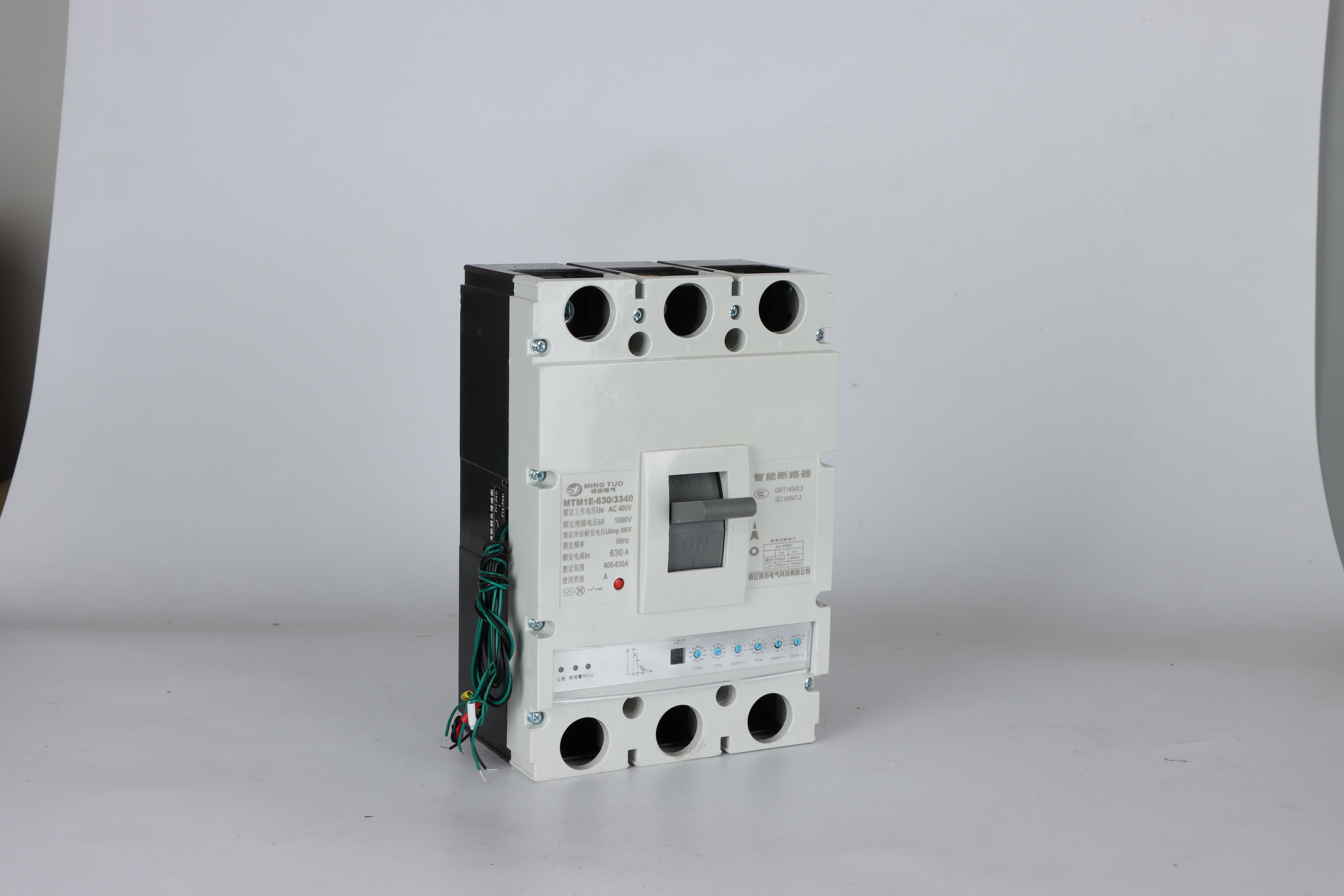

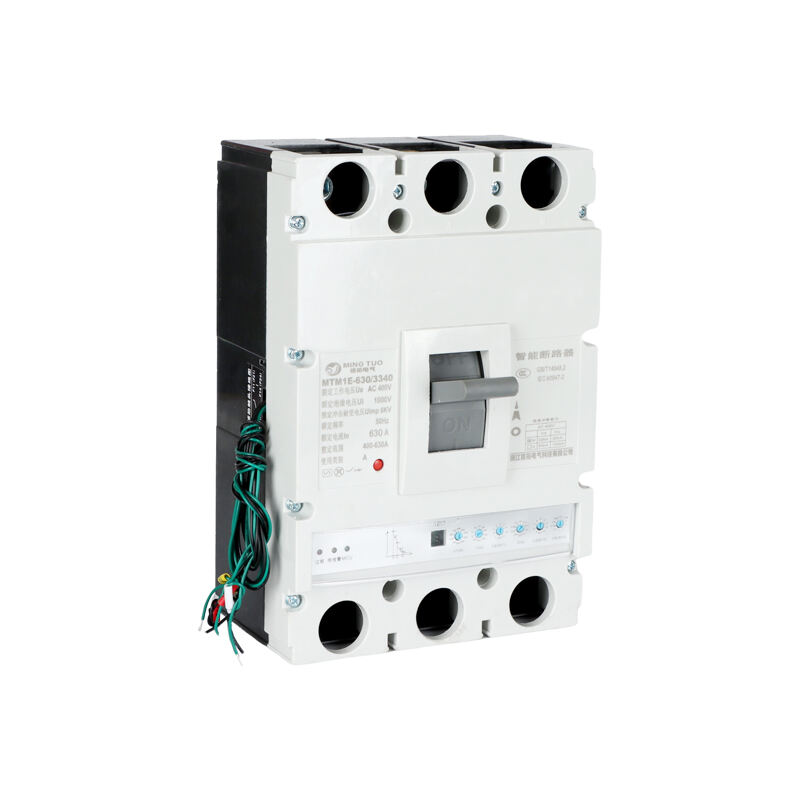

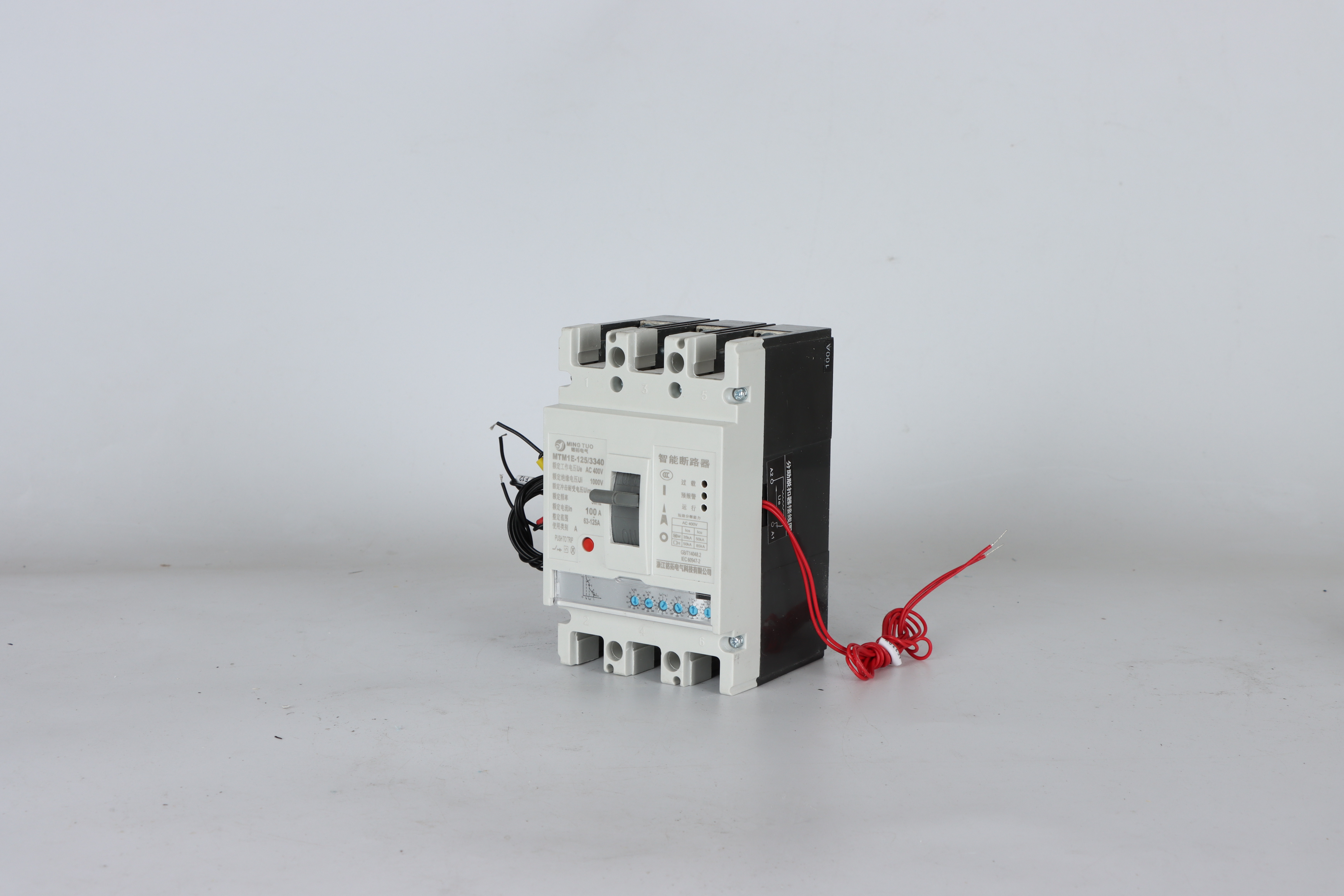

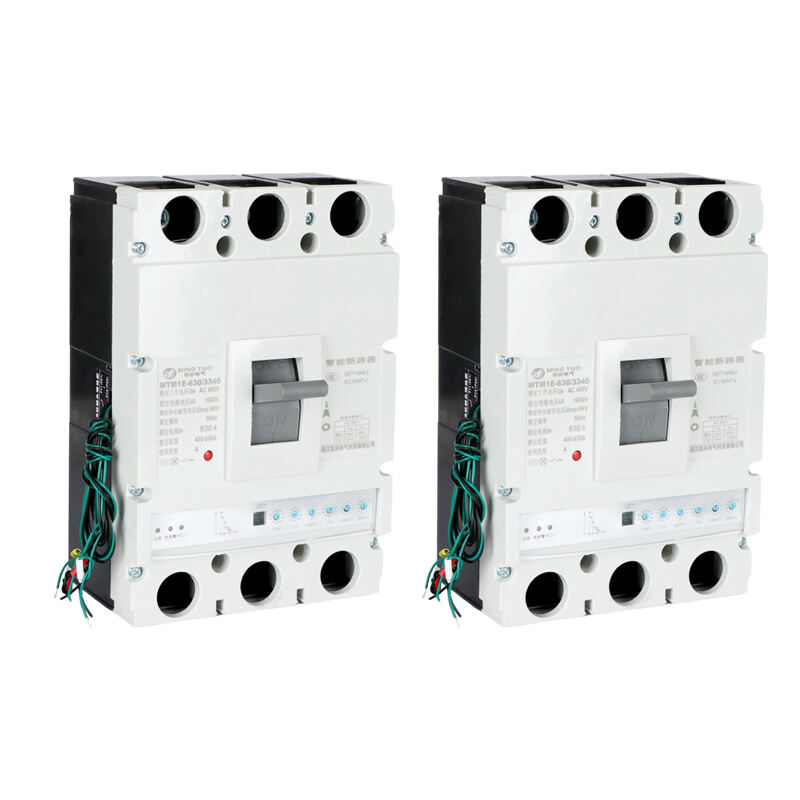

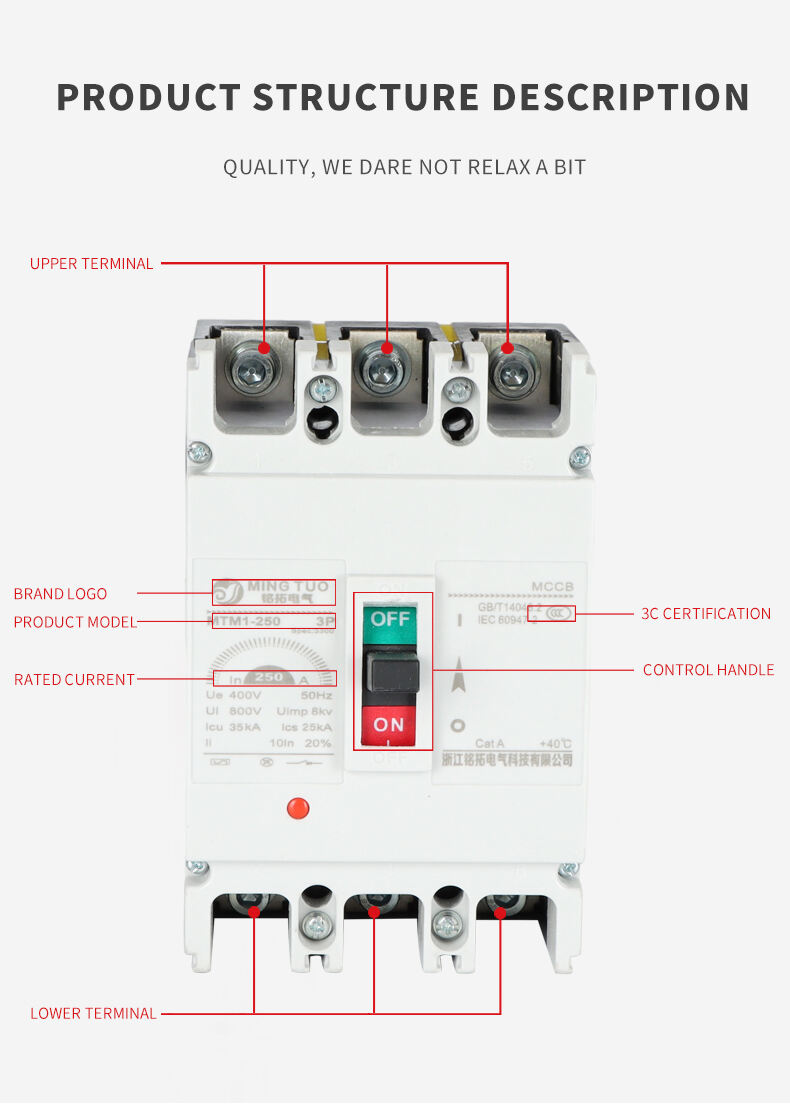

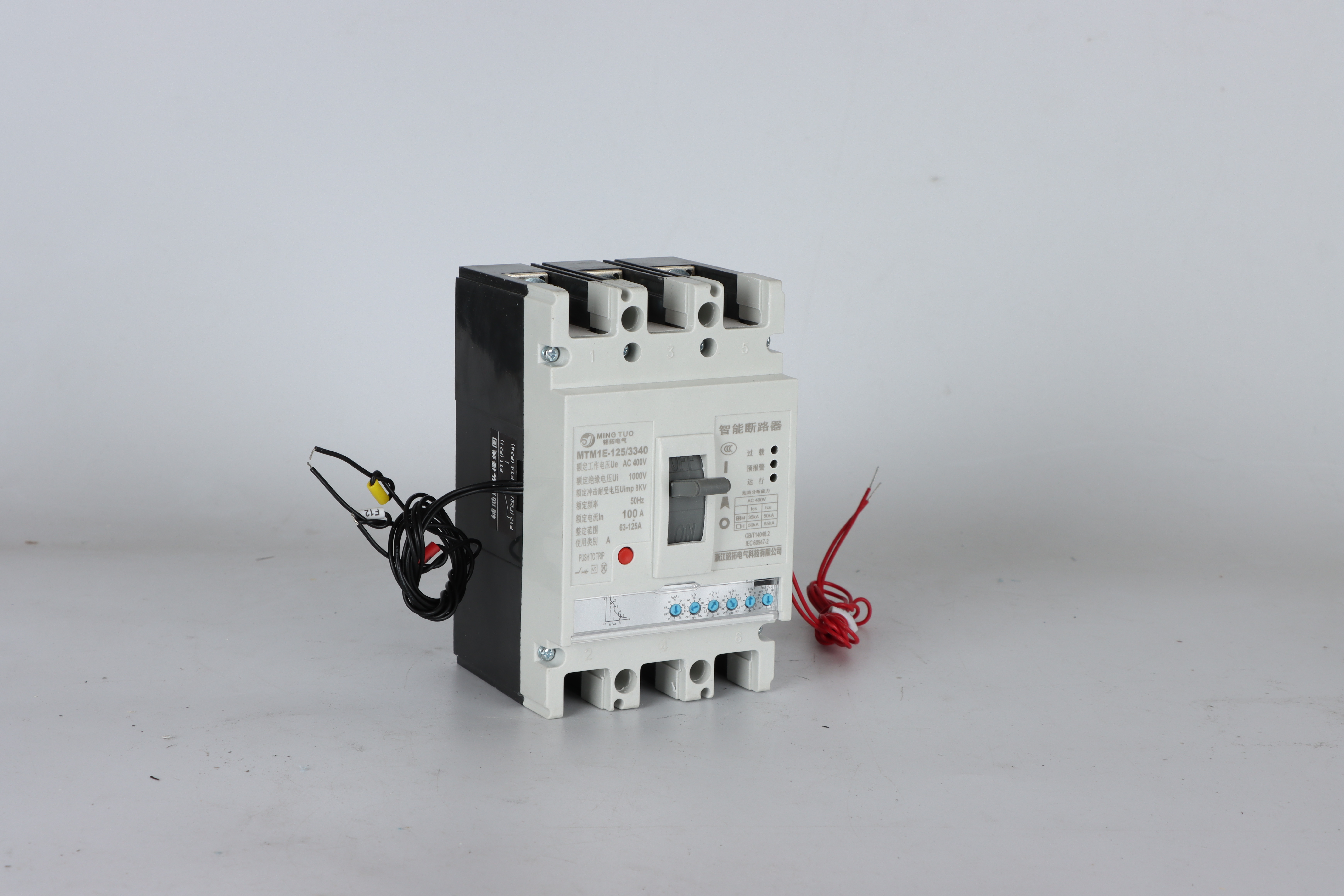

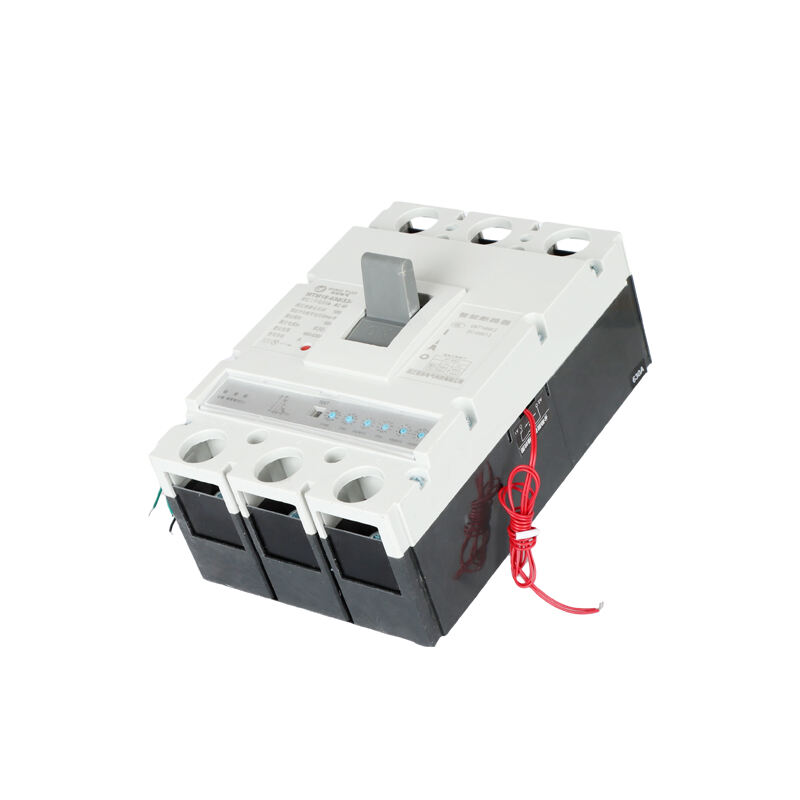

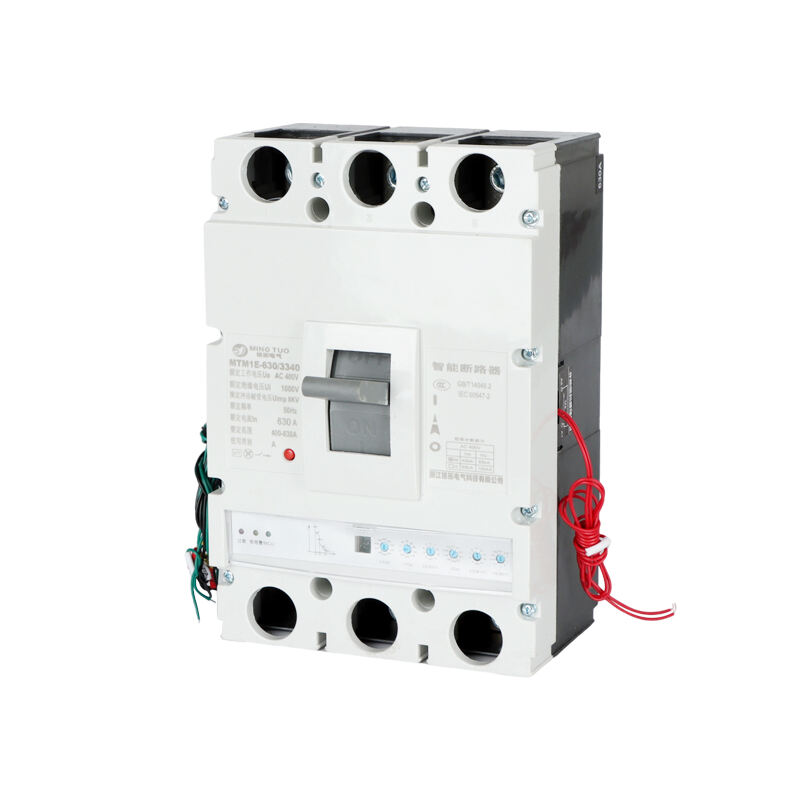

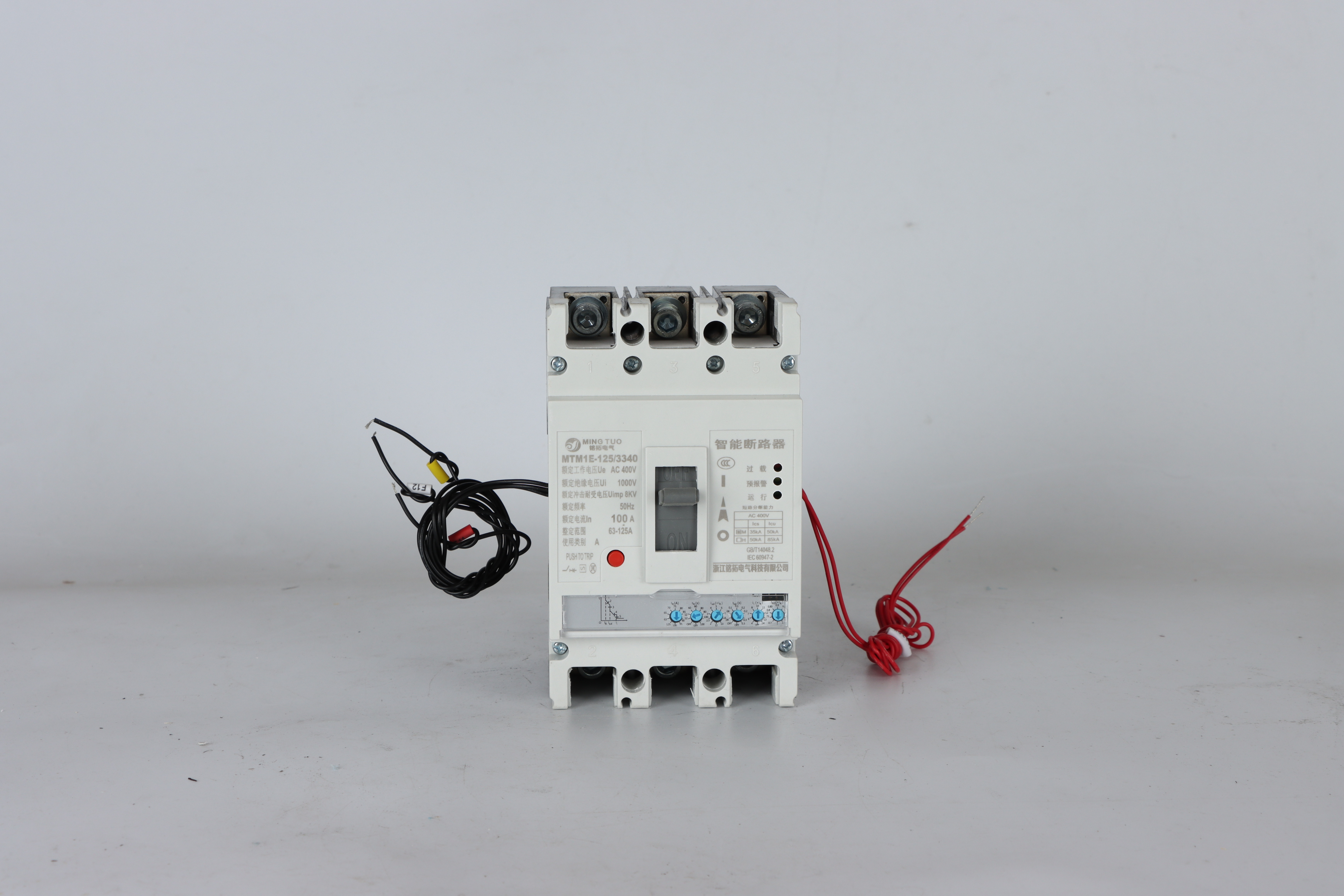

MCCB/ADJUSTABLE MOLDED CASE CIRCUIT BREAKER
MTM1E Series
 |
 |
 |
Model meaning:
The MTM1E Adjustable MCCB features comprehensive protection functions, including overload long-delay inverse-time, short-circuit short-delay inverse-time, short-circuit short-delay definite-time, short-circuit instantaneous, and under-voltage protection.
Utilizing an intelligent controller to monitor the main circuit current, it triggers tripping via a flux transfer device for reliable protection.
Compared to traditional thermal-magnetic circuit breakers, the MTM1E offers superior performance in selectivity, speed, and safety, making it ideally suited for demanding distribution network environments.
Key Features：
Precision-Adjustable Intelligent Protection
Utilizes an advanced electronic trip unit, allowing precise setting and flexible adjustment of protection parameters for customized configuration based on actual loads and system architecture.
High Reliability & Stable Platform
● Features a fully validated mechanical structure and arc-extinguishing system, providing high breaking capacity and long electrical lifespan.
● The electronic controller offers excellent EMC and strong interference resistance, ensuring stable operation in complex industrial environments while minimizing false tripping.
High-Safety Design
Equipped with clear three-state indication (ON/OFF/TRIPPED) for immediate status recognition.
Wide Application Adaptability
Suitable for a broad range of applications including main incoming lines, branch circuits, motor protection, and various terminal installations, capable of meeting diverse demanding environmental requirements.
General product information:
Place of Origin: |
Liushi, Wenzhou, Zhejiang, China |
Price: |
31$ |
Brand Name: |
MINGTUO |
Packaging Details: |
Carton box packaging |
Model Number: |
MCCB MT M1 -160 |
Delivery Time: |
Within fifteen days |

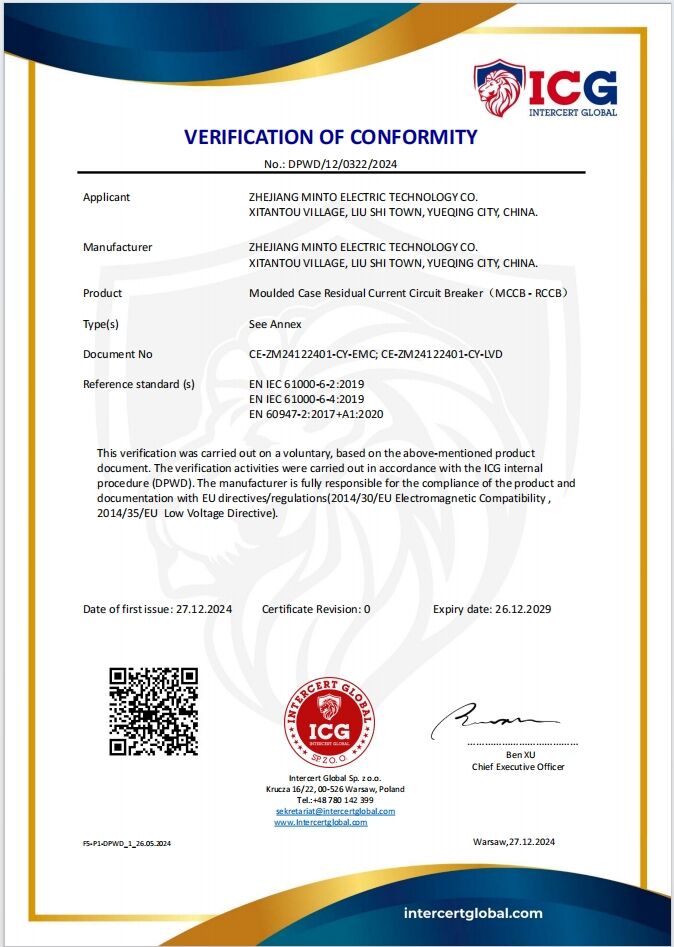

Certification: |
IOS CE ROHS |
Payment Terms: |
100% prepaid, 70%/30%, 80%/20% |
| Minimum Order Quantity: | 1 |
Supply Ability: |
Available at any time |
 |
The electronic molded case circuit breaker utilizes an intelligent controller to replace the traditional thermal-magnetic trip unit.
The primary role of the intelligent controller in power supply and distribution systems is to detect and protect against faults such as overloads and short circuits in the circuit.
A current transformer is employed to detect the current signal in the main circuit, and the intelligent controller performs effective calculations and logic-based signal control.
When the intelligent controller detects a fault current, it commands the flux transfer device to trip the breaker within a specified time. |

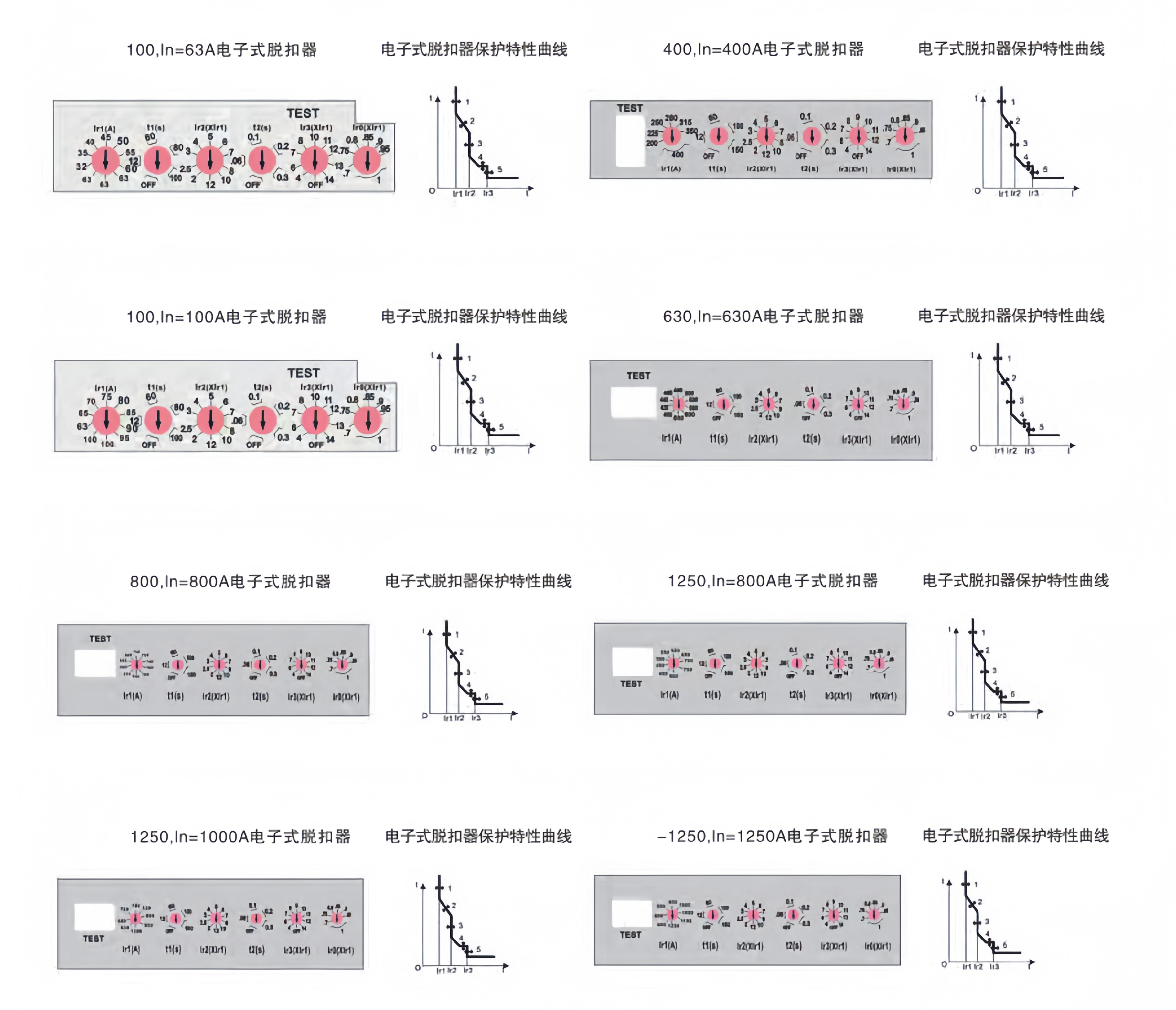

Protection:
● Overload long-time delay operating current (Ir1) adjustment: Can be adjusted from 4 to 10 steps depending on the breaker's rated current.
● Long-time delay operating time (t1) adjustment: Can be adjusted in 4 steps.
● Short-circuit short-time delay operating current (Ir2) adjustment: Can be adjusted in 10 steps.
● Short-time delay operating time (t2) adjustment: Can be adjusted in 4 steps.
● Short-circuit instantaneous operating current (Ir3) adjustment: Can be adjusted in 8, 9, or 10 steps.
● Pre-alarm operating current (Ir0) adjustment: Can be adjusted in 7 steps.
 |
 |
 |
 |
To ensure the high reliability and stability of our electronic molded case circuit breakers, we implement a rigorous multi-phase testing procedure:
|
1. Circuit Board Reliability Test 2. Electrical Performance Specialized Tests 3. Mechanical and Electrical Comprehensive Test |
Through this systematic testing process, we achieve comprehensive verification from core components to full-product performance, ensuring that every delivered product meets high consistency and exceptional reliability standards.

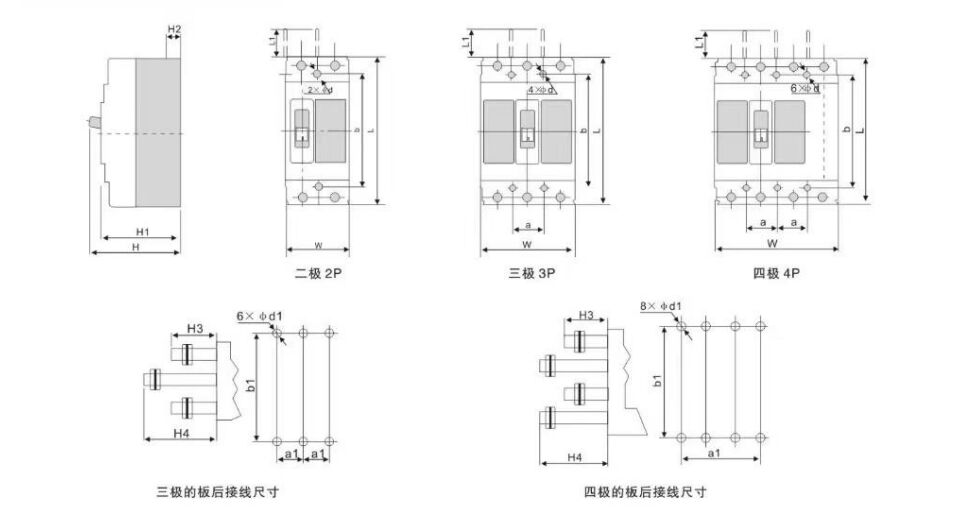

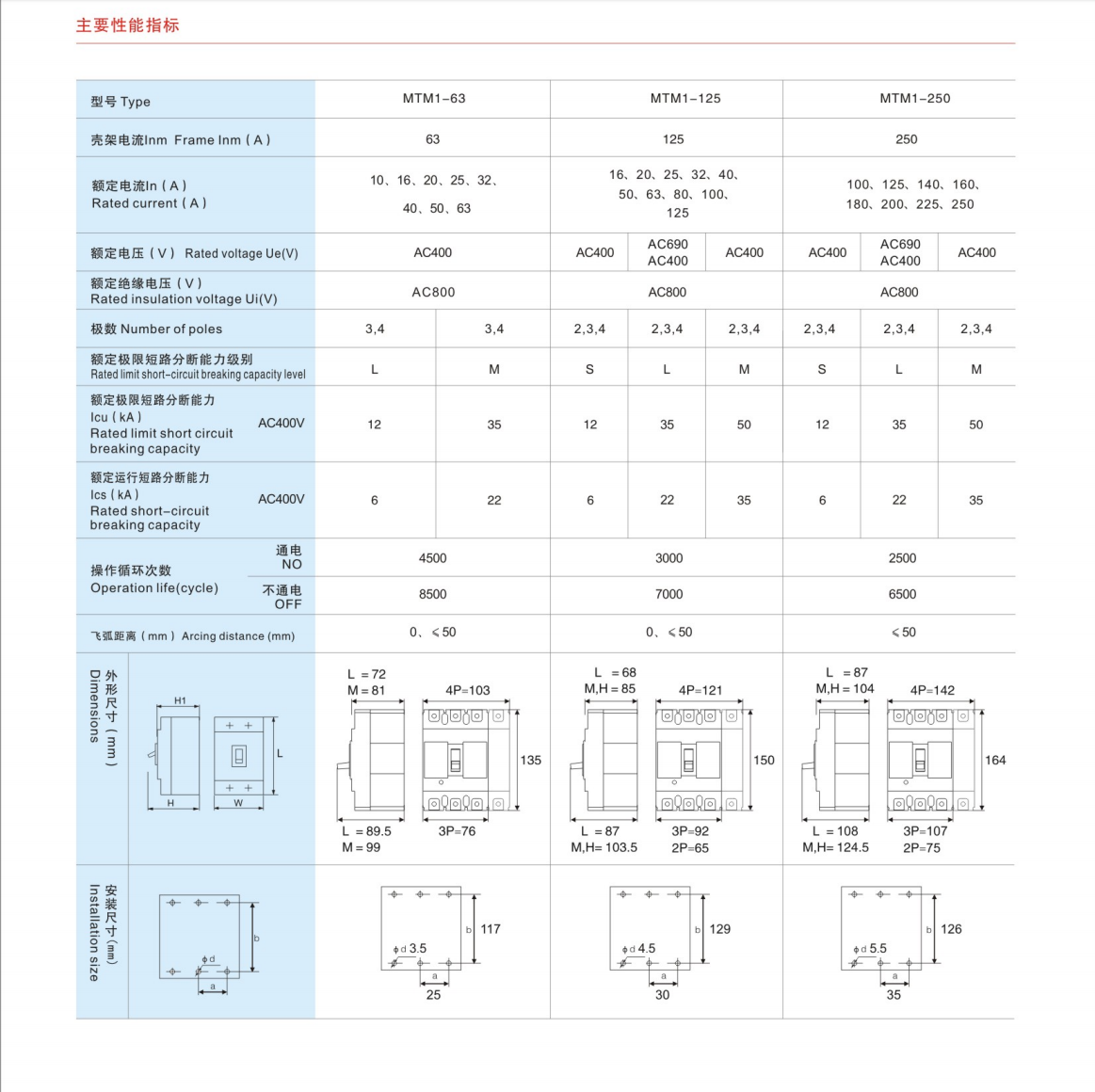

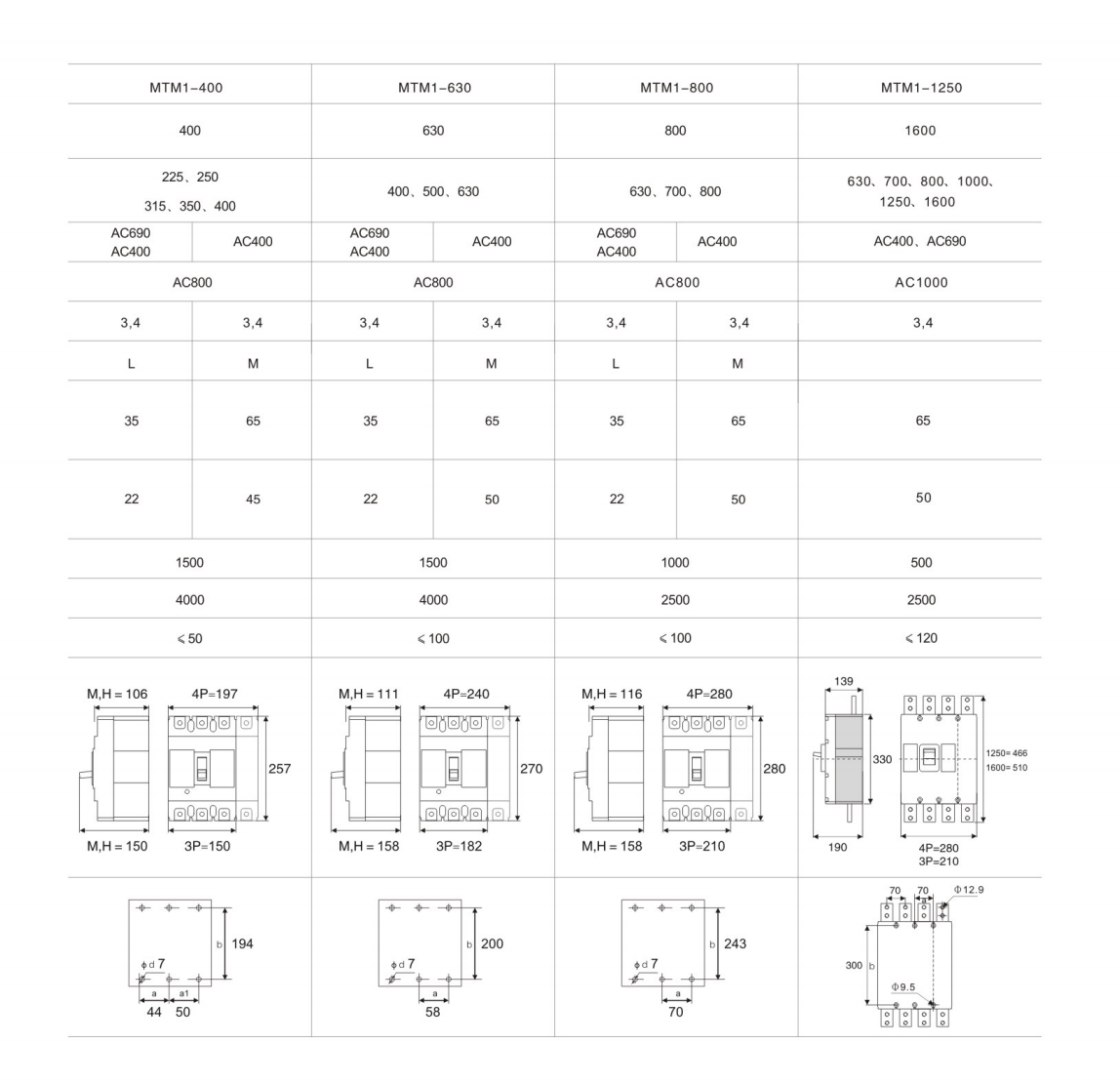

Appearance and installation dimensions：
Appearance and installation dimensions of the wiring in front of the circuit breaker board
| Model | Pole | Overall Dimensions(mm) | Installation Dimensions(mm) | |||||
| L1 | L2 | L3 | L4 | a | b | d | ||
| MTM1E-100 | 3 | 92max | 150max | 110max | 92max | 30max | 129max | Φ4 |
| 4 | 122max | 150max | 110max | 92max | 60max | 129max | Φ4 | |
| MTM1E-225 | 3 | 107max | 165max | 110max | 90max | 35max | 126max | Φ4 |
| 4 | 142max | 165max | 110max | 90max | 70max | 126max | Φ4 | |
| MTM1E-400 | 3 | 150max | 257max | 146max | 106max | 44max | 194max | Φ6 |
| 4 | 198max | 257max | 146max | 106max | 94max | 194max | Φ6 | |
| MTM1E-630 | 3 | 180max | 270max | 146max | 115max | 60max | 200max | Φ6 |
| MTM1E-800 | 4 | 210max | 280max | 155max | 116max | 70max | 243max | Φ6 |
| 3 | 280max | 280max | 155max | 116max | 140max | 243max | Φ6 | |
| MTM1E-1250 | 4 | 210max | 340max | 182max | 139max | 70max | 303max | Φ6 |
Technical specifications (a user manual and detailed specifications will be provided after purchase)：
| 型号 Model | MTM1E-100(125) | MTM1E-225(250) | MTM1E-400 | MTM1E-630 | MTM1E-800 | MTM1E-1250 | |||||||||||||
| 壳架电流 Shell Current Inm(A) | 100(125) | 225(250) | 400 | 630 | 800 | 1250 | |||||||||||||
| 额定电流 Rated Current lr1 | 32 | 63 |
100 (125) |
225(250) | 400 | 630 | 800 | 800 | 1000 | 1250 | |||||||||
|
过载长延时整定电流 |
16,20 25,32 |
32,35 40,45 50,55 60,63 |
63,65 70,75 80,85 90,95 100 (125) |
100,125 140,160 180,200 225(250) |
200,225 250,280 315,350 400 |
400,420 440,460 480,500 530,560 600,630 |
630,640 660,680 700,720 740,760 780,800 |
400,450 500,550 600,650 700,750 800 |
630,680 720,780 820,900 950,1000 |
800,850 900,950 1000,1050 1100,1250 |
|||||||||
|
额定工作电压 Rated working voltage Ue (V) |
400 | 400 | |||||||||||||||||
|
额定绝缘电压 Rated insulation voltage Ui (V) |
800 | 800 | |||||||||||||||||
|
额定冲击耐受电压 Rated impulse withstand voltage Uimp (V) |
8000 | 8000 | |||||||||||||||||
| 极数 Pole | 3,4 | 3,4 | 3,4 | 3,4 | 3,4 | 3 | |||||||||||||
| 分断能力级别 Breaking ability level | M | H | M | H | M | H | M | H | M | H | |||||||||
|
额定极限短路分断能力 Rated ultimate short-circuit breaking capacity lcu (KA) |
AC400V | 35 | 50 | 35 | 50 | 65 | 100 | 65 | 100 | 65 | 100 | 80 | |||||||
|
额定运行短路分断能力 Rated operating short-circuit breaking capacity lCS (KA) |
AC400V | 22 | 35 | 22 | 35 | 42 | 65 | 42 | 65 | 42 | 65 | 50 | |||||||
|
额定短时耐受电流 Rated short-time withstand current lcw (KA)/1s |
5 | 8 | 10 | 15 | |||||||||||||||
| 使用类别 Usage category | A | A | B | B | B | B | |||||||||||||
|
操作性能(次) Operational performance (times) |
电气寿命 Electrical Life | 8000 | 8000 | 7500 | 7500 | 7500 | 500 | ||||||||||||
|
机械寿命 Mechanical Life |
免维护 Maintenance free |
20000 | 20000 | 10000 | 10000 | 10000 | 2500 | ||||||||||||
|
有维护 Maintained |
40000 | 40000 | 20000 | 20000 | 20000 | 5000 | |||||||||||||
|
外型尺寸 Overall dimensions(mm) |
W | 92 | 122 | 107 | 142 | 150 | 198 | 210 | 280 | 210 | 280 | 210 | |||||||
| L | 150 | 165 | 257 | 280 | 280 | 340 | |||||||||||||
| H | 91 | 90 | 106.5 | 115.5 | 115.5 | 138.5 | |||||||||||||
Precision Protection Technology
● An advanced 32-bit microprocessor is the main component that ensures the measurement of the current is precise within ±2%.
● There are 8 protection parameters that can be changed (Ir, Tr, Isd, Tsd, Ii, Ig, tg, k).
● The four-level protection (L-S-I-G) can be configured independently to ensure the safety is at an optimal level.
Intelligent Monitoring System
● It is a real-time monitoring system for electrical parameters which include voltage (U), current (I), active/reactive power (P/Q), frequency (F), power factor (PF), and energy consumption (kWh).
● It can record up to 128 faults with exact time and date.
● The early warning feature is always on to give you a signal of the problem if it ever occurs.
Superior Technical Performance
● Interrupting capacity of up to 100kA (Icu/Ics) at 415V AC.
● Ambient temperature for device use: -40°C to +85°C.
● Absolutely 20,000 mechanical operation cycles at the minimum.
● Two sources power supply (one self-powered and one auxiliary) design to keep the power continuous.
Advanced Communication Features
● Standard RS485 interface enabling Modbus-RTU protocol.
● Available Ethernet and PROFIBUS-DP connection options.
● Possibilities of remote control and real-time monitoring.
User-Friendly Design
● 128×64 graphic LCD display with multilingual interface capabilities.
● The buttons on the front panel are used for setting and also for password protection.
● Communication module, which is plug-and-play, makes the installation process very easy and fast.
Quality Assurance
● It is in compliance with IEC 60947-2 and GB 14048.2 standards.
● 5-year product warranty.
● To ensure the product's reliability, a strict 72-hour testing is done prior to the shipment.
Customization Services
● Custom-made protection curves for application of specialization
● The possibilities of OEM/ODM branding are there
● Functional enhancements through firmware upgrade services
 |
 |
 |

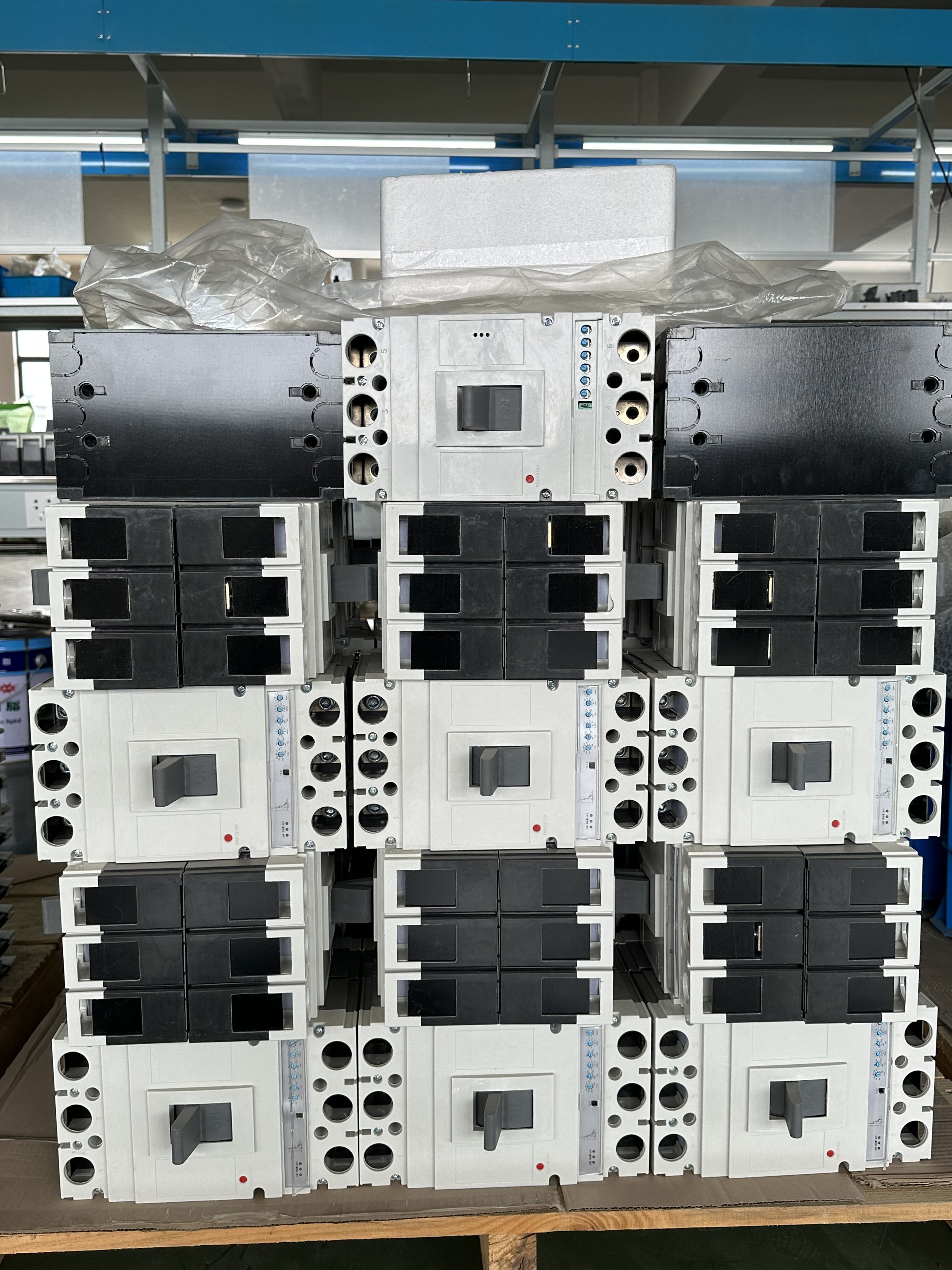

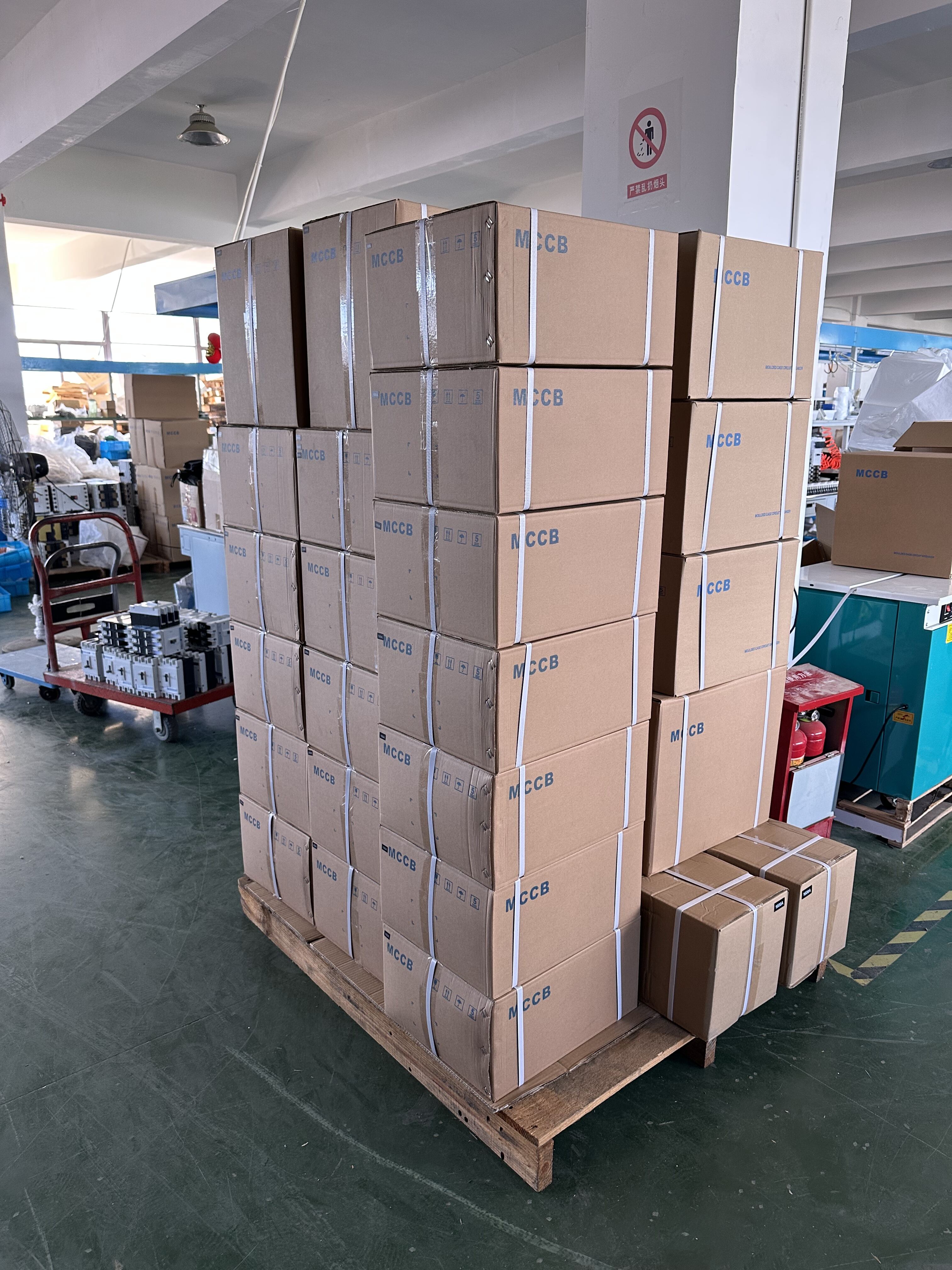

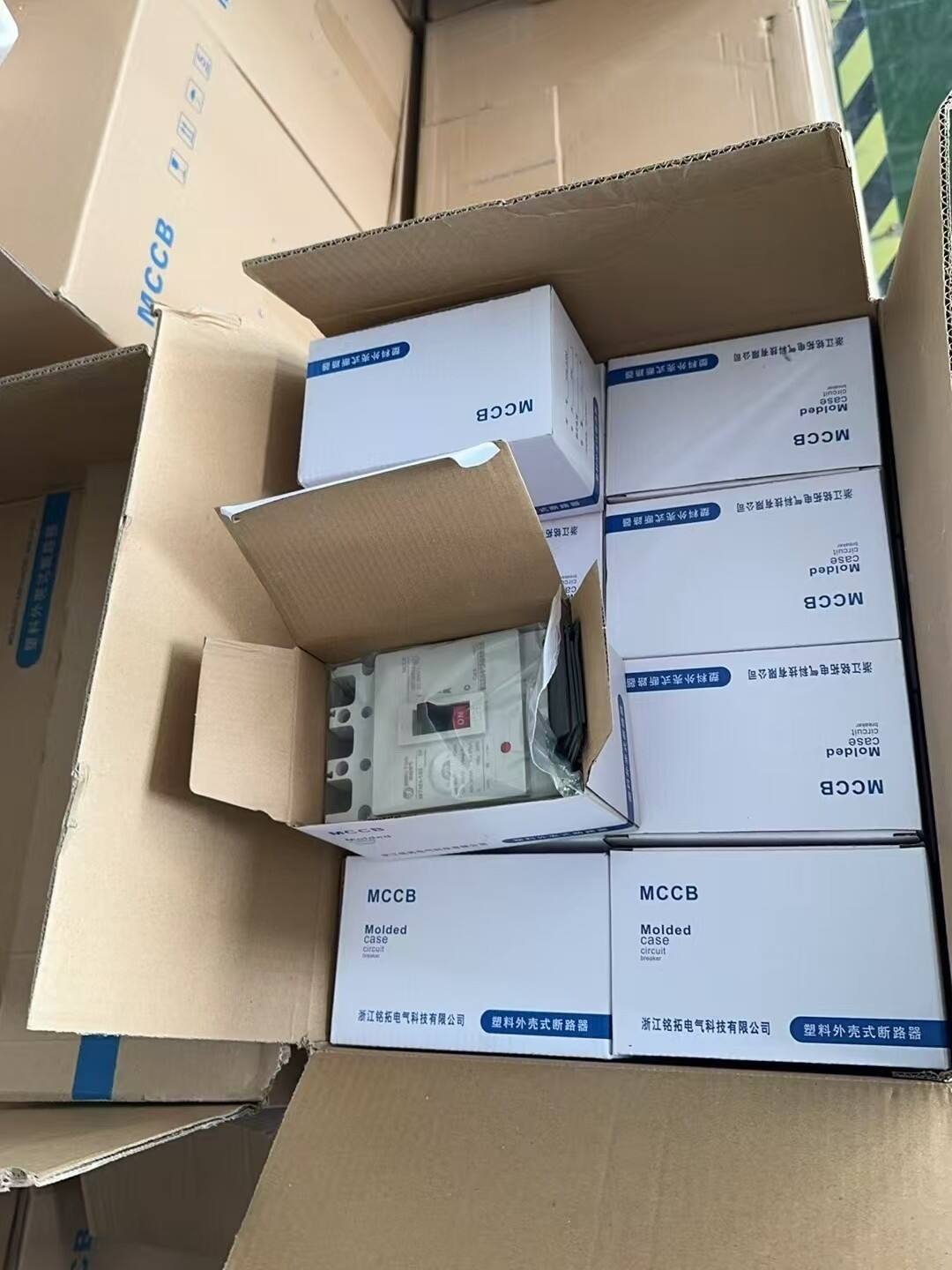

Packaging Specifications
|

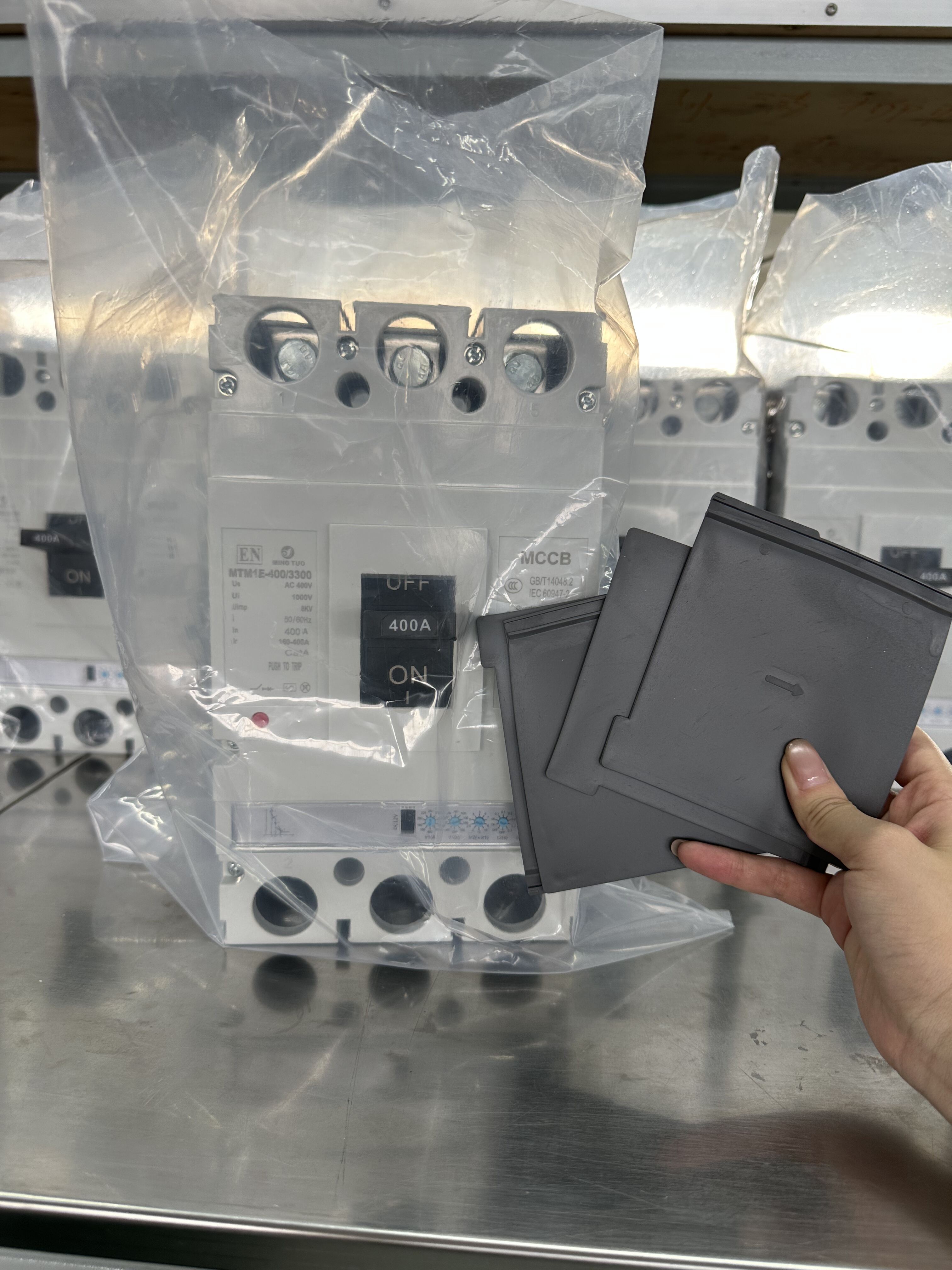

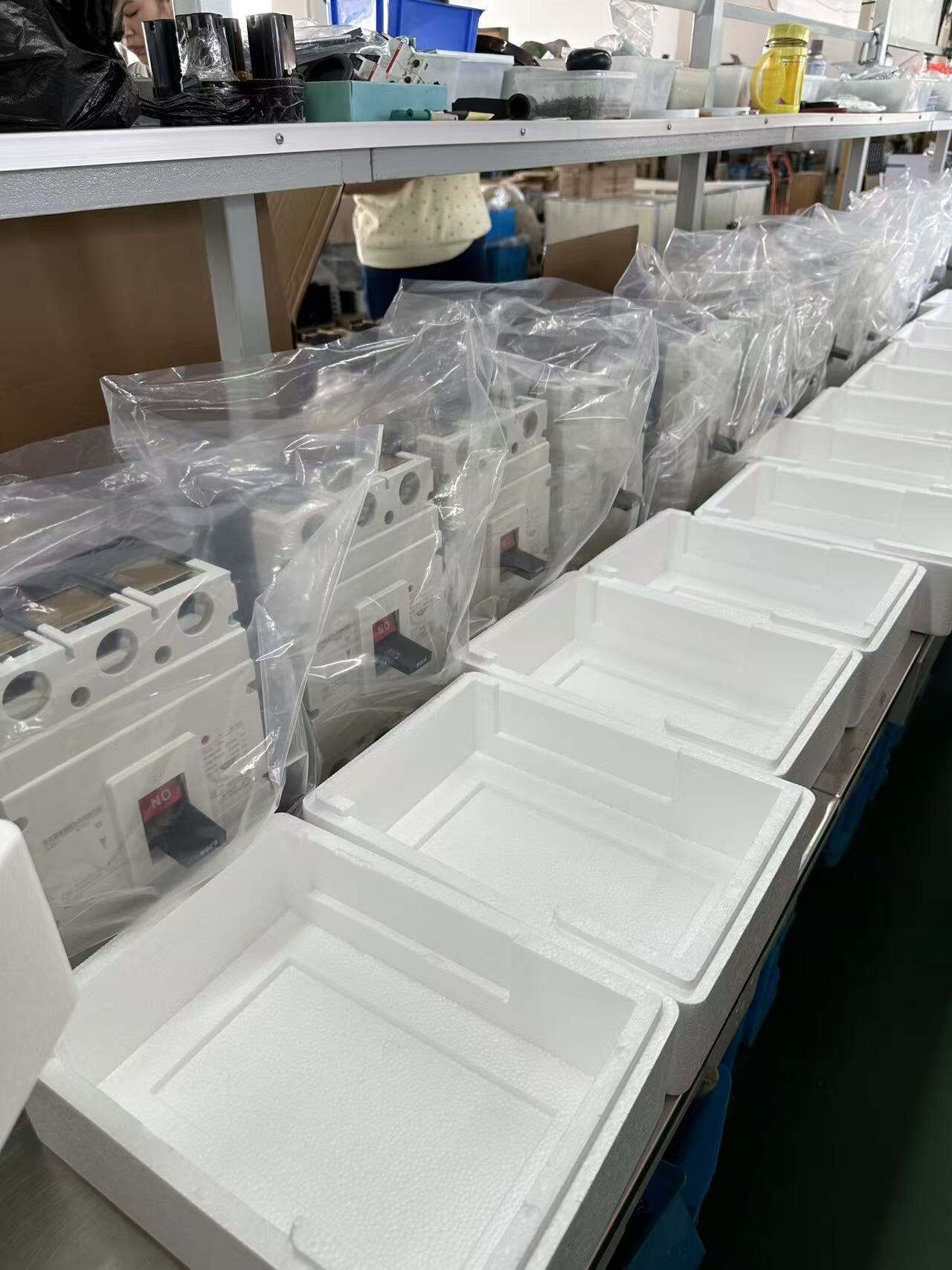

Inner Packaging Protective Cushioning Placement |
 |
Outer Packaging Carton Material Sealing Method |
|
Marking & Labeling Each carton is clearly printed with essential information, including: product model, quantity, weight, manufacturer, and relevant shipping labels (e.g., “Fragile,” “This Side Up,” “Keep Dry”). All markings are placed visibly on the exterior of the box. |
 |

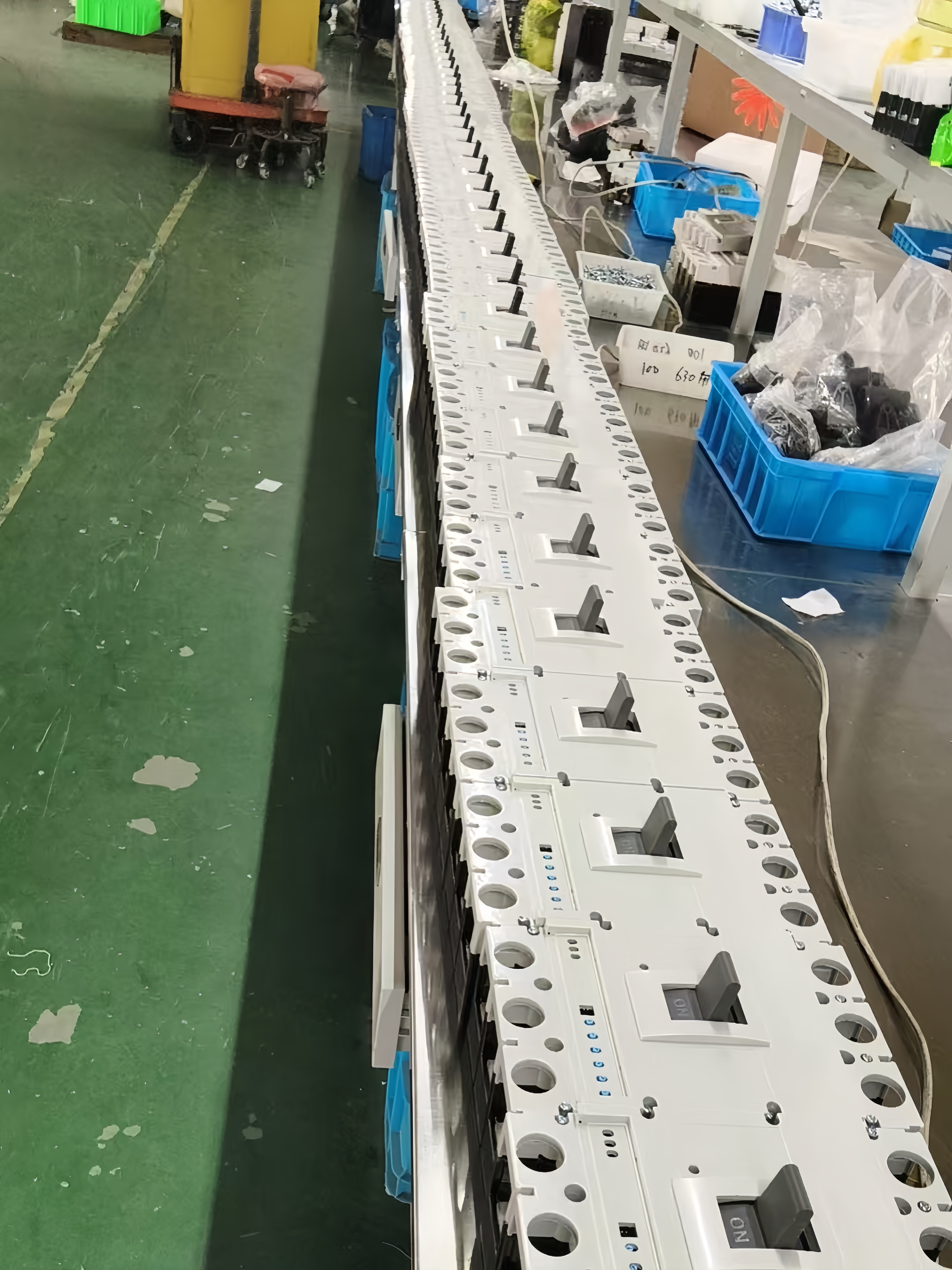

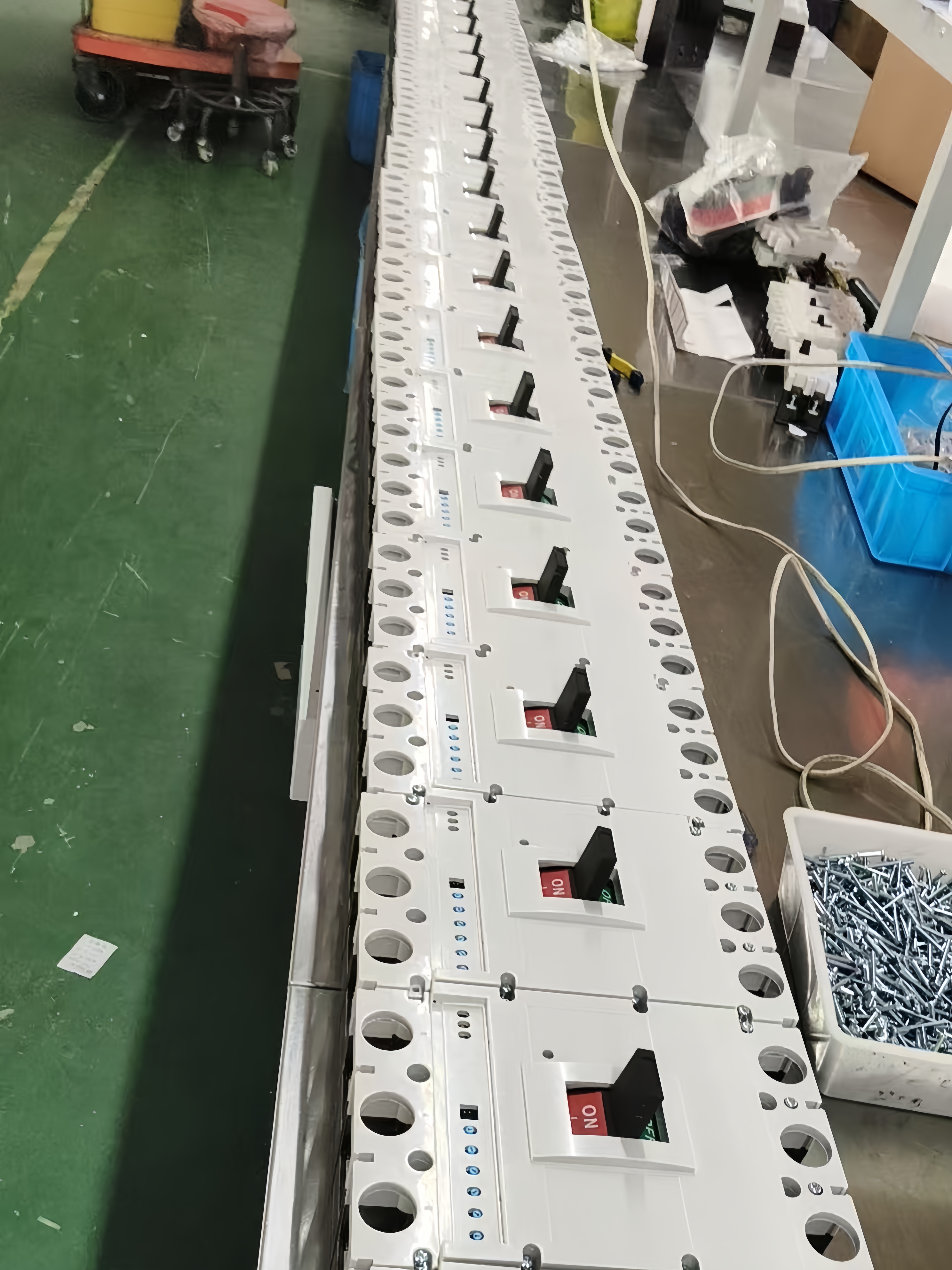

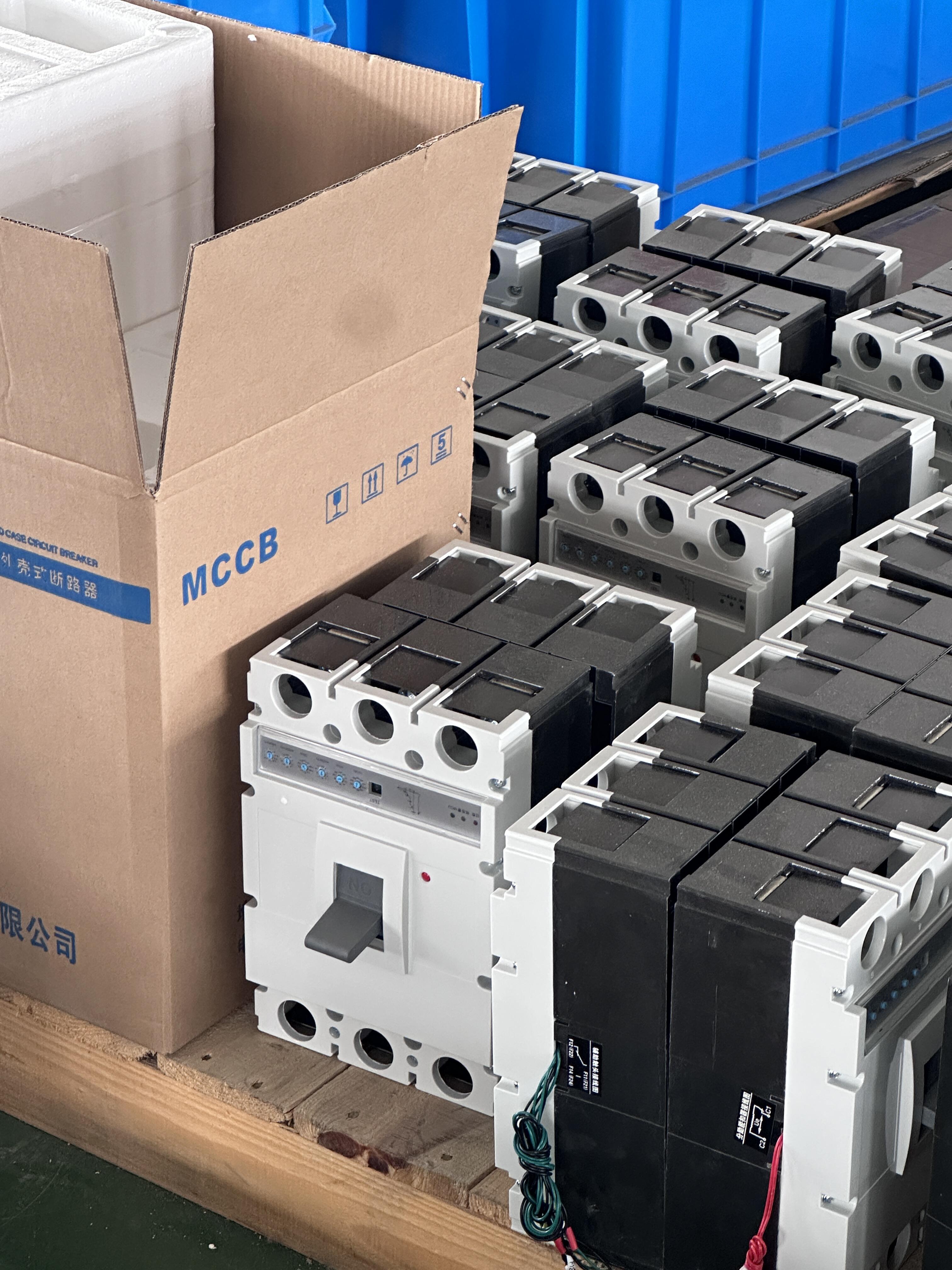

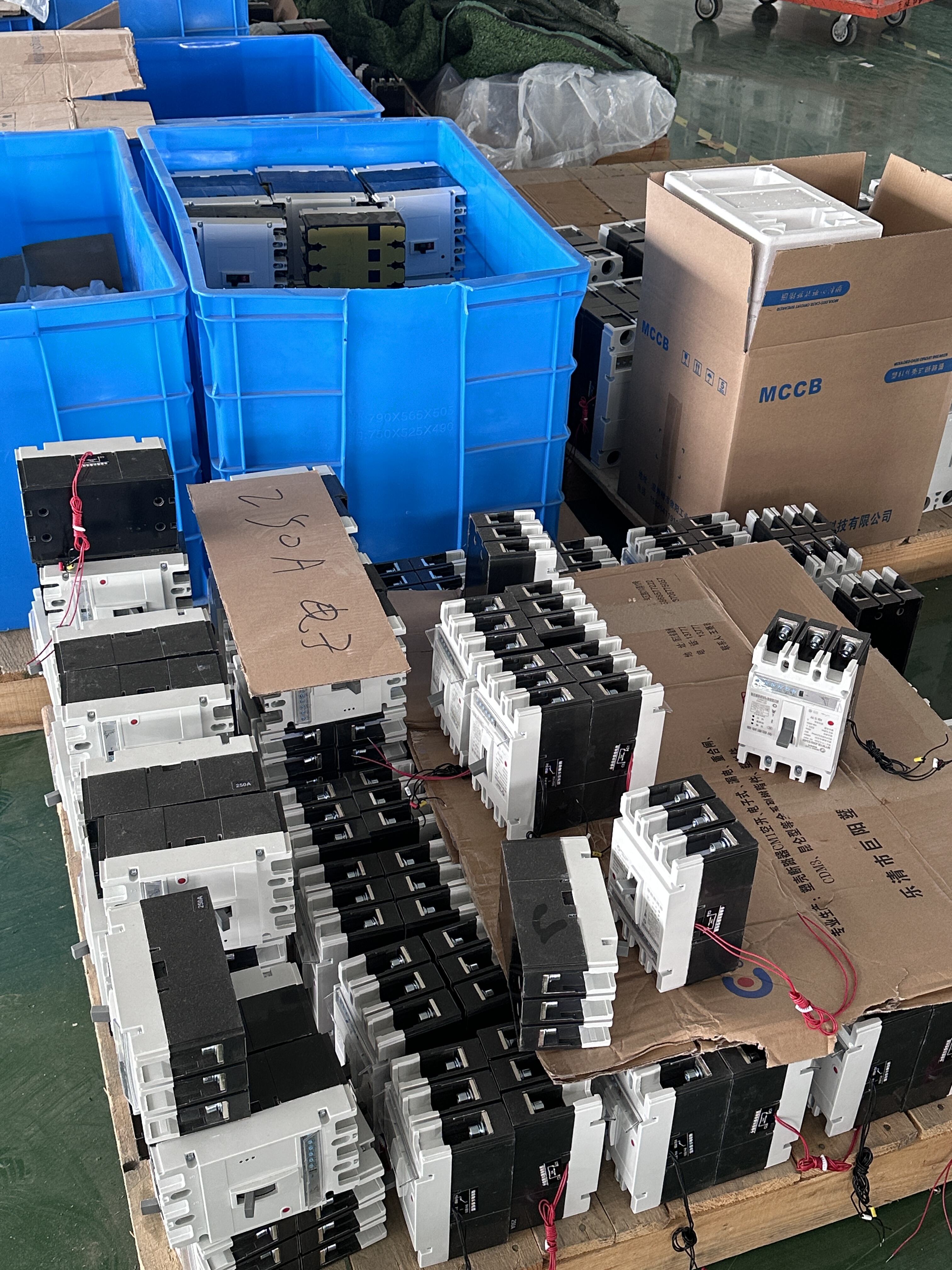

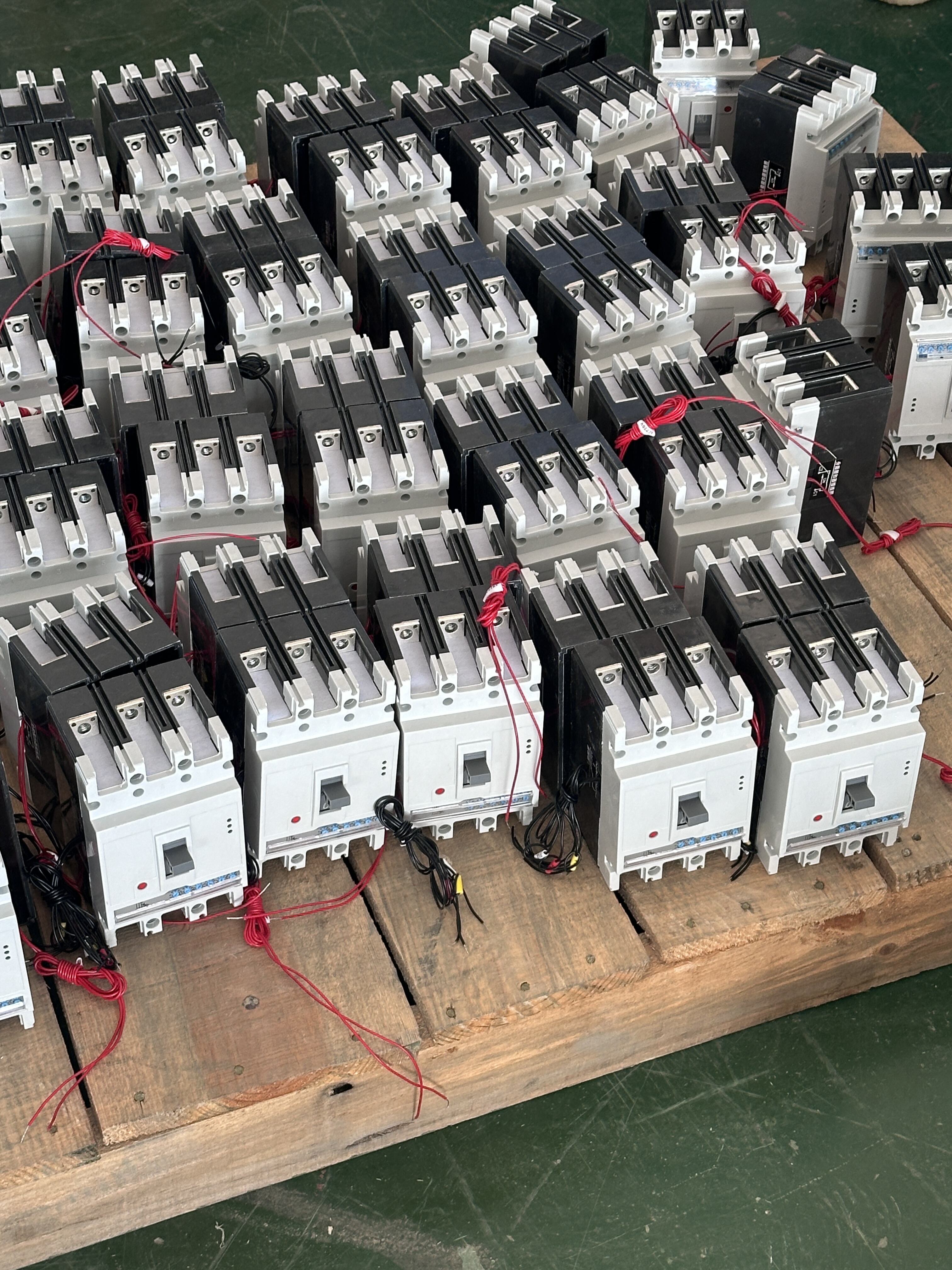

Production Line
 |
 |
 |
 |
Critical Power Systems
● Power distribution units (PDUs) serving data centers
● Emergency power circuits in hospitals
● Backup power for airports and the transportation systems
● Redundant power systems for financial institutions
Industrial Automation
● Control panels for manufacturing processes
● Motor control centers equipped with accurate protection features
● Power management for production lines
● Industrial machinery having complicated motor starting requirements
Energy Management
● Building Management Systems (BMS)
● Smart grid and energy distribution applications of a new level
● Renewable energy installations
● Centralized power monitoring and control centers
Specialized Applications
● Protection systems for transformers and generators
● Backup power solutions for the most important circuits
● Main breakers for load centers
● Industrial and commercial setups with specialized circuit protection
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
