Model meaning

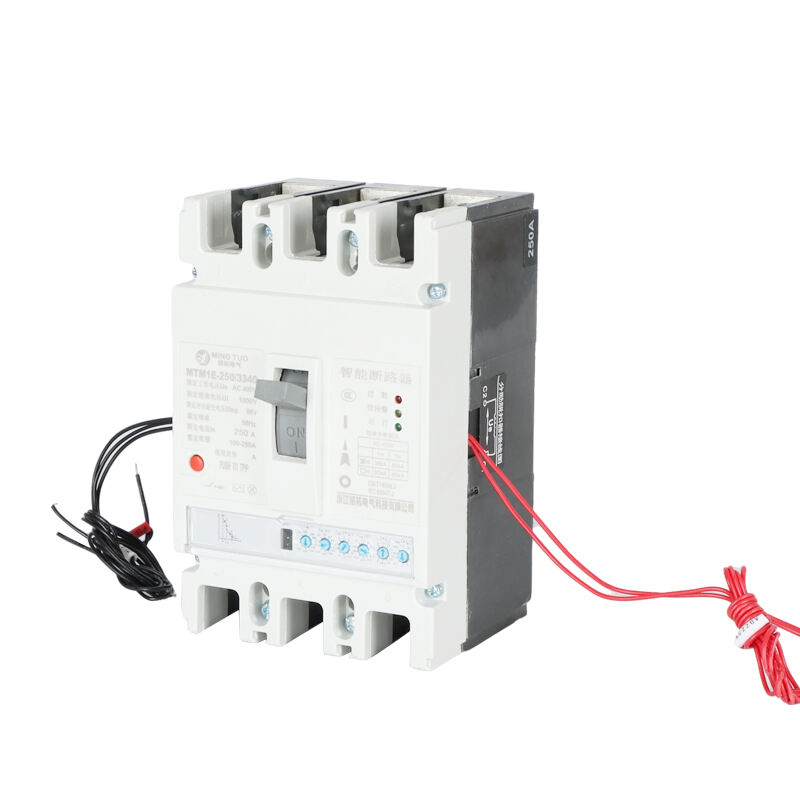

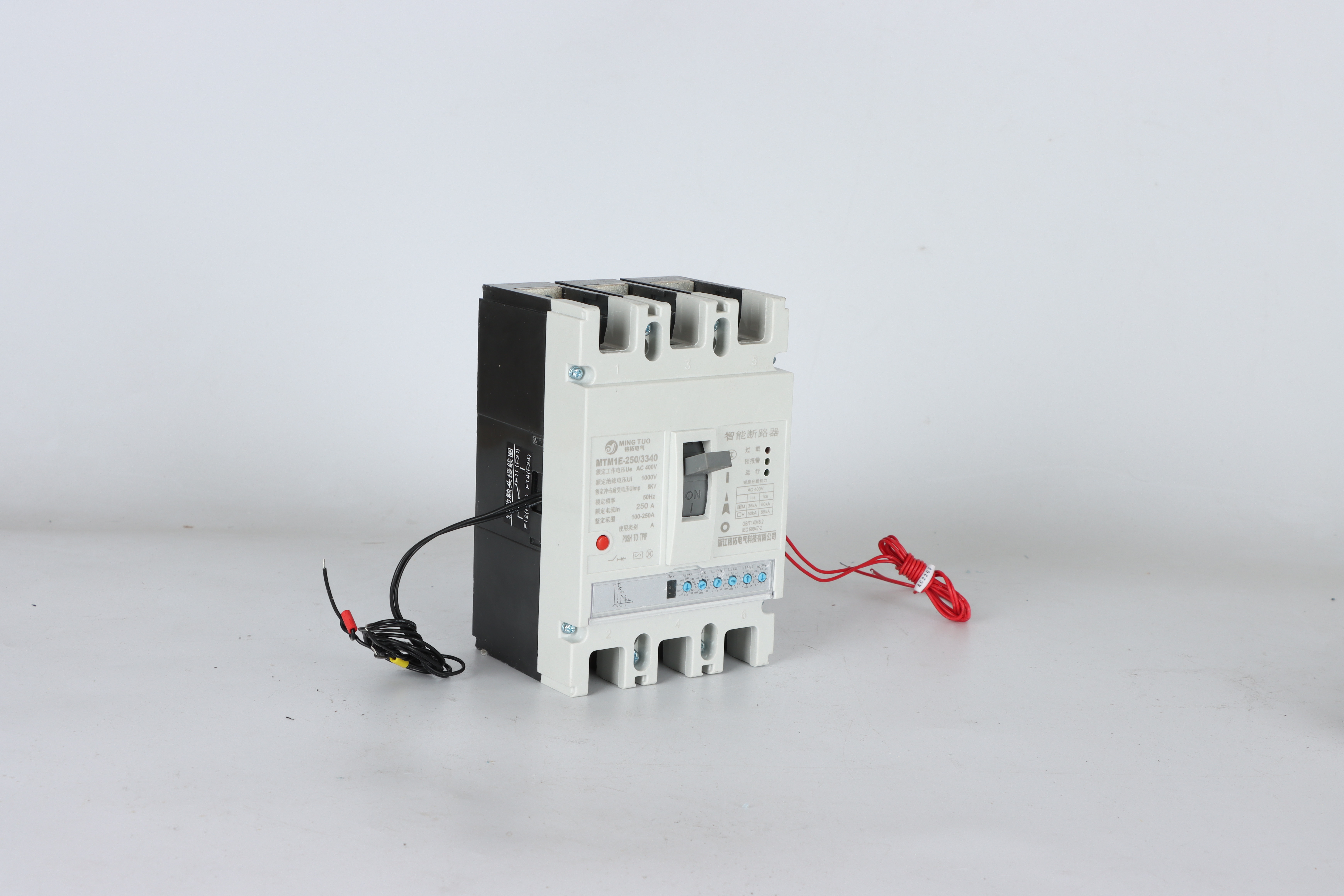

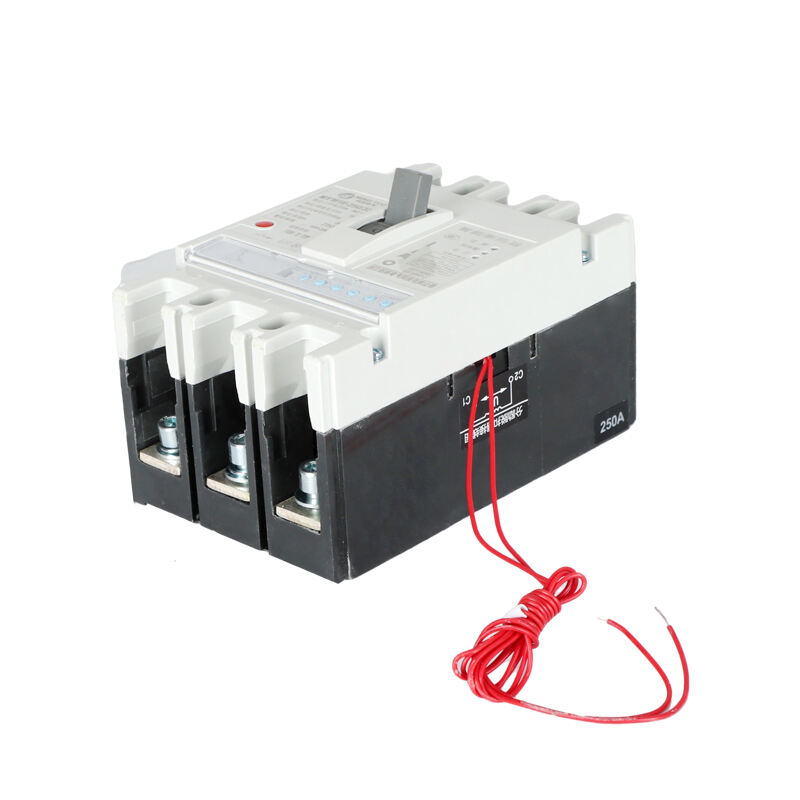

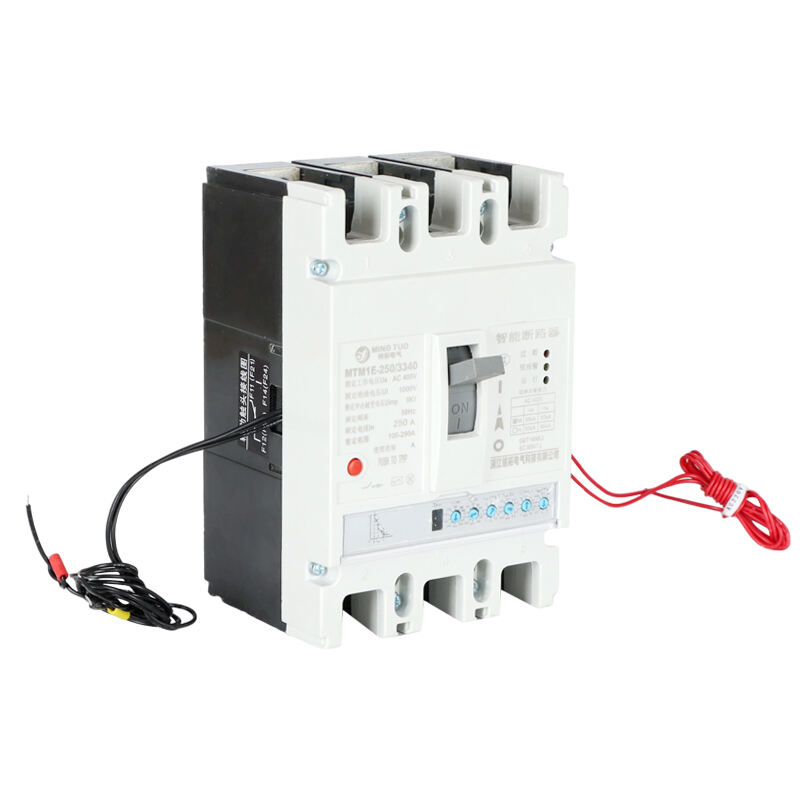

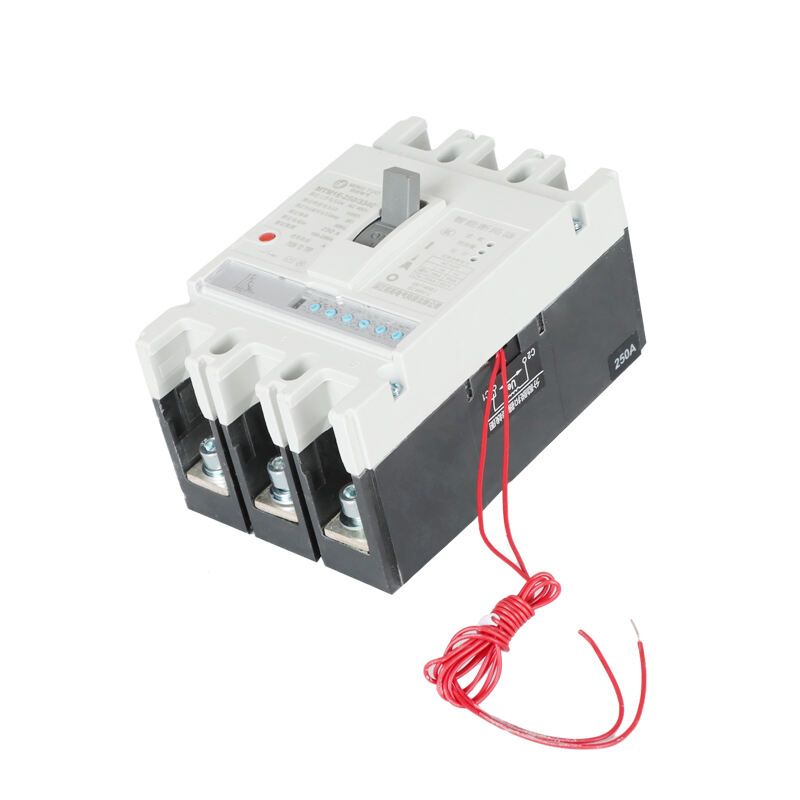

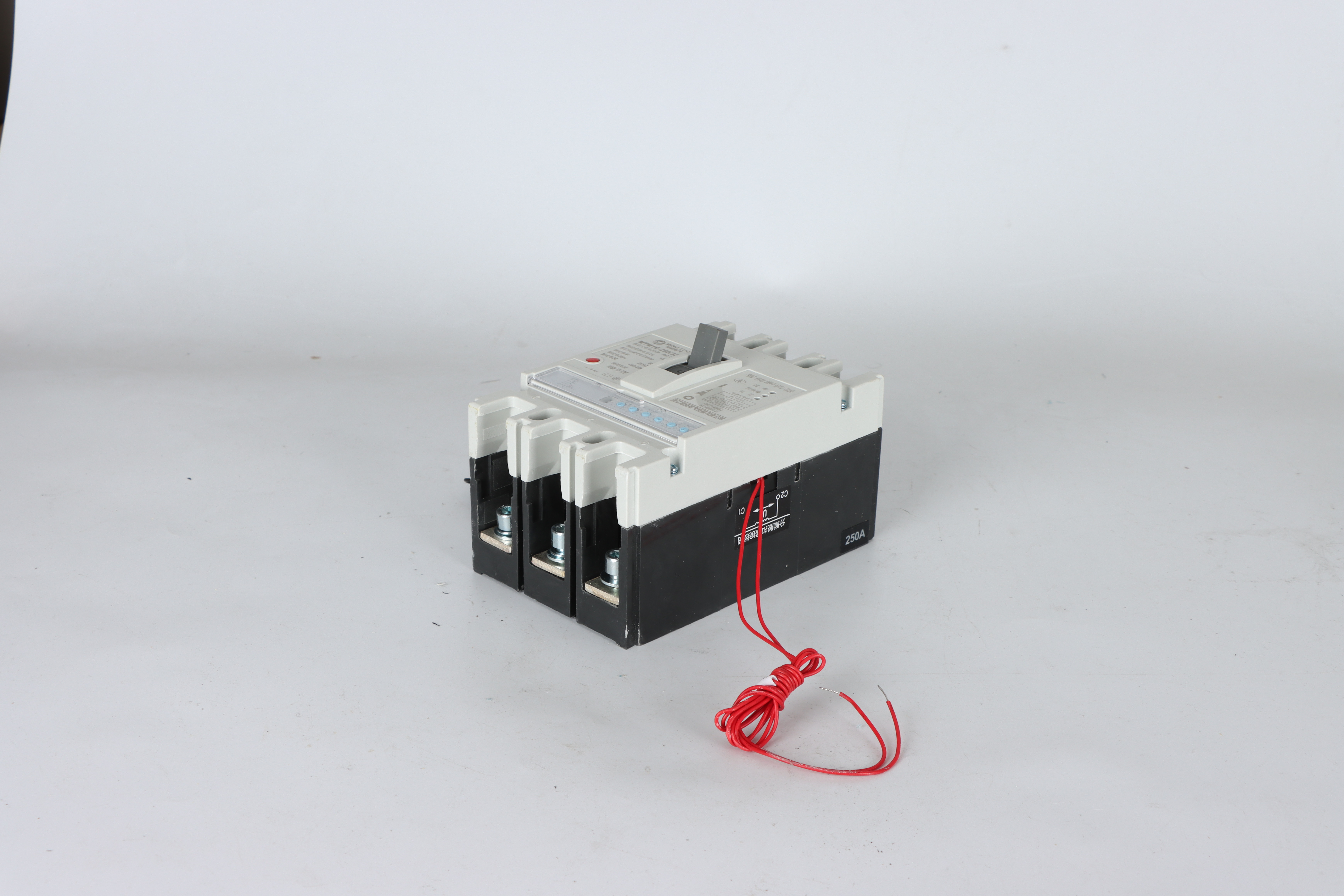

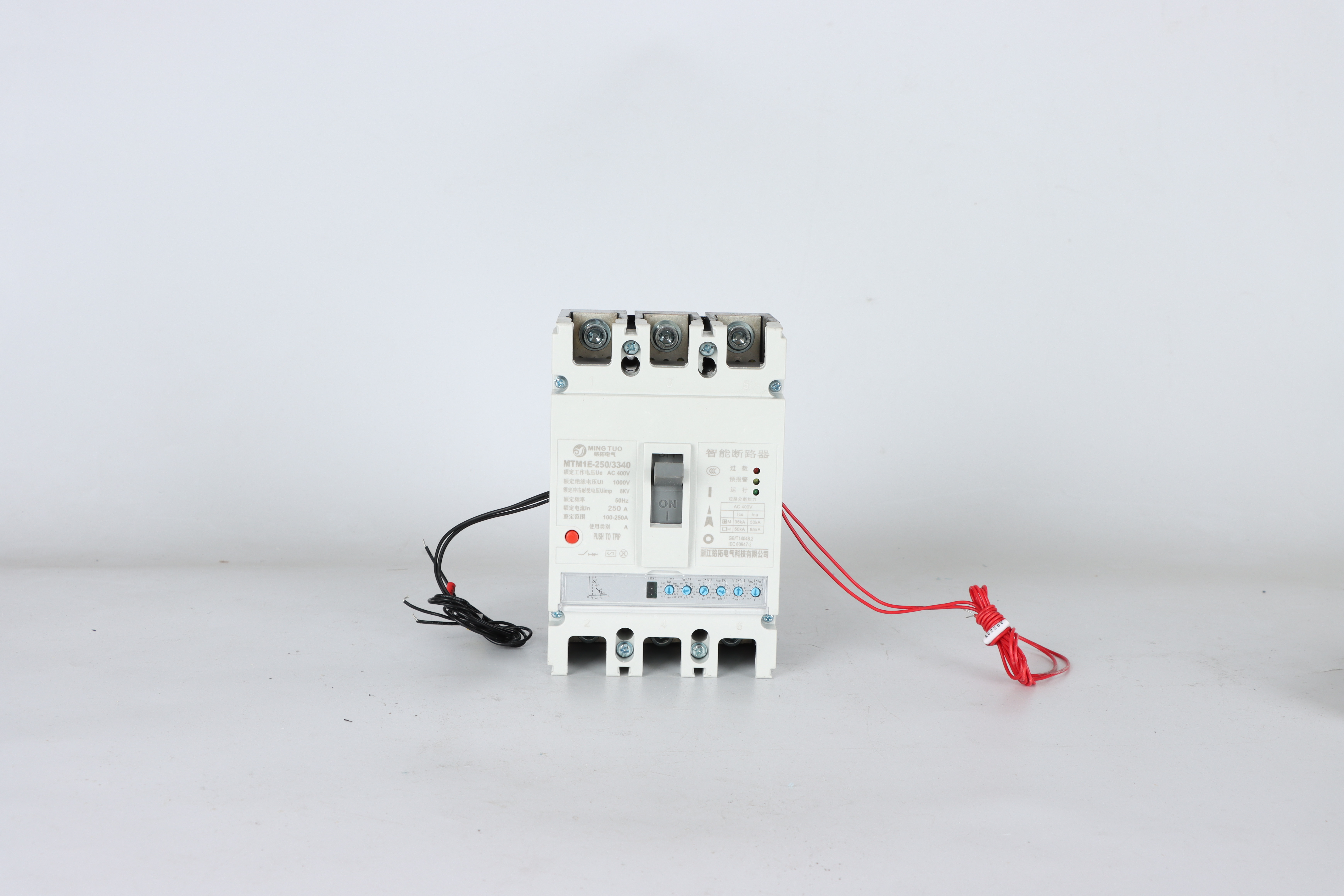

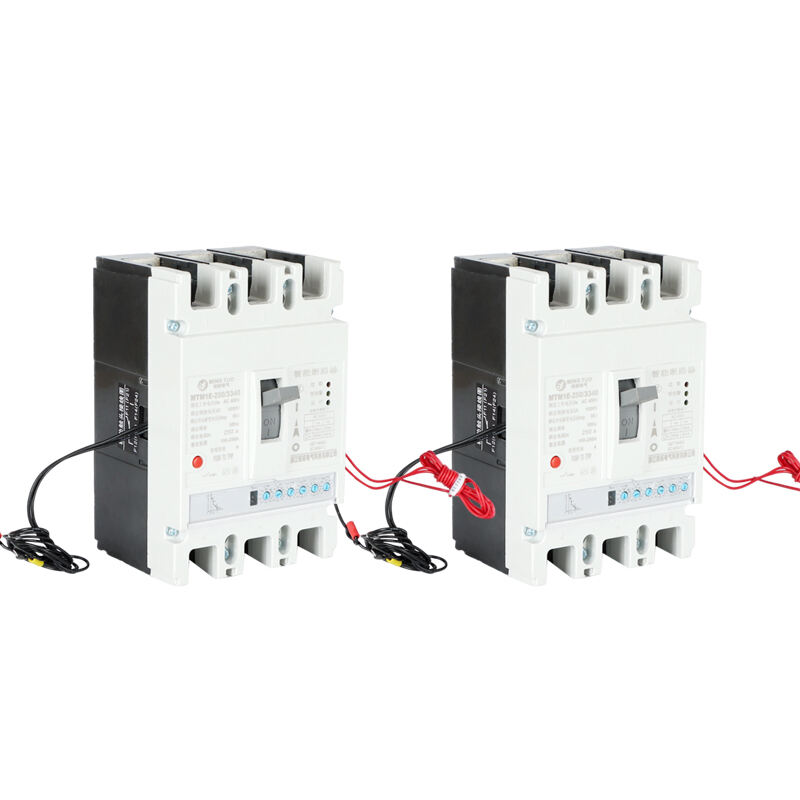

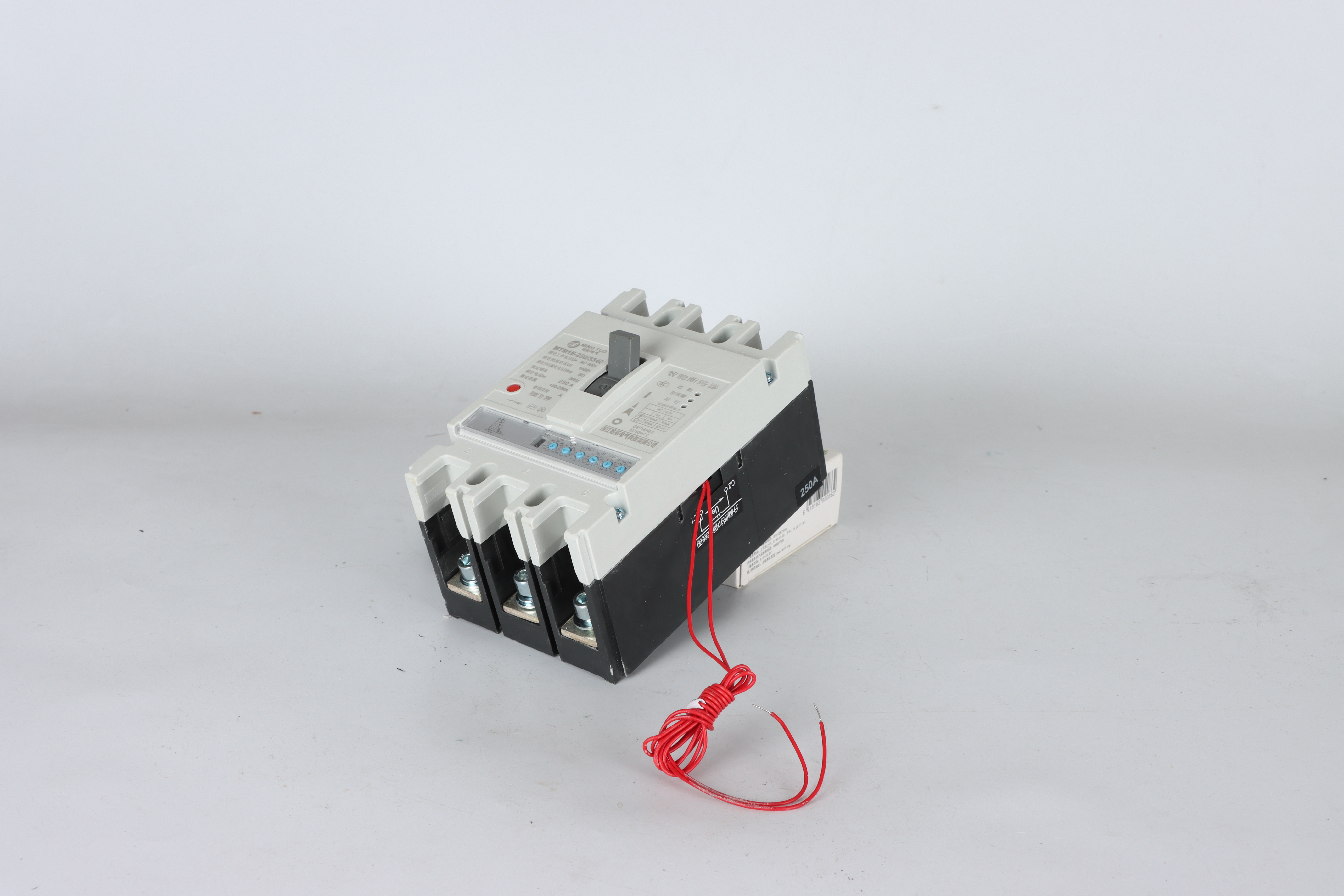

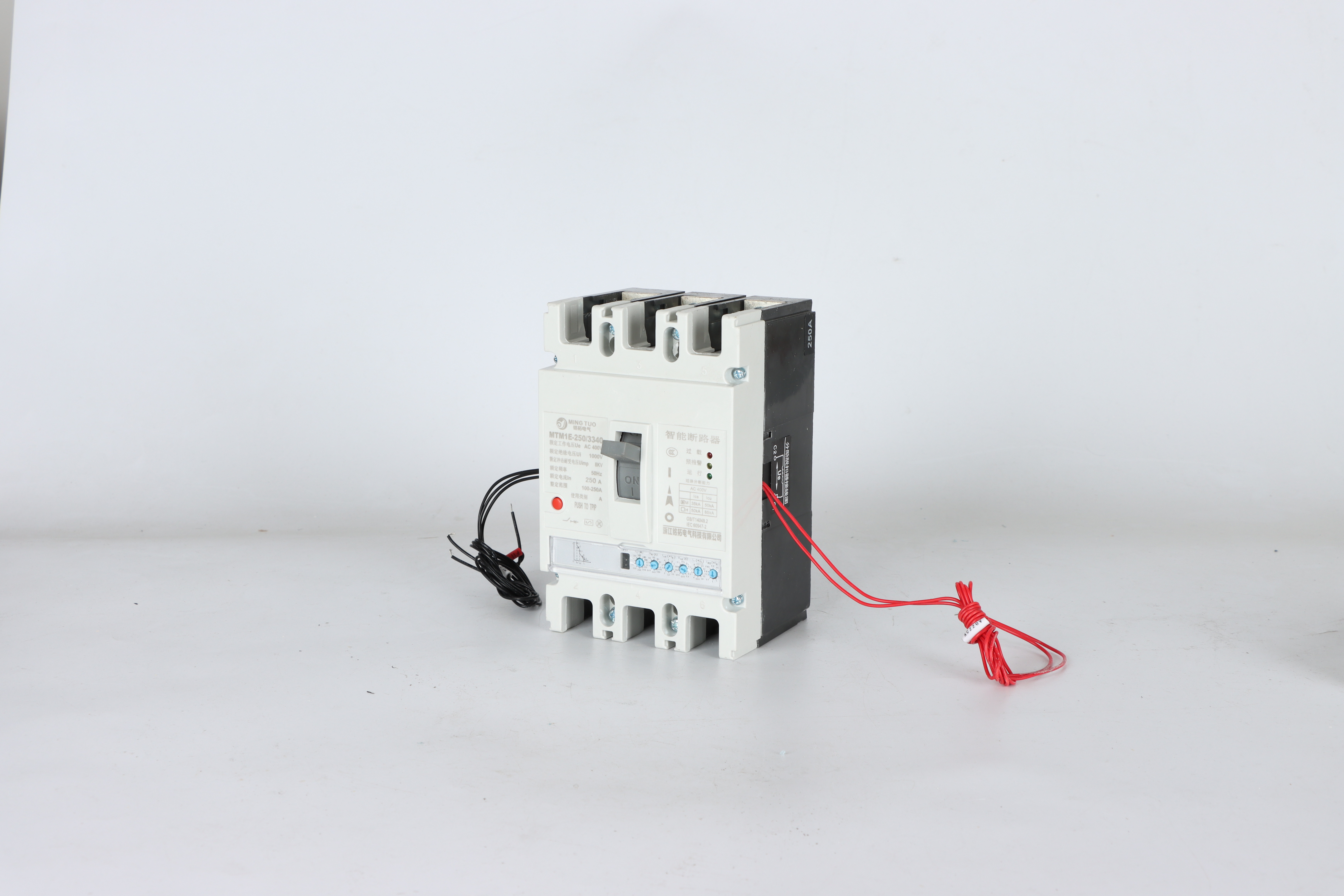

The MT-M1 series names the product, and the 63A–1600A figures show the maximum rated current capacity of this electronic molded case circuit breaker (MCCB). “Electronic MCCB” is the main keyword, with AC (alternating current) and DC (direct current) as possible supporting descriptors.
The circuit breaker has a rated insulation voltage of up to 800V. It is made for AC 50Hz power distribution networks with a rated operating voltage up to 400V and a rated operating current up to 800A. It is intended for the distribution of power and the protection of the circuits, and the electrical equipment against overload, short-circuit, undervoltage and other electrical faults. Additionally, the device can also be used for the infrequent starting of motors while ensuring that the overload, short-circuit, and undervoltage protection is maintained.
This MCCB achieves a strong performance and is practical, besides being small in size and having a high breaking capacity and a short arc. It can be installed both vertically (upright) and horizontally, depending on the type of mounting. The product is manufactured according to IEC 60947-2, GB 14048.2, and other standards.
General product information
Place of Origin: |
5th Floor, No. 3, Jinghong West Road, Liushi Town, Yueqing City, Wenzhou City, Zhejiang Province |
Brand Name: |
MINGTUO |
Model Number: |
MCCB MT M1 -160 |
Certification: |
IOS CE ROHS |
Product Commercial Terms
Minimum Order Quantity: |
1 |
Price: |
31$ |
Packaging Details: |
Wooden box packaging |
Delivery Time: |
Within fifteen days |
Payment Terms: |
100% prepaid, 70%/30%, 80%/20% |
Supply Ability: |
Available at any time |
Key Features:
- Programmable protection curves (L, S, I, G)
- LCD display for parameters and measurements
- Communication-ready (RS485, Modbus protocol)
- High breaking capacity up to 100kA at 415V
- Wide current range: 100-1600A
- DIN rail and panel mounting compatible
Advanced Capabilities:
- Real-time current and voltage monitoring
- Energy consumption measurement
- Pre-alarm and fault warning functions
- Event recording and data analysis
- Remote operation via communication interface
Primary Applications:
- Smart distribution systems
- Data center power management
- Industrial automation networks
- Building management systems
- Critical power infrastructure
1. Prices that can compete in the market, quality assured by the factory
2. Housings available for personalization
3. Deep production and installation experience, always willing to help
4. Support during commissioning and choice
Technical details (after the purchase, an instruction manual and detailed specifications will be handed over).
Q: What is the voltage/current range of this product? What is its breaking capacity?
A: Please contact customer service for details.
Q: What is the minimum order quantity? Do you accept sample orders?
A: The minimum order quantity is 1 set, and we accept sample orders.
Q: What is the warranty period? How do I apply for a warranty?
A: The product warranty is 1 to 2 years. Please contact customer service directly to apply.
Q: Do you have CE, RoHS, UL, or other certifications? Can you provide certificates?
A: We have CE and RoHS certifications and can provide certificates.
Q: Does the price include tax/shipping?
A: The price does not include shipping/tax.
Q: What notable clients or project examples have you worked with?
A: State Grid Corporation of China, Chint Group.
